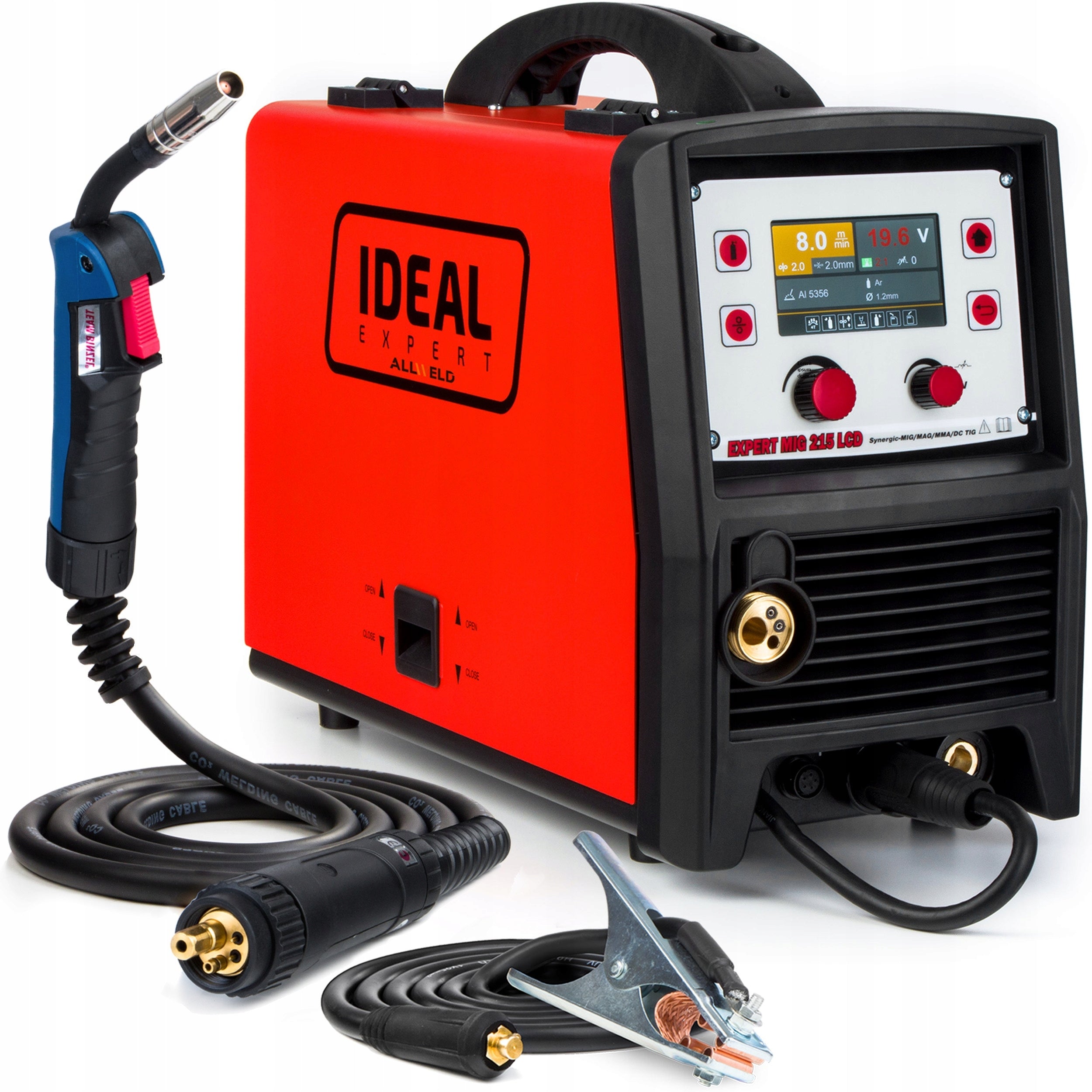

Suvirinimo aparatas IDEAL EXPERT MIG 215 LCD, MMA, TIG, 200A, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MIG 215 LCD, MMA, TIG, 200A, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT MIG 215 LCD

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG DC ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

CHECK WHAT YOU GAIN BY CHOOSING IDEAL EXPERT MIG 215 LCD:

• Three working methods: MIG/MAG, MMA, TIG DC
• Welding without gas - FLUX
• Lutowelding
• Ideal welding machine for car repair
• Welds perfectly stainless, steel, aluminium, galvanized bodies and highly durable steel

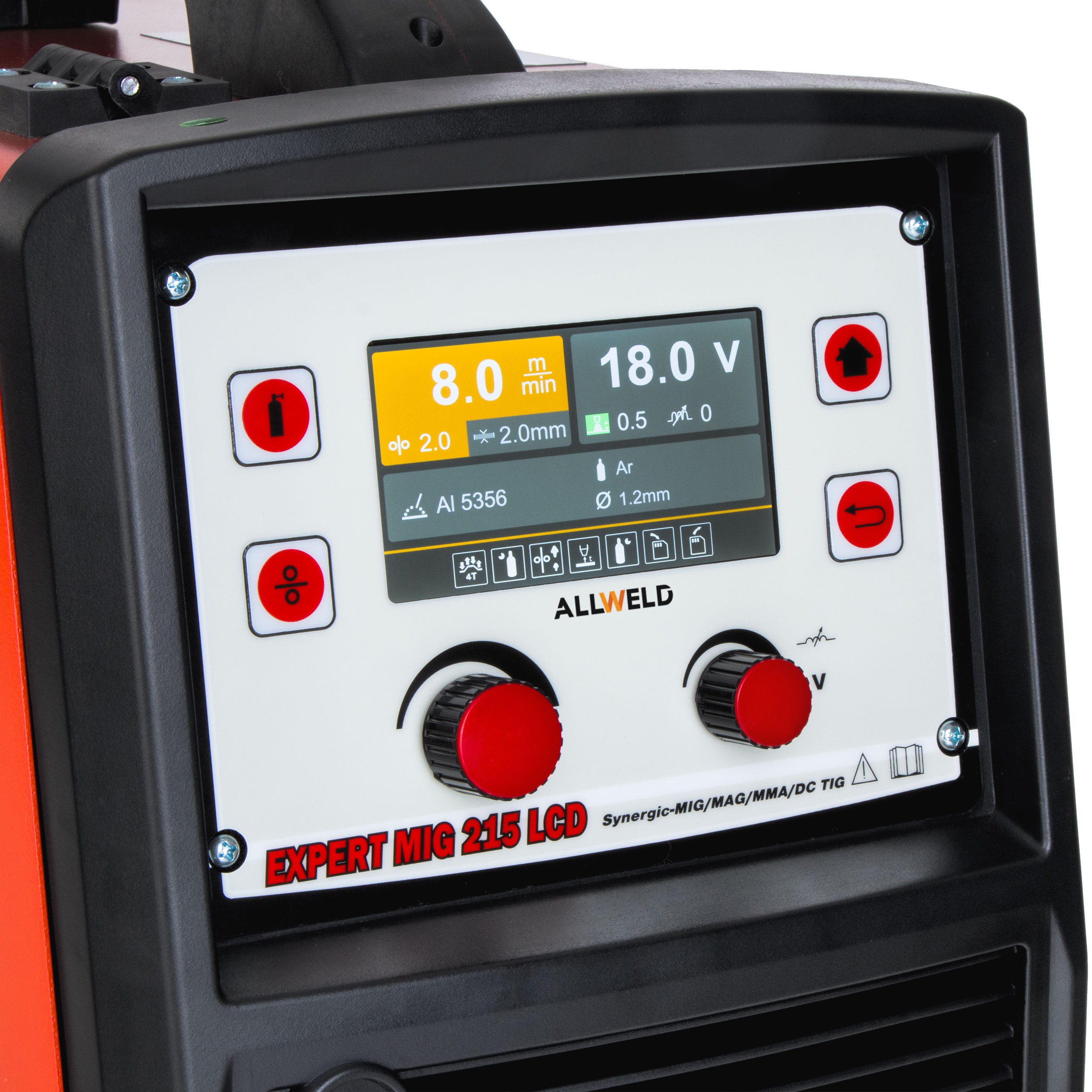

• Functional, easy-to-read LCD display indicates welding current, welding voltage, wire feed speed
• Built-in Polish
• Simple operation of the device
• Synergy with thickness adjustment of the welded material
• Possible work with generator generator (+/-15%)
• Hand for easy carrying
• Welding arc control system
• Possibility of manual arc setting
• Precise adjustment of welding arc length
• Made in IGBT technology
• Operating mode 2T/4T
• Spot welding SPOT
• ARC FORCE
• HOT START
• possibility of connecting the SPOOL GUN holder
• Protection against overload, overvoltage and undervoltage

CHECK WHAT ELSE YOU GAIN BY CHOOSING THE SEMI-AUTOMATIC IDEAL !

VERSATILE DEVICE

Ideal EXPERT MIG 215 LCD is a welding machine that is a versatile device. It allows welding using MIG-MAG, MMA, TIG DC LIFT methods. An additional advantage is the possibility of welding with self-shielding wires (FLUX). Widely used from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum.

SIMPLE AND USER-FRIENDLY WELDING MACHINE

Quick synergistic adjustment of welding parameters via the LCD in Polish makes the device very easy to use. All you need to do is set the thickness of the welded material and start welding: intelligent and automatic welding arc control system, step by step, will select the best parameters, for each welding position and for each material. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

SOLDERING

The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined, which are often used in car bodies. The main advantage of MIG MAG solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

POSSIBILITY OF USING SPOOL GUN HANDLE AND OTHER ADVANTAGES

IGBT - a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.

2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.

FULL SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.

SPOT WELDING - MIG MAG function rarely found in this class of devices is much more versatile than in TIG, although showing lower metallurgical purity. It does not require a perfect combination of elements.

HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.

SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle.

PRE GAS + POST GAS - a function helpful to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

LIST OF PROGRAMS IDEAL EXPERTMIG 215 LCD

FE (CO2) - CO2 shielded welding of black steel

FE (MIX) - welding of black steel in Ar/CO2 mixture cover

FLUX - self-shielded wire welding

Powder - powder wire welding

INOX - welding of chromium-nickel steel (stainless steel/acid)

AlMg - welding of aluminium with magnesium

AlSi - welding aluminium with silicon

CuSi - soldering of galvanized steel

MANUAL - manual setting mode

TECHNICAL DATA:

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz
• Power protection: 16A
• Power consumption max.: 6,4 kVA

TECHNICAL PARAMETERS

• MIG/MAG welding current: 40 ÷ 200A
• MMA welding current: 10÷180A
• TIG welding current: 10÷180A
• Idle voltage: 69 V
• Efficiency: 60% (for temp. 20°C)
• Efficiency: 40% (for temp. 40°C)
• Feeder: 2R - professional
• Spool diameters with wire: to 200mm
• Max. Spool size: 5kg
• Steel wire diameter: 0.8/1.0 mm
• Aluminium wire diameter: 0.8/1.0 mm
• Diameter of soldering wire: 0.8/1.0 mm
• Diameter of self-shielding wire: 0.8/1.0/1.2 mm
• Wire diameter for stainless steel: 0.8/1.0 mm

ADDITIONAL FUNCTIONS

• Function 2/4 BAR: Yes
• ARC FORCE function: Yes
• HOT STAR function: Yes
• Lutowelding: Yes
• SPOOL GUN handle connection: Yes
• PRE GAS function: Yes
• POST GAS function: Yes
• Tig LIFT: Yes
• Working with a generator: Yes

PHYSICAL PARAMETERS

• Housing protection: IP21
• Overload protection: over and undervoltage
• Cooling: fan
• Dimensions: 540x240x410 mm
• Weight: 19kg

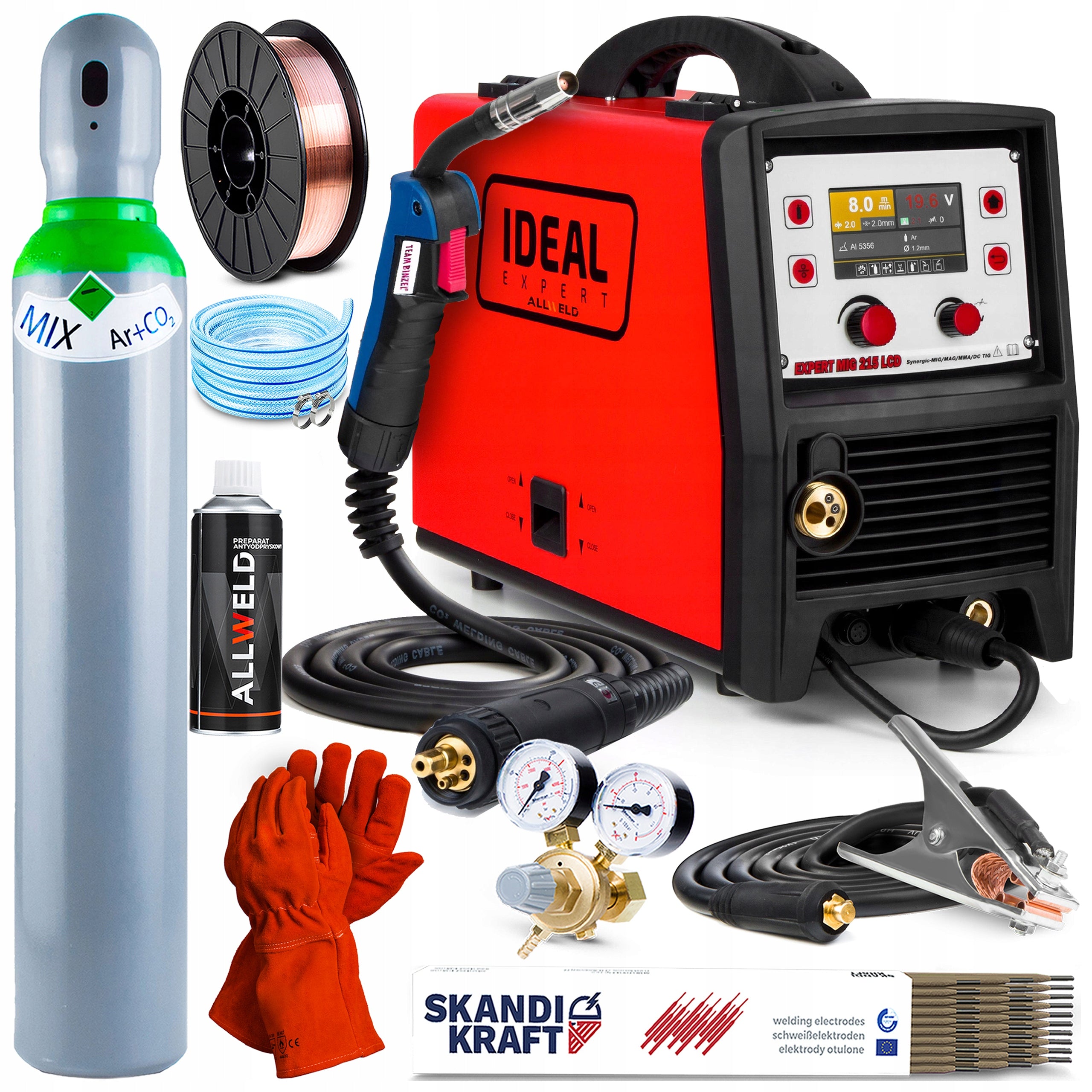

THE SET INCLUDES:

• Welding machine IDEAL EXPERT MIG 215 LCD
• Welding torch BINZEL MIG/MAG type MB15 - 3m
• Bulk holder - 3m
• Operating manual and warranty card

WELDING ACCESSORIES:

• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 5kg
• Anti-chipping preparation ALLWELD
• Electrodes SKANDI KRAFT 1kg - 1pcs
• Gloves welding - 1 pair
• Gas connection hose - 1 pc
• Clamp bands - 2pcs

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5 kVA
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	19 kg
Parametry	Product weight with unit packaging	19 kg
Parametry	Manufacturer code	EXMIG215LCD #ZESTAW1AK
Parametry	EAN (GTIN)	5907195561796
Parametry	Packaging status	original
Parametry	Model	EXPERT MIG 215 LCD
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO holders,LCD display
