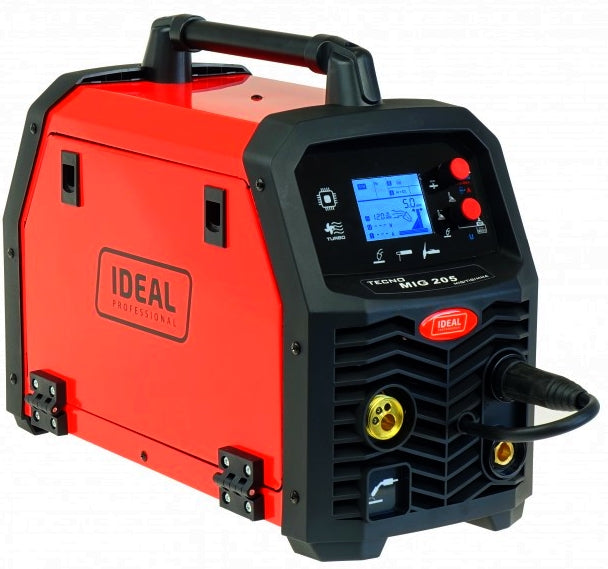

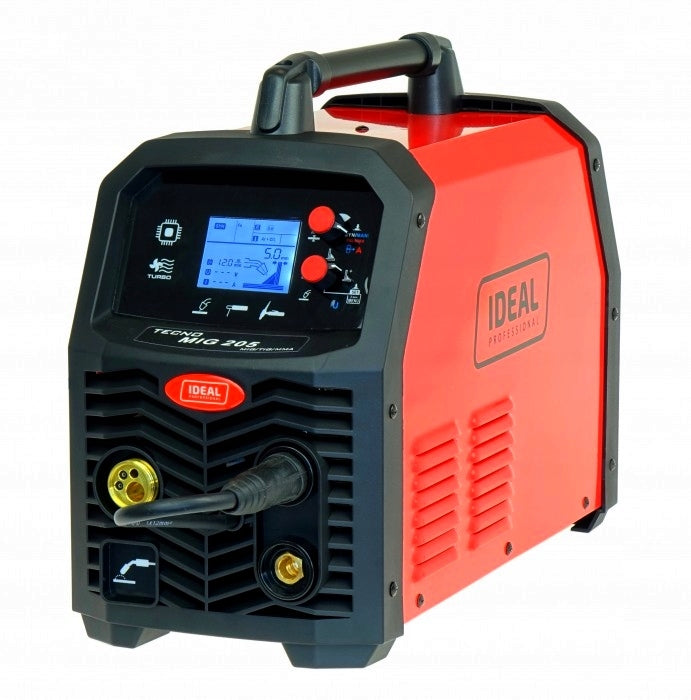

Suvirinimo aparatas IDEAL 200A SYNERGY ATC POINT MMA TIG 4T

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL 200A SYNERGY ATC POINT MMA TIG 4T. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG205LCD
• Ilgis: 540 mm
• Plotis: 240 mm
• Aukštis: 385 mm

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

IDEAL TECNO MIG 205 LCD is an inverter synergic semi-automatic welding machine designed for arc welding using the following method:

• MIG MAN - MIG-MAG welding in manual (traditional) mode
• MIG SYN - MIG-MAG welding in synergic mode
• MMA - Welding with the use of fusible rutile, basic, acid coated electrodes
• TIG LIFT - Welding using a special handle with a valve, the arc is then ignited by lightly rubbing the non-melting electrode against the welded material.
• FLUX / FCAW - Welding with self-shielding wire

as well as BRAZING OF GALVANIZED SHEETS.

The IDEAL TECNO MIG 205 LCD welder is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steels

✔ aluminum and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops, factories, etc.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

➡ The device is equipped with overload protection , which increases its reliability.

❄ The device has a fan cooling system , which significantly increases its efficiency.

The IDEAL TECNO MIG 205 LCD SYNERGY device has, apart from other advantages, unheard of in this class of devices, synergic programs for welding aluminum and for brazing with CuSi3 wire. The design and software allow to obtain the highest quality weld when welding all weldable materials, made of black steel, stainless steel, copper alloys and aluminum.

☀ SYNERGY - is a ready-made program, thanks to which, based on a few entered data, it facilitates the preparation of the device for work in the right way. Synergy is a great convenience for DIY enthusiasts as well as for professionals.

List of synergic programs:

• Fe - non-alloyed low-alloy steels
• Ss - stainless and acid-resistant steels
• AlMg5/AlSi5 - aluminum and aluminum alloys
• CuSi/CuAl - brazing

☀ ATC - is an advanced thermal control function, active when welding thin materials up to 1.5 mm thick. The ATC function stabilizes the electric arc and reduces the peak value of the welding current, reducing the amount of heat transferred to the material. As a result, it significantly facilitates the welding of thin elements and results in less material deformation, less overheating and a narrow heat affected zone.

Quick synergic adjustment of welding parameters via LCD display makes the device very easy to use. All you have to do is set the thickness of the material to be welded and start welding: the intelligent and automatic welding arc control system, step by step, will select the best parameters for each welding position and for each material.

The user can also manually set the length of the welding arc and adjust the appearance of the weld to his own needs.

The LCD display enables precise adjustment of welding parameters such as:

• inductance adjustment
• wire access
• burning wire
• gas flow at the end of welding

☀ VERSATILITY OF THE DEVICE ☀

The IDEAL Migomat is a device with a wide range of applications, designed as an inverter power source enabling welding with a MIG/MAG gas-shielded fusible wire or FCAW self-shielding wire (after changing the polarity), welding with the MMA lagging electrode, as well as the TIG Lift method

✔ MIG/MAG welding

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures. The semi-automatic welding process consists in fusing the edges of the welded object and the material of the consumable electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ MMA welding

in the MMA method, a coated electrode is used, consisting of a metal core covered with a coating. An electric arc is generated between the end of the electrode and the material to be welded. The arc is ignited by touching the tip of the electrode to the workpiece.

✔ TIG DC welding

In the TIG (Tungsten Inert Gas) method, the electric arc is ignited in a shield of inert gas (argon), between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives. In the TIG DC Lift mode, the arc is ignited when the electrode contacts the workpiece. In TIG DC mode, the current is constant.

❗❗ You can weld with the TIG method after connecting an additional handle, available at our auctions ❗❗

✔ Welding with FCAW self-shielding wire

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. The wire is intended for general production works, also in field conditions, and for welding structures that are not subject to impact resistance requirements. DC(-) welding current.

Self-shielding cored wire fi 0.8mm / 1kg E71T-GS is intended for welding ordinary and high-strength carbon steels not exceeding 510 MPa .

It is used in prefabrication, construction, production of tanks, agricultural equipment , etc. Used both in the production and repair of devices.

SELF SHIELD WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

ADVANTAGES AND FUNCTIONS OF THE WELDING MACHINE:

⭐IGBT INVERTER TECHNOLOGY Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment .

⭐ EASE OF USE - the welder is equipped with an easy-to-use control panel and LCD display, so it can be used even by amateurs.

⭐ WORK IN THE INDUSTRY - thanks to the high quality of workmanship and multifunctionality, the device can be used in professional and industrial works.

⭐ EURO CONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ FAN COOLING SYSTEM, which definitely increases its efficiency.

⭐ OVERLOAD PROTECTION, ensures the reliability of the device.

⭐ BRAZING - it's a method that is quite similar to MIG / MAG welding, but the energy supplied in this case is much lower. This causes that brazing is used to connect thin sheets covered with a layer of zinc . The described method is a bonding process during which the solder is melted, not the material we are working with .

⭐ SYNERGY - Thanks to the perfectly selected algorithm of the synergic program and digital process control, this device is extremely easy to use and allows people even without welding experience to make welded joints.

⭐ TWO-STROKE 2T - pressing the button initiates gas flow and welding current, releasing the button turns off welding current and gas flow

⭐ FOUR-TAKT 4T - pressing and releasing the handle button initiates the gas flow and welding current, pressing and releasing the button again turns off the welding current and gas flow.

✅ WIRE BURN BACK FUNCTION - It is possible to adjust the time during which the voltage at the output of the device is still present after stopping the wire feeding. This function prevents the welding wire from getting stuck in the workpiece and prepares the end of the wire for the next arc strike. Higher values of the function cause the wire to burn closer to the contact tip.

✅ SPOT WELDING - with the option of setting the welding time at the point. A function that allows you to perform even, spot welds or spot welding thin plates with other elements. This method is used, for example, in the production of chassis and car bodies, but also in the home workshop.

✅ ATC - this is an advanced thermal control function, active when welding thin materials up to 1.5 mm thick. The ATC function stabilizes the electric arc and reduces the peak value of the welding current, reducing the amount of heat transferred to the material. As a result, it significantly facilitates the welding of thin elements and results in less material deformation, less overheating and a narrow heat affected zone.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

MEETING CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE CREATE PROFESSIONAL KITS FOR YOU, THANKS TO WHICH WE SUPPLY EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO POWER.

⌚ SAVE YOUR TIME ⌚

BUY IN A SET AND WE DO THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

EFFICIENT WORK WITH A PROFESSIONAL WIRE FEEDER

The welder has been equipped with a professional wire feeder, which guarantees the stability and continuity of operation of the device.

The 2-roll feeder enables precise advancement of the welding wire , excluding its slippage.

The feeder has a quick wire change knob as well as a wire feeding roller.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for the MIG welding cable. The socket allows you to quickly change the handle in the same standard and, most importantly, it allows you to change the polarity for welding with FLUX self-shielding wire.

The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

THE POWER SOURCE HAS BEEN BUILT ON THE BASIS OF IGBT TRANSISTORS

IGBT (Insulated Gate Bipolar Transistor) , which ensure minimum electromagnetic interference, low power losses in basic systems, allowing to increase the efficiency and reliability of the power source. Very high efficiency , which translates directly into lower energy consumption, and high switching frequency, ensure instant adjustment of the current to changes in parameters during welding.

Inductance adjustment allows you to optimize the arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing their burn-through and braze welding of galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance should be (soft arc - less penetration), for thick elements the opposite (hard arc - greater penetration).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding spatter during welding in the CO2 shield.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE ADJUSTMENT OF INDUCTION, THE WELDING MACHINE IS SUITABLE FOR BRAZING

TECHNICAL DATA

• Current drawn from the network: 20.3 A
• Mains protection: 25C
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power: 6.4 kW
• Open-circuit voltage: 64V
• Maximum current: 200 A (MIG) / 150 A (TIG/MMA)
• Current at 100% operation: 160 A (MIG)
• Current at 60% duty: 200 A (MIG)
• Aluminum wire diameter: 0.8 - 1.0 mm
• Brazing wire diameter: 0.8 - 1.0 mm
• Self-shielding wire diameter: 0.8 - 1.2 mm
• Steel wire diameter: 0.6 - 1.0 mm
• Stainless steel wire diameter: 0.8 - 1.0 mm
• Welding electrode diameter: 1.6 - 3.2 mm
• Welding current adjustment steps: Stepless
• Welding current adjustment range: 35 - 200 A (MIG) / 20 - 150 A (MMA / TIG)
• Wire spool size: 0.45 - 5 kg
• Degree of protection: IP 21S
• Weight of the device / set: 15/16 kg
• Overall dimensions LxWxH: 510x230x370 mm
• Packaging dimensions LxWxH: 550x250x385 mm

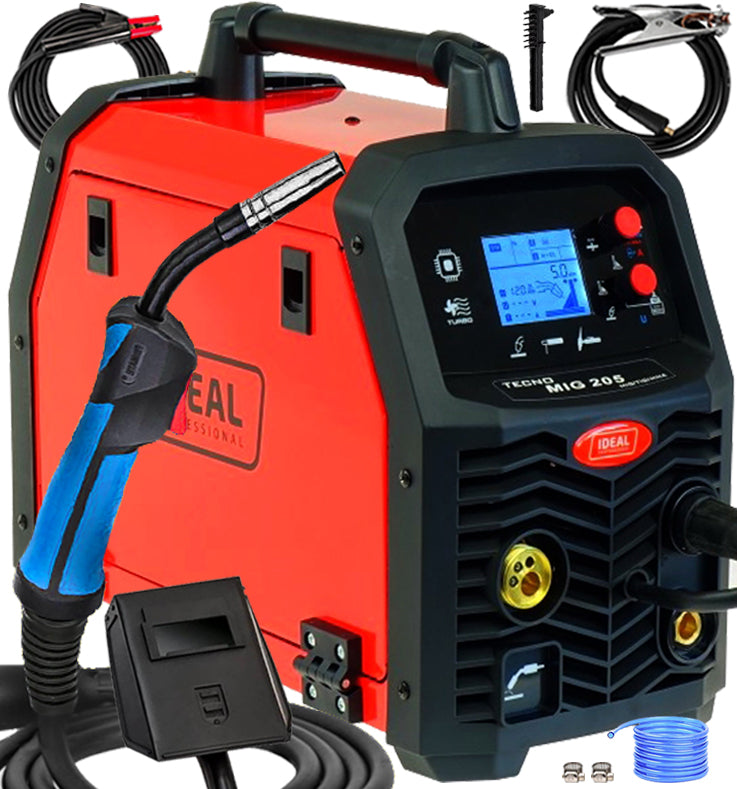

BY BUYING FROM US YOU RECEIVE:

• Inverter welding machine IDEAL TECNO MIG 205 LCD SYNERGY
• Welding cable MIG EURO MB15 - 3 m
• MMA electrode cable - 2 m
• Mass cable - 2 m
• Gas hose - 1m
• Clamping ties - 2 pcs.
• Brush-hammer - 1 pc.
• Welding shield - 1 pc.
• User manual in Polish
• Warranty Card

PRODUCT GALLERY:

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	6.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	15 kg
Parametry	Welding range	20–200 A
Parametry	Height	385 mm
Parametry	Length	540 mm
Parametry	Width	240 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	TMIG205LCD
Parametry	EAN (GTIN)	5903991101990
Parametry	Additional features	infinitely adjustable welding current,LCD display
