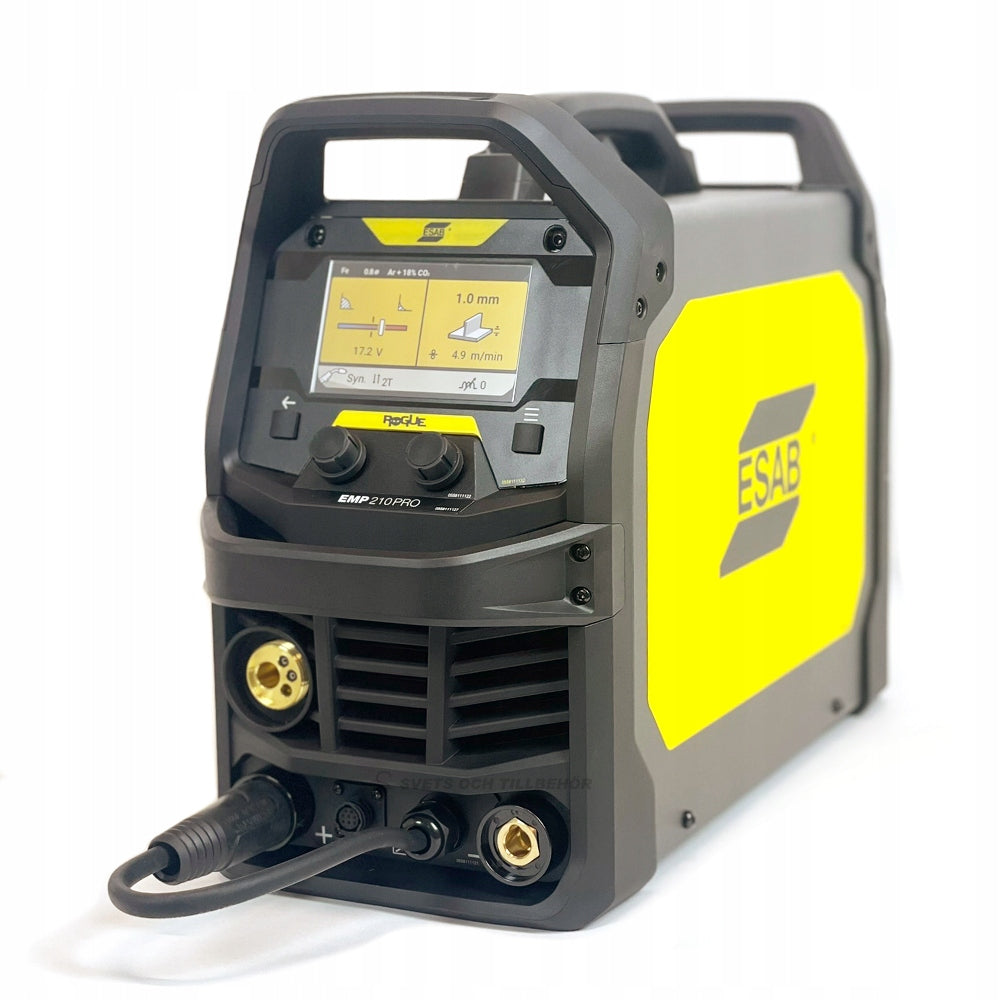

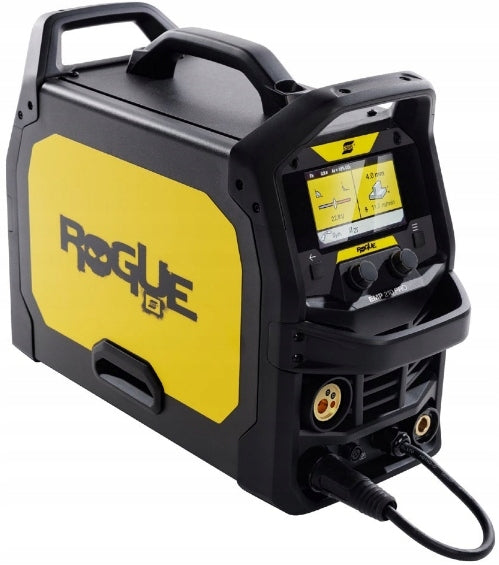

Suvirinimo aparatas ESAB Rogue EMP 210 PRO MIG/MAG/MMA/TIG Lift Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas ESAB Rogue EMP 210 PRO MIG/MAG/MMA/TIG Lift Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: ESAB
• Modelis: 0700301092

• Multi-process power source Rogue EMP 210 and with 16 A, 3 m power cable and plug,
• Handle MXL 201 MIG with euroconnector 3 m,
• Bulk cable, OKC 35-50 16 mm2, 3 m,
• Electrode holder, Handy 200 A reinforced 50 mm OKC, 3 m,
• Gas hose with quick coupler 4,5 m,
• Wire ESAB OK AristoRod 12.50 0,8 mm 1 kg,
• Wrapped electrodes ESAB Goldrox 2,5 - 1kg
• Feed rollers 0,6/0,8 mm V (mounted), 0,8/0,9 mm V and 0,8/0,9 mm VKaburled,
• Safety instructions.

The ESAB Rogue EMP 210 PRO is an inverter multi-process welding device designed to meet all your welding needs, from light manufacturing to repair and maintenance.

The system is characterized by industrial-grade performance and fully functional controls that allow the welder to fine-tune the arc characteristics depending on the material being welded.

With a weight of only 16,7 kg, a single-phase power supply of 230 V and compatibility with 10 kVA generators, this device provides maximum flexibility and mobility, both in the workshop and in the field.

• Automotive
• Bodywork
• Agricultural equipment
• General construction
• Construction Mechanics
• Repair and maintenance
• Light industry

• Real multi-process devices with synergistic and manual MIG/MAG welding with solid and core wires, soldering, TIG with Lift TIG and MMA (including 6010)

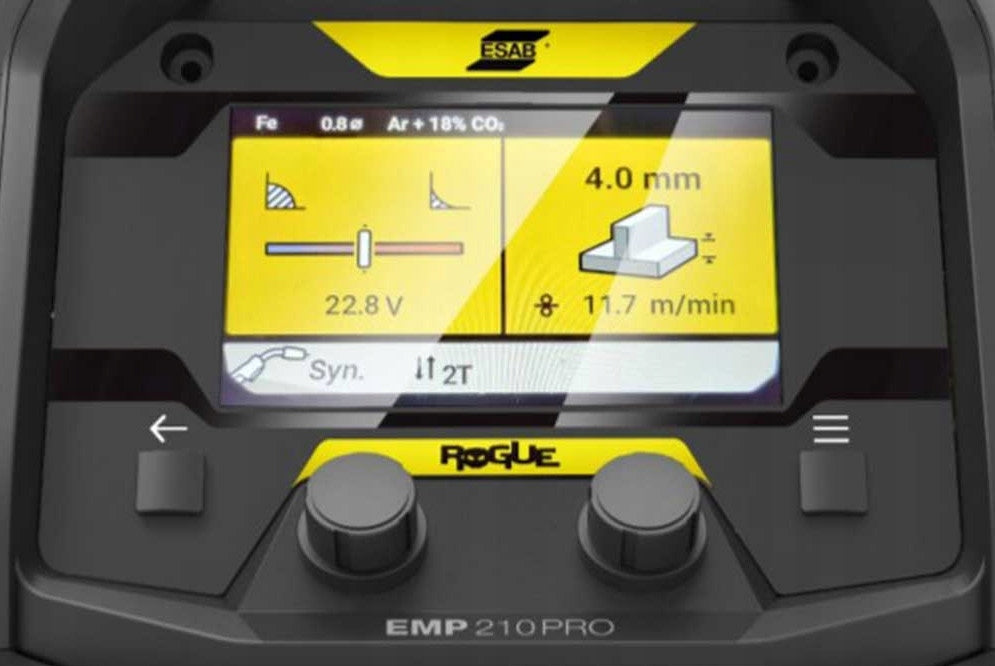

• Intuitive 5,0 inch TFT screen for clear view and direct interaction
• Synergistic welding programs – full range of welding parameters, 0,5 – 10,0 mm, available by means of one-knob control
• Power factor correction (PFC) – ensures arc stability and resistance to fluctuations in power supply parameters even when using extension cords up to 100 m long
• Unique, rugged industrial design with multiple lifting points and wiring guidance system
• Arc dynamics – precise adjustment of arc characteristics to achieve a sharp/rigid arc for carbon steel or a soft arc for stainless steel
• Programs – 10 individual programs for saving/recalling memory
• Spool Gun Ready – Rogue automatically configures settings when you connect a Spool Gun handle.
• IP23S rating for indoor and outdoor use

• Supply voltage: 230 VAC ±10%, 1-phase, 50/60 Hz
• Energy Saving Mode: 50W
• Rated MIG/MAG welding current (GMAW): 210 A / 24,5 V at 30%; 136 A / 20,8 V at 60%; 105 A / 19,2 V at 100%
• Rated MMA welding current (SMAW): 180 A / 27,2 V at 30%; 116 A / 24,7 V at 60%; 90 A / 23,6 V at 100%
• Rated TIG welding current (GTAW): 210 A / 18,0 V at 30%; 136 A / 15,4 V at 60%; 105 A / 14,2 V at 100%
• Intensity range: 30 to 210 A
• Voltage range: 12 to 26 V
• Wire diameter: low alloy steel and stainless steel 0,6 – 1,0 mm; core wire and aluminium 0,6 – 1,0 mm
• Wire feed speed: 2,0 – 16,5 m/min
• Max. spool diameter: 200 mm
• Idle Voltage: 78 VDC
• Efficiency at maximum current: > 82%
• Power factor at maximum current: 0,99
• Operating temperature: -10 to +40°C
• Protection Class: IP23S
• Certification mark (standards): CE
• Dimensions: L. x W x H with top handle 590 x 220 x 385 mm
• Weight: 16,7 kg
