Trumpai apie prekę

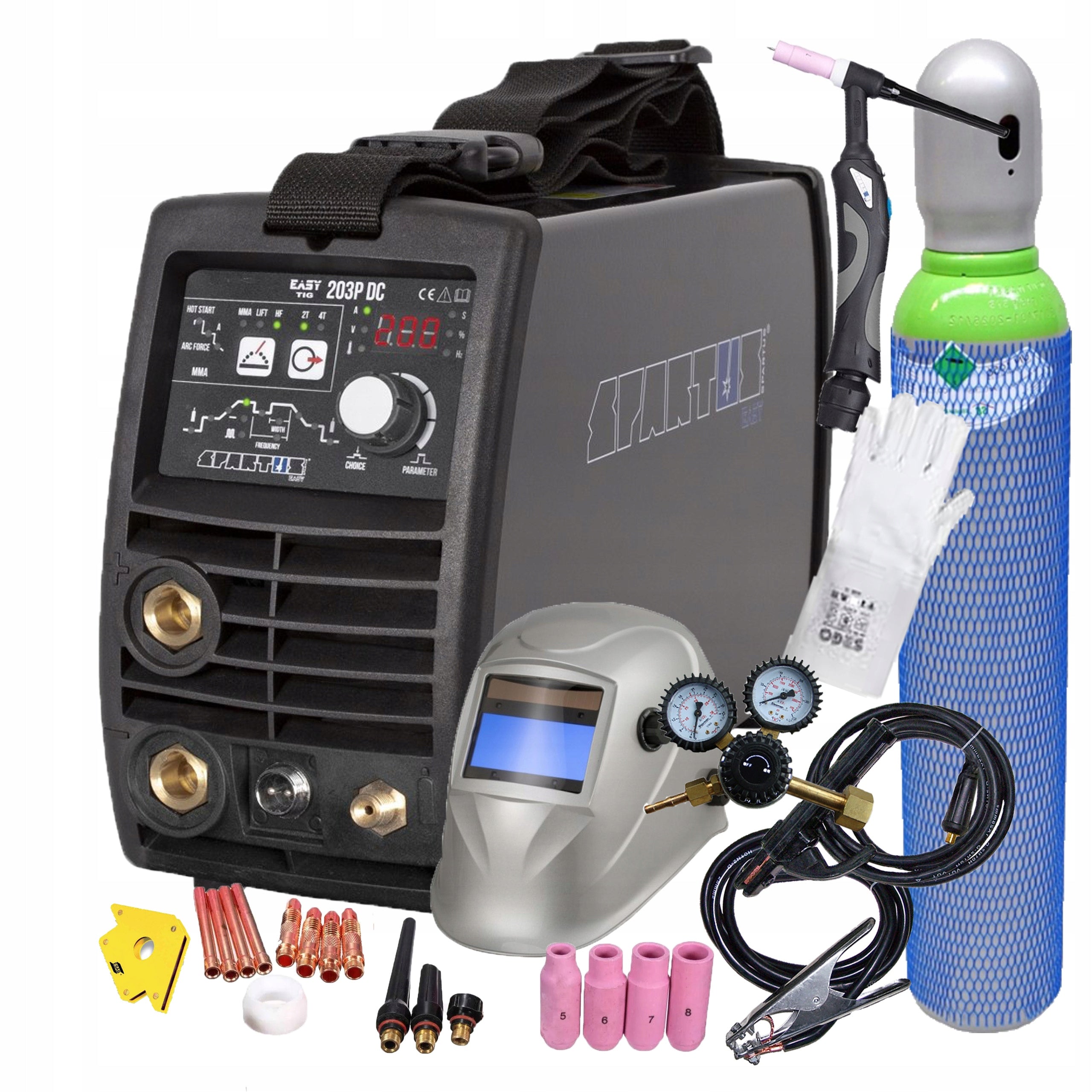

Prekė: Suvirinimo aparatas EasyTIG 203P DC su TIG rankena ir inox priedais. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: SET2-EASYTIG203PDC-PAK-17-4
- Ilgis: 420 mm
- Plotis: 135 mm
- Aukštis: 240 mm
- full free post-purchase support
- You can call us at any time and we will help you set the parameters and operate the device

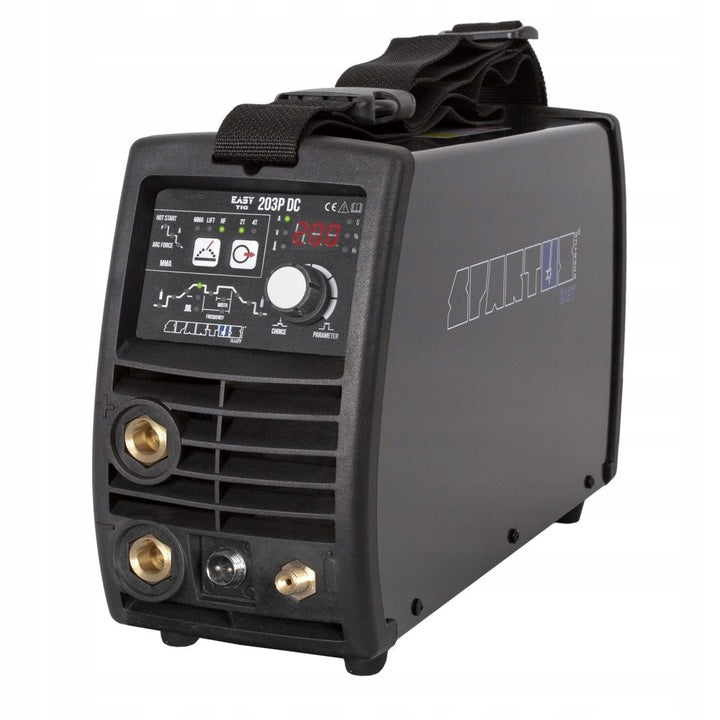

TIG 200A Spartus EasyTIG 203P DC welder
SPARTUS® Easy TIG 203P DC is a lightweight and simple inverter welding machine. It enables TIG Lift/HF and MMA welding in the range of 10 – 200A. It is powered from a single-phase 230V network.
The device is equipped with a clear function panel, the operation of which has been reduced to a minimum – a multifunctional knob and two buttons.
Despite its simple design, the EasyTIG 203P DC is equipped with advanced features to facilitate the TIG welding process. The TIG parameters chart placed on the panel allows for full adjustment of:
– time of gas outflow before and after welding
– time of rising and falling current
In addition, the built-in function of pulsing current welding (frequency 0.5 – 200Hz) allows you to adjust: base current, pulse current, pulse frequency. Thanks to these parameters, the device is perfect for connecting even very thin elements.
Depending on the preferences of the welder, EasyTIG 203P DC can operate in 2T or 4T mode.
The welding process with a wrapped electrode (MMA) up to 200A supports the function: Arc Force and Hot Start.
Thanks to its lightness and portability, the EasyTIG 203P DC is perfect for field work.
Examples of applications: renovation works, workshop works, light structures, maintenance.

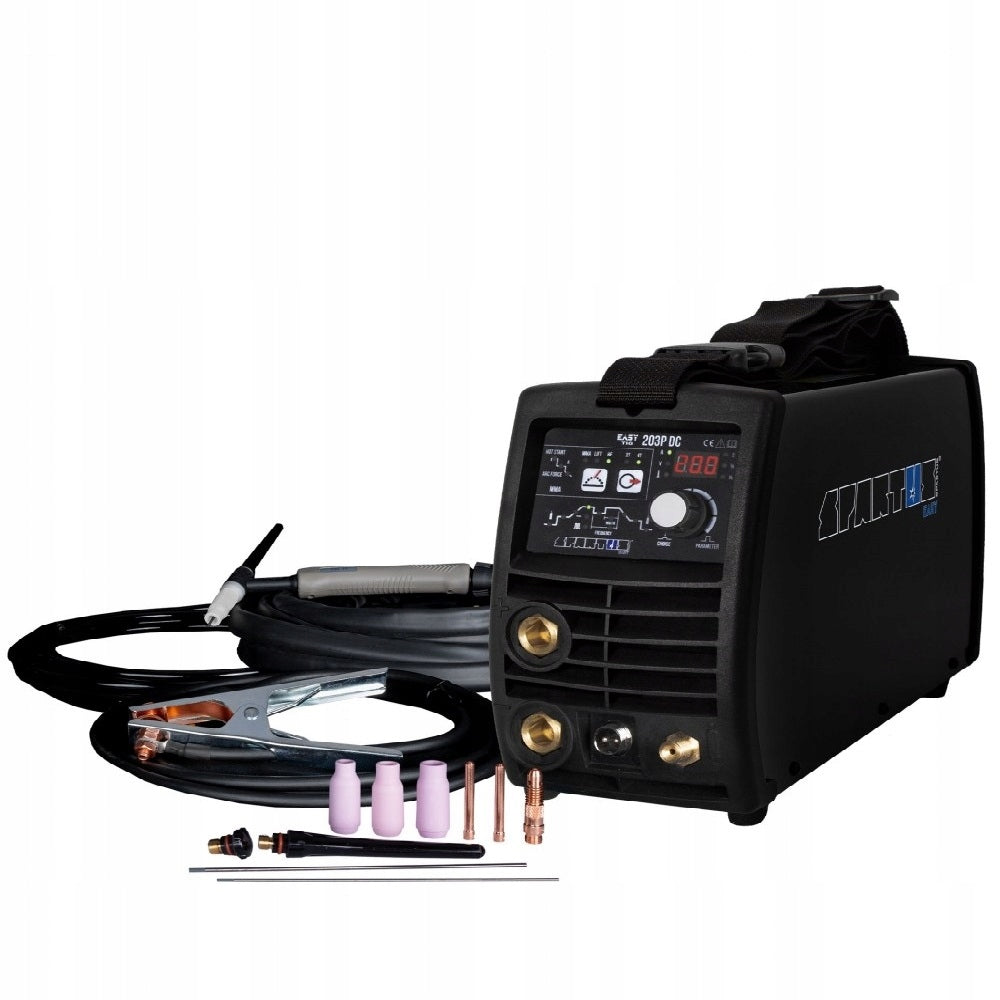

Package includes: • EasyTIG 203P DC • TIG handle SPE 17 1B 4m • set of consumable parts • mass cable 3m • Gas hose • User manual
Technical parameters
- Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
- TIG welding current: 10 - 200A
- TIG duty cycle: 60%
- Pre-gas: 0 - 2s
- Post-gas: 0 - 10s
- Power build-up time: 0 - 10s
- Power drop time: 0 - 10s
- Pulse current: 5 - 200A
- Pulse width: 5 - 95%
- Pulse frequency: 0.5 - 200Hz
- Working mode 2T/4T: yes
- Arc glow: HF
- MMA welding current: 10 - 200A
- Arc Force: yes
- Hot Start: yes
- Idle voltage: 69V
- Power consumption: TIG 32A / MMA 47A
- Power factor (cosφ): 0.6
- Efficiency η: 85%
- Isolation class: H
- Degree of protection: IP21S
- Weight: 7.9kg
- Dimensions: 420 x 135 x 240mm
- Spartus TIG 203P DC welding machine
- TIG SR-17/4m welding torch
- Bulk cable
- User manual
+ Ar 8l WELDING KIT
- Ar 8l cylinder (argon) - certified, has all the approvals required by the filling points of the cylinder,
- Ar/CO2 gas reducer with two clocks,
- Automatic visor 9-13 DIN
- Magnetic angle
- Welding gloves
- gas line,
- welding gloves.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 7.9 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 240 mm |
| Parametry | Length | 420 mm |
| Parametry | Width | 135 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 12 kg |
| Parametry | Manufacturer code | SET2-EASYTIG203PDC-PAK-17-4 |
| Parametry | EAN (GTIN) | 5900391242292 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
