Suvirinimo aparatas EASY MIG 215 MMA IGBT 3IN1 SPARTUS

Trumpai apie prekę

Prekė: Suvirinimo aparatas EASY MIG 215 MMA IGBT 3IN1 SPARTUS. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASY MIG 215
• Ilgis: 490 mm
• Plotis: 230 mm
• Aukštis: 330 mm

TECHNICAL PARAMETERS

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 50 - 200A
• MIG duty cycle: 60%
• Output voltage: 16.5 - 24V
• Type of feeder: built-in, 2 - roller
• Wire feed speed: 2 - 12.5m/min
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.6, 0.8, 1.0mm
• Synergy: yes
• Working mode 2T/4T: yes
• Additional MIG functions: inductance adjustment, spool gun, wire test, polarity change
• TIG Lift: yes
• TIG welding current: 10 - 200A
• MMA welding current: 10 - 180A
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Power consumption: MIG 32A / TIG 26A / MMA 33A
• Power factor (cosφ): 0.76
• Efficiency η: 85%

PHYSICAL PARAMETERS

• Isolation class: H
• Protection rating: IP21S
• Weight: 12kg
• Dimensions: 490 x 230 x 330mm

SPARTUS® EasyMIG 215 is a modern, inverter semi-automatic welding machine, based on IGBT transistors. It has the function of welding in an inert and active gas shield (MIG/MAG), welding with a wrapped electrode (MMA) and TIG Lift welding with arc ignition by rubbing. Easy polarity change allows welding with self-shielding wire without gas.

The maximum welding current for MIG/MAG/TIG methods is 200A and 180A for MMA method. The device power supply is from a single-phase 230V network.

SPARTUS® EasyMIG 215 is equipped with a synergistic system for MIG/MAG welding with steel wires with a diameter of 0,6 / 0,8 /1,0 mm and aluminum 1,0mm with the possibility of manual parameter correction. The user can choose from programs: CO2 steel, steel mixture, aluminum, powder wire welding. The device also works in manual welding mode.

Thanks to the use of modern technological solutions, the welding machine has a number of functions supporting the welding process:

• 2T/4T – possibility to choose one of two operating modes (MIG/MAG)
• regulation of welding inductance – control of face width and melting depth (MIG/MAG), limitation of welding chipping
• Hot Start – easier electrode ignition (MMA)
• Arc Force – easier welding in forced positions (MMA)
• VRD – reduced idle voltage (MMA)

SUMMARY OF PRODUCT CHARACTERISTICS

• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Readable LCD display - fast synergistic adjustment of welding parameters : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Polarity change for FLUX welding without shielding gas
• Synergic control with thickness adjustment of welded material
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, can be easily transported both inside and outside buildings
• The device is equipped with overload protection, which increases its reliability
• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• 2T/4T - With the MIG/MAG method, we can choose the button function in the handle between 2T mode operation (without button lock)/4T(button lock for long welds)
• Maximum spool with wire - 5 kg

Modern LCD display allows you to easily and quickly set the welding current voltage and manage the functions of the device. During the correction of parameters, the display suggests the shape of the weld and graphically indicates the recommended thickness of the material for the selected current.

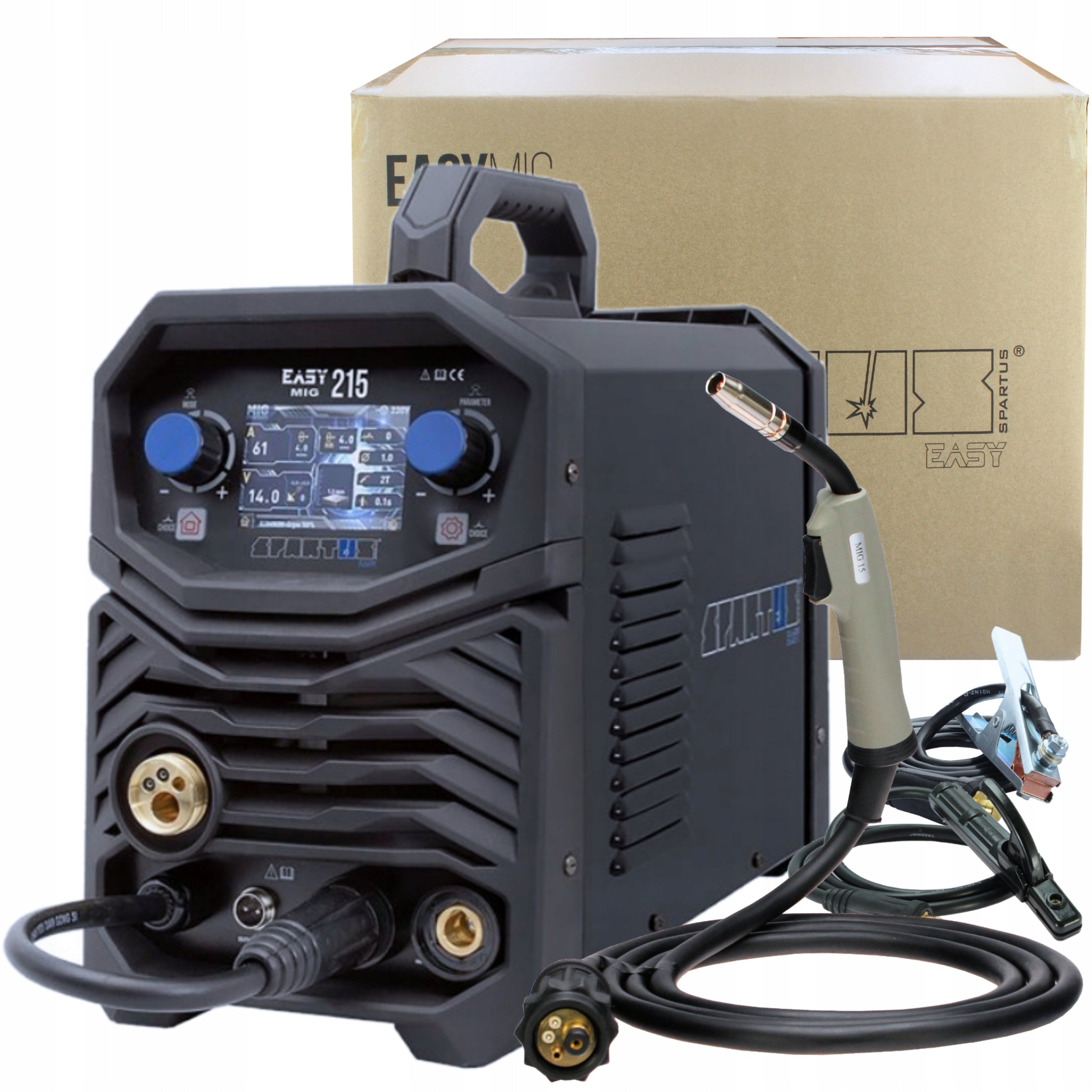

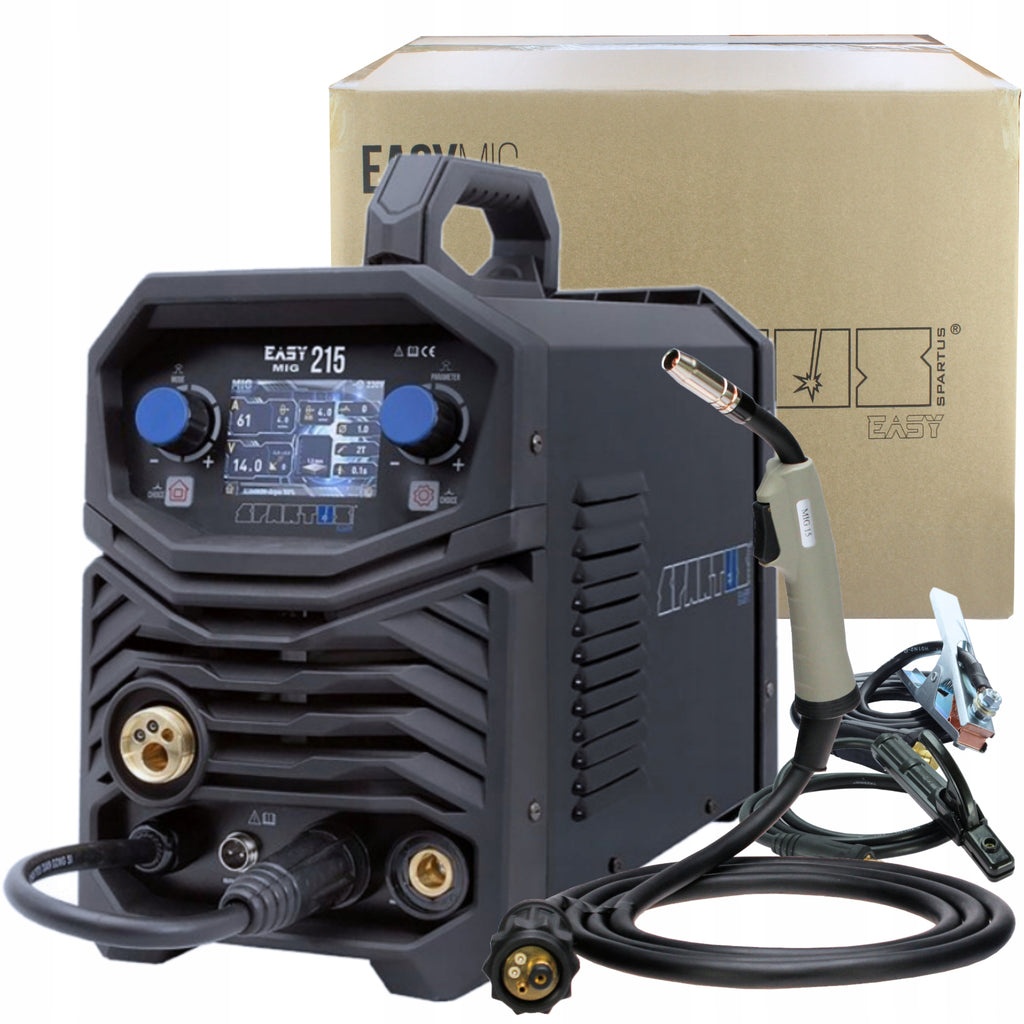

DELIVERY INCLUDES

Semi-automatic welding machine

MIG welding torch 15/3m

Bulk cable

Electrode cable

Operating instructions

Warranty card

Specifications
