Suvirinimo aparatas 250A PATON MIG MAG MMA TIG Lift 230V Pulse

Trumpai apie prekę

Prekė: Suvirinimo aparatas 250A PATON MIG MAG MMA TIG Lift 230V Pulse. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: patonpromig270_4x4

A NEW HIGH-TECH MODEL FOR YOUR WORKSHOP!

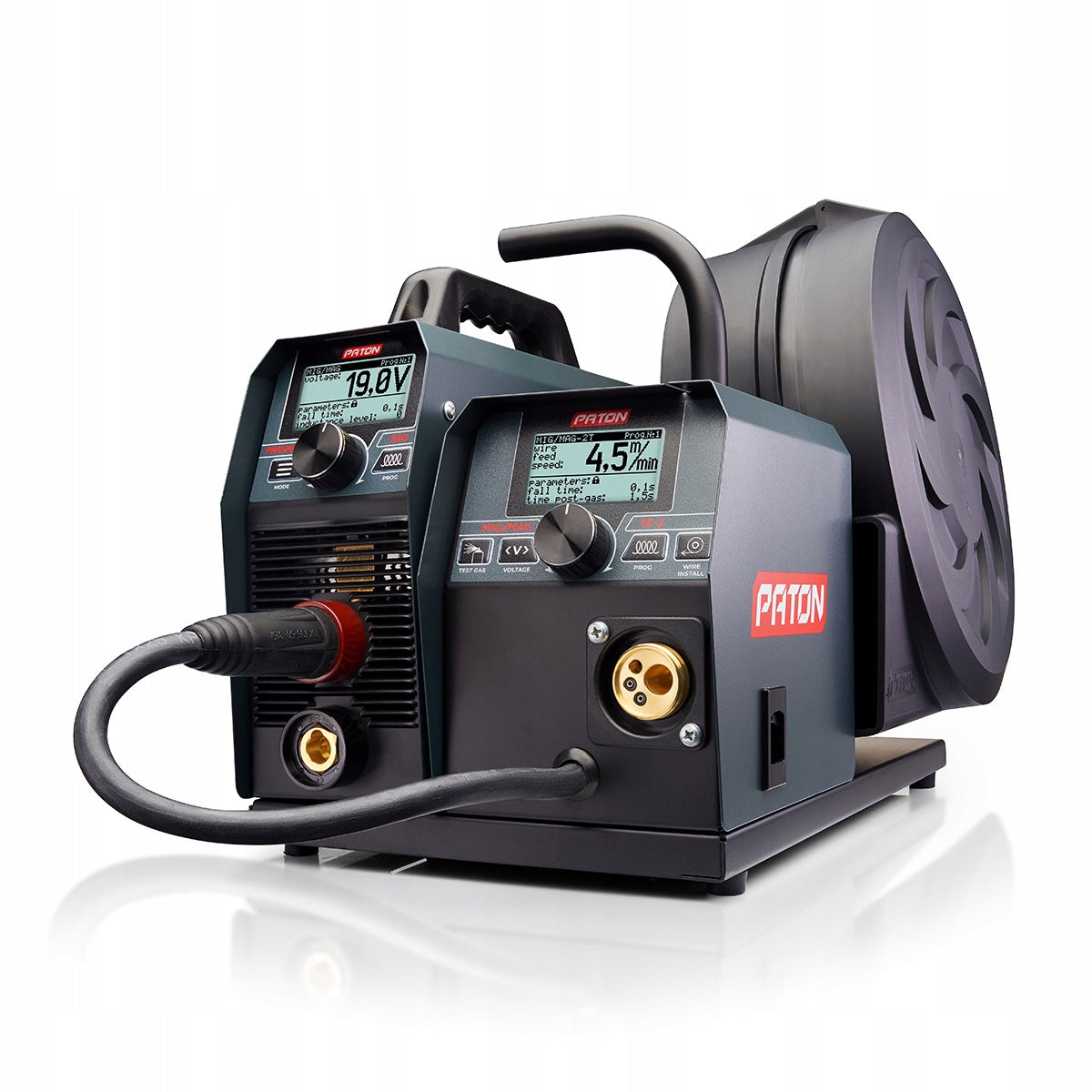

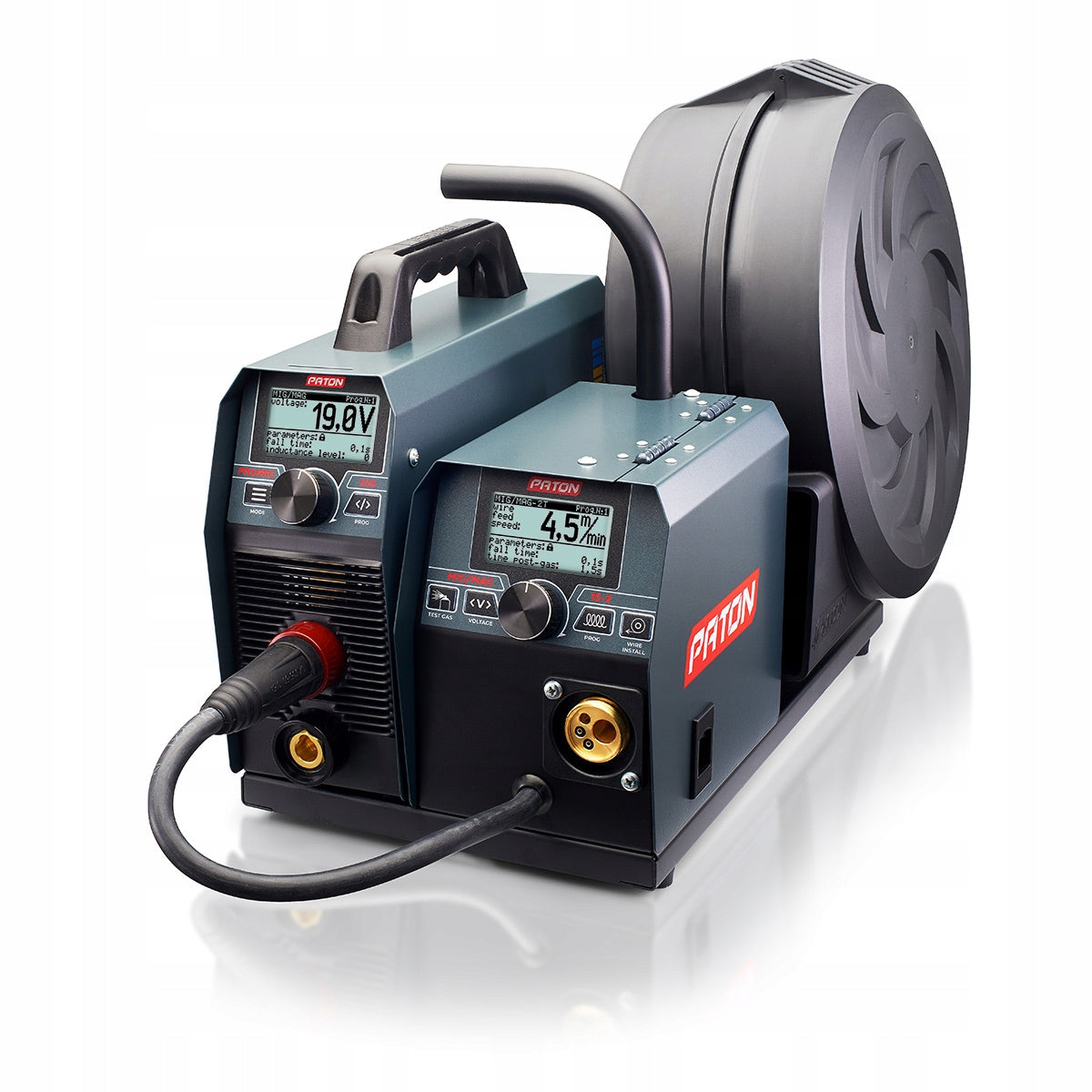

The Paton ProMIG 250 welding machine is a universal device designed for semi-automatic welding using the MIG/MAG method in protective gas shielding, manual arc welding using the MMA method, as well as welding using the TIG (DC) method in argon shielding.

The 250 PRO 15-2 model is equipped with a wire feeder adapted to handle spools weighing 15 kg and 5 kg, with a 2-roll feeding mechanism. The design of the welding machine provides some of the best protection against external factors available on the market, guaranteeing reliability even in harsh operating conditions.

The device reaches a nominal current of 250 A at 70% of the duty cycle, which allows intensive welding of materials up to 7 mm thick without the risk of overheating. For the convenience and safety of the user, the power source can be separated from the wire feeding mechanism.

A distinctive feature of the PATON™ Professional series is the high-quality, sealed metal wire feeder, as well as the EURO type connector (KZ-2), which allows you to easily replace the handle with any available on the market.

Thanks to the fully electronic control system, the device uses the full potential of the power source regardless of the welding method chosen. The Professional series has been designed for intensive industrial use and will meet the requirements of even the most demanding users.

Features and capabilities of the Paton ProMIG-250 universal migomat welding machine

⭐ SOLDERING – REGULATION OF INDUCTANCE

Paton from the Standard and PRO series have the possibility of soldering, thanks to the function of changing the inductance in three degrees. Inductance control allows you to optimize the characteristics of the arc depending on the thickness of the welded element. This function is necessary to change the current flow rate when changing the arc voltage. The thinner the element to be welded using MIG/MAG, the greater the inductance (soft arch – less melting), for thick elements vice versa (hard arch – greater melting).

⭐ PULSE FUNCTION

– PULS in TIG method – full control of heat introduced into the material – great function for welding stainless steel and acid-resistant steel,

– PULS in MMA method – easier transfer of material from the electrode to the welding lake, better quality of the welded joint

– PULS in MIG/MAG method – easier detachment of metal droplets from the end of the electrode wire, the ability to adjust pulsating current parameters. MIG welding with pulsation is useful for welding stainless steels, acid-resistant steels and aluminum alloys. In addition, pulse welding provides better parameters when soldering CuSi3.

⭐ WELDING FUNCTION WITHOUT GAS – SELF-SHIELDING WIRE WELDING

All PATON migomates are suitable for self-shielding wire welding. Such welding, unlike the traditional MIG/MAG welding process, is carried out without the use of shielding gas – however, it requires having a special welding wire. Such a wire produces its own shield, which helps to protect the welding arc. Self-shielding wire adapted to PATON welding machines can be purchased here – 5 kg spools of wire will fit all wire feeders.

The main advantages of the Paton ProMIG 250 welding machine:

✔ Wide possibilities of adjusting welding parameters:

• MMA: 1 basic mode + 10 additional modes
• TIG: 1 basic mode + 10 additional modes
• MIG/MAG: 2 basic modes + 8 additional modes

✔ Pulse current welding in all welding modes – fully programmable function.

✔ Advanced stabilization:

The device is equipped with a system of protection against voltage spikes and a system stabilizing operation with long-term voltage fluctuations in a single-phase network. Correct operation is possible in the voltage range from 160 V to 260 V.

✔ Single-phase network compatibility:

The high efficiency of the device ensures up to twice lower energy consumption compared to traditional welding sources.

✔ Intelligent cooling system:

The fan automatically adjusts the operating speed to the temperature of the device – increases the speed under load, reduces when stationary.

Effects:

• less fan wear
• reduction of dust inside the device
• lower noise level

✔ Efficient operation without interruption:

Possibility of continuous welding at rated current load without the need for cooling breaks (at temp. 25°C environment).

✔ Reliability in harsh environments:

The device is resistant to high dust and high humidity – ideal for industrial conditions.

✔ Additional protection for electronics:

Electronic system protected with two layers of high-quality varnish, which increases durability and reliability throughout the service life.

✔ Electronic thermal protection:

Protects all elements exposed to overheating, increasing the life of the device.

✔ High stability of electric arc:

The improved arc glow system ensures precision and comfort of work.

✔ Smooth adjustment of welding parameters:

Easy and precise control of settings regardless of the method chosen.

✔ Modern IGBT technology:

High energy efficiency and reliability thanks to the use of advanced IGBT transistors.

Automatic functions to improve weld quality and work safety:

➡ Hot-Start – provides easy and reliable arcing by temporarily increasing the initial current. It facilitates work in weak networks and when powered from the unit. In the "Professional" series it is possible to adjust the intensity of this function.

➡ Arc-Force – improves arc stability with short welding and prevents electrode sticking. In the professional version, manual adjustment is available, which allows you to adjust the operation to the network conditions.

➡ Anti-Stick – automatically reduces the current in the event of a short circuit of the electrode with the material, allowing it to be easily detached and safely continue working.

MIG/MAG PATON welding machines are considered to be one of the best types of equipment for industrial enterprises with different specializations.

One of the most famous welding equipment are MIG MAG PATON welding machines, otherwise it is called migomat.

The PATON welding machine operates in three welding modes - it supports welding using the MIG-MAG method, which enables fast and efficient welding in mechanized mode using welding wire in a protective gas shield, welding MMA and welding TIG Lift . It is used to connect products made of aluminum, stainless steel and low alloy steels.

MIG-MAG PATON welding machines have a very high quality wire feeder, the construction of which is entirely made of steel. The MIG MAG welding process is the most commonly used process in welding.

NOTE TO THE WELDING MACHINE YOU SHOULD BUY A WORKING HANDLE THAT IS AVAILABLE AT OUR OTHER AUCTIONS.

MIGOMATY PRO series

The PRO series is represented by 7 models of MIG MAG welding machines, which offer exceptional performance, precision and versatility in various industries. MIG MAG PRO series welder is:

• PATON 200 PRO DC (15-2), welding current 200A;
• PATON 250 PRO DC (15-2), welding current 250A;
• PATON 250 PRO DC (15-4), welding current 250A;
• PATON 270 PRO DC (15-2), welding current 270A;
• PATON 270 PRO DC (15-4), welding current 270A;
• PATON 350 PRO DC (15-4), welding current 350A.

The main differences between the PATON Standard and PRO series migomats:

• Working cycle:

  The PRO series migomats offer 70% of the work cycle at the same welding current value, while the Standard series reaches only 45%. In addition, PRO models allow for longer, continuous operation at higher current, which translates into greater efficiency in professional applications.

• Wire feeder:

  The PRO series uses a separate feeder, which supports spools weighing from 15 to 18 kg. The feeder can be detached from the source, which facilitates welding by other methods, such as MMA or TIG DC. In addition, versions with 2-roll or 4-roll wire feeding mechanism are available.

  In the Standard series, the feeder is integrated with the device, supports only spools up to 5 kg and is always equipped with 2 rolls.

Characteristics of the PATON MIG/MAG PRO series:

• High efficiency and versatility – the PRO series combines reliability with a wide range of applications in various welding techniques.
• Digital control of the MIG/MAG process – full control over all welding parameters ensures precision and repeatability of results.
• EURO type connector – allows you to choose any welding torch that complies with global standards.
• Advanced protective systems – protection against overheating and voltage spikes increase the safety and durability of the device.
• Intuitive operation – simple and clear menu allows you to quickly adjust settings even for less experienced users.
• Adjustment of welding parameters – the ability to set the voltage directly at the source and precise adjustment of the wire feed speed.
• Safe operation – devices designed for stability and protection of the operator.
• Compact design – small dimensions and low weight allow for easy transport and convenient operation in various conditions.
• Universal application – ideal for workshops, industrial and service work in various sectors of the economy.
• Support for hot melt electrode (MMA) welding – additional functionality increasing the scope of use of the device.
• Welding of aluminium and non-ferrous metals – the possibility of effective joining of difficult materials.
• For every user – meets the expectations of both amateur and professional welders.
• TIG Lift welding – additional mode for precise welding work.

TECHNICAL DATA

• POWER SUPPLY: 50/60 Hz, 230 V
• NETWORK FUSE REQUIRED: 20C
• NOMINAL WELDING CURRENT: 250 A
• MAXIMUM WELDING CURRENT: 335 A
• REQUIRED MAINS CURRENT: 32 – 36 A
• WORK CYCLE: 70% – 250 A, 100% – 193 A
• POWER SUPPLY VOLTAGE RANGE: 160 – 260 V
• WELDING CURRENT ADJUSTMENT RANGE: 12 – 250 A
• WELDING VOLTAGE ADJUSTMENT RANGE: 12 – 28 V
• WIRE FEEDING SPEED RANGE: 2,0 – 16 m/min
• DIAMETER OF WRAPPED ELECTRODE: 1,6 – 6,0 mm
• NUMBER OF PRESSURE ROLLERS: 2
• DIAMETER OF SOLID WIRE: 0,6 – 1,2 mm
• MAXIMUM WEIGHT OF WIRE SPOOL: ≤18 kg
• SUPPORTED WELDING METHODS (with pulsation): MMA / TIG / MIG / MAG
• HOT-START FUNCTION (MMA): Adjustable
• ARC-FORCE FUNCTION (MMA): Adjustable
• ANTI-STICK FUNCTION (MMA): Automatic
• IDLE VOLTAGE REDUCTION SYSTEM: Enable/Disable
• IDLE VOLTAGE: 12 / 75 V
• ARC GLOW VOLTAGE: 110 V
• NOMINAL POWER CONSUMPTION: 6,9 – 7,7 kVA
• MAXIMUM POWER CONSUMPTION: 8,5 – 11,0 kVA
• ENERGY EFFICIENCY: 90%
• COOLING: Automatic
• WORKING TEMPERATURE RANGE: –25 ... +45 ºC
• COMPLIANT STANDARDS:

  EN 60204 – 1:2006

  EN 60974 – 1:2012

  EN 60974 – 10:2014

• DIMENSIONS (LENGTH × WIDTH × H ) : 450 × 275 × 290 mm
• WEIGHT: 11,7 kg
• DEGREE OF PROTECTION: IP 33

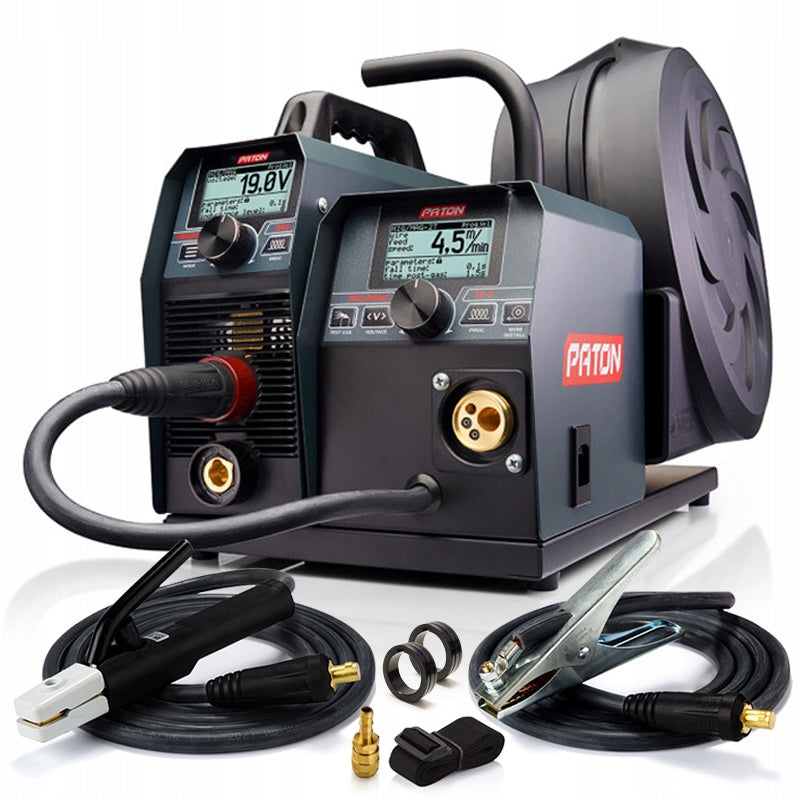

The purchased set includes:

• PATON™ ProMIG-250 15-2 PRO DC migomat welder
• Feeder PATON™ BPI 15-2 (15 kg spool, also supporting 5 kg spool – 2 roller feeder)
• Electrode holder ABICOR BINZEL DE2200 3m
• Mass holder ABICOR BINZEL MK300 3m
• Wire feeder rollers 1x (0,6 – 0,8), 1x (1,0 – 1,2) V
• Quick coupler for gas
• Cardboard packaging
• Carrying strap
• User manual

NOTE FOR MIG MAG AND TIG WELDING, PLEASE PURCHASE THE WORKING HANDLE ACCORDING TO YOUR PREFERENCES - HANDLES ARE AVAILABLE AT OUR OTHER AUCTIONS
