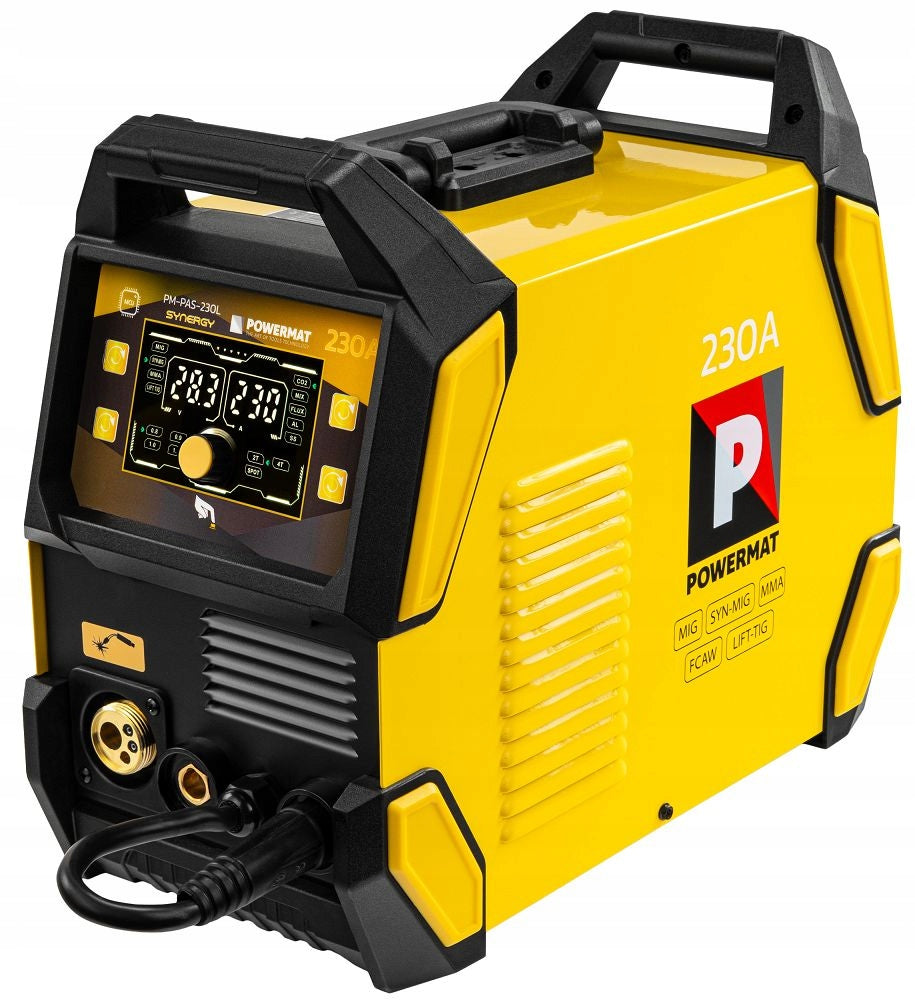

Suvirinimo aparatas 230A MIG/MAG/MMA/TIG LIFT SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas 230A MIG/MAG/MMA/TIG LIFT SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-230L
• Ilgis: 450 mm
• Plotis: 23 mm
• Aukštis: 365 mm

MIG/MAG / MMA / TIG LIFT / FLUX | WELDING CURRENT 230 A | 30-230A | SYNERGY | IGBT TECHNOLOGY | PULSE DOUBLE | LCD | 2T/4T SPOT | 0,6-1,0MM WIRE | LCD DISPLAY

MIG/MAG, MMA and TIG Lift inverter welder, which allows you to combine steel, aluminum and copper in the workshop and terrain. Thanks to synergy and IGBT technology, you set parameters faster, achieve a stable arc and repeatable welds, and pulse and LCD functions increase control over the process.

⚙ Technical data

• Welding methods: MIG/MAG, MMA, TIG LIFT
• Power supply: 230 V / 50 Hz
• Welding Current Range (MIG/MAG): 30 – 230 A
• Welding Current Range (MMA): 25 – 205 A
• Welding Current Range (TIG LIFT): 15 – 230 A
• Working cycle welding current 60%: 230 A
• Working cycle welding current 100%: 177 A
• Technology: IGBT
• MIG/MAG operating mode: manual and synergistic
• Supported Materials: Steel, Aluminum, Copper
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Operating Modes: 2T/4T, SPOT
• Assistive functions: HOT START, ARC FORCE, VRD, Burnback, inductance adjustment
• Operation: gas and non-gas (FLUX)
• Change in polarity: yes
• Possibility to connect Spool Gun: yes
• Degree of protection: IP21S
• Length of power cord: 210 cm
• Product weight: 9,5 kg
• Product weight with packaging: 13,8 kg
• Product Dimensions (L. / W. / h. ): 45 cm x 23 cm x 36,5 cm

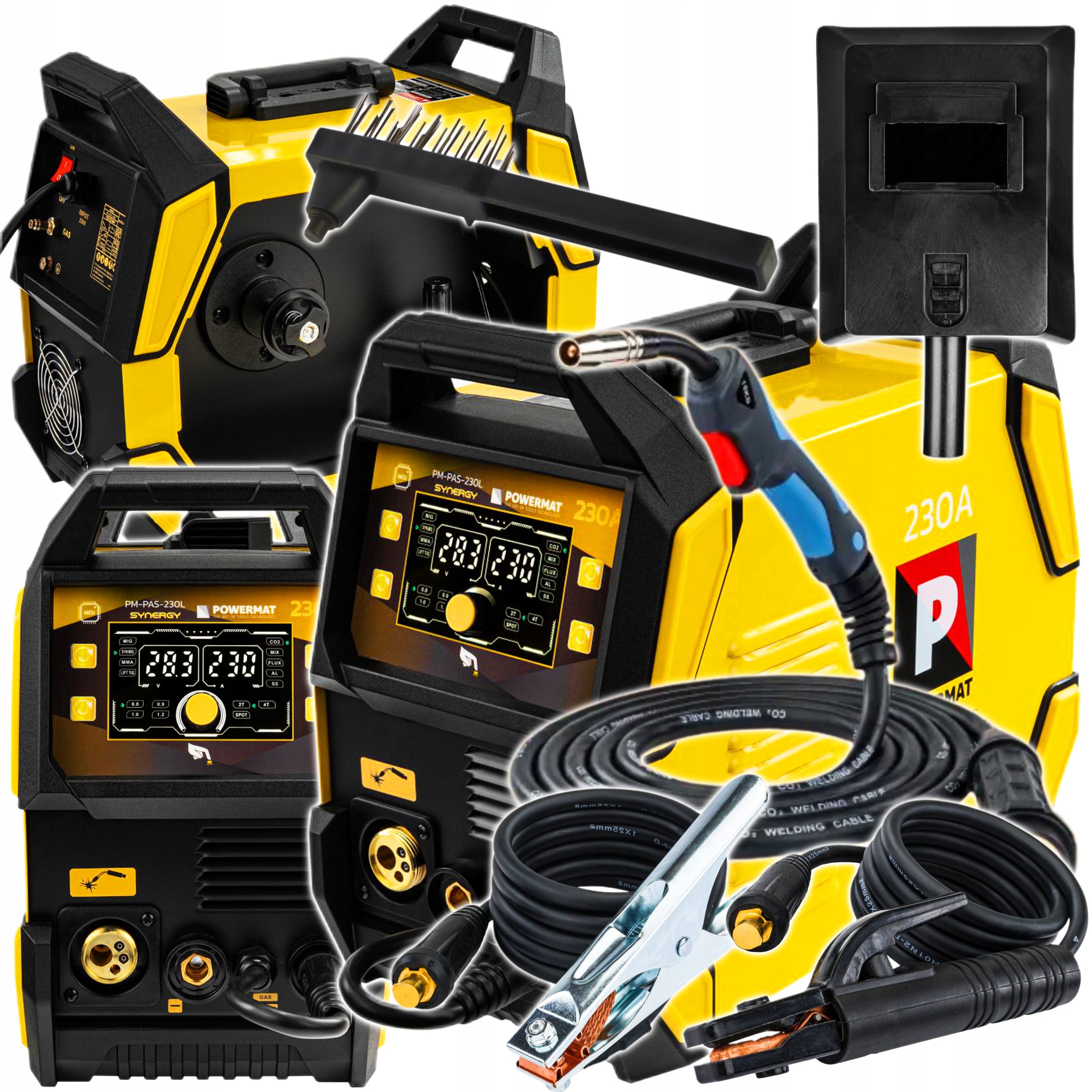

✅Contents of the set

• Powermat PM-PAS-230L welding machine
• Bulk holder (-) 205 cm
• MMA electrode holder (+) 210 cm / plug diameter 13 mm
• Welding torch 300 cm
• Current terminal 0,9 mm
• Current terminal 1,0 mm
• Double-sided roller: 0,8 / 1,0
• Welding mask
• Brush with hammer
• Universal key
• User manual
• Original packaging

⭐When time and repetitive effect count

• When you waste time on settings, synergy and a clear LCD display help, so you move to welding faster instead of correcting parameters.
• If you work on different materials, you have MIG/MAG, MMA, TIG Lift and FLUX in one device, without changing the equipment.
• IGBT, pulse and double pulse technology give a more stable arc, while 2T/4T, SPOT and Burnback functions make it easier to control during everyday work.

Why choose our product?

⭐One multitasking device

You do not need to buy several equipment. You have MIG/MAG, MMA, TIG Lift and FLUX in one device, so you weld different materials without changing the configuration and save space and money.

⭐Faster work without guessing

Thanks to synergy, the device selects parameters itself. You focus on the work, not the settings, which reduces the preparation time and gives more repetitive results.

⭐Stable arc and better welds

IGBT technology and pulse function stabilize the arc. You get cleaner welds, less chipping, and fewer touch-ups when you’re done.

What sets our welding machine apart?

⭐Intuitive operation and control

The LCD display shows the parameters during operation. You react quickly to changes and have full control over welding.

⭐Work in all conditions

You can weld with or without gas FLUX. This gives you the freedom to work in the workshop and in the field.

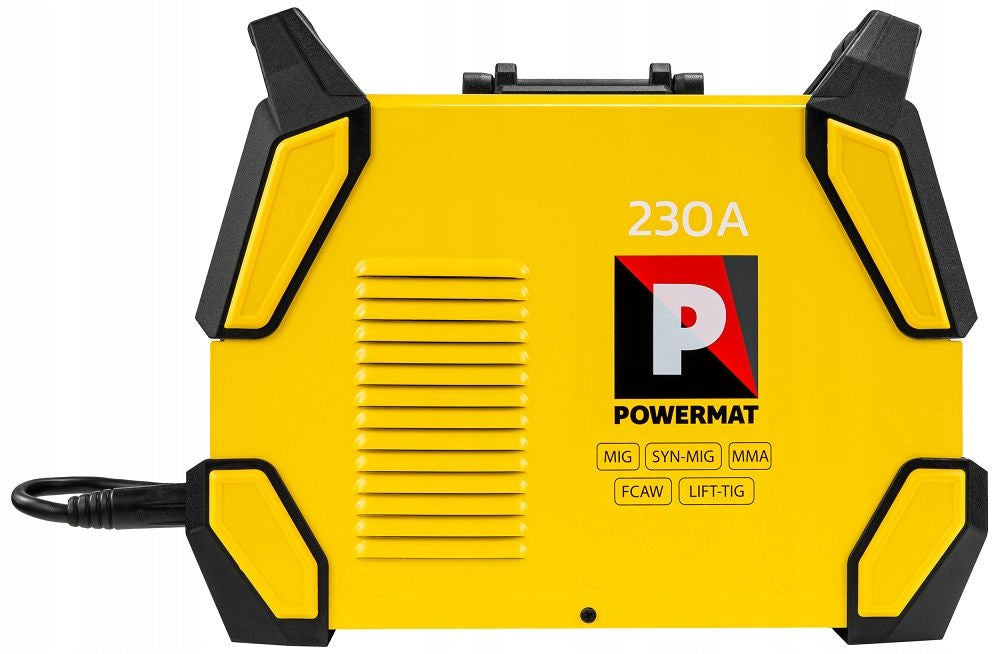

⭐Compact and mobile design

The lightweight case makes it easy to carry your device. You can easily take them to the service or work outside the workshop.

⭐Readable LCD display and fast operation

The LCD display shows both voltage (V) and current (A) at the same time, so you can control welding parameters on an ongoing basis without interrupting operation.

Intuitive panel with icons of methods such as MIG, MMA and TIG allows you to quickly change modes without looking for settings.

The central knob allows for quick adjustment, which speeds up the adjustment of parameters to the task.

Mode markings like 2T/4T or SPOT are visible right away, so you work smoothly and without guessing.

⭐Welding power up to 230A

The welding machine offers a maximum welding current of 230 A, which allows you to adjust the power for a wide range of work – from thin elements to more demanding materials.

The current range is: MIG/MAG 30 – 230 A, MMA 25 – 205 A and TIG LIFT 15 – 230 A, so you can easily set the parameters for the selected method.

Wide adjustment allows precise adjustment of settings to the thickness of the material and the type of weld.

With a duty cycle of 230 A: 60%, the device maintains high efficiency, and at 177 A: 100% allows for long, continuous operation without frequent interruptions.

⭐Equipment that does more than one job

You have MIG/MAG, MMA, TIG Lift and FLUX at your disposal, so you can handle more orders with one device and you do not overpay for separate equipment. Range up to 230 A, IGBT technology and synergy mode give you real convenience and better control over the weld.

⭐Specific parameters you feel at work

Pulse, double pulse, 2T/4T mode, SPOT and EURO connector are features that shorten preparation and facilitate daily operation. Support for 0,6 to 1,0 mm wire, gas and gas-free operation, and the ability to connect the Spool Gun increase the range of applications without combination.

➡ MIG/MAG welding

The MIG/MAG method enables fast and efficient welding of steel, aluminum and copper, thanks to which you can perform most of the workshop and service work with one device.

Thanks to manual and synergistic mode, you can easily adjust the parameters or allow the device to set them automatically, which speeds up work and reduces the risk of errors.

The current range of 30 to 230 A allows you to choose settings for thin and thicker materials, which gives you more control over the quality of the weld.

Support for 0,6 – 1,0 mm wire and a duty cycle of 230 A – 60% and 177 A – 100% enable efficient operation and longer welding without frequent interruptions.

➡ MMA welding

MMA mode allows welding with a wrapped electrode, which works well in workshops, assembly and in the field without access to gas.

The HOT START feature makes it easy to light up the arc, so you can get started faster and avoid problems at the start.

The ARC FORCE system stabilizes the arc and helps maintain welding continuity even under more difficult conditions.

The current range of 25 – 205 A allows you to adjust the settings to different material thicknesses and types of work.

➡ TIG LIFT welding

The TIG LIFT method allows you to make clean and even welds, which is suitable for jobs that require greater precision and aesthetics.

The arc glow by touching the electrode simplifies the start of welding and does not require additional ignition systems.

For work, you need a TIG handle with a gas valve and a shielding gas connection, which allows you to control welding conditions.

The 15 to 230 A current range allows you to adjust the settings to suit a variety of materials, including stainless steel and components that require accurate welds.

⭐IGBT technology and PULSE function

IGBT technology provides a stable power source, resulting in an even arc and more predictable welding results.

Pulse and double pulse improve control over the welding lake, which translates into more accurate weld guidance.

The combination of these solutions allows you to reduce chipping and achieve a cleaner finish, especially when working with aluminum and stainless steel.

Stable electronics and arc control make it easier to maintain reproducible parameters, which gives better results with longer work.

⭐Wire Feeding System

The welder is equipped with a 2-roll wire feeder, which ensures a stable and even feed of the material during operation.

This ensures that the wire is guided in a more controlled manner, which helps to reduce slippage and improve welding smoothness.

The system supports wires with a diameter of 0,6 / 0,8 / 0,9 / 1,0 mm, so it is easier to adjust the settings to the type of work performed.

Even wire feeding supports arc stability and translates into better weld repeatability.

⭐EURO connection

The device is equipped with a EURO connector, which allows you to quickly connect and disconnect the welding torch without stripping the housing.

This solution facilitates the replacement of the cable and reduces the time of preparing the equipment for work.

The EURO standard is widely used, so it is easier to choose compatible handles and accessories. You gain more comfortable handling and more freedom during everyday use of the welding machine.

⭐You have equipment that does not slow down work

• Thanks to synergy and LCD display, you set parameters faster and go to welding without unnecessary adjustments.
• 230 A and IGBT technology give a stable arc, so welds are more repetitive and require fewer corrections.
• One MIG/MAG, MMA and TIG device simplifies work on different orders.

FAQ

Does the device select the parameters itself?

Yes, the welding machine has a synergistic mode, which automatically selects welding parameters to the selected method and material.

Can you adjust the parameters manually?

Yes, in addition to synergy mode, you can set parameters manually, allowing you to adjust the settings exactly to your work.

What wire diameters does the welding machine support?

The device supports wire with a diameter of 0,6 mm, 0,8 mm, 0,9 mm and 1,0 mm.

Does the welding machine have functions to facilitate welding?

Yes, the device has features such as HOT START, ARC FORCE, VRD, Burnback and inductance adjustment.

Can an additional wire feeder be connected?

Yes, the welding machine allows you to connect the Spool Gun, which increases the convenience of working with wire.
