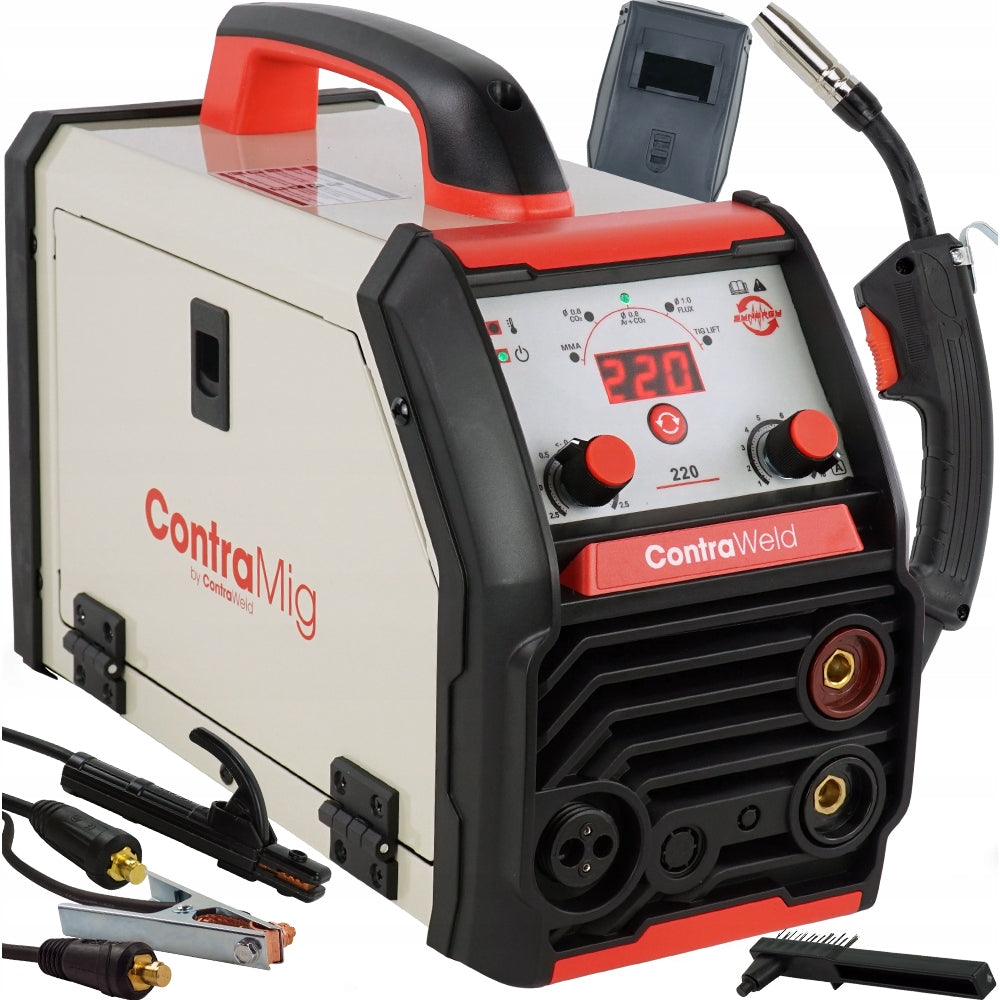

Suvirinimo aparatas 220A ContraWeld MIG 220 MAG FLUX MMA TIG LIFT IGBT 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas 220A ContraWeld MIG 220 MAG FLUX MMA TIG LIFT IGBT 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: CW.220.107.871

✅WELDING METHODS: MIG, MMA, TIG LIFT

✅Welding current: MIG: 40-220A, MMA: 20-220A, TIG LIFT 15-220A

✅good electronics inside and functionality

✅high 60% duty cycle for rated current at (MIG/TIG: 150A, MMA: 130A)

✅made in IGBT inverter technology,

✅small size and handle for safe handling in the field,

✅Power supply voltage: single-phase 230V,

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ Migomat ContraWeld ContraMig 220

✔ MIG TW-14

✔ Mass cable

✔ Electrode cable

✔ Operating instructions

⏭Welding mask

⏭Welding brush

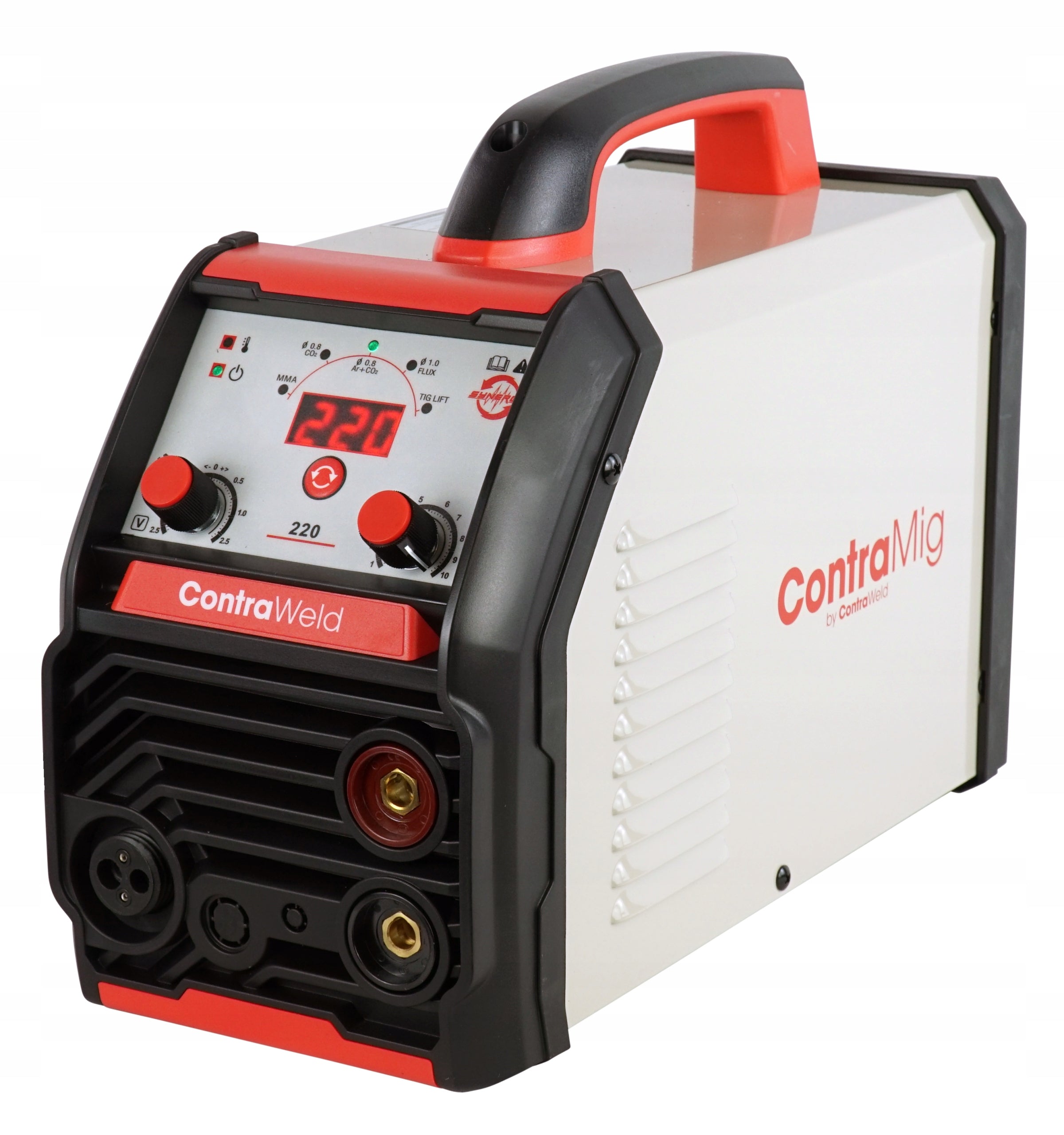

CONTRAMIG 220 was built on the basis of inverter technology. This solution provides small dimensions, lower energy consumption, trouble-free operation and good arc characteristics. Stable output parameters guarantee good weld quality in all available methods.

The welding machine enables welding using the following methods: MIG/MAG - semi-automatic welding in gas shielding, FLUX - semi-automatic welding with self-shielding wire without gas, MMA - welding with wrapped electrode. It is powered from a single-phase 230V network and works with D100 wire spools (up to 1kg

The FCAW method is arc welding with core wire (powder). It is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding. FCAW welding combines the advantages of both wrapped electrode welding and MAG welding.

The device is made of elements that allow for effective operation of the welding machine in demanding conditions.

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The handle attached to the welding machine housing allows it to be comfortably moved to its destination.

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

⏩POWER SUPPLY PARAMETERS

• Power Supply: 230V
• Welding methods: MIG/MAG, MMA, TIG LIFT, FLUIX
• Maximum welding current MAX: 220A
• Working cycle: 60%
• Welding current at 60% (MIG/TIG): 150A
• Welding current at 60% (MMA): 130A
• Degree of protection: IP21S
• Network Security: C20A

⏩Welding parameters

• Welding Current: 40 - 220A
• MIG parameters adjustment: smooth
• Wire Diameter: 0,8 /1,0mm
• Wire spool weight: max. 1kg - D100

⏩ TIG LIFT welding parameters

• TIG LIFT 15-220A

⏩ MMA welding parameters

• Welding Current: 20 - 220A
• MMA Parameter Adjustment: Smooth

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• TIG Lift - a method of arcing by rubbing (similarly to the electrode in the MMA method).

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

Specifications
