Suvirinimo aparatas 200A MIG TIG MMA IDEAL 200 SYNERG

Trumpai apie prekę

Prekė: Suvirinimo aparatas 200A MIG TIG MMA IDEAL 200 SYNERG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG222LCD_pakiet2
• Ilgis: 590 mm
• Plotis: 250 mm
• Aukštis: 455 mm

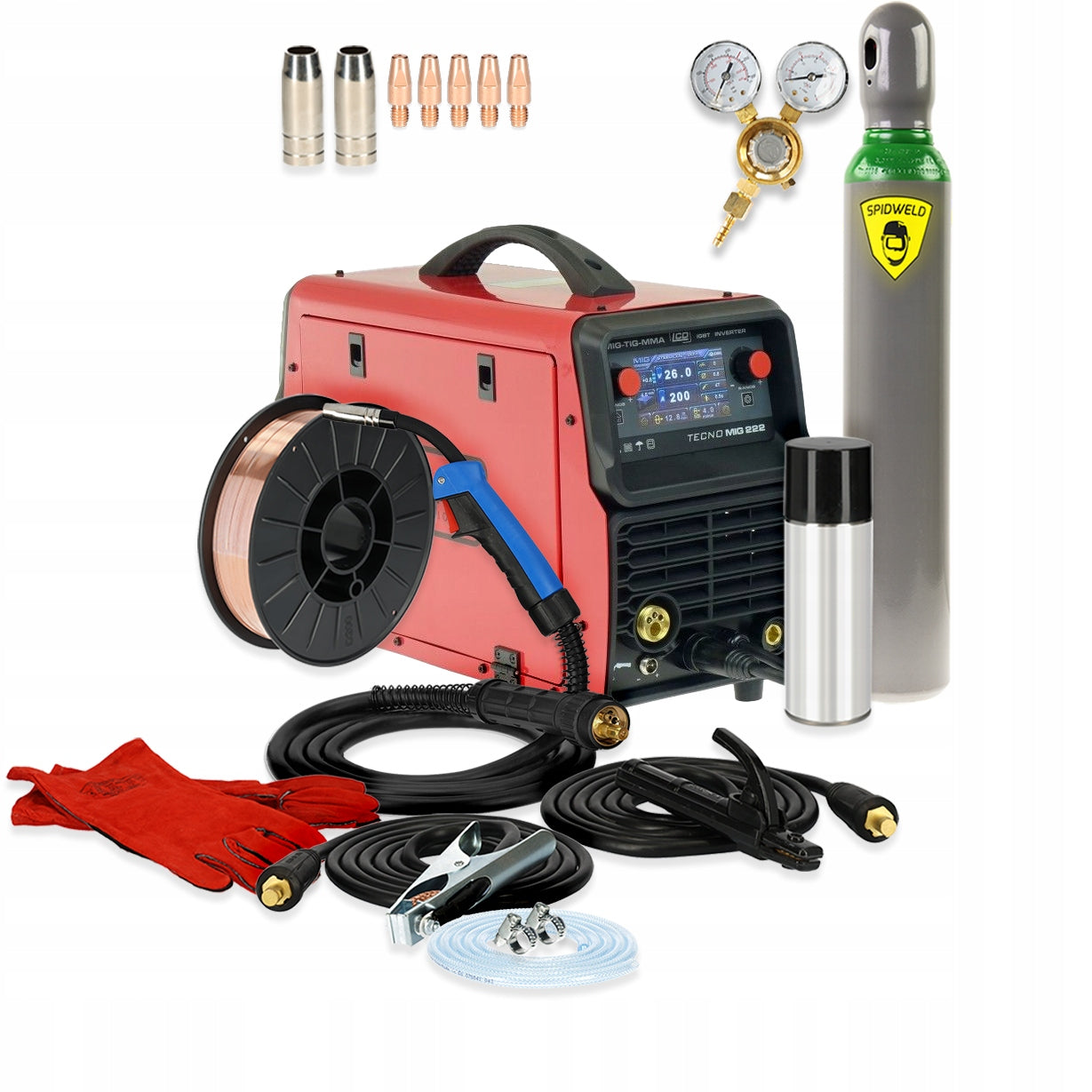

Standard equipment:

• semi-automatic welding machine
• MIG holder MB-15 / 3 m with euro plug
• mass cable / 2,5 m
• electrode cable / 2,5 m
• set of rollers for steel 2RA fi 0,8 / 1,0 V-shaped (mounted in the feeder)
• Coated spiral cartridge for steel (mounted in the holder)
• instruction manual in Polish

Expert Accessory Pack:

• anti-chipping preparation 400ml
• SG2 0,8 mm / 5,0 kg welding wire
• gas reducer MINI 2 pressure gauges
• cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• welding gloves 1 pair
• gas nozzle 2 pcs.
• current tip 5 pcs.
• hose for gas connection + clamps

When buying a set, you will always get a more favorable price.

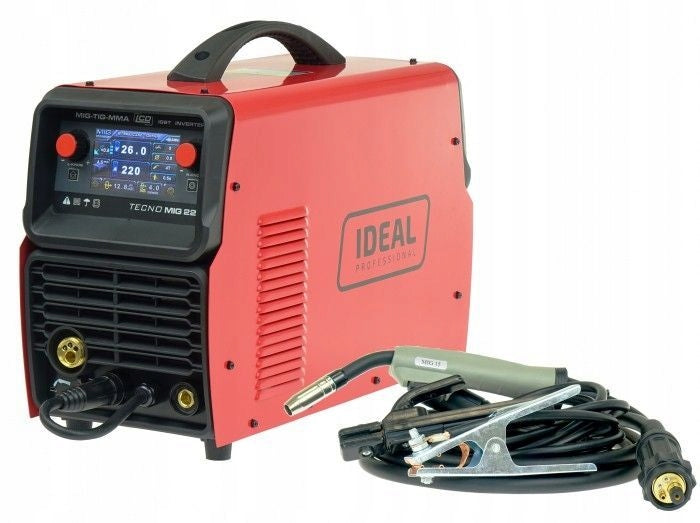

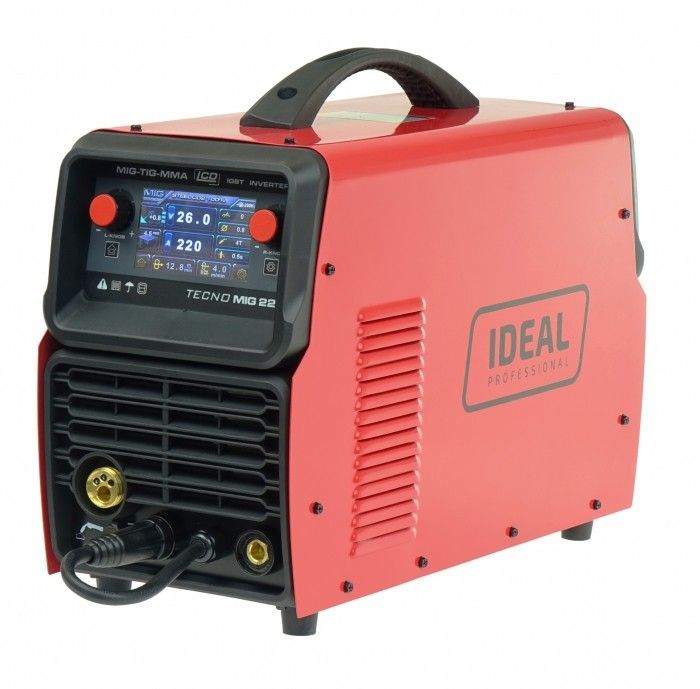

Microprocessor-controlled semi-automatic welding machine Ideal Tecnomig 222 LCD for MIG/MAG welding, soldering, FLUX, TIG Lift and MMA welding. Welding current 220 A (TIG/MIG), 200A (MMA). Power supply 230V.

Ideal Tecnomig 222 LCD is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG Lift, MMA and FLUX methods.

The device is designed for a wide range of applications, from maintenance work to car body repairs.

The welding machine is used for lutowelding of galvanized sheets, welding of stainless steel, carbon and low-alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

The device has three synergistic modes for welding scarbon plates and one mode for aluminum.

Using manual settings, you can customize the device for soldering.

With the MIG/MAG method, it is possible to work in 2T mode (without button lock) and in 4T mode (button lock for long welds).

The VRD (Voltage Reduction Device) function reduces the idle voltage on the electrode to a safe value. Provides shock safety when working in humid environments.

Quick synergistic adjustment of welding parameters via the LCD display makes the device very easy to use.

LCD display allows precise adjustment of welding parameters such as:

• welding voltage
• Wire feed speed
• regulation of inductance
• HOT START (MMA)
• ARC FORCE (MMA)

Other parameters:

• the device has a fan cooling system, which significantly increases its efficiency;
• the device is equipped with overload protection, which increases its reliability;
• single-phase power supply;
• The device is equipped with a power plug.

Supported diameters:

• aluminium wire: 0,8 - 1,0 mm
• Self-shielding wire: 0,8 - 1,2 mm
• steel wire: 0,8 - 1,0 mm
• stainless steel wire: 0,8 - 1,0 mm
• solder wire: 0,8 mm
• welding electrode: 1,6 - 4,0 mm

Technical data:

• power supply: 230 V
• maximum welding current: 220 A
• processes: MIG / MMA / TIG LIFT
• cooling: gas
• type of wire feeder: internal 2 roller
• welding current adjustment range: MIG: 30 -220 A; MMA: 10 - 200 A; TIG Lift 10 - 220 A
• current / duty cycle: MIG/TIG Lift: 220 A/ 60%; 170 A / 100%; MMA: 200 A / 60% ; 155 A / 100%
• Protection: C25 A
• Power consumption: 7,7 kW
• idle voltage: 54 V
• wire spool: 5,00kg/D200, 15kg/D300
• Functions: 2T/4T, TIG Lift, FLUX, soldering
• dimensions: 590 x 250 x 455 mm
• Weight: 19 kg

Cylinder filled with high quality Ar/CO2 mixture designed for welding in protective gas shielding and for other industrial applications. The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers. Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

Specifications
