Sūpynės tipo vartų automatikos komplektas FORCE V400 LS, iki 8 m ir 400 kg, su galiniais ribotuvais

Trumpai apie prekę

Prekė: Sūpynės tipo vartų automatikos komplektas FORCE V400 LS, iki 8 m ir 400 kg, su galiniais ribotuvais. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: V400 LS
• Įtampa: 230 V

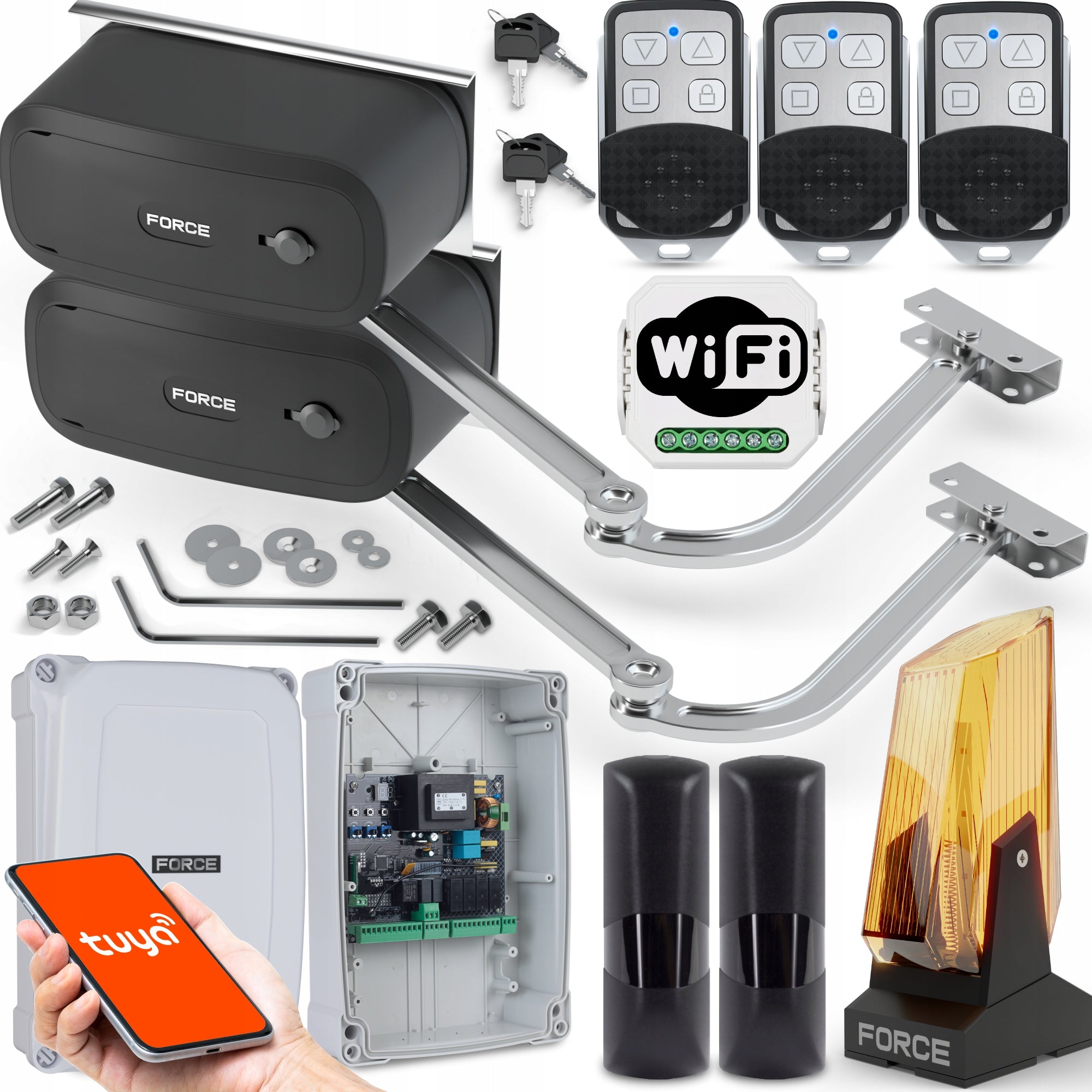

COMPOSITION OF THE SET:

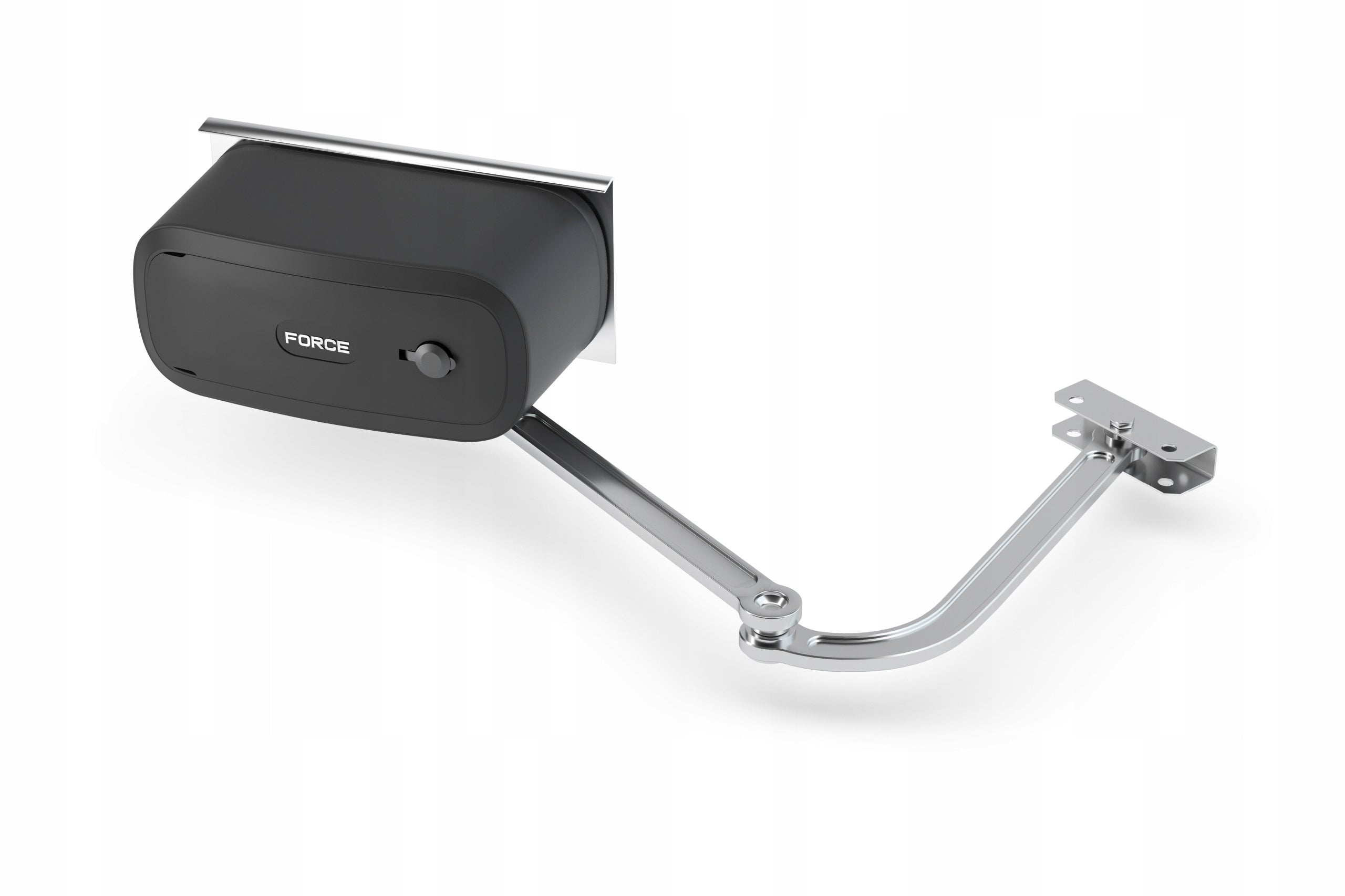

• 2x FORCE V400 LS actuator in built-in limit switches
• 2x Articulated arms
• Control panel
• Housing for the control panel
• Pair of 180 degree rotating photocells (1pcs transmitting, 1pcs receiving) FORCE 180
• 3x 4-channel remote control 433 MHz
• LED signal lamp with antenna for increased remote control range
• Force Smartbox Wifi (to control the gate from a mobile phone)
• 4x Unlock key (in case of power outage)
• 2x Mounting plate for actuators
• Set of fastening elements (screws, washers, nuts)
• Instructions for installation of actuators and programming of the in Polish
• Technical support during assembly - telephone

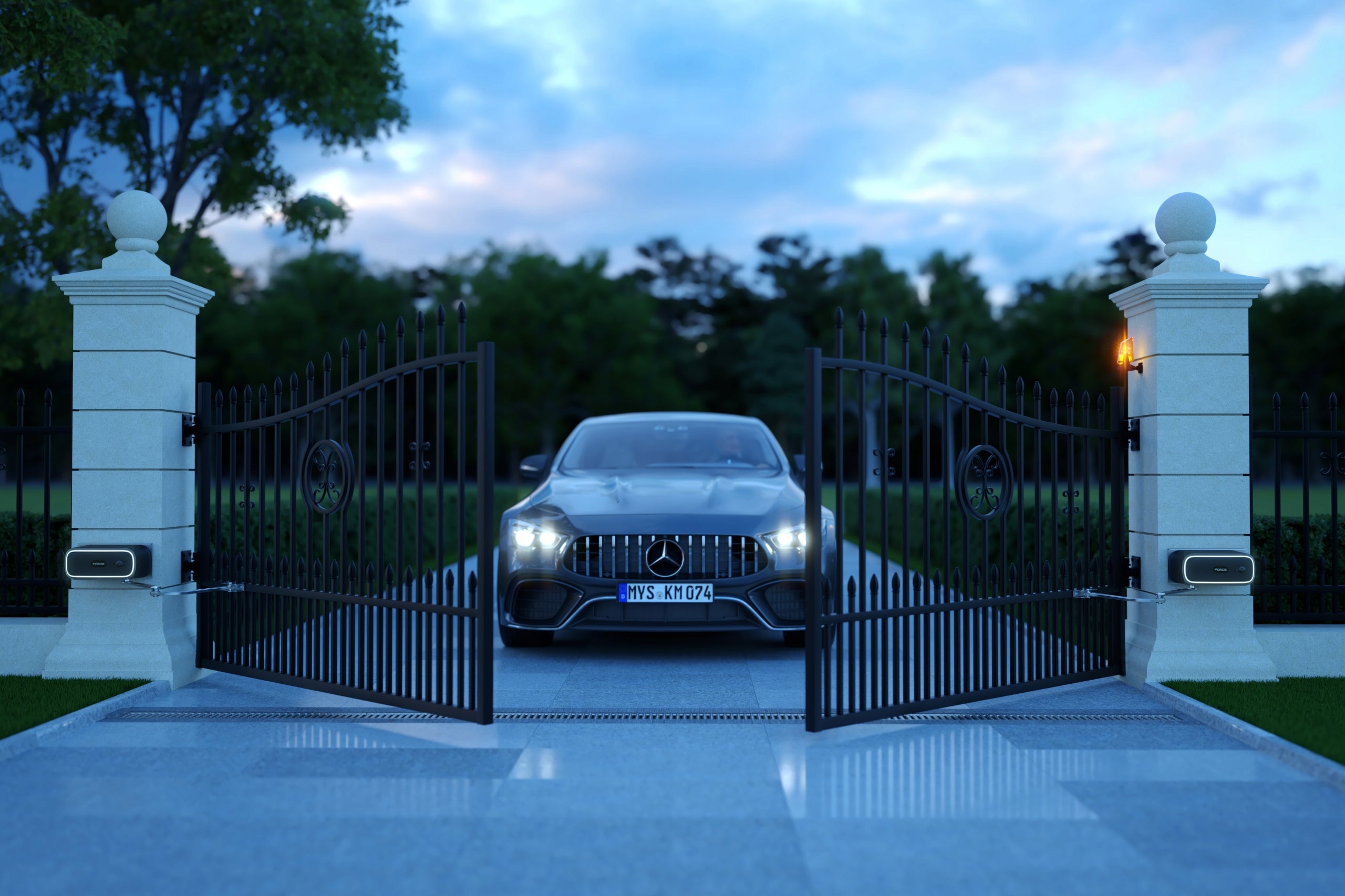

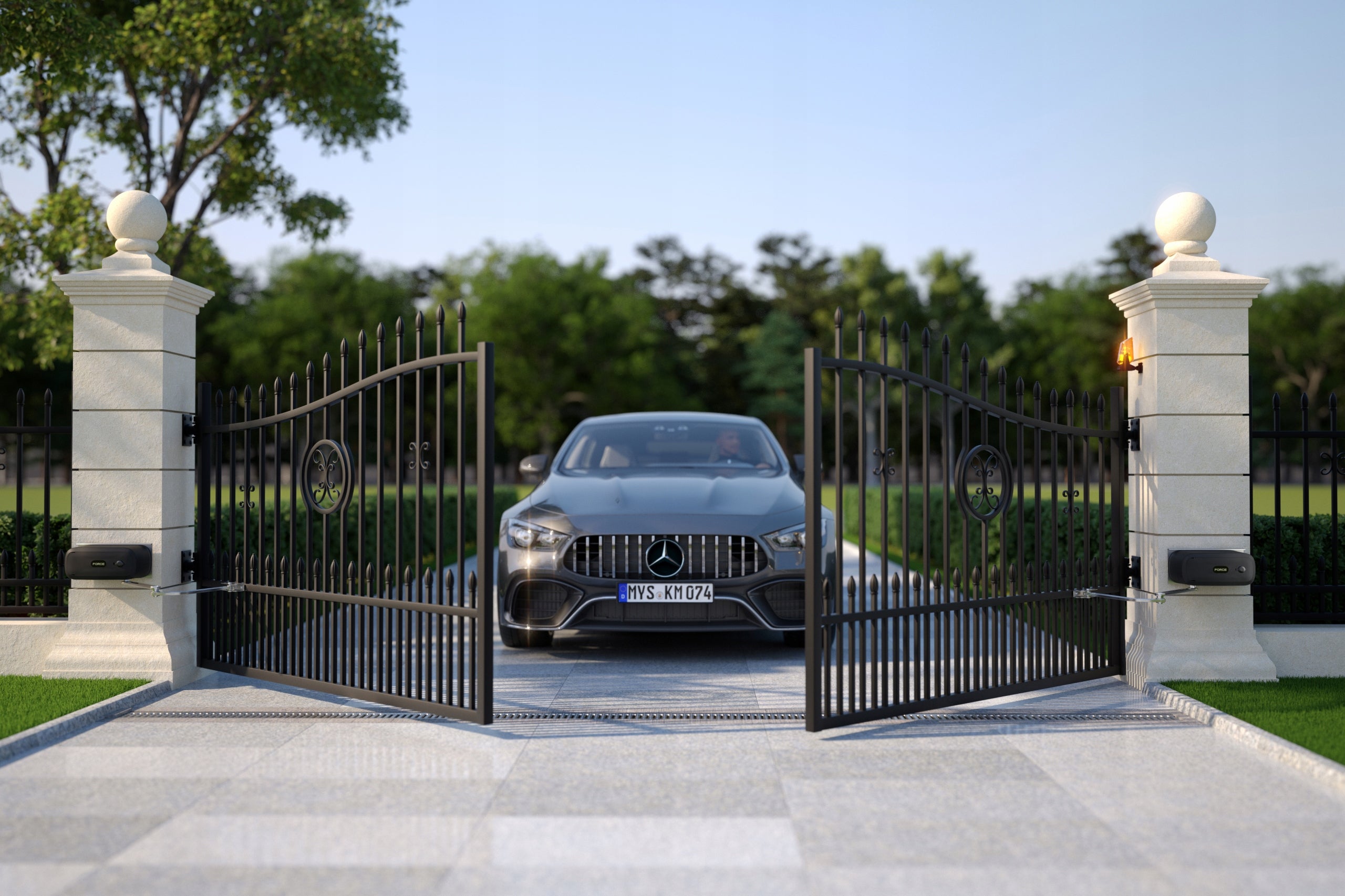

• THE IDEAL SOLUTION FOR WIDE-PILLARED BACKYARD GATES The FORCE V400 LS is the most practical and economical solution for automating a gate with a wing length of up to 4 m (two wings together 8 m). Actuators are equipped with long articulated arms that allow the installation of these actuators on posts where the hinges are weaned up to 38 cm from the edge post. The actuators are self-locking, which means that after stopping the gate leaf, neither the wind nor the person will push the gate leaf unauthorized. Actuators FORCE V400 LS has a motor with a power of 150W and torque of 320 N!!! Which makes this model the strongest on the market in its price class.

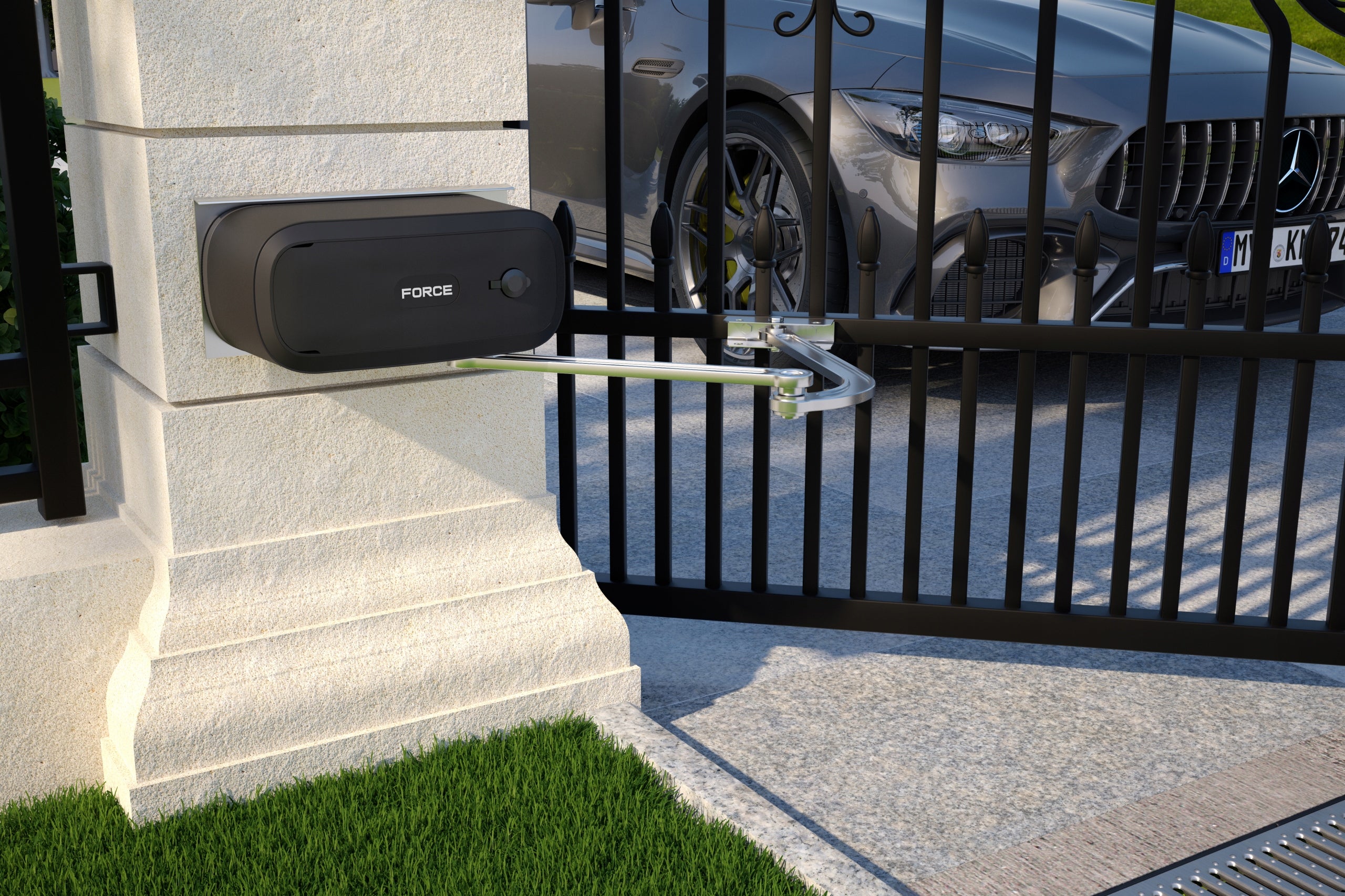

• EASY INSTALLATION AND RELIABLE OPERATION Due to its design and method of attaching actuators to the gate (from the front), the FORCE V400 LS drive is quick and easy to install, without the need for expensive adaptive modifications. A great advantage of the V400 LS actuators are the built-in limit switches of the wing movement on the opening and closing. Thanks to this, you do not need to mount fenders / stops to the ground, which are designed to stop the wings in extreme positions. Often, the installation of such fenders can be troublesome and time-consuming, especially when the lower part of the gate is at a considerable distance from the ground, such a high fender would be impractical and often visually undesirable. However, with the FORCE V400 LS, you can quickly and easily set where the gate should stop on the abrasion and on the closure without mounting anything to the ground. With the FORCE V400 LS, you can assemble quickly, easily and aesthetically.
• OBSTACLE DETECTION SYSTEM - is used to detect possible obstacles that may occur during normal gate movement. Thanks to this function, when encountering an obstacle, the drive stops the gate and changes the direction of its movement
• MINIMUM OPERATING COSTS, HIGH RELIABILITY The cost of operating the FORCE V400 LS electromechanical drive is definitely minimal. The device works reliably in all weather conditions, in the range of external temperatures from-20°C to +55°C.

TECHNICAL DATA OF ACTUATORS:

• Power Supply: 230V
• Motor power supply: 230V
• Power Consumption: 150 W
• Power Consumption: 1,3A
• Torque: 320 Nm!!!
• Maximum working time: 30% /h
• Maximum opening angle: 120°
• Operating temperature range: -20°C / +55°C
• Thermal protection: 140°C
• Degree of protection: IP54
• Weight: 14 kg
• Built-in limit switches in actuator for opening and closing (does not require fixing fenders/stoppers to the ground)

CONTROL PANEL

• force adjustment separately for each actuator (8 levels)
• braking of the gate wings (gentle closing of the gate wings in the final phase of closing and opening)
• operation of limit switches for opening and closing
• automatic closing function after passing the vehicle
• built-in radio that supports the work of remote controls
• very simple programming
• second wing delay function (for gates with closing bar)
• support for complete and partial opening of the gate (gate function)
• entrance to the signal lamp
• possibility of controlling the gate with N.O. input (from the intercom, button from home, WiFi or GSM mobile phone, combination keyboard, etc. )

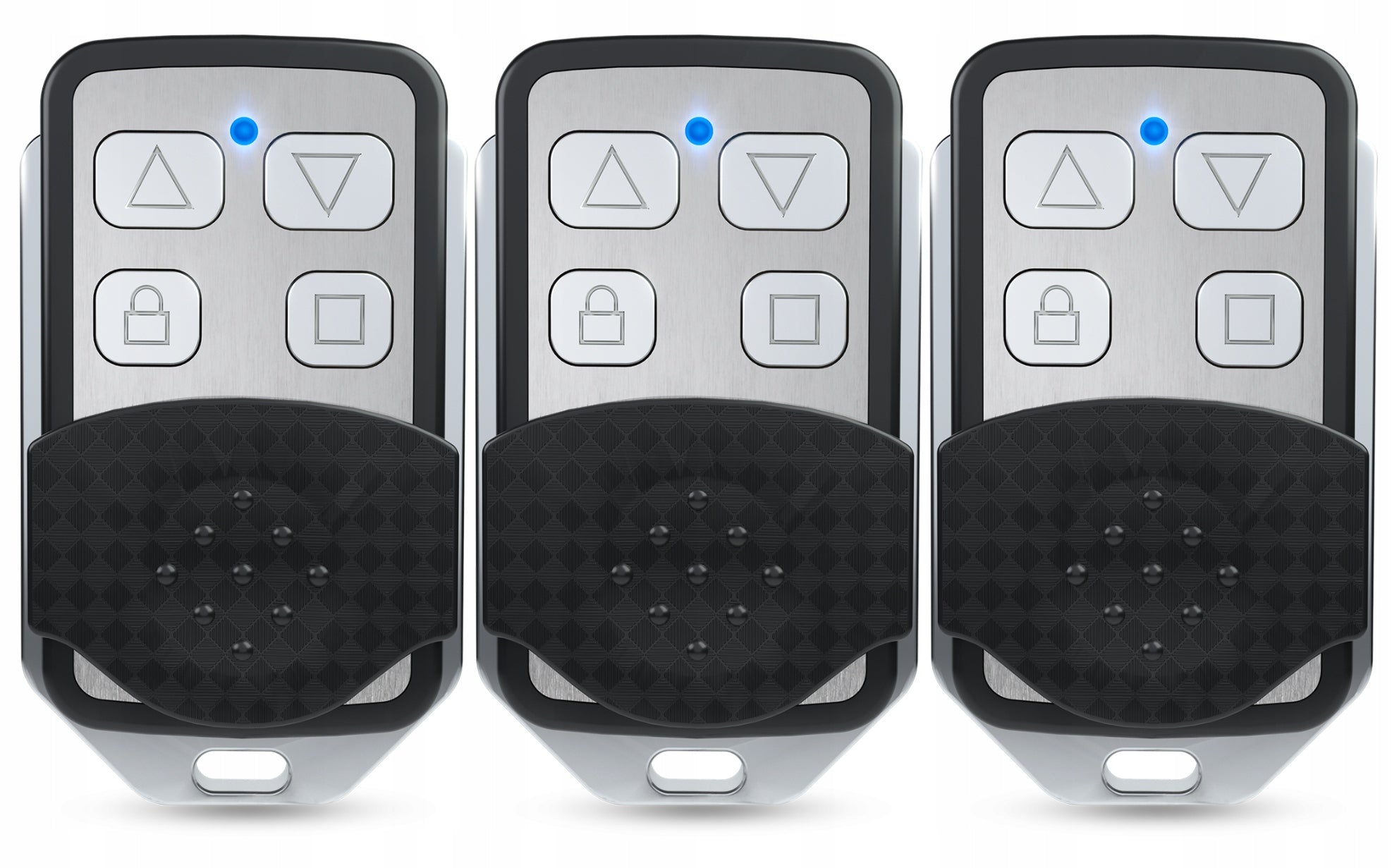

FORCE 4-channel remote control, with dynamically randomly variable code with a frequency of 433.92 MHz.

Key features of appearance:

• Chrome border: A sturdy metal frame surrounding the body, providing a sleek shine and durability.
• Housing: black, high-quality matte plastic, resistant to scratches and everyday use.
• Appearance: compact, ergonomic design that fits comfortably in your hand.
• Buttons: 4 buttons, designed in a subtle and aesthetic way.

Functionality and technical features:

• Range: Provides an excellent range of up to 120 meters, allowing you to conveniently open the gate without driving up to it.
• Convenience: The practical pendant allows you to use it as a keychain.
• Protection: zippered flap to protect against accidental button press

Technical parameters:

• Frequency: 433,92 MHz
• Number of buttons: 4
• housing: chrome-plated metal with plastic
• zippered flap to protect against accidental pressing
• Battery: NM27 12V (included)
• dimensions: 33 x 9 x 60 mm
• Remote control range: up to 120 meters

Rotary photocells FORCE F180 - 180 degree adjustment

Technical specification:

• Dimensions: 108 x 35 x 30 mm
• Power supply: 12-24 V DC/AC
• Range: max 15 m
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A, max 36V
• Frequency: 1,92 KHz
• Wavelength: 940 nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

Control is carried out via the TUYA application, which is available for smartphones and tablets (Android and iOS, Play Store and AppStore). It allows you to connect multiple devices that have a TUYA controller, so you can control devices such as: entrance and garage gates, roller shutters, cameras, alarm, lighting, heating, air conditioning, power sockets, etc. with one application from your phone. We can control the application from anywhere in the world with Internet access. You can control the gate while being away from your property, e.g. at work or on vacation.

The service application is available in Polish

Specification:

• Input voltage: AC 100v ~ 240V
• Working Frequency: 2.4G~2.4835GHz
• Security mechanism: WPA/WPA2
• Working environment: temperature: -10℃~+55℃ humidity: 20%~93%
• Dimensions: 46x46x18 mm

The set includes:

• WiFi driver
• 1x reed switch
• User manual in Polish
• Packaging

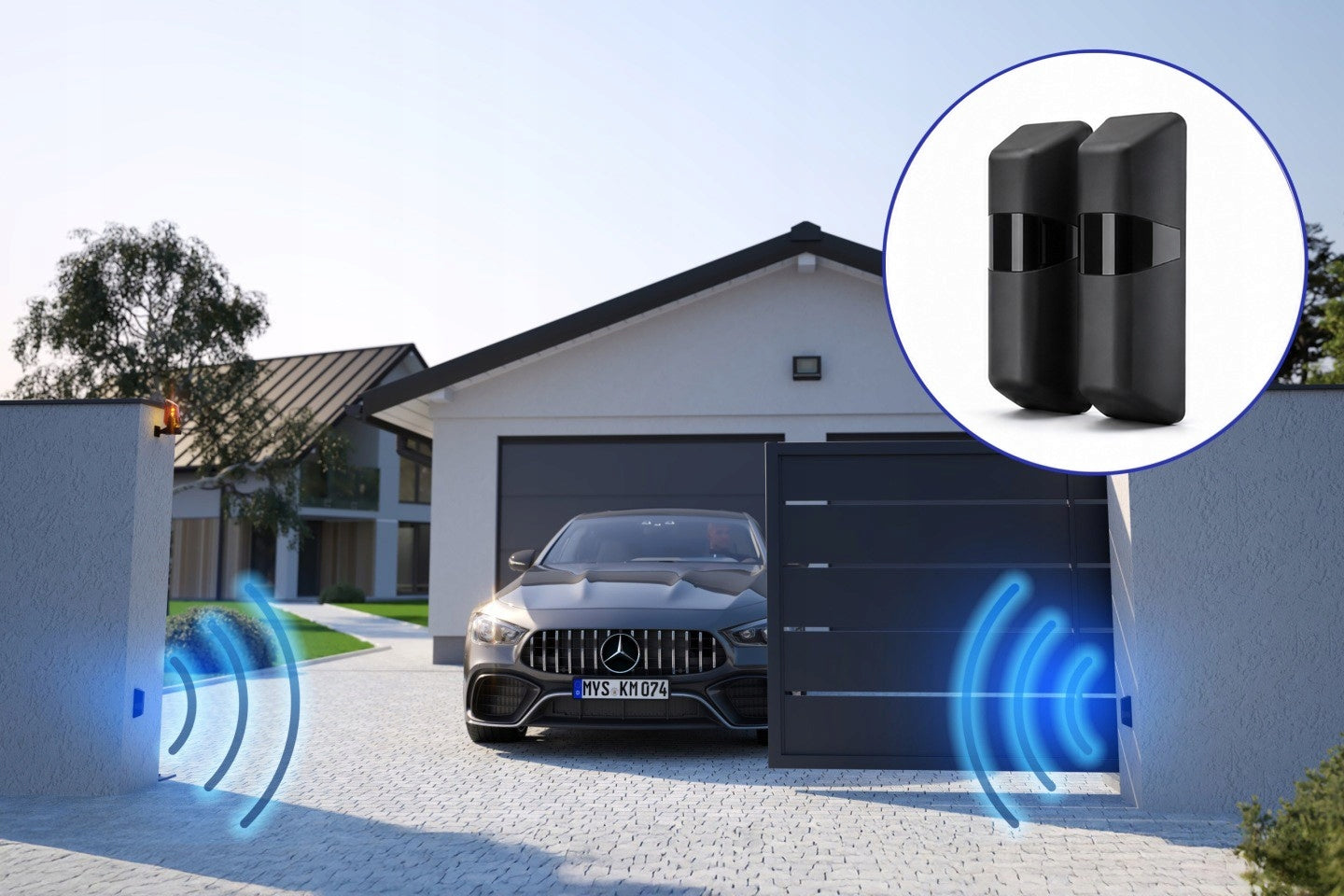

Rotary photocells FORCE 180

180 degree viewing angle (adjustable)

Technical specification:

• Dimensions: 108mm x 35mm x 30mm
• Power Supply: 12-24V DC/AC
• Range: max 15meters
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A max 36V
• Frequency: 1,92Khz
• Wavelength: 940nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

LED drive housing lighting

Tasteful design, modern solution.

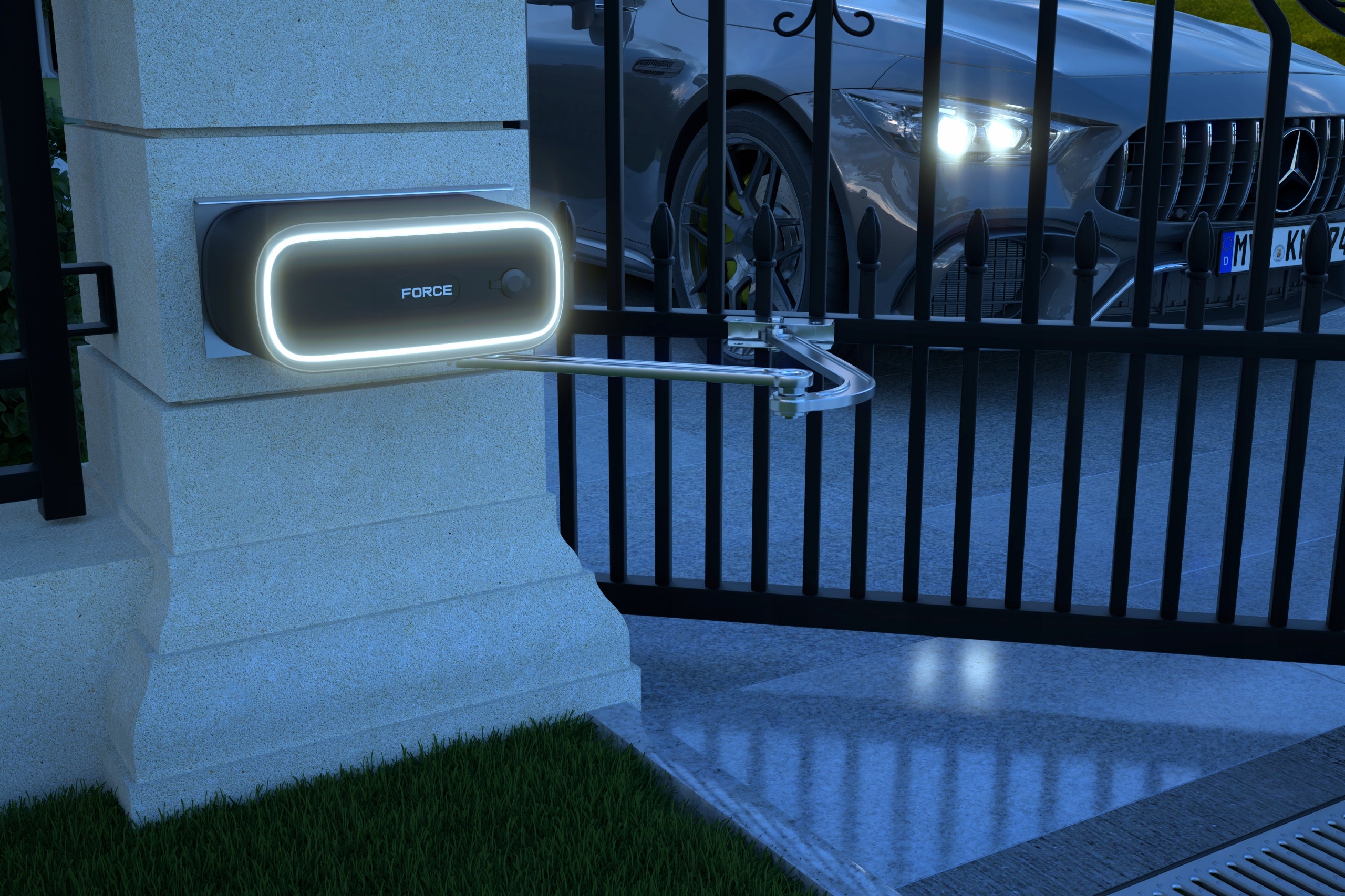

• warning lighting is factory built into the drive housing, when the automatic gate is started, the LED lighting shines with a pulse light informing that the gate is in motion

Indicator lamp FORCE CRYSTAL

Tasteful design, universal LED warning lamp.

• The lamp is designed for use in systems that do not control the pulsation of light themselves, as well as in systems that control light themselves.
• Built-in antenna for increased remote control range
• Mounting base for mounting to a vertical plane
• 360 degree direction of illumination
• Operating mode: continuous illumination/pulse illumination
• Light pulsing frequency: 1 Hz/0 Hz (60 flashes per minute/continuous light)
• Power consumption (continuous illumination): 2,5 W

Thanks to this solution, you do not need to mount fenders / stopwatches to the ground that would be designed to stop the gate wings in extreme positions. By turning the cam red or green, you can easily set the exact place of automatic stop of the gate leaf in the open and closed position.

OTHER ACCESSORIES

• Mounting plungers for fixing actuators to mounting brackets
• Unlocking keys in case of power outage
• Installation instructions in Polish

If distance B is between 0 and 300, the section A shall measure at least 110 mm.

If distance B is between 300 and 380, section A shall measure at least 150 mm.
