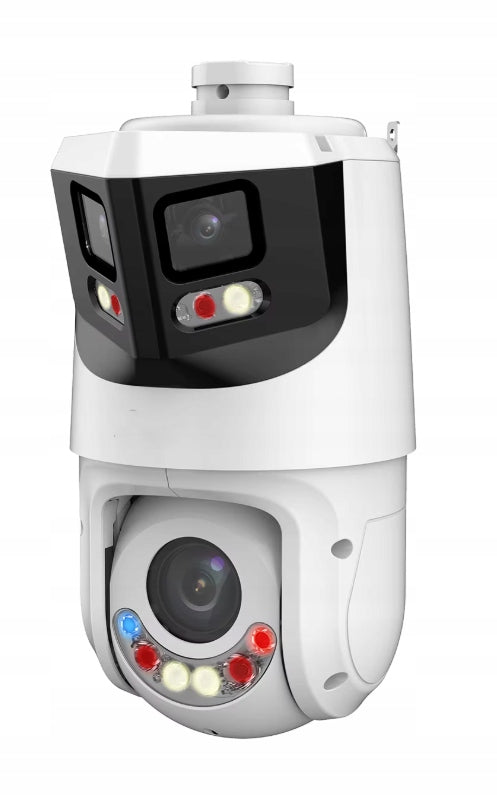

Sukiojama panoraminė IP kamera Dahua SDT4E425-8P-GB-APV1, 8 Mpx

Trumpai apie prekę

Prekė: Sukiojama panoraminė IP kamera Dahua SDT4E425-8P-GB-APV1, 8 Mpx. Kategorija: IP kameros.

• Gamintojas: Dahua Europe
• Modelis: SDT4E425-8P-GB-APV1 Dahua

The high-speed IP camera, in addition to the traditional PTZ camera module, also has a panoramic camera module mounted in the same housing. The series of these cameras can be used to monitor large spaces in high resolution, such as rivers, roads, railways, airports, squares, parks, meeting places, etc. The camera is equipped with Smart Dual Light technology, which allows you to get a clear color image even at night and has an active audio-visual deterrence function in combination with artificial intelligence AI functions. Thanks to the "Starlight" technology used, the camera only needs very low lighting to achieve a clear color image. The DAHUA TiOC series of cameras are modern IP cameras combining 3 innovative technologies: Dahua Full-Color - 24/7 image, Wiz-Sense - AI artificial intelligence functions and active audio-visual deterrence (flashing red and blue lights and siren sound). The panoramic camera connects to the PTZ camera to track targets. Once the target is in the panoramic area, the PTZ camera begins to monitor it and tracks its movement by rotating, zooming and focusing the lens, so that the camera can generate highly detailed images of target movement for security personnel. The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient). PoE power capability, according to the 802.3at standard, makes the device even more versatile and easier to install.

• Standard: IP
• Resolution: 2560 x 1440 - 3.7Mpx, 2304 x 1296 - 3Mpx, 1920 x 1080 -1080p, 1280 x 960 - 1.3Mpx, 1280 x 720 -720p, 4096 x 1860 - 7.6Mpx, 2048 x 928 - 1.9Mpx, 1920 x 1080 -1080p, 1280 x 720 -720p
• Transducer: PTZ Camera : 1/2.8" STARVIS™ CMOS, Panoramic Camera : 2 x 1/2.7" Progressive Scan CMOS
• Lens: PTZ camera : 5 ... 125 mm, Panoramic camera : 2 x 2.8 mm
• Viewing angle: PTZ camera : 52° ... 3°, Panoramic camera : 180°
• Optical Zoom: x 25
• Digital Zoom: x 16
• IR illuminator range: 100 m @ PTZ camera, 30 m @ Panoramic camera
• White light illuminator range (LED): 50 m @ PTZ camera, 30 m @ Panoramic camera
• Rotation speed at presets: 180 °/s (horizontal), 90°/s (vertical)
• Rotation speed (manual control): 0.1 °/s ... 180 °/s (horizontal), 0.1 °/s ... 90 °/s (vertical)
• Horizontal rotation range: 360 ° - continuous
• Vertical rotation range: -15 ° ... 90°
• RS-485 interface: None
• Number of presets: 300
• Horizontal scanning: Yes
• Traffic routes set: 8
• Image compression method: Smart H.265+ /H.265/ Smart H.264+ /H.264B/ H.264M /H.264H/MJPEG
• Alarm inputs/outputs: 2 / 1
• Audio: Audio Input, Audio Output, Built-in Speaker - Alarm Siren, Sound Detection, Two-Way Audio Support
• Main stream transmission speed: PTZ camera : 25kl/s@ 3.7Mpx, Panoramic camera : 25kl/s@ 7.6Mpx
• Network interface: 10/100 Base-T(RJ-45)
• Memory card slot: Support Micro SD cards up to 512GB
• WEB Server: Built-in
• Max. Number of users online: 20
• ONVIF: Yes
• Default IP address: 192.168.1.108
• Default administrator login / password: admin / -Administrator password should be set at first startup
• Access ports via PC app: 37777
• Mobile application access port: 37777
• ONVIF port: 80
• RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
• Intelligent image analysis: line crossing,intrusion, detection of entry into the area / exit from the area,detection of suspicious activity, abandoned/missing object,fast movement, parking detection, estimating the size of the accumulated crowd,object detection (human, car), Intelligent object tracking,SMD 4.0 - search for an object classified as:human, motor vehicle - increased detection distance and resistance to false alarms
• Housing: Speed Dome, Metal + Plastic
• Color: White + Black
• Protection class: IP66
• Mechanical resistance class: None
• Power consumption: ≤ 14 W (typical), 25 W (max)
• Operating temperature: -40 °C ... 65 °C
• Weight: 3.1 kg (without handle), 3.7 kg (with handle)
• Dimensions: 160 x 194 x 311 mm (without handle), 160 x 284 x 397 mm (with handle)
• Supported languages: Polish, English
• Manufacturer / Brand: DAHUA

Selected functions:

• Thanks to the "Starlight" technology used, the camera only needs very low lighting to achieve a clear color image
• Smart Dual Illumination Technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality
• Active deterrence function - Light and sound alarm - Active deterrence of intruders works on the principle of flashing blue and red light and siren sound or voice messages
• WDR - 120 dB - Wide range of lighting dynamics
• 2D-DNR, 3D-DNR - Digital noise reduction in the image
• F-DNR (Defog) - Noise reduction associated with precipitation
• EIS - Electronic image stabilization
• ROI - improving the quality of selected image fragments
• Image rotation and mirroring
• BLC/HLC - compensation of background light / strong light
• ICR - Mechanical Infrared Filter
• Day/night mode
• Automatic white balance
• AGC - Automatic image gain adjustment
• Sharpness - Sharpening the contours of the image
• Customizable: brightness, contrast, saturation
• NAS support - Network Attached Storage
• Motion detection
• Filtering false alarms based on recognition of persons and vehicles
• Surge protection
• Protection against atmospheric discharges: 6 kV

Full name: SDT4E425-8P-GB-APV1 HIGH SPEED EXTERNAL IP CAMERA WIDESCREEN TiOC WizSense Smart Dual Light - 3.7 Mpx, 7.6 Mpx 5 ... 125 mm, 2 X 2.8 mm DAHUA

Specifications
