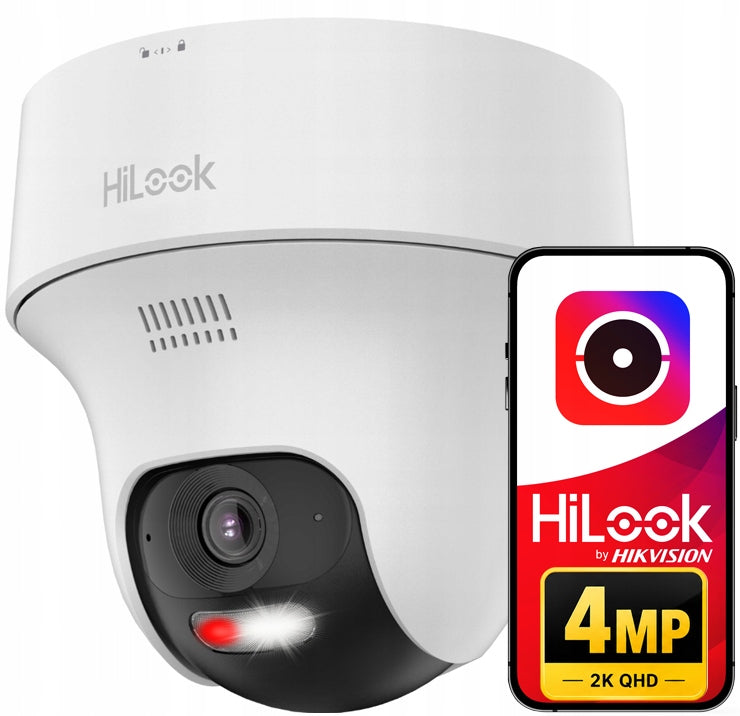

Sukiojama 4MPx IP kamera HiLook Hikvision IPC-F140-LIDF/W

Trumpai apie prekę

Prekė: Sukiojama 4MPx IP kamera HiLook Hikvision IPC-F140-LIDF/W. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-F140-LIDF/W HiLook by Hikvision

WiFi / 4Mpx / 2.8mm / Smart Dual Light / IP54 / H.265 / Microphone

Camera dedicated to work with EasyLink sets. Requires connection to NVS recorder.

The IPC-F140-LIDF/W model is a high-quality rotating WiFi camera with a resolution of 4MPx, designed for small and medium-sized monitoring installations in locations such as homes, companies or shops.

The camera has a built-in dual illuminator (white light + IR_ which allows you to record images at night in both color and infrared.

Key features:

✅ High quality recordings thanks to the camera resolution of 4MPx @2560x1440p 25fps

✅ Wide recording angle approx. 94° horizontally - guaranteeing excellent visibility

✅ Two illuminators on board the camera: IR with a range of 20m and white light with a range of up to 15m

✅ Motion detection function - in-app notifications and recording of important events

✅ Built-in microphone for sound recording

✅ Built-in speaker allowing you to make calls and send messages via the app

✅ Camera with the possibility of installation inside and outside the building - IP54 protection class (recommended installation under a roof)

-------------------------------------------------------------------------------

Important:

The camera is designed to expand the set with the HiLook NVS recorder. Does not work as a single device. You can find the sets on our auctions: 16583819509 / 16737792667 / 16816713791 / 16822074572 / 16599024834

• Converter: CMOS 1,2/7'' 4MPx
• Image resolution: 4Mpx @2560 × 1440p
• Sensitivity: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Lens: wide-angle 2,8 mm
• Recording angle: ~91,1 degrees
• Type of illuminator: Dual - infrared + white light
• IR illuminator range: 20m
• White illuminator range: 15m
• Intelligent functions: motion detection
• Wide dynamic range: DWDR
• WiFi interface: Yes - 2,4Ghz
• Wired interface: Yes, RJ45
• Audio functions: built-in microphone and speaker
• Support in mobile app: HikConnect or HiLook App via NVS (camera requires NVS device to connect to app)
• Compatibility: EasyLink kits
• Assembly: external or internal
• Power Supply: 12V DC
• Leak-proof class: IP54

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

IPC-F140-LIDF/W is part of a series of cameras using innovative Dual Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera has a built-in motion detection algorithm. When moving objects are detected, the camera can send an alarm notification to the software and app.

Furthermore, the camera uses an advanced algorithm that distinguishes between pedestrians and vehicles, allowing you to filter notifications for events you care about.

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Camera

• Sensor: CMOS 1.2/7'' 4MPx
• Transmission standard: IP
• Max resolution: 4Mpx @2560x1440
• Sensitivity: 0.01 Lux @ (F2.0, AGC ON), Black & White: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontal): horizontal FOV 91.1°

Illuminators

• IR range: up to 20m
• IR wavelength: 850 nm
• White light range: up to 15m

Image compression

• Video compression: Main stream: H.265+/H.264+/H.265/H.264 Sub stream: H.265/H.264/MJPEG
• H.264: Base Profile/Main Profile/High Profile
• H.264+: Main stream
• H.265: Main Profile
• H.265+: Main stream
• Video bitrate: 32 Kbps to 8 Mbps

Smart functions

• ROI: 1 fixed region for two streams


• Main stream - max. frame rate: 50Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Auxiliary flow - max. frame rate: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR
• Wide Dynamic Range: DWDR
• Smart Dual Illumination: Yes
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/Night Mode: Automatic/Manual Switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Featured Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous viewing: up to 6 channels
• Alarm trigger: Motion detection, video tampering, unauthorized login
• Number of users/hosts: up to 32 users, 3 levels of permissions: Administrator, Operator, User
• Client Software: iVMS-4200, HiLook App, HiLookVision

General

• Built-in microphone: Yes
• Built-in speaker: Yes
• Power supply: 12V DC
• Material: Tightness class
• metal + plastic: IP54
• Dimensions: : 163 x 125 x 26 mm
• Weight: 0.290kg
