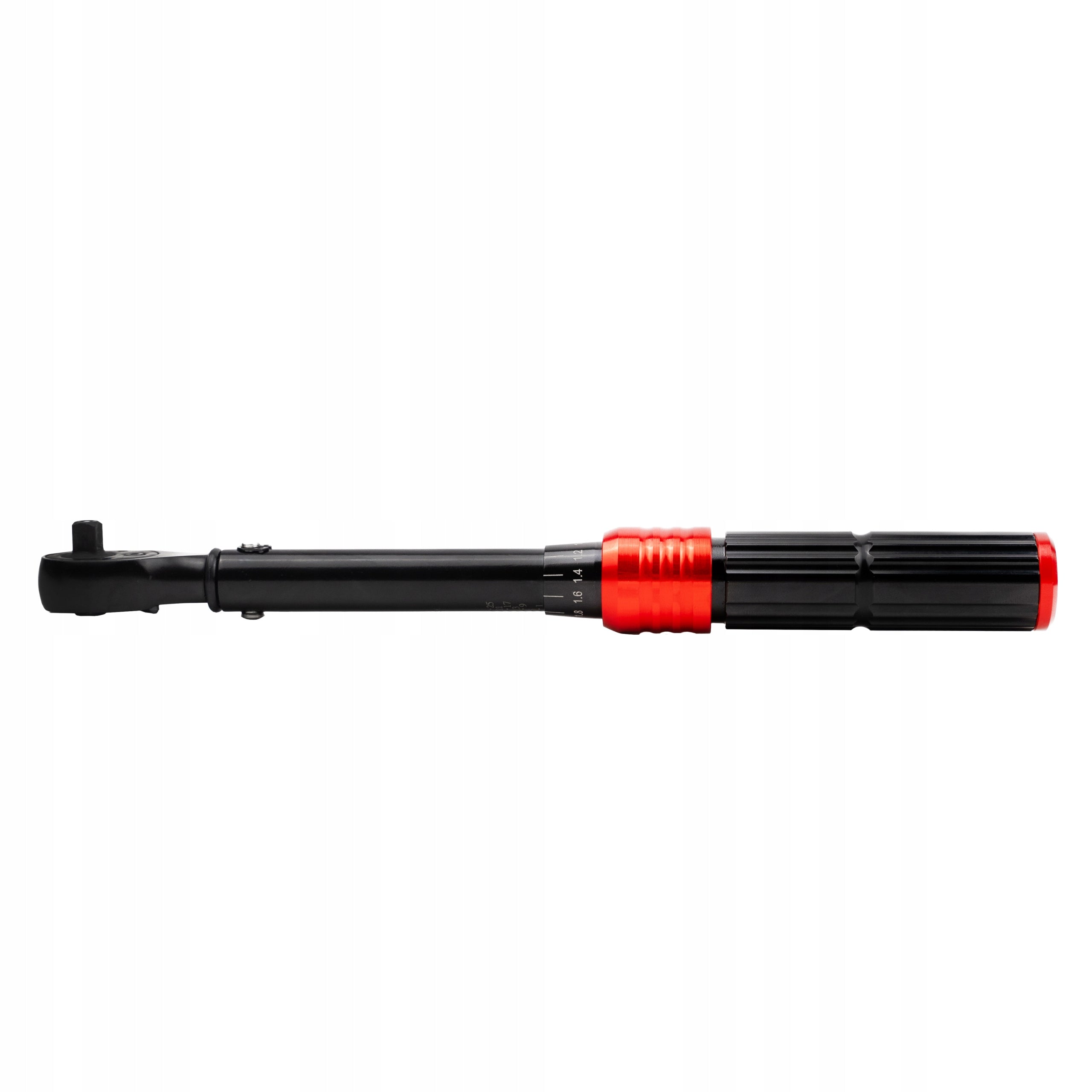

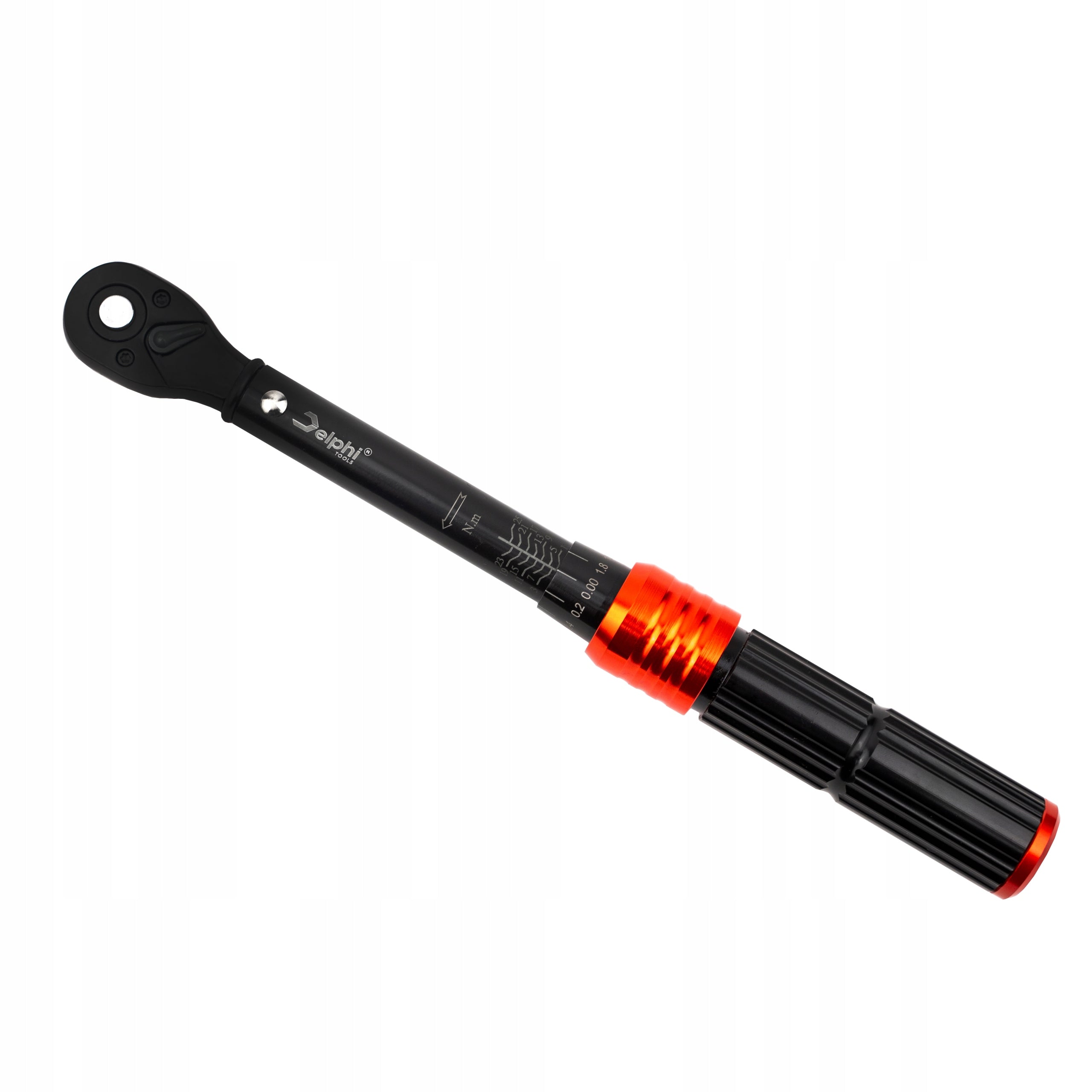

Sukimo raktas 1/4", 1–25 Nm, CrMO ir CrV, su fiksatoriumi, kalibravimo sertifikatas

Trumpai apie prekę

Prekė: Sukimo raktas 1/4", 1–25 Nm, CrMO ir CrV, su fiksatoriumi, kalibravimo sertifikatas. Kategorija: Raktai.

• Gamintojas: Delphi tools
• Modelis: Klucz Dynamometryczny z Kalibracją 1-25Nm

➡ 1/4" drive, 72 Teeth

➡ CrMO & CrV

➡ Nitrile gloves

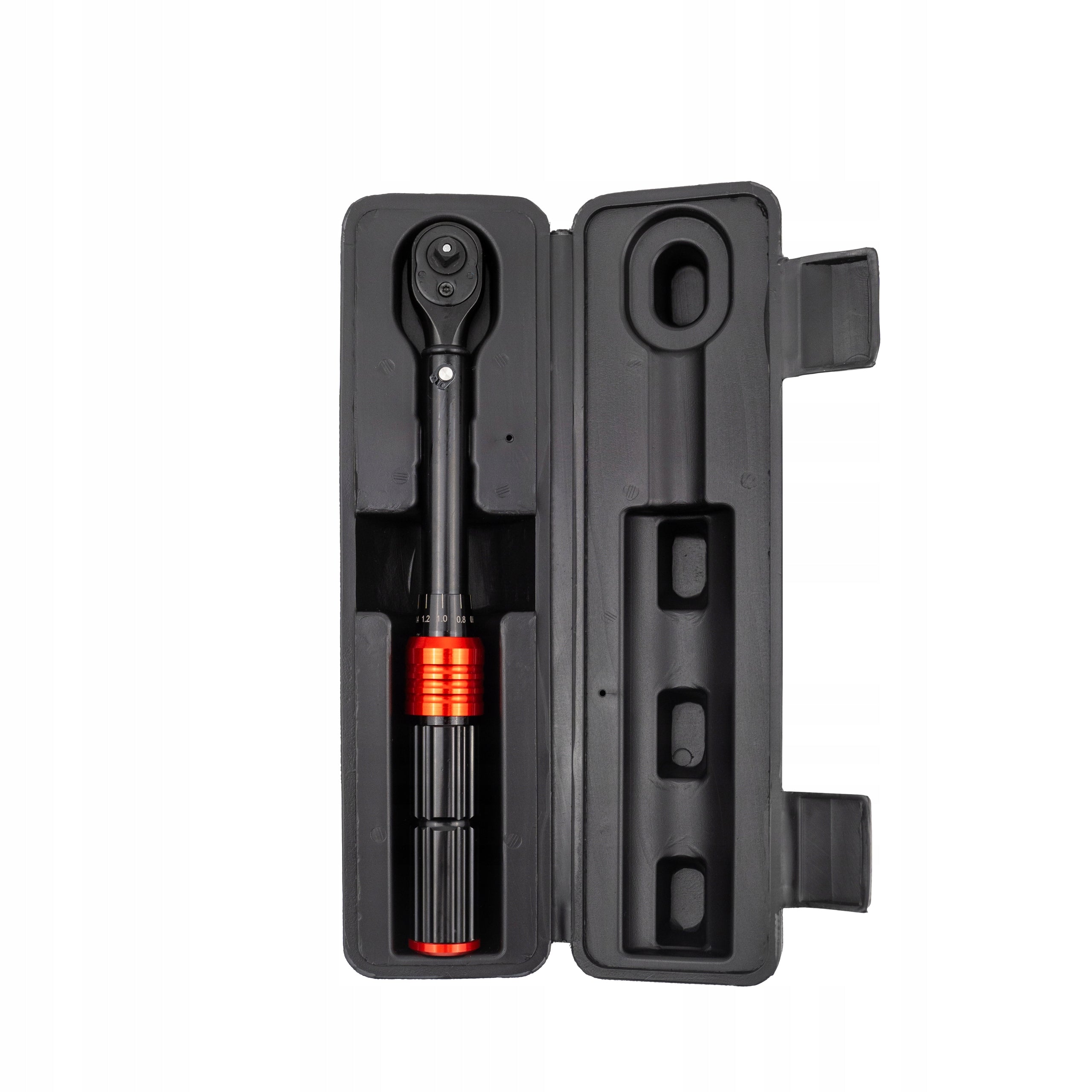

➡ Storage case

➡ Torque Wrench is equipped with a lock, which guarantees the inability to accidentally change the torque value of the key.

Torque Wrench with 1/4" drive and 72 teeth is a PRECISE tool, it will be used in work requiring accuracy +- 4%.

How do Dynamometric Wrenches work in the lower torque range?

Torque wrench offers precise operation in a wide range of torque. At higher torque values, the tool operates to the highest standards of accuracy.

In the case of working in the lower range of the moment, there may be reduced precision signal, or signal with less clear intensity, which may affect particularly demanding applications. We suggest that for jobs requiring the highest accuracy in low torque values, consider using a tool with a smaller scope of action.

✅ CERTIFIED CALIBRATION

NORM: DIN ISO 6789

The Delphi key meets the international standard, which guarantees:

• Accuracy
• Repeatability
• Compliance with standards
• Security
• Tool life

✅ CrMO CHROMIUM-MOLYBDENUM STEEL

Exceptional strength, resistance to high temperatures and corrosion.

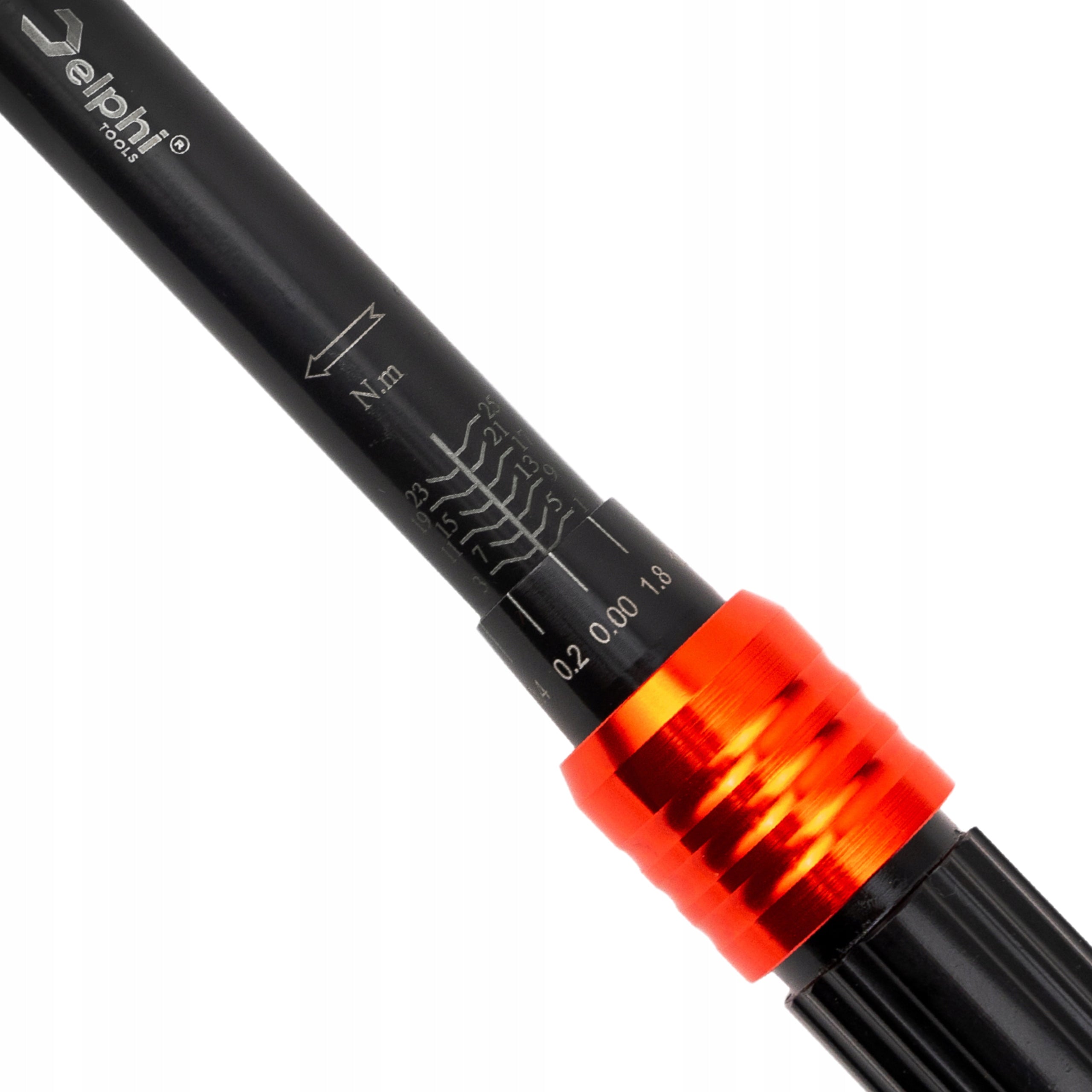

Scale in Newton Meters (Nm)

Examples of Delphi Torque Wrench applications:

Tightening screws and bicycle components, such as driver, bridge, saddle, handles, brake discs and brake calipers.

Examples of tightening moments:

• Steering wheel: 5-6 Nm ✔
• Brake calipers: 6-8 Nm ✔
• Crank: 12-15 Nm ✔

Assembly and maintenance of models such as aircraft, cars and RC boats (remotely controlled).

Examples of tightening moments:

• Mounting screws: 2-5 Nm ✔
• Suspension components: 5-8 Nm ✔

Service of motorcycles and scooters:

Examples of tightening moments:

• Engine covers: 8-10 Nm ✔
• Exhaust system components: 10-12 Nm ✔

✅ CALIBRATION CERTIFICATE

For the Delphi torque wrench, a document was issued confirming that the measuring instrument has been tested and calibrated to specific standards. This is crucial both for ensuring measurement accuracy and compliance with regulatory requirements and quality standards, in accordance with DIN ISO 6789.

✅ NUMBER OF TEETH: 72

• Smaller rotation angle: Rattle with 72 teeth has a rotation angle of only 5 degrees.
• Precision and control: A larger number of teeth provides more precise operation and better control over the tool, which is beneficial for more delicate tasks.
• Working fluidity: Rattles with more teeth often work smoother and quieter than those with fewer teeth.

Precision and Quality:

• Torque wrench with a tolerance of ±4% is precise enough for many applications where minor differences at the time of tightening do not have a critical impact on the functioning of the connection.
• Using the tool according to the instructions and avoiding exceeding the maximum torque values helps maintain its precision.

gallery

Delphi Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate repairs and save time, and also meet the highest quality standards and exceed the expectations of users.

Specifications
