Stumdomų vartų automatikos komplektas FORCE 800, WiFi, 4 pulteliai, 5 dantytos juostos, fotodavikliai, iki 800 kg

Trumpai apie prekę

Prekė: Stumdomų vartų automatikos komplektas FORCE 800, WiFi, 4 pulteliai, 5 dantytos juostos, fotodavikliai, iki 800 kg. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: Force 800
• Įtampa: 230 V

Key features:

• high efficiency - thanks to the use of a worm gear matched to the engine power, the drive performance for the sliding gate has been significantly optimized
• soft start - stop - reduce noise and increase the durability of moving parts and achieve a higher working culture
• automatic closing - the ability to turn on the automatic closing of the gate after a set time from its opening
• smooth torque adjustment - allows precise setting of the force with which the motor is to work for the sliding gate
• impact protection - smoothly adjustable sensitivity of the amperometric crush protection system (overload protection)
• setting the directions of movement - the ability to determine the direction of opening and closing the sliding gate makes the drive to the gate can be mounted in two ways
• easy programming of the remote control - remote controls can be easily programmed for sliding gate drives
• gate function - the gate opens about a meter

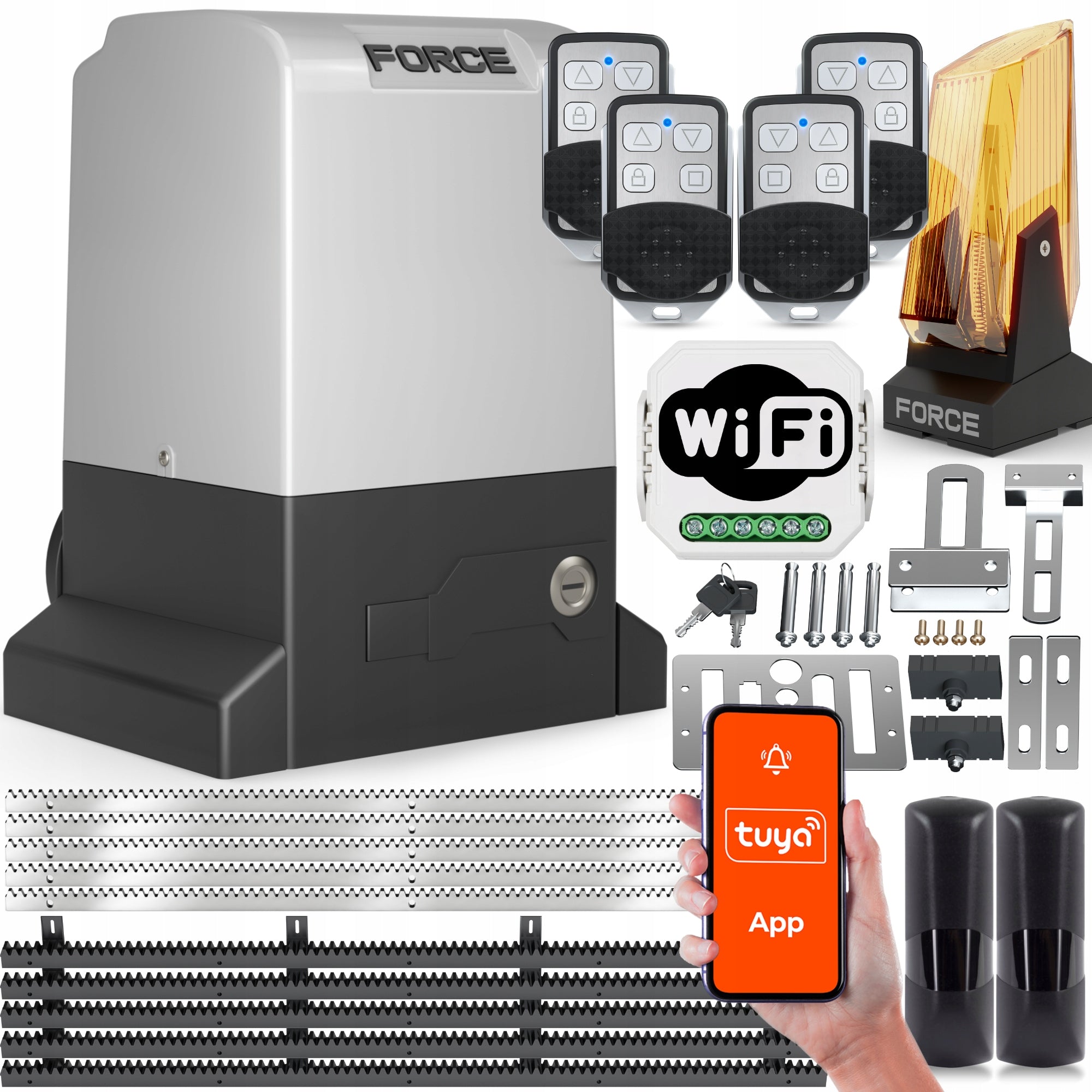

COMPOSITION OF THE SET FORCE 800:

• FORCE 800 drive (built-in control panel)
• Force Smartbox Wifi (control via smartphone)
• 4 x 4-channel remote control (with button protection flap)
• Indicator lamp with antenna for increased remote control range
• Receiver radio 433 MHz, built-in on the control panel
• 180 degree rotating photocells
• 5x gear bar (5 meters)
• Mounting base
• Set of mounting elements (anchors, nuts)
• 2x unlock key (when power is out)
• Set of magnetic limit switches for gear bar
• Warranty card
• Assembly and programming instructions in Polish download

The main advantages of the FORCE 800 drive:

• clear and easy to program control panel,
• induction brushless motors characterized by high strength and durability,
• modern drive design,
• speed of action.

An additional 96 remote controls can be uploaded to the control panel to the gate, due to the backyard use. The big advantage of the drive for sliding gate 800 is a durable body with a decoupling lever and the ability to easily and quickly mount the drive on a solid base plate.

Another advantages of the drive for the 800 gate are extremely aesthetic, even ascetic design, excellent operating parameters and high reliability. The drive is quiet because its design takes into account the needs of the most demanding users.

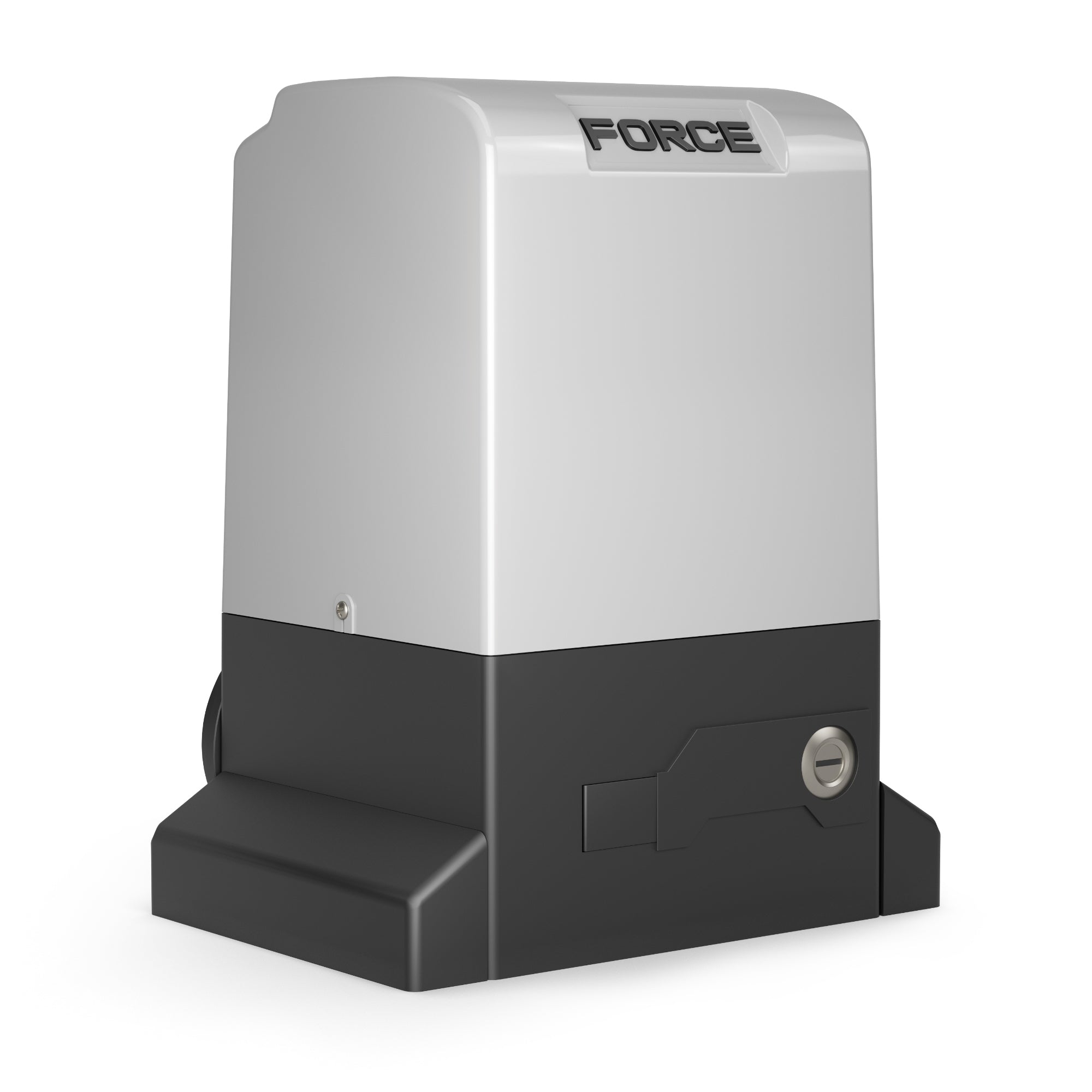

TECHNICAL DATA OF THE FORCE 800 DRIVE WITH BUILT-IN CONTROL PANEL:

• Maximum gate weight: 800 kg
• Entry light: 20 m
• Engine power: 370 W
• Gate leaf travel speed: 12 m/min
• Rotary speed of gear: 46,6 rpm
• Engine speed: 1400 rpm
• Fuse : 10 A
• Water resistance rating: IP44
• Working temperature: from -25° to 55°
• Weight of the device: 12,7 kg
• Dimensions (L. x width x H ) (mm): 155 x 200 x 315 mm
• Power type: 230 V
• Range of remote control up to: 200 m
• Number of rememberable pilots: 96

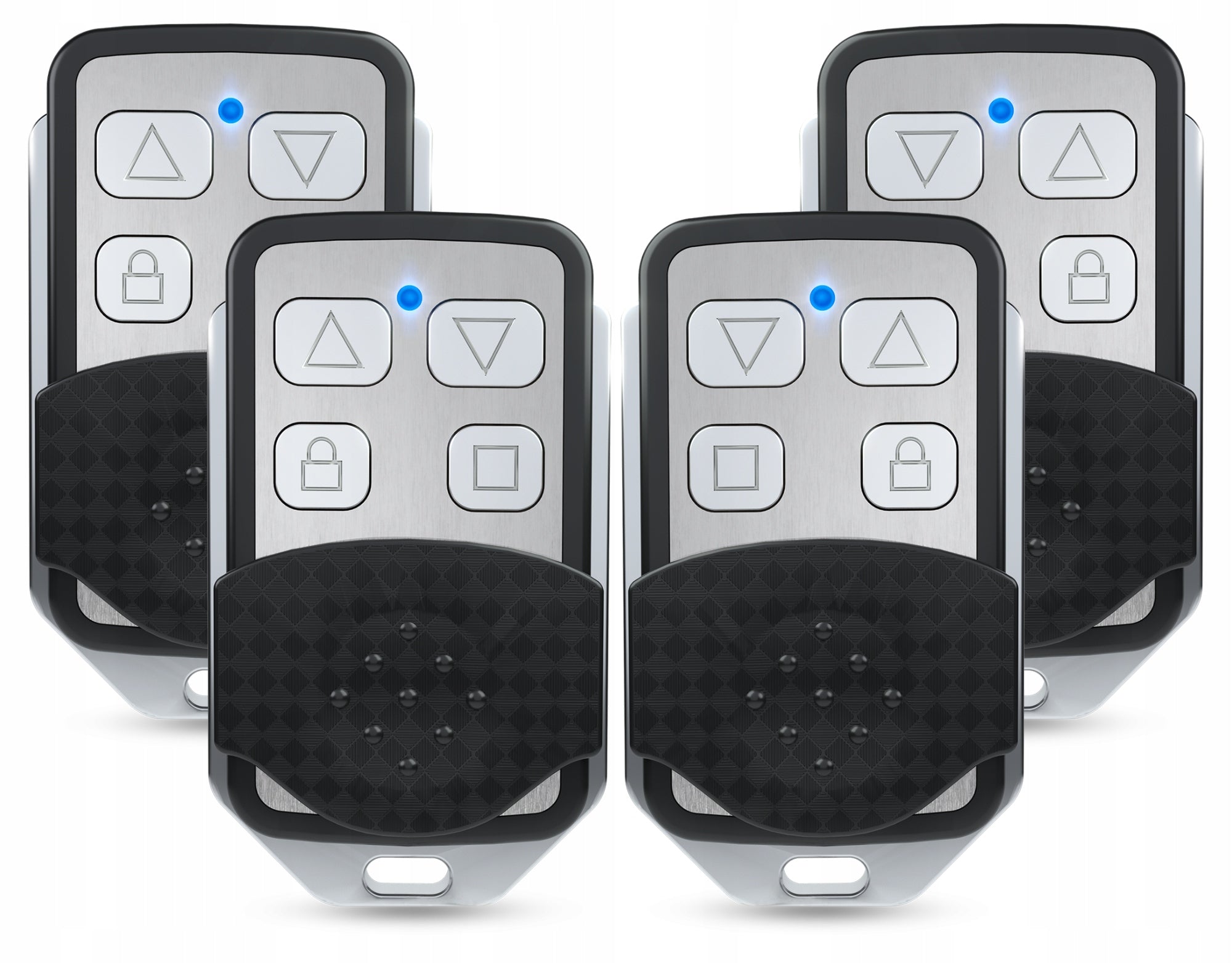

FORCE 4-channel remote control, with dynamically randomly variable code with a frequency of 433.92 MHz.

Key features of appearance:

• Chrome border: A sturdy metal frame surrounding the body, providing a sleek shine and durability.
• Housing: black, high-quality matte plastic, resistant to scratches and everyday use.
• Appearance: compact, ergonomic design that fits comfortably in your hand.
• Buttons: 4 buttons, designed in a subtle and aesthetic way.

Functionality and technical features:

• Range: Provides an excellent range of up to 120 meters, allowing you to conveniently open the gate without driving up to it.
• Convenience: The practical pendant allows you to use it as a keychain.
• Protection: zippered flap to protect against accidental button press

Technical parameters:

• Frequency: 433,92 MHz
• Number of buttons: 4
• housing: chrome-plated metal with plastic
• zippered flap to protect against accidental pressing
• Battery: NM27 12V (included)
• dimensions: 33 x 9 x 60 mm
• Remote control range: up to 120 meters

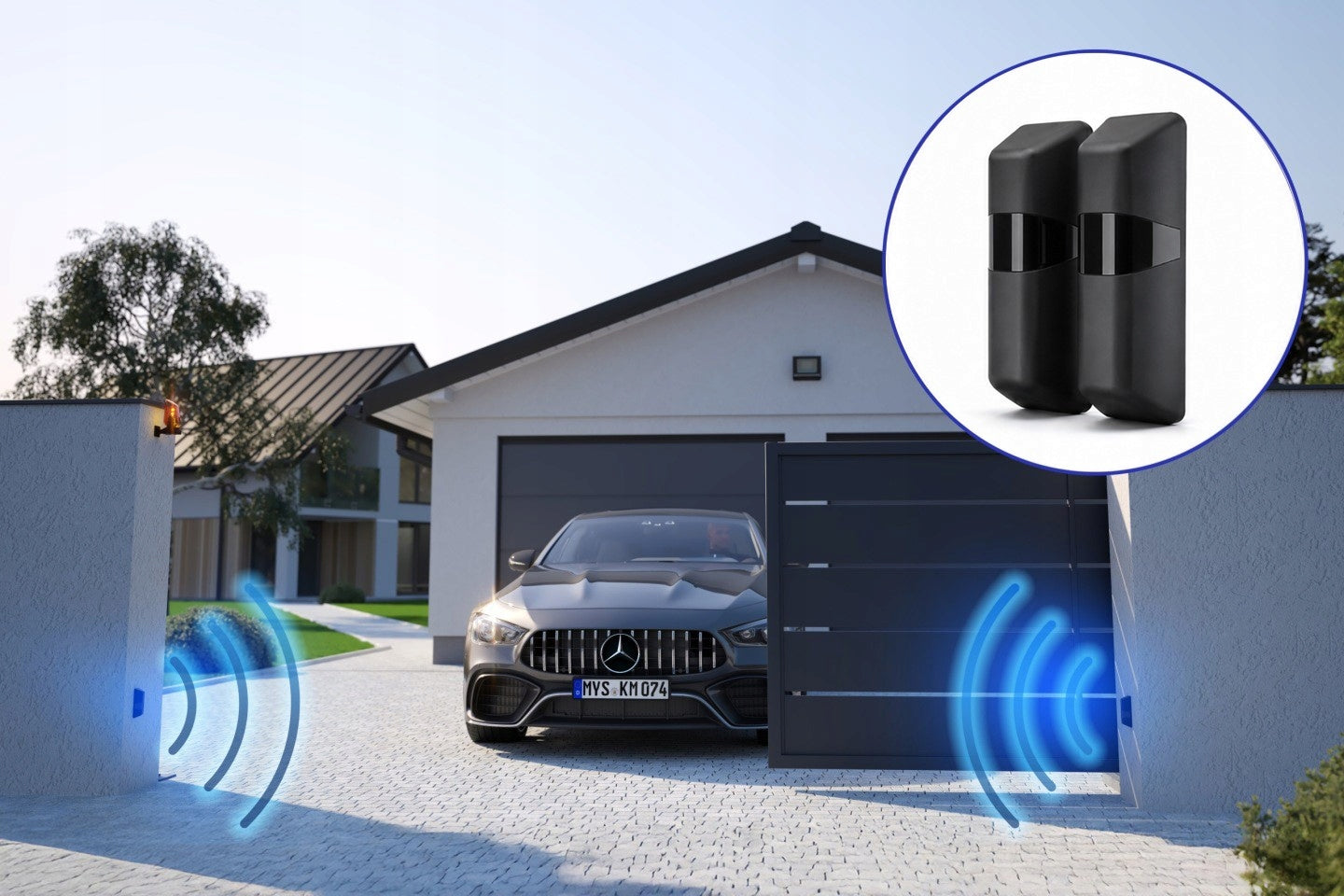

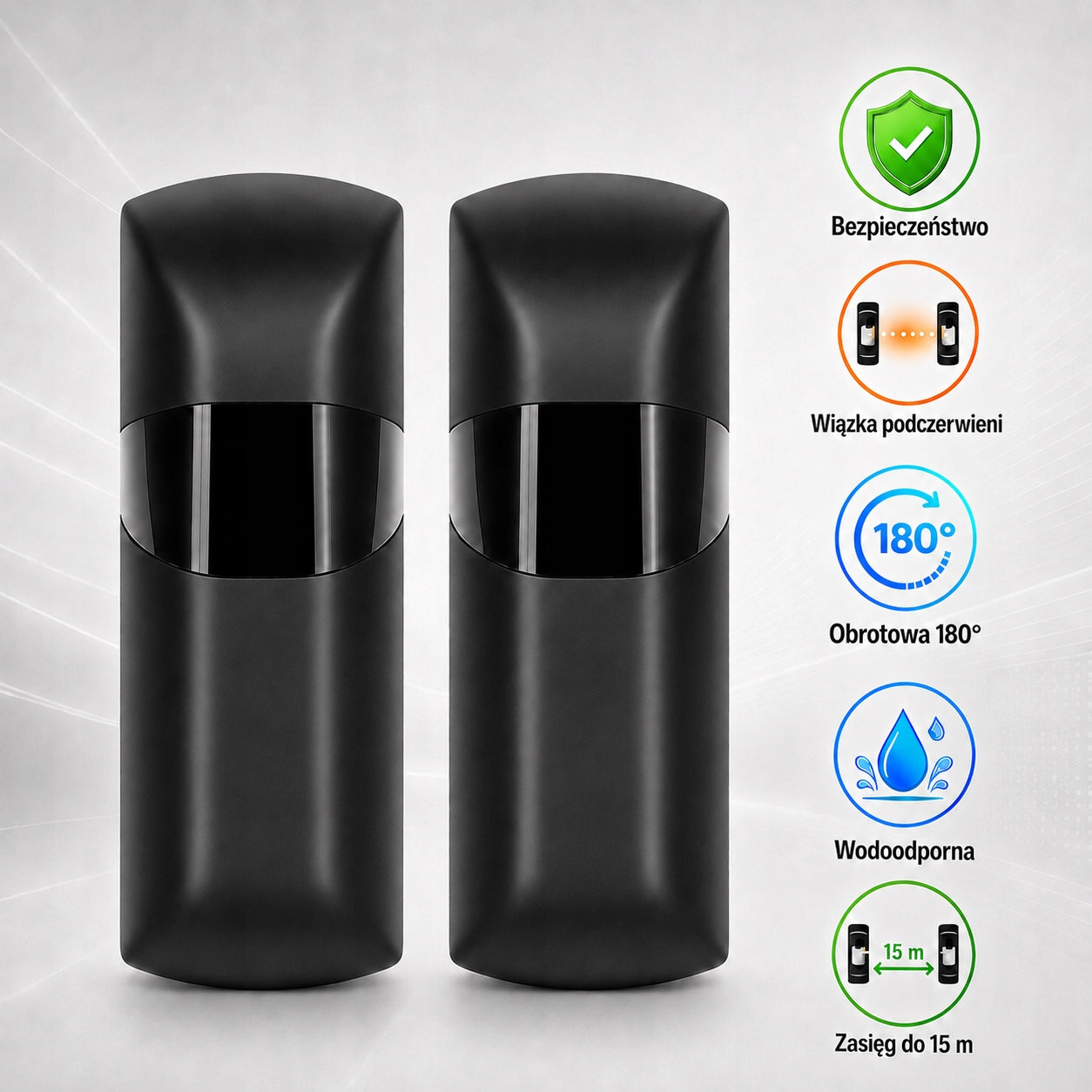

Rotary photocells F180 - 180 degree adjustment angle

Technical specification:

• Dimensions: 108 x 35 x 30 mm
• Power supply: 12-24 V DC/AC
• Range: max 15 m
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A, max 36V
• Frequency: 1,92 KHz
• Wavelength: 940 nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

• Factory prepared holes for screwing the base
• Factory prepared holes to carry wires
• Anti-corrosion protection: galvanized

Magnetic limit switches

They inform the drive from where the gate is to open and close. Mounted on a gear bar.

2x Unlocking Keys

To manually unlock the gate drive in case of an interruption in the supply of electricity

Signal lamp FORCE Crystal

Tasteful design, quartz crystal inspired shape. The modern Crystal lamp will be the crowning achievement of your beautiful fence.

• High-brightness LEDs for very good visibility and long life
• Built-in antenna for increased remote control range
• Mounting base for mounting to a vertical plane under different accounts
• 360 degree direction of illumination
• Operating mode: continuous illumination/pulse illumination
• Light pulsing frequency: 1 Hz/0 Hz (60 flashes per minute/continuous light)
• Power consumption (continuous illumination): 2,5 W

Control is carried out via the TUYA application, which is available for smartphones and tablets (Android and iOS, Play Store and AppStore). It allows you to connect multiple devices that have a TUYA controller, so you can control devices such as: entrance and garage gates, roller shutters, cameras, alarm, lighting, heating, air conditioning, power sockets, etc. with one application from your phone. We can control the application from anywhere in the world with Internet access.

Thanks to the built-in sensors in the control unit, we can observe in the application whether the gate is closed or not.

The service application is available in Polish

The control unit has a built-in WIFI module enabling control of the gate using the TUYA application via a mobile phone, tablet or computer. We can control it via the app from anywhere in the world where there is internet access. You can control the gate while away from your property at work or on vacation. It is also possible to control other devices that work with the TUYA application, e.g. entrance and garage gates, roller shutters, video intercoms, cameras, alarm, heating, air conditioning, lighting, power sockets, etc. Devices can be controlled via the app from anywhere in the world with internet access.

Thanks to the included sensors (reed switches) that are mounted on the gate, we can observe in the application whether the gate is closed or open.

The WiFi controller is factory-built into the control unit, so there is no need to run power cables to the WiFi controller and then control cables from it to the control unit, which is a great convenience and makes installation easier and faster.

The service application is available in Polish

Polyamide strips with metal core.

• Quiet operation
• mounting method: farmers (sheet screws)

Galvanized Metal Gear Strip

• set of spacers for each strip
• thickness of gear bar 8 mm
• method of fastening: welding

In the absence of information about the gear strip, we attach a polyamide strip with a steel core.
