Stiprintuvas WiiM Amp Pro, Wi-Fi 6E, DLNA, Roon, Bluetooth 5.3, HDMI ARC, 2 x 120 W

Trumpai apie prekę

Prekė: Stiprintuvas WiiM Amp Pro, Wi-Fi 6E, DLNA, Roon, Bluetooth 5.3, HDMI ARC, 2 x 120 W. Kategorija: Stiprintuvai.

• Gamintojas: Wiim
• Modelis: Amp Pro
• Spalva: gray

Stereo Compact Amp Integrated with WiiM Amp Pro Network Player | Class D | TPA3255 | ES9038 Q2M | Wi-Fi 6E | DLNA | Roon Ready | Spotify Connect, TIDAL Connect | Bluetooth 5.3 | HDMI ARC | 2 x 120W (4 Ohms)

The WiiM Amp Pro is a compact amplifier and streamer in one. WiiM Amp Pro was created as an improved version of the great WiiM Amp model, which implemented changes based on customer feedback, such as the use of higher-performance components, even more advanced signal processing, thanks to the ESS ES9038 Q2M DAC chip and newer Bluetooth 5.3 and Wi-Fi 6E wireless connectivity.

Easy control of the device is provided by the WiiM Home mobile application, allowing the use of streaming platforms such as Spotify, TIDAL, Deezer or Qobuz. The WiiM Amp Pro can be operated via a remote control and is compatible with Google and Amazon Alexa voice assistants.

On the gain side there is a high-performance Class D circuit TPA3255, capable of producing a comfortable power of 2x 120W at 4 Ohm or 2x 60W at 8 Ohm.

Differences between Amp and Amp Pro:

• Ponst-Filter Feedback Amplifier (PFFB) - Amp Pro enhances sound quality with Post Filter Feedback (PFFB) technology for load-independent performance and consistently exceptional sound
• ESS ES9038Q2M analog-to-digital converter and TI operational amplifier - equipped with state-of-the-art ESS ES9038Q2M premium DAC and OP AMP TI, Amp Pro achieves industry-leading low distortion and wide dynamic range. It has an SNR of 120 dB (A-weighted) and a THD+N of -105 dB at 5W
• State-of-the-art wireless connectivity - equipped with the latest Wi-Fi 6E and BT 5.3 modules, as well as two antennas, Amp Pro enables wireless audio streaming via Bluetooth and Wi-Fi
• Advanced thermal design - Amp Pro is equipped with an innovative temperature management system that includes a heat sink made of copper, aluminum and graphene, which guarantees reliable operation even in the most demanding conditions

Network playback and Bluetooth

To allow you to listen to music remotely, the WiiM Amp Pro has a built-in streamer. The connection can be established via Wi-Fi or Ethernet (RJ45). DLNA, Spotify/Tidal Connect and Chromecast transmission protocols are supported. This allows you to easily access all the music stored on your network, whether it's on your computer, NAS, or smartphone. This connectivity also allows you to enjoy your favorite music streaming apps.

Bluetooth 5.3 wireless connectivity is also available. Two-way Bluetooth, for example, allows you to stream music from your smartphone, but also pair the WiiM Amp Pro with Bluetooth headphones or speakers.

Streaming applications

When connected, the WiiM Amp Pro will give you access to multiple music streaming apps such as Spotify, Deezer, Tidal, Qobuz, Amazon Music, Apple Music, and Napster. You can also use internet radio such as iHeartRadio and TuneIn.

Efficient reinforcement

The Class D amplifier stage TPA3255 enables the WiiM Amp Pro to develop 2x120W power at 4 Ohms or 2x60W at 8 Ohms, all with high quality. This makes it ideal for powering shelf columns or smaller floor columns. Its careful, optimized design allows the amplifier to provide precise, dynamic sound reproduction. What’s more, it is possible to adjust the sound of the device thanks to numerous predefined correction profiles and a 10-band parametric equalizer.

Full range of connectors

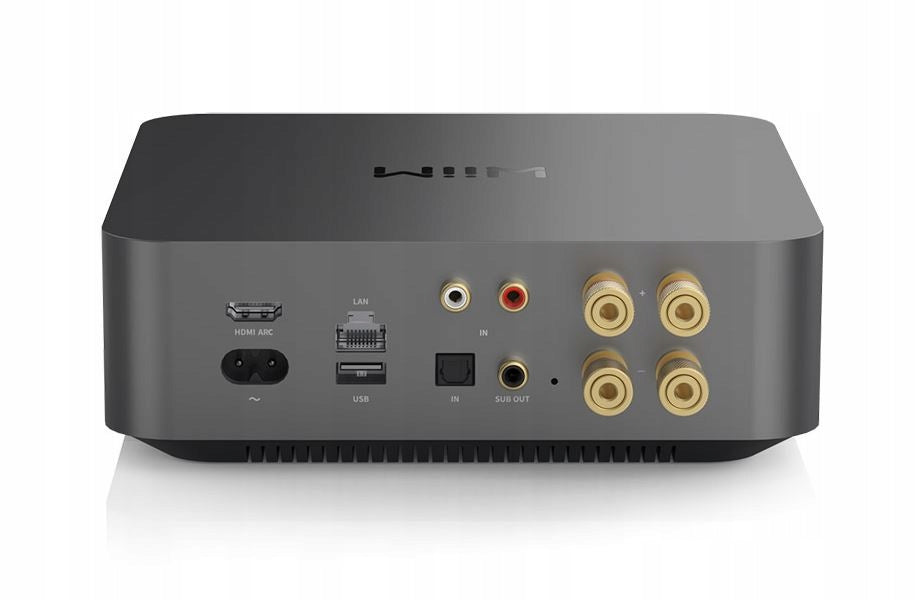

In addition to wireless connectivity, WiiM Amp Pro offers a wide range of connections, allowing integration with the vast majority of audio systems. Inputs include stereo RCA and optical Toslink, as well as HDMI ARC for connecting your TV and USB-A for playing music from your storage device (USB key or hard drive). The output is done through speaker terminals that accept banana plugs. The signal can also be transmitted to the subwoofer via a dedicated output.

Integration with Multiroom

The WiiM Amp Pro can be used as a standalone unit or in combination with other units in a multiroom system. This enables you to stream music throughout your home from a centralized control point via the WiiM Home mobile app. Playback and volume can then be managed synchronously for all devices or independently for each piece of equipment.

Multiple devices can be connected in multiroom mode to any compatible LinkPlay device, or to AVS Multiroom or Alexa Multiroom with UHD technologies.

Control app, remote control and voice assistants

The ergonomic, intuitive WiiM Home app allows you to remotely control your WiiM amplifier and music playback. It is also an access point to compatible streaming services.

The device can also be used completely on its own thanks to the included remote control.

Finally, the WiiM Amp Pro is compatible with Google Assistant and Amazon Alexa. The WiiM amplifier can be controlled by voice by connecting it to the connected speaker of one of these systems or using a microphone built into the remote control.

Technical Specification:

• Reinforcement type: Class D, TPA3255
• Output power:

  2x 60 W at 8 Ohm

  2x 120 W at 4 Ohm

• Column support and impedance:

  4 Ohm, 6 Ohm, 8 Ohm

  2 pairs of 8 Ohm, parallel

  Minimum impedance 2.67 Ohm

• Inputs:

  Wifi

  Bluetooth

  1x Stereo RCA

  1x Optical

  1x HDMI ARC

  1x USB-A

  1x Ethernet (RJ45)

• Outputs:

  Terminals speaker

  1x output subwoofer

• Supported network protocols:

  Chromecast

  DLNA

• Audio formats: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
• Home theater audio formats: Stereo PCM, Dolby Digital (DTS not supported)
• Audio output quality:

  SNR: 120 dB

  THD+N: 0.0005% (-105 dB)

• Network support: 2.4 GHz, 5 GHz, 6 GHz Triple bands, 10/100 Mbps LAN
• Control application: WiiM Home
• Roon Ready
• Compatible voice assistants:

  Amazon Alexa

  Google Assistant

• Dimensions (H) x width x D. ): 66 x 190 x 217 mm
• Weight (net): 2.08 kg
• Package contents:

  WiiM Amp Pro

  Remote control

  Power cord
