Stiprintuvas EverSolo PLAY all in one

Trumpai apie prekę

Prekė: Stiprintuvas EverSolo PLAY all in one. Kategorija: Stiprintuvai.

• Gamintojas: EverSolo
• Modelis: PLAY
• Spalva: black

All-in-one amplifier

Additional information:

• Color: Black

Attached equipment:

• 1x Power cable,
• 1x Quick Start Guide.

The product comes from the official EU distribution.

EverSolo PLAY

One Device – Full of Musical Possibilities

Whether you are passionate about music or an audiophile, EverSolo PLAY will enrich your musical experience, becoming an indispensable part of your musical lifestyle.

Stream music from around the world. No restrictions.

EverSolo PLAY is deeply integrated with TIDAL, Spotify, Apple Music, Apple Classical, Qobuz, IDAGIO, Amazon Music, Presto Music, KKBOX, Deezer, Napster, SoundCloud, HIGHRESAUDIO, BBC Sounds and other leading platforms, enabling you to play audio at the highest resolution and lossless quality – without additional devices.

Additionally, it supports popular internet radios and platforms including TuneIn Radio, Internet Radio, Radio Paradise, Calm Radio, Audials Play, RadioDroid, Open Radio, Podcasts, Spreaker, laut.fm and Hotmix. Thanks to this, every radio – from every country – is literally at your fingertips, providing access to thousands of stations from around the world, including local music, cultural broadcasts, news and thematic podcasts.

Lossless Streaming of Music

EverSolo PLAY supports advanced streaming protocols such as Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay, Squeeze Connect and JPLAY CERTIFIED, enabling smooth and direct playback of music in real time from streaming services – without delay and without the need for additional devices. Get instant access to tens of millions of songs – play your favorite music at any time with just one click.

Playback Control Directly Through Touch Screen

The modern, redesigned user interface allows you to fully operate the device directly from the touch display – including browsing the library, selecting songs, adding them to favorites and performing many other operations in a quick and intuitive way.

Quick Change Theme and Background Color

Change the theme and background color in Settings – customize the interface design according to your preferences for a refreshed visual experience.

Hybrid Playback Queues

Cross-platform, hybrid playback queues allow you to drag songs from different music sources into a single, integrated queue – with full playback and order synchronization.

Management of the Music Library

EverSolo PLAY offers intelligent metadata recognition and ordering. With its multidimensional categorization and review of songs, the music library becomes a starting point for deeper exploration and understanding of music.

Global Search

The built-in smart search engine allows instant search using the matching mechanism. Songs can be added directly from search results to a play queue or playlist.

Management of the Music Library

EverSolo PLAY offers intelligent metadata recognition and ordering. With its multidimensional categorization and review of songs, the music library becomes a starting point for deeper exploration and understanding of music.

Global Search

The built-in smart search engine allows instant search using the matching mechanism. Songs can be added directly from search results to a play queue or playlist.

Multiple Screensavers with VU Visualization

Built-in dynamic VU indicators allow you to visualize audio signal levels in real time, acting as effective and informative screensavers.

EverSolo Control App

The highly acclaimed EverSolo Control application has received a completely new update – with a refreshed graphic design and even more intuitive operation. It supports iOS, Android and iPadOS devices, ensuring full cross-platform compatibility and enabling convenient remote control of EverSolo PLAY.

Advanced Integration with LAN and Cloud

EverSolo PLAY provides comprehensive compatibility with network and cloud resources, enabling seamless access to home computers and NAS servers on your local area network (LAN), with support for protocols such as UPnP and WebDAV.

The device also supports popular cloud servers such as Dropbox, Emby, Jellyfin, Plex and others, offering flexible options for storing and playing music regardless of data location.

Thanks to this, the user gains immediate access to playback history and favorite songs, as well as the ability to create a modern, personalized and clearly organized music library.

Multi-Room System

The EverSolo multi-room system seamlessly connects multiple devices, delivering synchronized music to any room – truly pushing physical boundaries and pursuing the idea of “boundless music”. Whether you're in the living room, study, or bedroom, a single touch allows you to immerse your entire home in synchronized melodies, creating an immersive listening experience in high quality.

Cross-platform Multi-Device Interaction

Quickly connect different EverSolo PLAY devices using the mobile app and effortlessly adjust the playback queue and volume across all your devices. Smooth control, thanks to which the music follows your emotions.

Support Remote Enabling Over WOL Network (Wake-on-LAN)

It provides EverSolo PLAY with intelligent on-demand readiness, allowing you to remotely turn on your device from sleep or completely off over the LAN – for efficient management and energy savings.

* In order for the WOL (Wake-on-LAN) function to work, the following conditions must be met: the device must be connected to the network via an Ethernet cable, and the mobile device with the control application must be located on the same local area network (LAN).

Spontaneous Playback

The “Listen at Will” function in EverSolo PLAY allows you to automatically play randomly recommended songs both from logged-in streaming services and from your local music library. It’s a way to move away from predictable, algorithmic recommendations and introduce surprises to your musical journey.

Room Correction (EverSolo Digital Room Correction)

EverSolo PLAY enables advanced room acoustic correction using an external measuring microphone, such as the EverSolo EM-01, or a smartphone microphone. The system automatically recognizes the acoustic characteristics of different spaces – from large living rooms to compact bedrooms – and intelligently eliminates sound reflections from the environment. The result is a perfect immersion in music regardless of the acoustics of the interior.

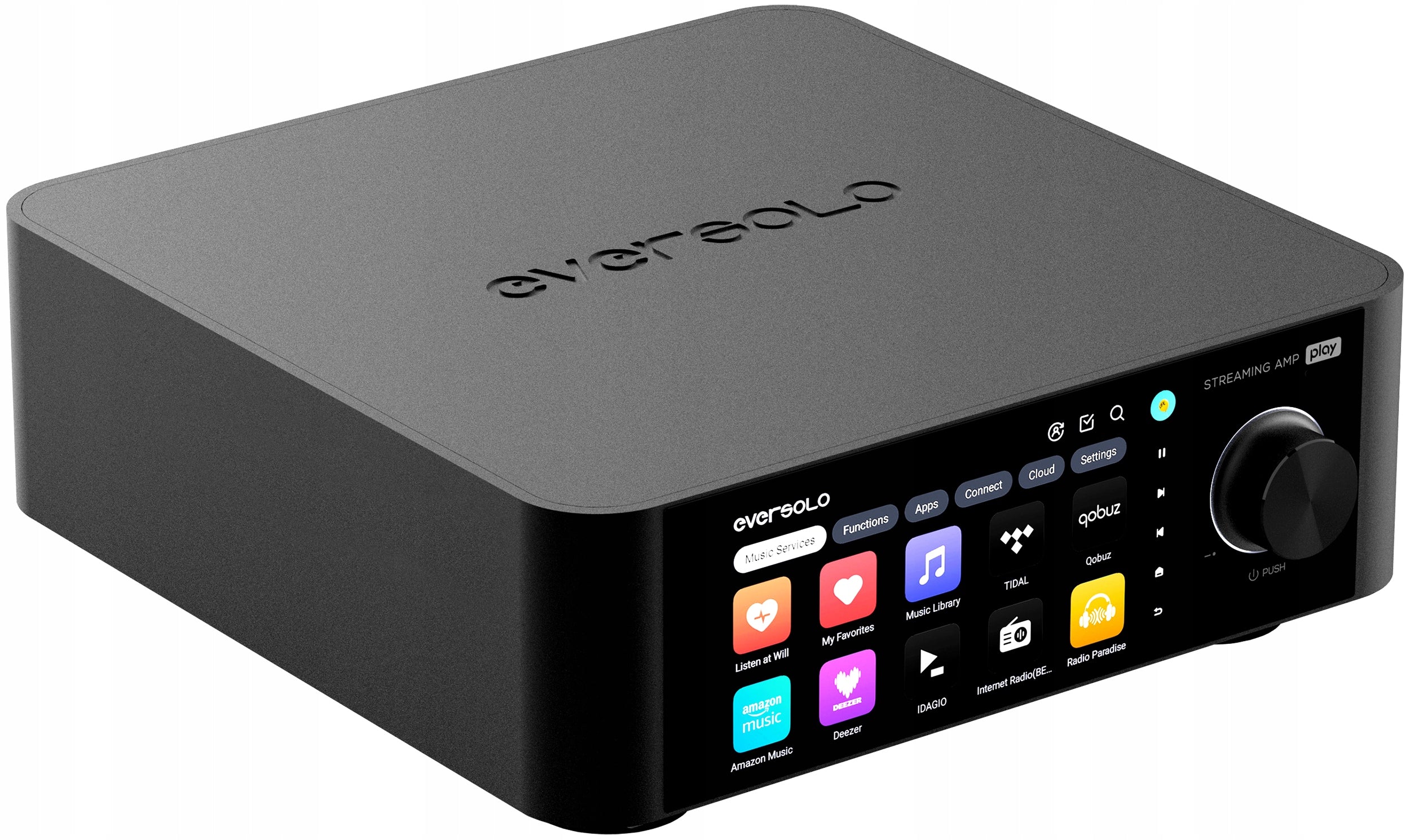

Aircraft Grade Aluminum Housing

The housing is designed as a one-piece construction, CNC machined from high-strength aerospace-grade aluminum alloy. The applied design solution increases structural rigidity, effectively protects against external electromagnetic interference, ensures flawless transmission of audio signal and reflects the precision of execution at the level of master craftsmanship.

Full Cover Heatsink

The bottom of the EverSolo PLAY is designed with an advanced heat dissipation system including a large-area heat sink. This solution effectively reduces the temperature of internal electronic components, ensuring the stability of integrated circuits and the motherboard. Every detail of the product has been carefully refined to guarantee an uncompromising, lossless music experience.

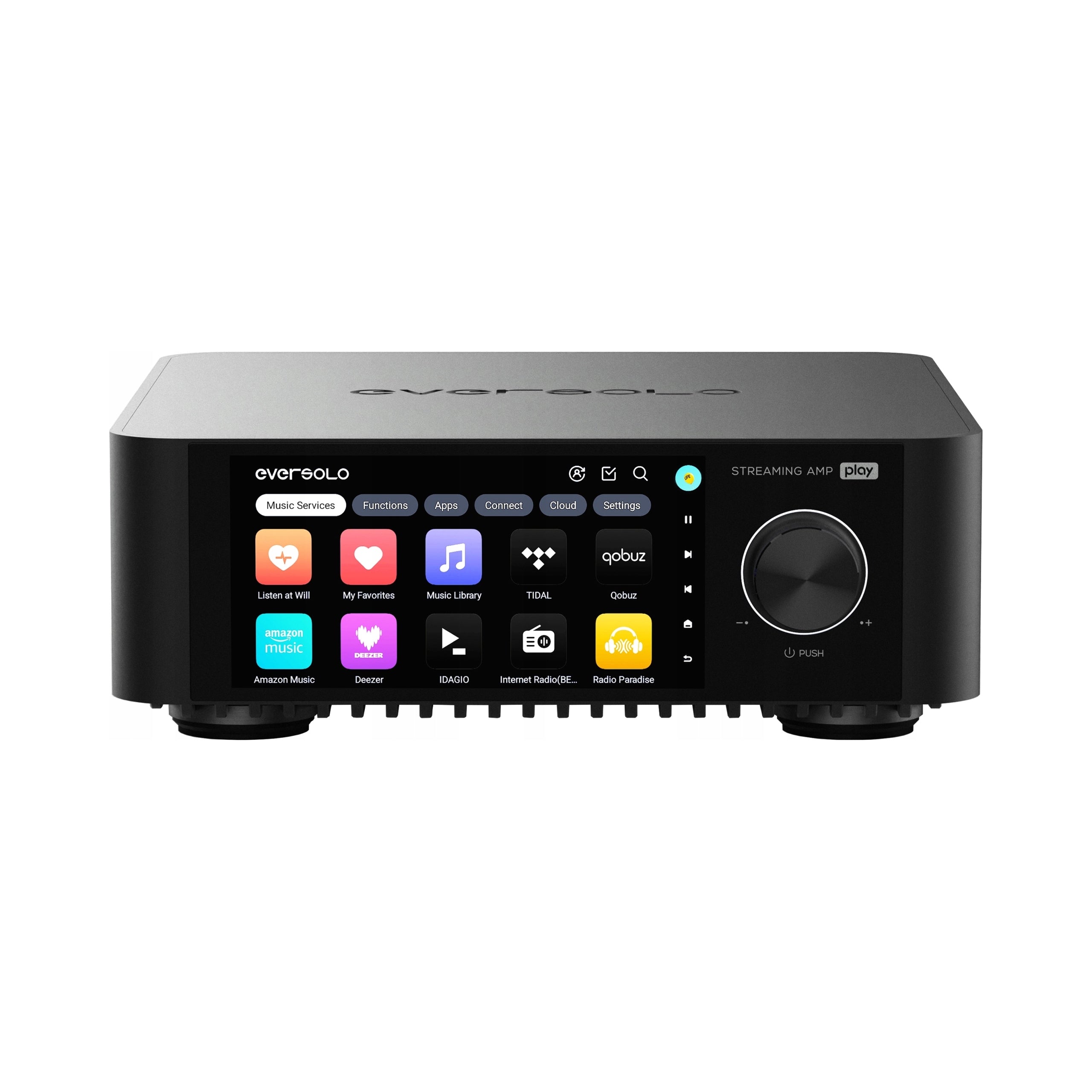

Touch, 5,5-inch Vivid Color Screen with All-New UX Interaction

The large, 5,5-inch HD touchscreen display with a new intuitive user interface provides smooth and convenient operation and a clear playlist preview. From browsing your music library to switching playback modes, everything is easily accessible, making your music experience more convenient and engaging.

RGB Backlight Around the Potentiometer with Vibrant Colors

The EverSolo PLAY is equipped with RGB backlighting around the potentiometer, which allows smooth color switching: vivid orange for Rock, calm blue for Blues, deep green for Country... so that intangible melodies turn into visible light landscapes.

Music Comes to Life Visually

EverSolo PLAY is equipped with retro dynamic VU indicators and a dynamic sound spectrum that visually reflects musical rhythms for a deep and engaging listening experience.

PFC + LLC power supply

The optimal PFC-LLC configuration minimizes energy losses and reduces heat losses. The system is equipped with NTC thermistors to monitor temperature and protection against overheating, as well as suppresses inrush current, protecting the amplifier during start-up.

Exciting Power, Elevating the Quality of Sophisticated Moments

• 110 W at 4 Ω x 2 channels
• 60 W at 8 Ω x 2 channels

High Performance Class D Amplifier

Thanks to PurePath™ Ultra HD technology and an advanced integrated feedback system with fast gate control and error correction, the system achieves ultra-low distortion across the entire audio frequency range. It delivers a power output of 60 W (8 Ω) and 110 W (4 Ω), easily driving a variety of stand speakers.

Multi-Band Professional EQ Equalizer

EverSolo PLAY is equipped with a 15-band graphic equalizer and a 10-band parametric equalizer, which allow for additional, independent adjustment of the left and right channels separately. With 23 presets to suit a variety of musical genres (including EDM, blues, classical music, and jazz), you can quickly personalize your sound with the touch of a button, allowing you to fine-tune your sound to your preference.

Intelligent Base Management

The integrated intelligent bass control system enables precise frequency setting and phase alignment. It improves bass clarity while providing a smooth connection between the subwoofer and the main speakers, resulting in a balanced sound.

Reveals Every Musical Nuance

• SNR 109 dB (weighted A)
• THD 0,0037%

DAC AK4493SEQ

EverSolo PLAY uses AKM's high-end 32-bit AK4493SEQ DAC, based on VELVETSOUND™ technology, which significantly reduces harmonic distortion and noise during signal processing. This chip supports a wide dynamic range, allowing you to faithfully reproduce sound – from subtle details to powerful beats – immersing you in a unique sound experience like a live performance.

Wide Support for Audio Formats

It supports a wide range of high-quality audio formats, including DSD, PCM, FLAC, APE and WAV, with DSD512 and PCM 768kHz/32-bit compatibility. Provides sound reproduction in the quality of the original studio recording.

Multi-core ARM Streaming Module

Hardware module based on high-performance, multi-core ARM architecture, specially optimized for streaming media. Integrated features include codec support, network transmission, and support for real-time audio processing and distribution.

EOS

Thanks to its proprietary EOS (EverSolo Original Sampling-Rate Audio Engine), the EverSolo PLAY completely bypasses SRC (sampling frequency conversion) limitations, ensuring that digital audio signals remain intact by additional processing and offers the most authentic audio playback.

EVC

The EVC motor uses a unique volume control algorithm that precisely eliminates errors at different gain levels, ensuring that the signal shape remains unchanged during volume control, resulting in a more complete audio information.

THD

Total Harmonic Distortion (THD) below 0,0037% at 5W/1kHz, allowing you to achieve an almost lossless, clear sound field and precisely reproduce musical details, capturing every melody with pristine clarity.

PCM 768 kHz 32 bits

Hardware decoding of high-resolution PCM audio sources that restores millions of samples - discrete values representing the amplitude of the sound signal at specific intervals - allowing you to accurately reproduce dynamic changes and subtle frequency fluctuations in music.

SNR

The Signal to Noise Ratio (SNR) reaches 109 dB (weighted A), and in combination with a solid output power of 110 W at a load of 4 Ω easily drives a variety of floor and stand speakers, faithfully reflecting the character of the sound known from live performances.

DSD512 Native

The native direct decoding architecture enables lossless processing of DSD512 ultra-high bitrate signals, fully preserving the 1-bit raw modulation data of the original studio recording. This allows you to faithfully recreate the authentic atmosphere of the live performance.

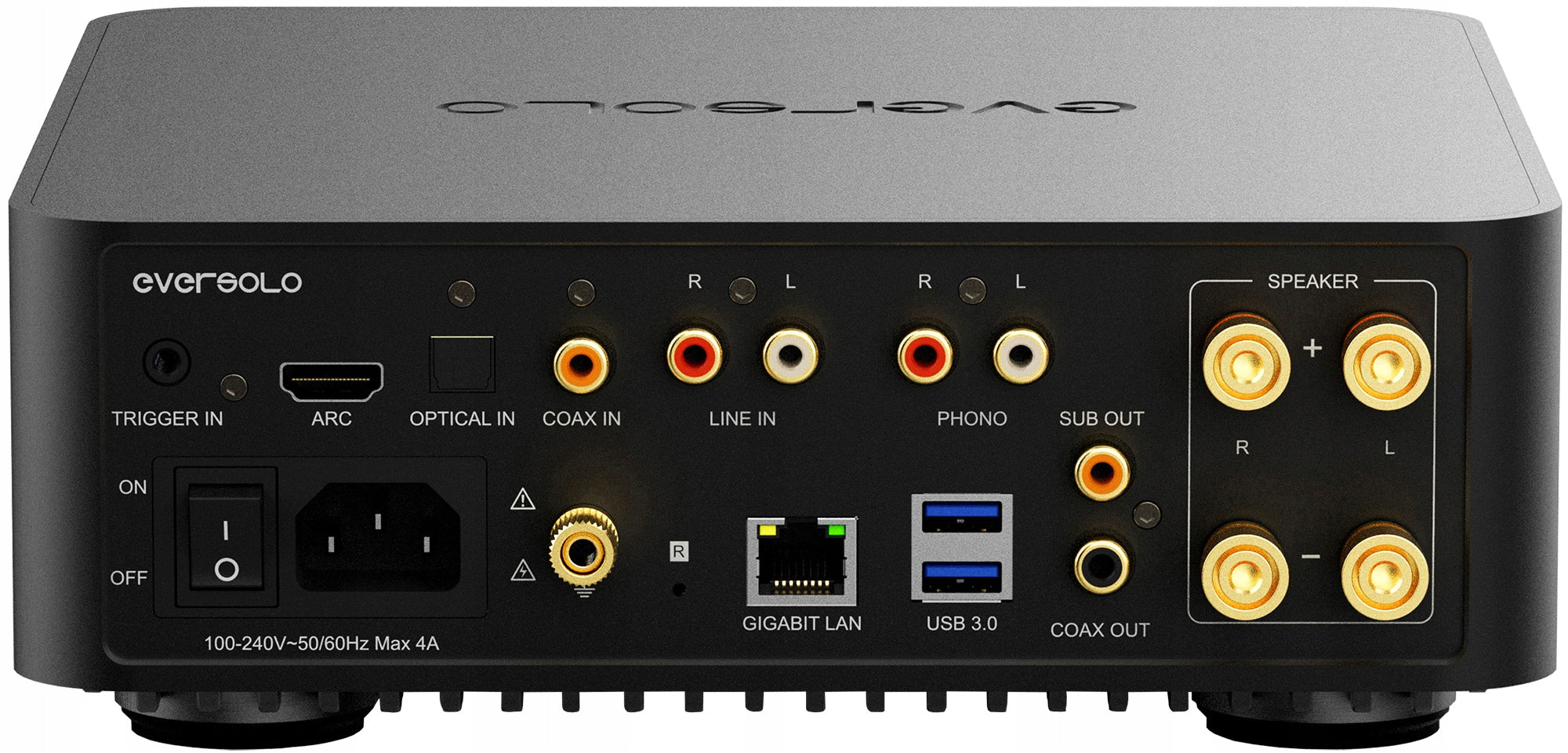

Multiple Audio Inputs and Outputs

Compatible with a variety of audio systems.

Speaker Outputs

Allows you to directly connect speakers and expand your sound system.

Trigger Input (Trigger In)

Convenient device connection control – allows you to easily integrate your Hi-Fi system by synchronising power on and off with the touch of a button.

HDMI ARC

Connect to your TV with HDMI ARC, streaming Hi-Fi audio without the need for additional cables – a convenient solution that enhances the quality of your home entertainment.

Optical Input (Toslink) & Coaxial Input (Coaxial)

High-quality digital audio inputs, compatible with CD players, streamers, and other digital devices, ensuring lossless audio quality.

Built-in Turntable Preamplifier – Input for MM/MC Inserts

High-quality Phono input compatible with turntables equipped with MM and MC cartridges. It allows direct connection of the turntable and smooth integration of classic analog sound with a modern Hi-Fi system.

Output for Subwoofer (Sub Out)

Dedicated subwoofer output, designed to amplify bass tones, provides a more dynamic and deep music experience.

GIGABIT LAN & USB 3.0

Stable Gigabit Ethernet and high-speed USB 3.0 ports ensure smooth transmission of high bitrate music files with minimal latency.

High Speed USB 3.0 OTG Interface

Connect an external portable hard drive to the USB 3.0 port with a USB cable to expand your music library. Enjoy instant access and playback with a fast interface – without unnecessary waiting.

USB Type-A Output

Full support for DSD512 Native stereo and PCM 768 kHz/32-bit – ultra-high-end audio specifications, fully compliant with USB Audio Class (UAC) protocol standards. It provides a clean, digital audio stream designed for professional external digital-to-analog converters (DACs).

EverSolo Control

Mobile application available for smartphones and tablets, which allows full control over the device. With it, you can remotely control music playback, change settings, turn on VU and spectrum indicators, and configure equalizer (EQ). It is a convenient tool that allows you to manage your audio system from anywhere, providing comfort and flexibility in use.

• Integrate your music collection by easily connecting and switching between many popular music platforms in the EverSolo Control app. You have all your resources at your fingertips, so you don’t have to switch between different apps.
• Support local storage and multiple network protocols (NAS, UPnP, WebDAV, NetDisk, etc. ) consolidates all your music assets, regardless of where they are stored, under one roof in the EverSolo Control app.
• You can control playback from streaming apps built into your device using the EverSolo Control app. You have the ability to search for songs simultaneously on all logged-in streaming platforms and in local files. Full lossless audio quality from all streaming platforms, including Lossless from Apple Music, is available.
• Mapping the EverSolo music player display to your phone or tablet allows you to sync your view and actions at any time, making it easier to control playback details.

EverSolo Control is a comprehensive music management center that combines convenience, advanced features and superior sound quality – all in one intuitive app.

Technical specification of EverSolo PLAY:

Basic Parameters

• Model: EverSolo PLAY
• Housing Material: Aluminum Alloy
• Display: 5.5 inch LCD Touch Screen
• DAC: AK4493SEQ
• Internal Memory: 4G DDR4 +32G eMMC
• USB-A ports: 2x USB3.0
• Ethernet: RJ-45 (10/100/1000Mbps)
• Wireless network: WiFi 2.4G+5
• Music Playback and DAC Decoding: Full Support for Stereo DSD512, PCM 768KHz 32Bit
• Fully Supported Music File Formats: DSD (DSF, DFF, SACD ISO) with DST support for DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE
• Fully Supported Music Services: TIDAL, Spotify, Apple Music, Apple Music Classical, Qobuz, Amazon Music, Deezer, SoundCloud, Napster, HIGHRESAUDIO, IDAGIO, Presto Music, Audials Play, BBC Sounds, KKBOX, etc.
• Fully Supported Internet Radios: Internet Radio, TuneIn Radio, Audials Play, Radio Paradise, Calm Radio, RadioDroid, Open Radio
• Streaming technologies: Air Play, DLNA, Roon Ready, Spotify Connect, Tidal Connect, Qobuz Connect, Squeeze Connect, etc.
• Fully supported network protocols and servers in the cloud: WebDAV, UPnP, NFS, SMB, Dropbox, Emby, Jellyfin, Plex, etc.
• Control Methods: EverSolo Control Mobile App for Smartphones and Tablets, Touch Screen, Remote Control (Infrared (IR) and Bluetooth), Trigger, Wake-on-LAN (WOL)

Audio Inputs and Outputs

• Bluetooth Audio Input: Bluetooth BT5.0, SBC/AAC Support
• HDMI ARC Input: Full Support for 192KHz/24Bit PCM Stereo
• Optical Input (Toslink) / Coaxial (Coaxial): Full Support for Stereo PCM 192KHz 24Bit and Dop64
• Analog Line Input: Maximum input voltage: 2 V RMS
• PHONO Input: Supports MM and MC inserts
• USB Audio Output: Full Support for DSD512 Stereo (Native) and PCM 768KHz 32Bit (Supported only UAC compliant DAC devices)
• Coaxial Output: Full Support for Stereo PCM 192KHz 24Bit and Dop64
• Subwoofer Output: Adjustable split frequency ranging from 40 Hz to 500 Hz

Characteristics of Audio

• Continuous Output Power: 60 W RMS at 8Ω, 110 W RMS at 4Ω
• Amplifier Type: Class D Amplifier
• Amplifier gain: 20,8 dB
• Input Sensitivity: 2V
• Harmonic Distortion Ratio (THD) (20Hz–20kHz): < 0,0037% 5W at 1kHz
• Signal to Noise Ratio (SNR): >109dB, @A-wt 4Ω 110W
• Frequency Response: 20 Hz–20 kHz: < ±0,25 dB, 20 Hz–40 kHz: < -3 dB
• Attenuation Ratio: >107
• Crosstalk Between Channels: < -108 dB
• Turntable Section (Phono): Amplifier gain: MM 60 dB, MC 74 dB, Input sensitivity: MM 5 mV, MC 0,5 mV, RIAA curve: ±0,5 dB, 20 Hz–20 kHz

General Specification

• Power supply: AC 110~240V 50/60Hz Maximum 4A
• Dimensions (Deep x W) x H ): 230 mm x 230 mm x 75 mm
• Weight: Net device – 2,6 kg, with packaging – 2,9 kg
• Included Equipment: 1x Power Cable, 1x Quick Start Guide
• Color: Black / Black

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	EverSolo
Parametry	Model	PLAY
Parametry	Product weight with unit packaging	2.9 kg
Parametry	Product width	23 cm
Parametry	Product height	7.5 cm
Parametry	Product depth	23 cm
Parametry	Product weight	2.6 kg
Parametry	Color	black
Parametry	Number of channels	2
Parametry	4Ω output power	110 W
Parametry	8Ω power output	60 W
Parametry	Number of analog audio inputs	2
Parametry	THD distortion	0%
Parametry	Signal-to-noise ratio	109 dB
Parametry	EAN (GTIN)	6975200360169
Parametry	Manufacturer code	PLAY
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Other connectors	digital audio input,USB,turntable input,subwoofer output
Parametry	Communications	AirPlay,Bluetooth,DLNA,Wi-Fi
Parametry	Functions	loudness (contour) filter,Multiroom system compatibility,sound equalizer
