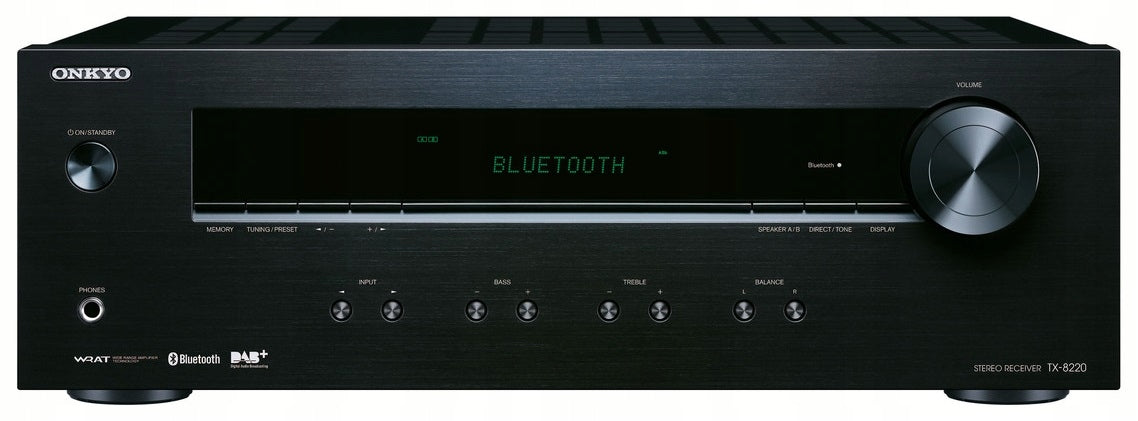

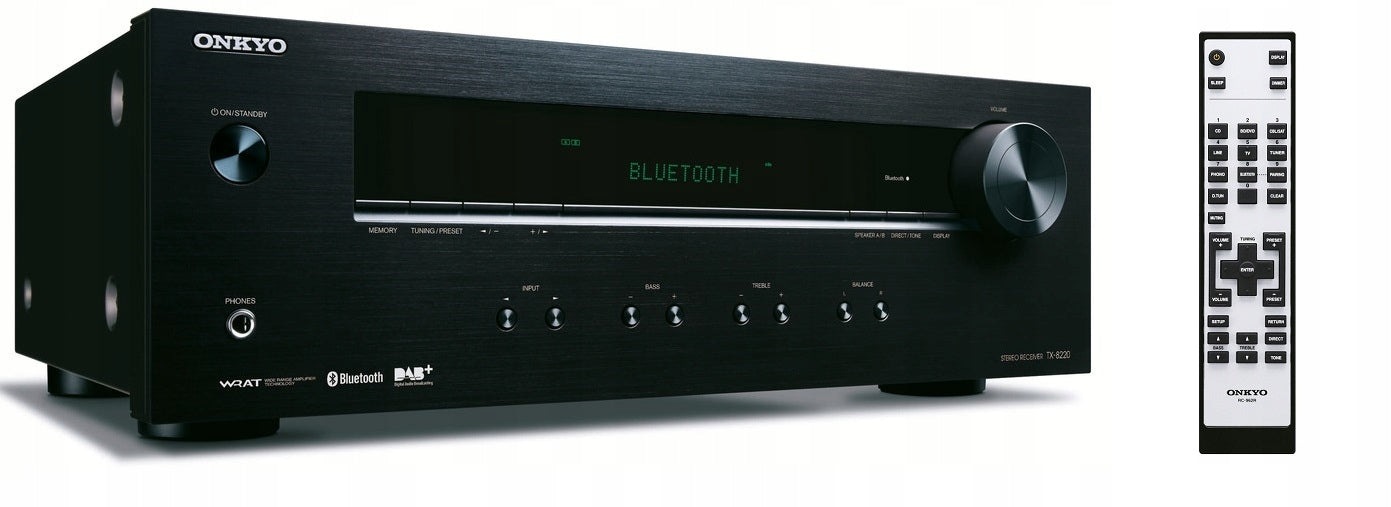

Stereo resyveris Onkyo TX-8220 DAB+ Bluetooth

Trumpai apie prekę

Prekė: Stereo resyveris Onkyo TX-8220 DAB+ Bluetooth. Kategorija: AV resiveriai.

• Gamintojas: ONKYO
• Modelis: TX-8220
• Spalva: black

The price is for one brand new receiver piece.

With Hi-Fi Power On Tap, TX-8220 offers more

Versatile connectivity capabilities, pure analog amplification in a simple amplifier that sounds much better than its modest price would suggest. Digital and analog inputs, a dedicated MM phono jack, a DAB+/FM/RDS radio tuner with 40 memory cells and a built-in Bluetooth® receiver are some of the elements of the TX-8220 equipment.

SPECIFICATION:

• Output power 100 W/channel (6 Ω, 1 kHz, 1%, 1 channel controlled, IEC)
• Dynamic power 140W (3Ω, front) 120W (4Ω, front) 80W (8Ω, front)
• THD+N (total harmonic distortion + noise): 0,08% (20 Hz–20 kHz, half power)
• Input sensitivity and impedance Line 450 mV/40 kΩ
• MM 10mV/50kΩ (IHF-A) phono preamplifier
• Rated output level and RCA impedance: 420 mV/2,2 kΩ (linear output) 2,8 mV/3,3 kΩ (subwoofer preamplifier output)
• 40 mV phonograph overload (MM, 1 kHz, 0.5%)
• Frequency Response 10 Hz – 100 kHz/+1 dB, -3 dB (direct mode)
• Tone control ±12 dB, 100 Hz (bass) ±12 dB, 10 kHz (high tones)
• Signal-to-noise ratio 100 dB (IHF-A, line input, speaker output) 93 dB (IHF-A, phono input, speaker output)
• Speaker Impedance 4 Ω–16 Ω (A or B) / 8 Ω–16 Ω (A+B)
• Headphone Output Impedance: 390 Ω
• Rated headphone output power 60 mW (32 Ω, 1 kHz, 10%)
• FM tuning frequency range 87,5 – 108 MHz
• FM/DAB+ with memory on 40 stations
• AC power supply 220 – 240 V, 50/60 Hz
• Standby power consumption: 0,4 W
• Noiseless power consumption: 20 W
• Dimensions (W) x H x D. ) 435 x 149 x 328 mm
• Weight 7,0 kg
• Includes: FM/DAB+ antenna, remote control

Main features:

• Stereo power 100 W/can (6 Ω, 1 kHz, 10%, 1 channel controlled, IEC)
• Stream music from mobile phones, smartphones, tablets, laptops and PCs via Bluetooth version 4.1 (A2DP/AVRCP) with Bluetooth standby and auto-connect functions
• DAB+ and FM/RDS radio tuners with 40 stations memory
• Naming programmed radio stations (up to 8 characters)
• WRAT (Wide Range Amplifier Technology) with massive high current EI transformer, custom power capacitors and low impedance drive
• Non-phase shift amplifier circuit with discrete power transistor
• Optimal Volume Gain Circuit
• Digital-to-analog converter 192 kHz/24 bits* (PCM1754)
• Direct mode for authentic source sound reproduction

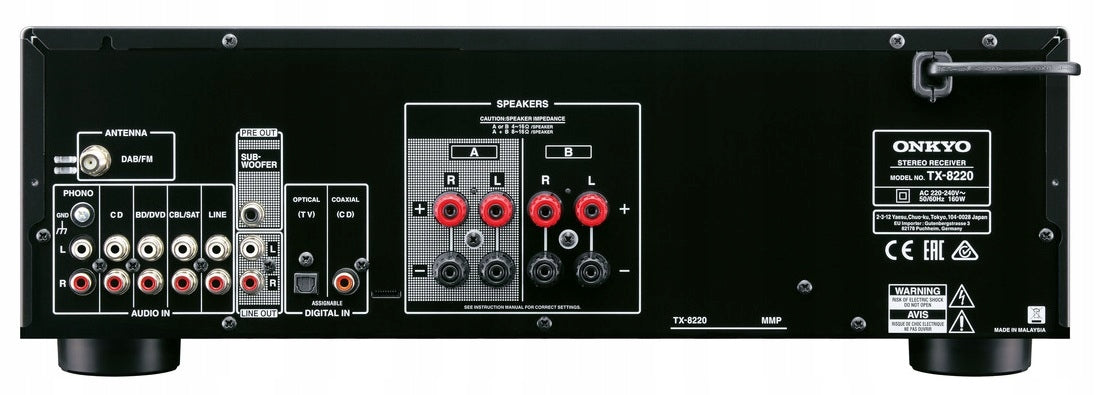

Connectors:

• 2 digital audio inputs (1 optical and 1 coaxial)
• 4 RCA analog inputs and 1 line output
• Turntable input with MM equalizer
• Subwoofer Preamp Output
• Two Pairs of Speaker Posts with Screw Knobs
• Headphone jack 6,35 mm

The remaining:

• Bass/Treble/Balance buttons on the front panel
• Speaker A/B drive selector button on the front panel
• 3-mode display dimmer (normal/tinted/dimmer)
• Time switch and battery-free memory backup
• Fully functional remote control RI (Remote Interactive)
• Bluetooth standby mode and automatic standby

With just a few taps, music from the app flows from your speakers with Auto Connect. Adjustable bass, treble and balance, power supply for A/B speakers and subwoofer output allow you to calibrate the sound and settings to the speaker system, multi-zone configurations and better bass in movie soundtracks. Offering a clean, minimalist design and maximum versatility, the TX-8220 is a unique proposition.
