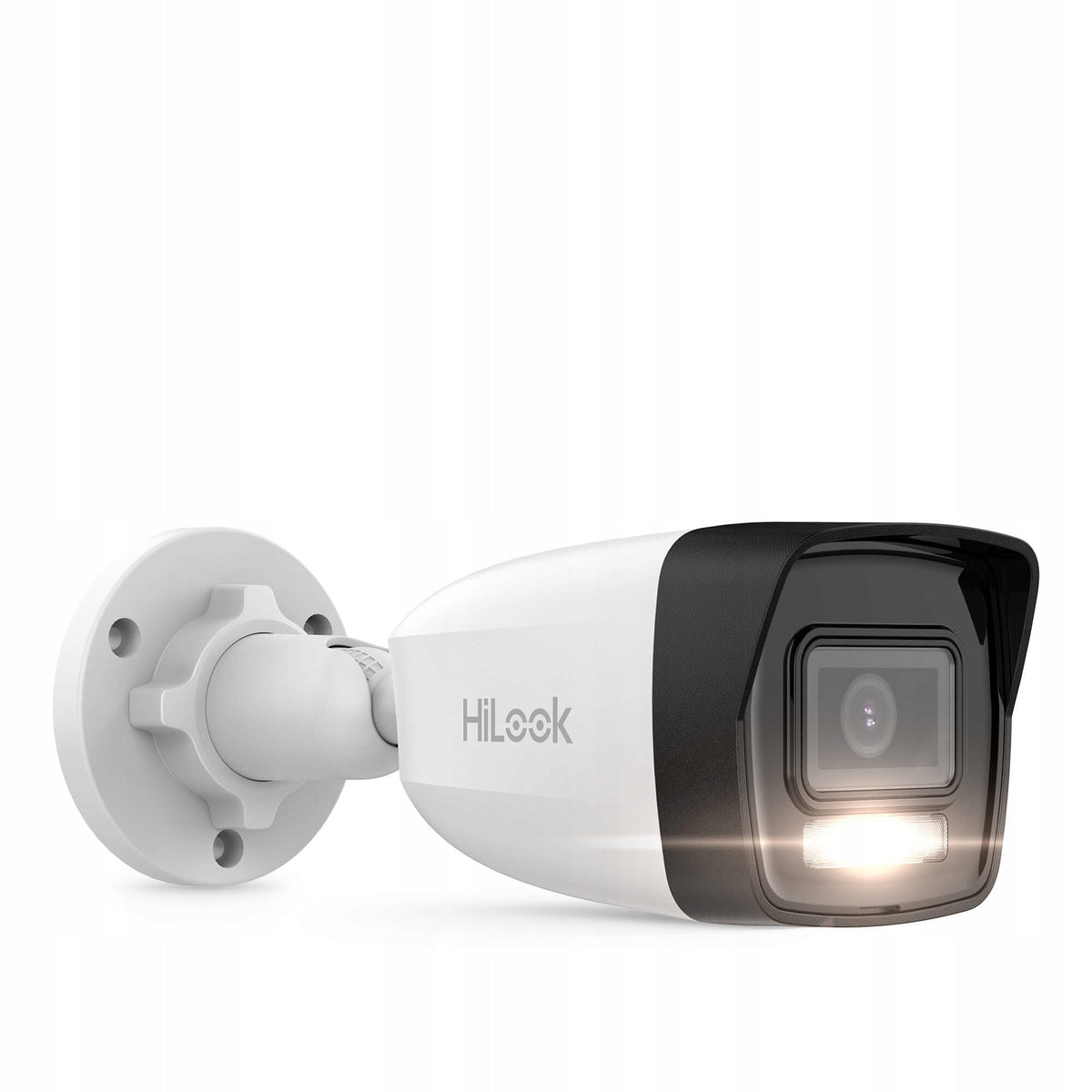

Stebėjimo kamera HiLook IPCAM-B2-30DL, Full HD, hibridinis apšvietimas, 30 m

Trumpai apie prekę

Prekė: Stebėjimo kamera HiLook IPCAM-B2-30DL, Full HD, hibridinis apšvietimas, 30 m. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPCAM-B2-30DL HiLook Series

IPCAM-B2-30DL Full HD Smart Hybrid-Light 30m HiLook by Hikvision

HiLook by Hikvision

Contents of the pack IPCAM-B2-30DL:

In the box outside the camera there are also useful instructions and mounting accessories to speed up the entire process of mounting the camera.

• 1x 2Mpx Dome Camera - HiLook by Hikvision IPCAM-B2-30DL
• Documentation - User manual, warranty card, regulations
• Template - Small size template with camera mounting holes
• Screws and mounting pins - Everything you need to mount your camera
• Waterproof set - Set of accessories to protect camera connectors from moisture

HiLook by Hikvision products are devices that focus on ease of use, literally everyone can cope with their assembly and configuration thanks to the instructions included.

Features of IPCAM-B2-30DL Camera:

• High-quality imaging with a resolution of 2 Mpx
• Support for detection of people and vehicles
• Dual SMART illumination
• Built-in microphone for audio monitoring
• IP67 water and dust resistance
• Efficient H.265+ encoding
• Motion Detection 2.0
• Smart Hybrid-Light

High quality image

The photosensitive sensor in the IPCAM-B2-30DL camera and the high-quality transducer combined with advanced optics deliver high-quality images with excellent sharpness. The device records in 2Mpx resolution. It ensures that even the smallest detail is captured on the footage.

• A: 1280x720p (1MPx )
• B: 1920x1080p ( 2MPx )
• C: 2048x1536p (3MPx)
• D: 2560x1440p ( 4MPx )
• E: 2560x1960p (5MPx)
• F: 3840x2160p (8MPx)

Motion detection

IPCAM-B2-30DL has a built-in algorithm for detecting motion in an image. In addition, it allows you to send notifications to your phone or computer.

In addition, you can freely set the area that interests you, so that, for example: receive notifications only about traffic from the entrance gate.

In addition to 24/7 recording, cameras can also record only fragments when motion is detected, which will translate into reduced hard drive consumption.

P2P function

In surveillance cameras, it is a technology that enables direct communication between the camera and the end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows for a direct connection between the camera and the user's device. This means that video data can be transmitted directly without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is its ease of setup. The user often only needs to scan the QR code or enter the camera ID to establish a connection.
• Remote Access: The user can access the camera image from anywhere in the world, provided that both the camera and the end device have access to the Internet.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function in the HiLook IPCAM-B2-30DL camera is a technology that allows data and electrical power to be transmitted to a network device using a single Ethernet cable. Thanks to this solution, cameras can be installed in places where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, PoE-based surveillance systems are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.

IP67 weather-resistant design

This enclosure protects the IPCAM-B2-30DL from external factors such as dust, dirt or moisture, which is particularly important in industrial environments or in places with high dustiness. IP67 enclosure cameras can be installed in a variety of locations, from industrial to marine, without worrying about being damaged by environmental factors.

Remote access from your phone and desktop computer

HiLook by Hikvision systems enable configuration, control and preview using the Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

• Access video previews and play back saved footage
• Save fragments of the film to the memory of the smartphone
• Configure time frames for motion detection
• Receive notifications from motion detection or other events
• Share your devices on other smartphones with the mobile app, e.g. family members or employees

Hik-Connect - Free app for iOS and Android smartphones

iVMS-4200 - Free desktop application

Wide dynamic range - High quality in harsh environments

The Wide Dynamic Range (WDR) function in the IPCAM-B2-30DL is a technology that improves image quality in difficult lighting conditions, especially when there are both very bright and very dark areas in the camera’s field of view. Key aspects of WDR include:

• Exposure balancing: WDR helps to get a clear picture in situations where there is strong backlighting or underexposure, for example when filming from inside a building overlooking a brightly lit exterior.
• Detail retention: With WDR, cameras can better capture details in dark and bright parts of the image. This allows for clear recognition of faces, vehicle registration numbers and other relevant elements that could be invisible under standard conditions.
• Image Processing Technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usability in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a variety of lighting conditions, both indoors and outdoors.

Video and audio recording

The audio recording function in the IPCAM-B2-30DL allows you to record sounds along with the video image, which significantly increases the capabilities and efficiency of surveillance systems. The most important advantages of this solution are:

• Comprehensive surveillance: Audio recording allows you to collect more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people.
• Situation Analysis: Sound can provide additional information that is not visible in the image, such as conversations, background noises, or other sounds, which may be important for understanding the context of the event.
• Increased monitoring efficiency: Integrating audio into your visual monitoring system enhances the overall performance of your system, enabling you to respond to events faster and more accurately.

Automatic day/night mode

Suitable for use in all lighting conditions IPCAM-B2-30DL with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the vision mode automatically based on the amount of light reaching the lens.

D.O.R.I.

The DORI parameter in IPCAM-B2-30DL (Detection, Observation, Recognition, Identification) is used to determine the ability of vision systems, such as surveillance cameras, to detect, observe, recognize and identify objects or persons at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these actions:

• Detection (45m): The system is able to detect the presence of an object or person at a distance of up to 45 meters. This means that at this distance you can tell that something is within the camera’s viewing range, but you can’t necessarily determine what it is.
• Observation (18m): At distances of up to 18 meters, the system can not only detect the object, but also provide enough detail for the observer to get an idea of the overall shape and perhaps some of the object's characteristic features, but without accurate recognition.
• Recognition (9m): Recognition over a distance of up to 9 meters allows the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a human, a car or another object.
• Identification (4m): At a distance of up to meters, the system is able to provide a very detailed image that allows you to identify specific characteristics of the object or person, such as the face, vehicle license plate, etc., which allows accurate identification.

LED illumination and color image after dark - Smart Dual Light

The hybrid light function in the IPCAM-B2-30DL combines infrared (IR) LED lighting for night applications and a white LED light that can be activated in response to motion detection or remotely by the operator. This technology not only ensures high image quality in total darkness thanks to infrared, but also the ability to deter intruders by automatically or manually turning on visible white light, which increases the safety and effectiveness of monitoring.

Technical specification of IPCAM-B2-30DL:

Camera IPCAM-B2-30DL Image sensor 1/3" Progressive Scan CMOS Max. resolution 2560 × 1440 Shutter speed 1/3 s to 1/100,000 s Minimum illumination Colour: 0.005 lux @ (F1.6, AGC ON), B/W:0 lux with infrared Day/Night Infrared filter Pan angle adjustment: 0° to 360°,tilt: 0° to 75°, rotation:0° to 360° Lens Lens type 2.8mm Fixed focal length and FOV 2.8 mm,Horizontal FOV 98°, Vertical FOV 54°, Miter FOV 114° Lens Mount M12 Aperture Type Fixed Aperture F1.6 DORI D:63 m, O: 25 m, R: 12 m, I: 6 m Lighting Type of supplementary light Infrared,White Light Infrared Light Range Infrared:up to 30 m, White light: up to 20 m Intelligent complementary light Yes IR wavelength 850 nm Video Main stream 50 Hz: 20 flux /s (2560 × 1440) 25 kl. /s (1920 × 1080, 1280 × 720) 60 Hz: 20 fps /s (2560 × 1440) 24 kl. /s (1920 × 1080, 1280 × 720) Auxiliary flux 50 Hz: 25 fps. /s (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps. /s (1280 × 720, 640 × 480, 640 × 360) Video Compression Main Stream H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Region of Interest (ROI) 1 fixed area for main stream Audio Audio Type Mono Ambient Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network Security Password protection , complex password, watermark, basic and grassy authentication for HTTP, WSSE and grassy authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Simultaneous live view Up to 6 channels Open Network Video Interface API (Profile S, Profile T), ISAPI, SDK Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP User/Host Up to 32 users. 3 user levels: administrator, operator, and user Client iVMS-4200, Hik-Connect, HiLookVision Web Browser Chrome 57.0+, Firefox 52.0+ Image Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Settings Rotation Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance, adjustable via client software or browser Privacy Mask 4 programmable polygonal masks Interface Ethernet Interface 1 x 10M/100M RJ45 port with auto speed adjustment Built-in Microphone Yes Events Basic Events Motion Detection (Supports alarm triggered by specific target types (human and vehicle)), Video Abuse Alarm, Exception Linkage FTP Upload, Send Email, Notify Surveillance Center, Trigger Capture General Power 12 VDC ± 25%, 0.4 A, max. 5 W, Power jack Ø5.5 mm coaxial, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W Material Metal and plastic Dimensions Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Package dimensions 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") Weight Approx. 340 g (0.7 lb.) Weight with packaging Approx. 560 g (1.2 lb.) Storage conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing) Starting and operating conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing) Polish General function Pulse,anti-shimmer, mirror reflection, password protection, password reset via EMC FCC Approval email:47 CFR Part 15, Subsection B, CE-EMC: EN 55032:2015,EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1: 2014, RCM: AS/NZS CISPR 32:2015, IC: ICES-003: Version 7 CB safety: IEC 62368-1: 2014+A11, CE-LVD:EN 62368-1:2014/A11: 2017 CE-RoHS environment: 2011/65/EU,WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013

• Warranty: 24 months
• Connectivity: Cable
• Audio: Yes
• Memory card slot: No
• Visibility at night: up to 30m
• Housing: Tubular
• Resolution: 2MPx
• Technology: IP

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.4 kg
Parametry	EAN (GTIN)	6942160436906
Parametry	Manufacturer code	IPCAM-B2-30DL
Parametry	Brand	HiLook
Parametry	Model	IPCAM-B2-30DL HiLook Series
Parametry	Kind	external
Parametry	Certificates of conformity	CE
