Starterio transformatorius IDEAL, 230V, 12–24V, 60A/600A

Trumpai apie prekę

Prekė: Starterio transformatorius IDEAL, 230V, 12–24V, 60A/600A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: IDEAL STARETER 640

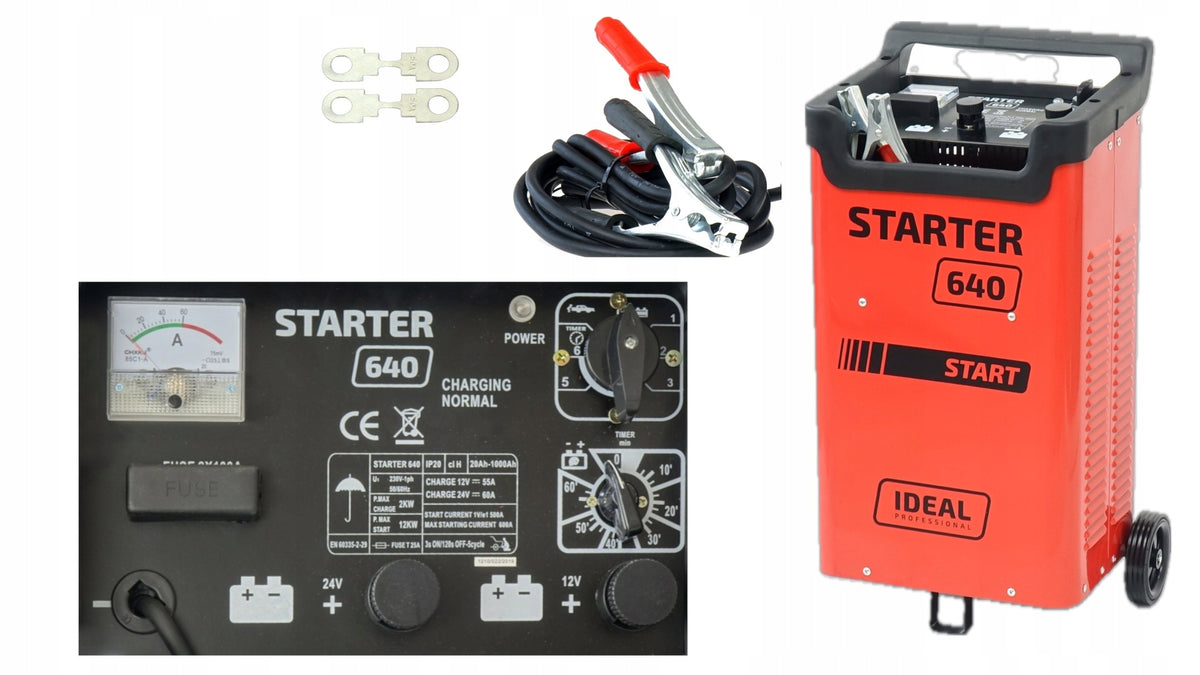

Starting rectifier Transformer Starter 640 230V 12-24V IDEAL 60A 600A

IDEAL

Starter 640 is a transformer rectifier for charging 12 and 24 volt acid batteries.

It allows you to start passenger cars with gasoline and diesel engines (including vans, trucks and tractors).

The device is equipped with a analog charging current meter.

✅ Charging Current: 60A

✅ analog charging current meter

✅ Classic transformer

✅ WEIGHT: 20 KG

✅ Start-up function (600A): Reliable assistance for firing passenger cars, vans, tractors and agricultural machinery with a discharged battery.

✅ Universal voltage 12V / 24V: Operation of installations in passenger cars, buses, construction machinery and tractors.

✅ Fast charging with timer (Boost): Possibility of pre-charging the battery with automatic shutdown after the set time.

✅ Multi-stage current adjustment: The charging stage switches allow you to adjust the parameters to the battery capacity.

✅ Full safety: Protection against short-circuit poles, overload and reverse polarity (2x100A fuse).

✅ Mobile design: Large transport wheels, sturdy handle and front pocket for working wires.

✅ Long wires 2m

✅ individuals

✅ vans

✅ motor boats

✅ Tractors

✅ Trucks

• normal charging - 1 degree
• normal charging - 2 degree
• normal charging - 3 degree
• fast charging (boost) - 1 degree
• fast charging (boost) - 2 degree
• fast charging (boost) - 3 degree

The device has a fan cooling system which significantly increases its efficiency.

The device is equipped with protection against short-circuit poles, overload and reverse polarity, which increases its reliability.

Enormous capacity range (20 – 1000 Ah): Easily charges a small battery in a city car as well as powerful batteries in heavy machinery.

IDEAL

Ideal is a leader in the welding equipment sales industry, offering a wide selection of high-quality equipment for welding professionals and amateurs. Thanks to cooperation with renowned manufacturers, the company provides innovative technological solutions that are characterized by reliability, efficiency and safety. The offer includes, m.in : MIG/MAG, TIG welding machines, electrodes, accessories and consumables.

The switch has 6 charging ranges and in some models an additional start-up stage (pictogram on the left from “0”). Levels 1-3 can be started without a timer, while levels 4-6 require a time setting to run.

In addition, a darkened bar in these ranges means charging in BOOST mode.

NOTE! Without the TIMER on, the rectifier will not turn itself off! Then the user must ensure and complete the loading.

The time function can be turned on by setting the switch in the correct position. Charging time can be set from 1÷60min. When the switch returns to the “0” degree, then the rectifier will complete the charging process, regardless of the degree of charge of the battery.

• Overload protection in the device: 2x100A
• Rated power supply voltage: 230V; 50/60Hz (1ph)
• Power (charging / starting): 2.0 / 12 kW
• Degree of protection: IP 20
• Weight: 20 KG
• Overall dimensions L x W x H: 280x280x720 mm
• Package dimensions L x W x H: 675x380x300 mm
• Charging voltage: 12/24V
• Charging current: 55A (12V) / 60A (24V)
• Start-up current: 600A
• Degrees of charging current adjustment: 6
• Nominal battery capacity Ah 15h (min/max): 20 / 1000
• Rated starting current EN 60335-2-29: 500A

• Device IDEAL STARTER 640 - 1 pc.
• Power cables 2m
• spare fuse
• Original packaging
• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	IDEAL STARETER 640
Parametry	Brand	IDEAL
Parametry	Maximum amperage	10 A
Parametry	EAN (GTIN)	5903991100528
Parametry	Batteries included	no
Parametry	Packaging status	original
