Stalo pjūklas su lazeriu, 255 mm, kampinis pjoviklis

Trumpai apie prekę

Prekė: Stalo pjūklas su lazeriu, 255 mm, kampinis pjoviklis. Kategorija: Kampiniai pjūklai.

• Gamintojas: Notig Tools
• Modelis: N4136

+ FREE EXTRAS!!!

Saw for precise cutting of hardwood and laminates

Professional slash designed for cutting skirting boards, panels, lining, parquet, plinth and PVC skirting boards, cable trays, squares, patches, etc.

It is a versatile tool designed for cutting through wood and wood-based materials. Provides precise and fast cutting of materials.

With a wide range of adjustment options, straight and angular cutting is possible.

TECHNICAL DATA:

• Diameter of the disc: 255 mm
• Disc opening: 25,4 mm
• Maximum power: 2200 W

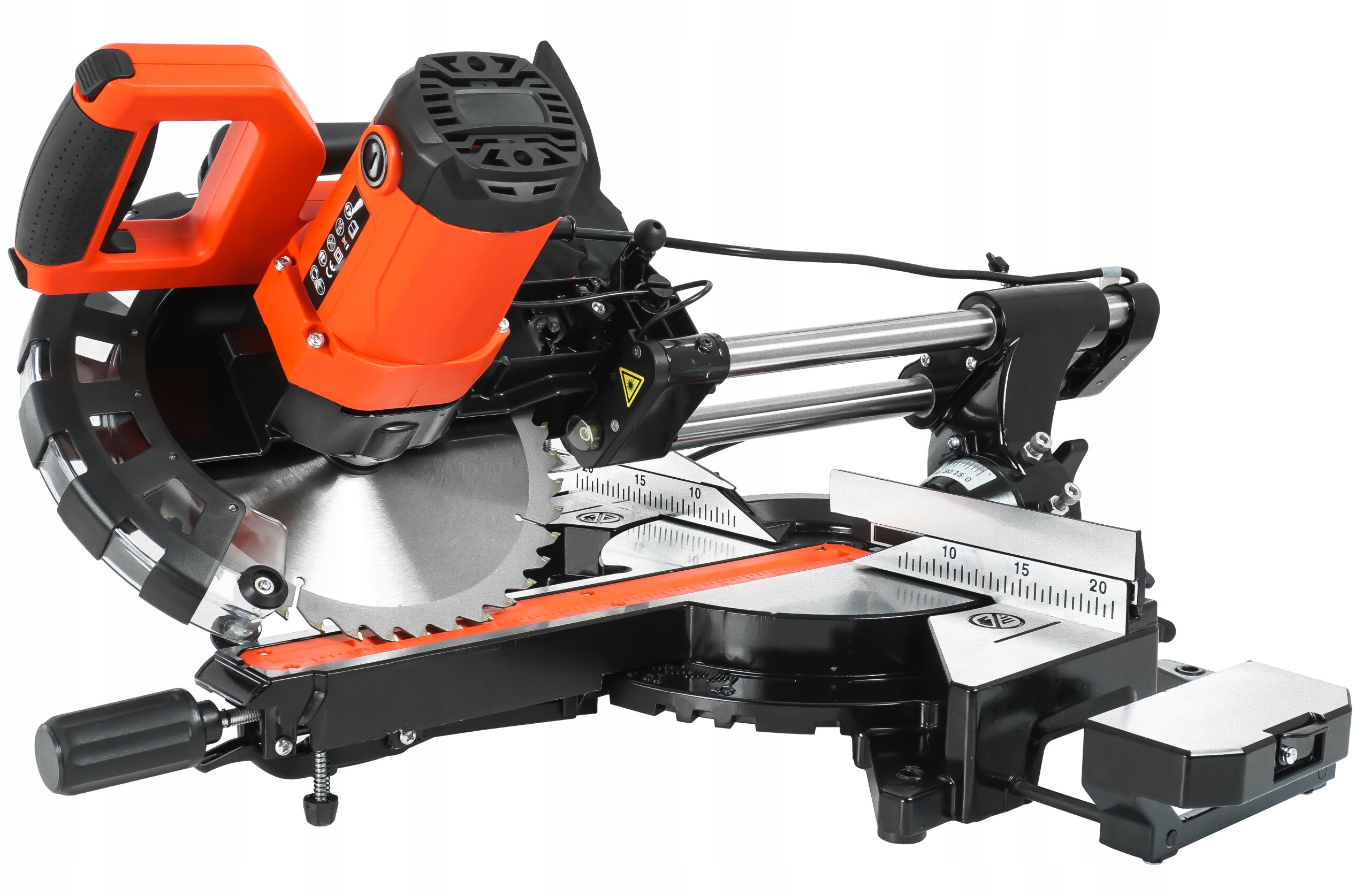

• Rotary speed: 4500 rpm. /min
• Angle of inclination: 0-45°
• Voltage: 230V ~ 50Hz

Max. height x max. cutting length:

• horizontal rotation angle 0̊ / tilt angle 0̊ - 90 x 340 [mm]
• horizontal rotation angle 45̊ / tilt angle 0̊ - 90 x 240 [mm]
• horizontal rotation angle 0̊ / tilt angle 45̊ - 45 x 340 [mm]
• horizontal rotation angle 45̊ / tilt angle 45̊ - 45 x 240 [mm]

The bevel allows you to set two types of angles:

• sliding cutting angle: it is possible to rotate the head in the range of +/- 45 degrees. To make it easier to set the angle of the head, the slash has a scale with a ratchet that allows you to easily position the head in the most popular angles.

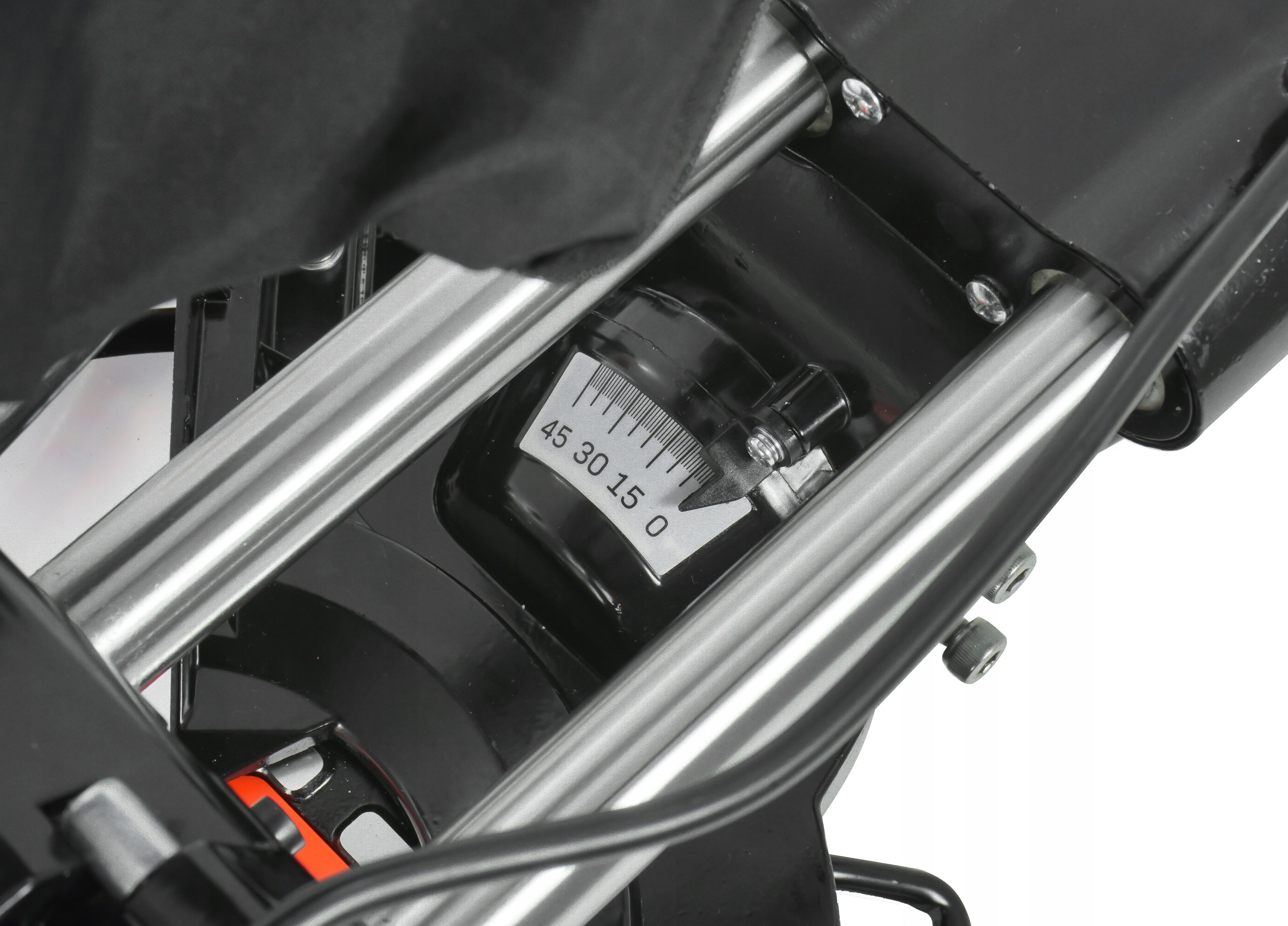

• cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees. When setting the angle, you can use the scale applied on the base of the table.

Spring clamp with ratchet lock. It enables quick, point fastening when gluing and holding various elements, e.g. in carpentry and modelling works.

TECHNICAL DATA:

• steel, durable spring
• the ability to adjust the adhesion surface thanks to adjustable jaws
• lock for increased comfort of work
• Jaw spacing: 25 mm
• Jaw height: 16 mm

Professional rolled measure with a length of 3 m. Tape made of resilient steel sheet with a width of 18 mm. Yellow tape with graduation applied using a very precise inkjet printing technique. The surface is protected with a nylon coating to protect the tape from abrasion and discoloration under the influence of sunlight. Finished with a solid, magnetic hook. Cassette equipped with a short lanyard for pinning. Ideal for high-speed precision measurements.

TECHNICAL DATA:

• dimensions: 3 m x 18 mm

✅ PRODUCT FEATURES

► High power 2200 W

The high power of the motor ensures the ability to effectively cut both hardwood and laminated materials. This guarantees smooth dial feed and a high working culture.

► Laser cutting indicator

The built-in laser determines the guide line of the disc, which increases precision and makes it easier to position the material at the desired cutting location.

► Adjustable cutting angles – versatile settings

Possibility of cutting at different angles thanks to double adjustment, both horizontally (rotation) and vertically (bevel).

► Functional, durable base

The construction block made of die-cast aluminum provides high stability and resistance to deformation.

► Ergonomic design

The comfortable handle, compact design and practical accessories make working with the tool comfortable, even during long sessions.

► Replaceable motor brushes

They facilitate service and extend the life of the device.

► Additional cutting disc

Immediately after purchase, you can work without downtime.

✅ ADVANTAGES OF THE PRODUCT

► Precision cutting

With a laser, stable base, and bevel and rotation adjustment, you get the perfect tool for jobs that require the most accuracy.

► Universality of applications

Ideal for cutting slats, panels, floors, boards, squares, PVC, cable trays and other wood-based materials. After using the right disc – also aluminum and plastics.

► Fast work with large materials

Possibility of cutting long boards with sliding table elements. Folding stops stabilize the material during cutting.

► Safety and convenience

The included protective accessories (masks, glasses, gloves), as well as the vise and clamps guarantee safe operation.

► Durability of construction

The cast aluminum top and finishing elements ensure resistance to wear and workshop conditions.

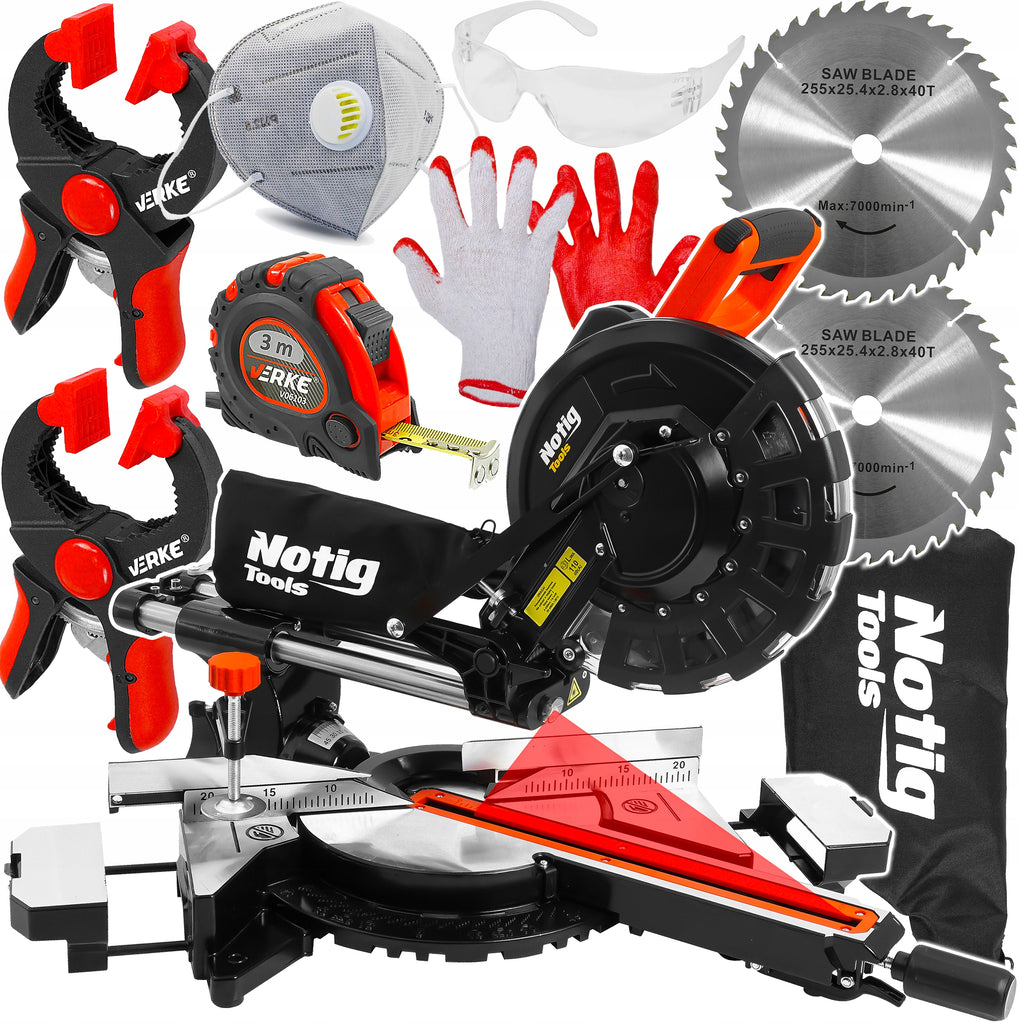

► Full, extensive set of accessories

The included carpentry clamps, 3 m roll-up measure and protective accessories allow you to start working immediately after purchase.

✅ USE OF THE PRODUCT

✔ Cutting baseboards

✔ Cutting panels, parquet floors

✔ Assembly and finishing works

✔ Processing of squares, boards and PVC elements

✔ Precise angular and double diagonal cuts

✔ Cutting hardwood and softwood

✔ Carpentry and workshop work

✔ Possibility of cutting plastics and aluminium (with a suitable disc)

The base is made of die-cast aluminum, such a structure is resistant to deformation during operation.

The milled surface of the table top provides an appropriate coefficient of friction, so that the material does not slip excessively on the working table.

The device has a rotary table with angle setting and a tilting disc with an adjustment range of 0 - 45°, as well as a guide and a vise for safe and clean work in wood.

With the right disc, the slash can also cut through aluminum and plastics.

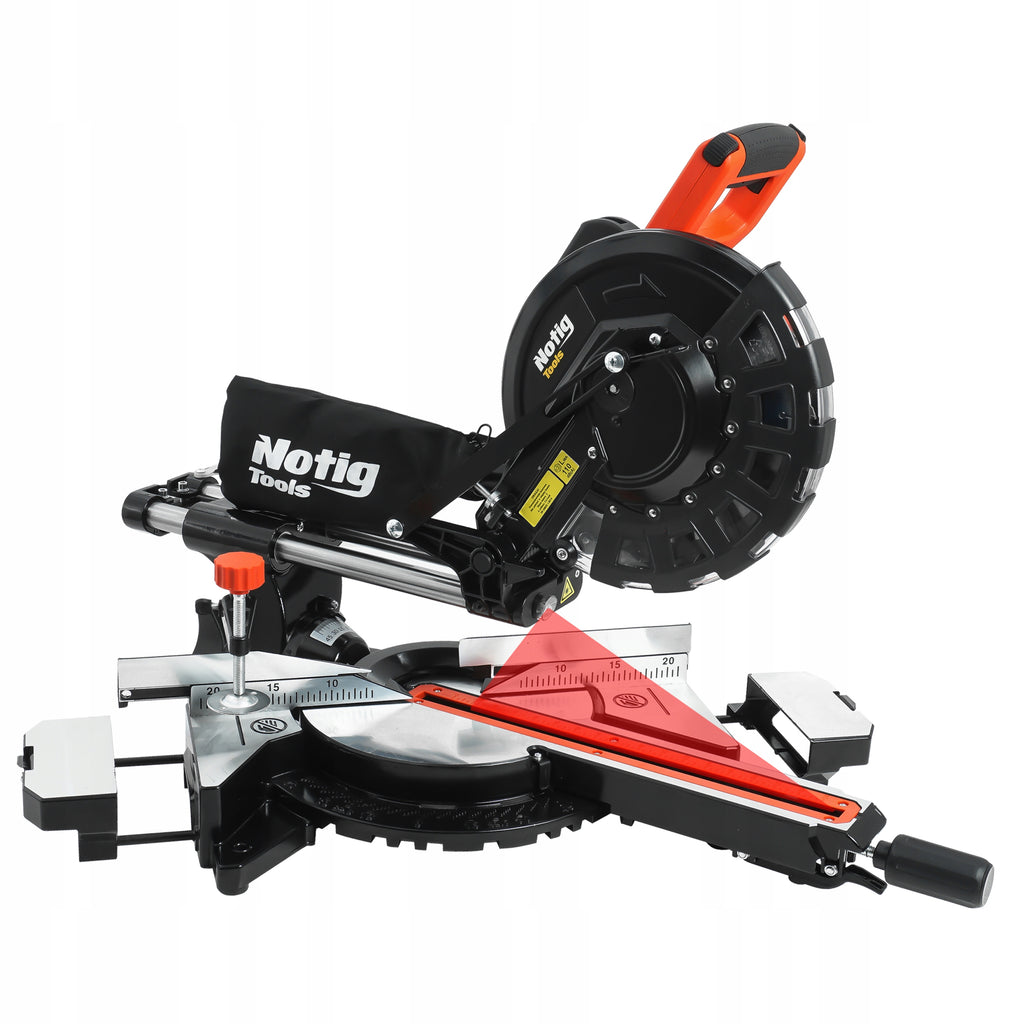

Accurate laser cutting line indicator allows you to visualize the place of application of the disc on the material.

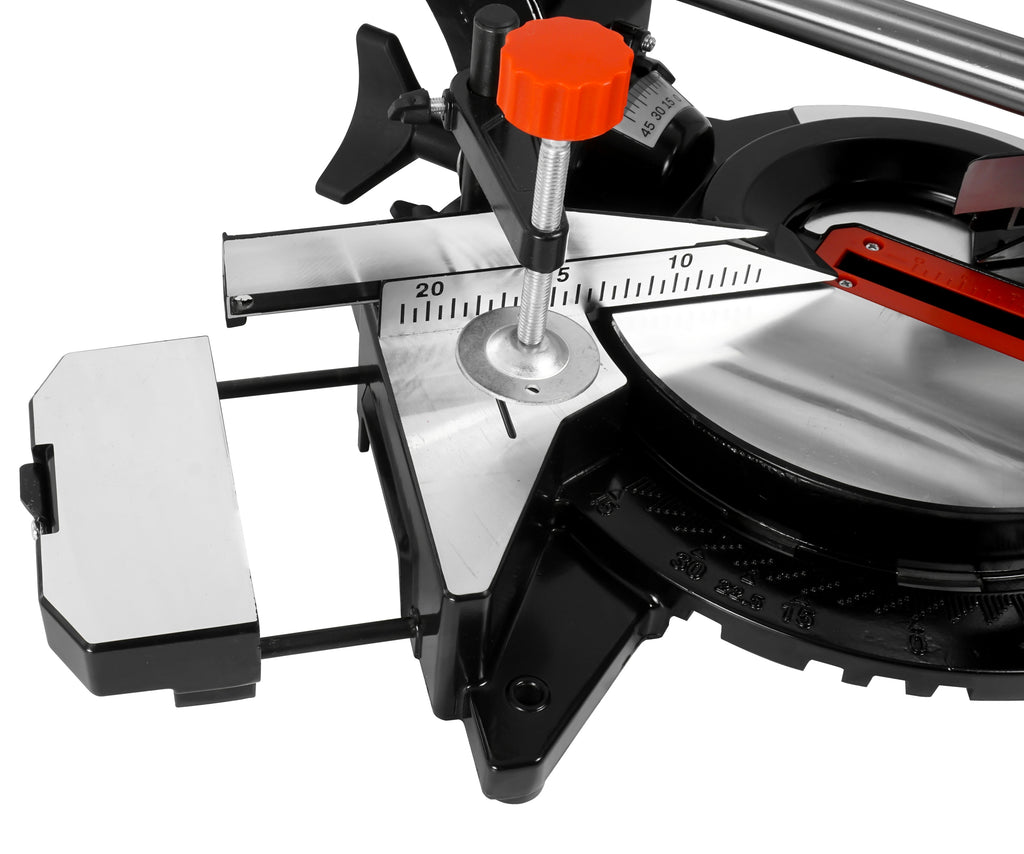

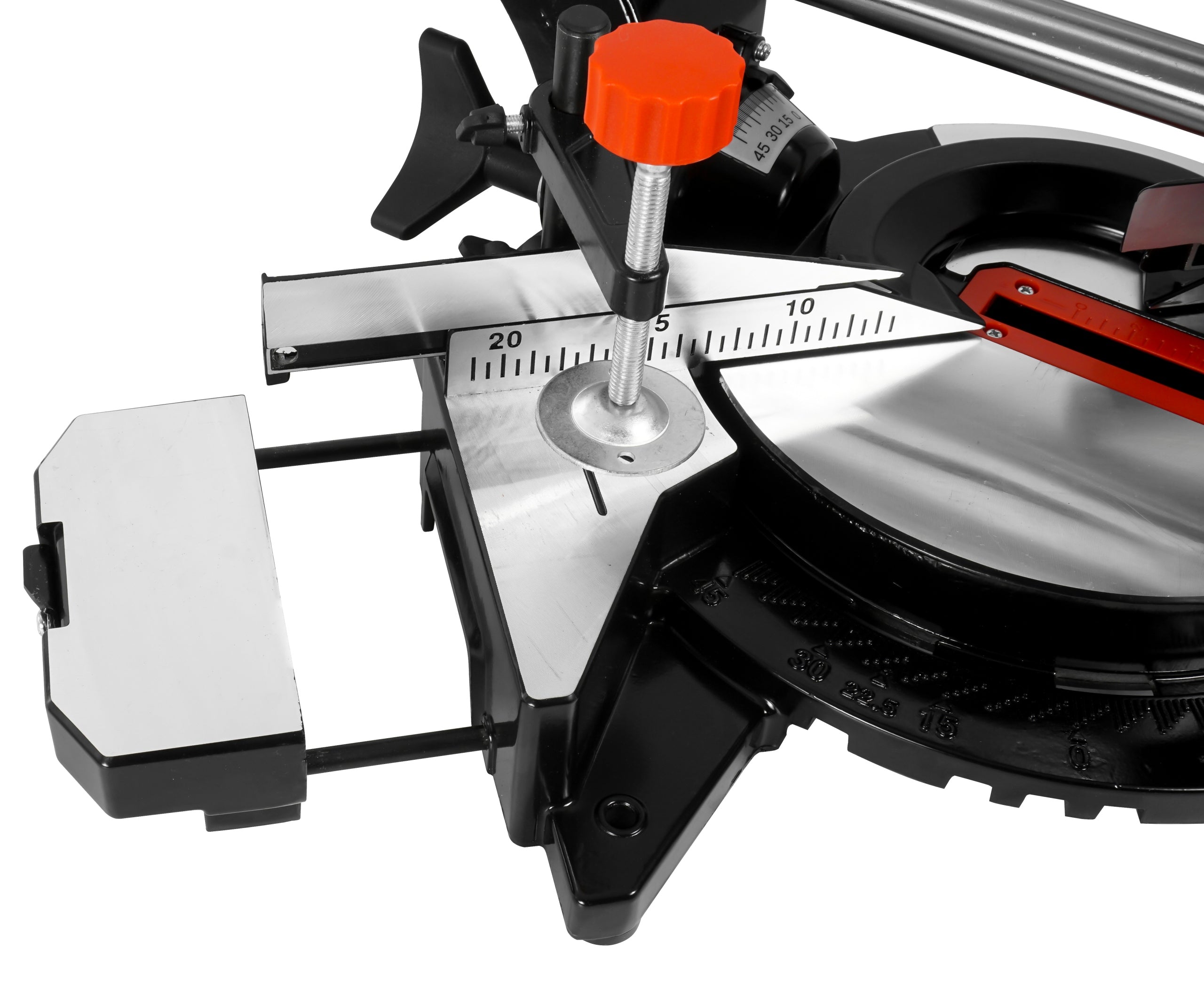

The adjustable vertical clamp allows you to fix the material in such a way that it does not move during cutting with feed. The device has two mounting places, so you can mount the clamp on the left or right side of the device.

Steplessly extendable table extensions along with folding stops make it easier to work with longer material. Limiters are used to block the material so that it does not move sideways during operation.

The device allows for fast and precise cutting of wood, boards, panels, etc. Thanks to the tilting and rotating head, double diagonal cutting is possible. The saw is equipped with a durable motor with a maximum power of 2200 W with replaceable brushes. The laser guide, which is installed in the device, increases the comfort and precision of work with the material. Power supply is carried out via the electrical network.

Includes 1 additional shield
