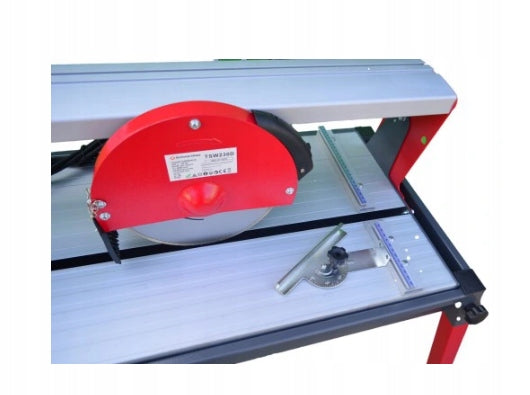

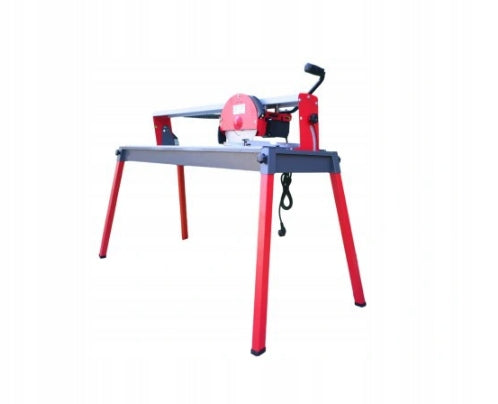

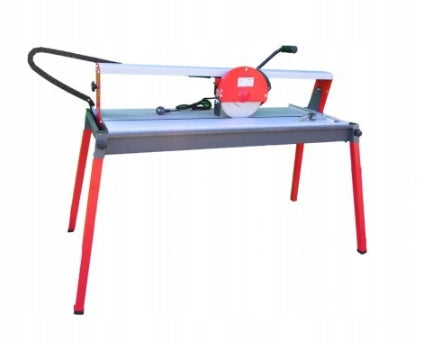

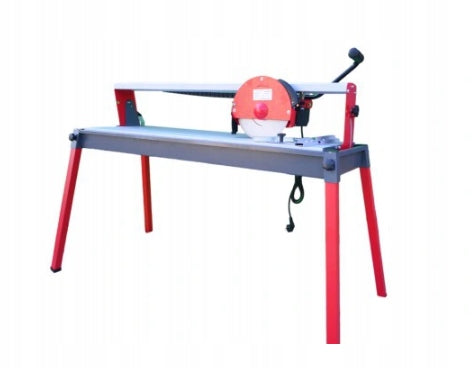

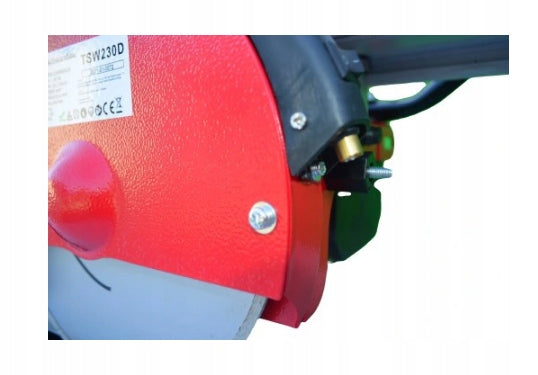

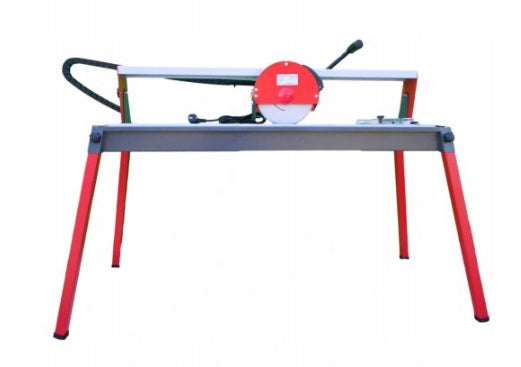

Stalinis plytelių glaisto pjaustytuvas su lazeriu

Trumpai apie prekę

Prekė: Stalinis plytelių glaisto pjaustytuvas su lazeriu. Kategorija: Staliniai pjūklai.

• Gamintojas: Schwarzbau
• Modelis: TSW230D

with diamond disc 230 mm

• induction-brushless motor
• adjustment of the cutting angle
• 4 bearing guide plate mounted on eccentrics with adjustable
• attachment with protractor
• automatic water pump
• resistance strip with measure
• robust and precise design
• rubber fenders to eliminate engine impact on the housing.
• pull-out table

Schwarzbau brand: 10 years of experience in the industry, several models of cutters of the highest quality, thousands of satisfied customers!

Table cutter TSW230D from the renowned company Schwarzbau. High power and high quality of workmanship makes this model ideal for all kinds of finishing works on tiles made of glaze, terracotta and stoneware.

Stable construction, solid guide skid on which a powerful induction motor is mounted on eccentric bearings with the possibility of adjustment. The highest quality product in its price class, which has been appreciated by the most experienced and demanding users.

Glaze cutter with sliding cutting head is a device for cutting floor and wall cladding tiles, brick, clinker brick, stone and ceramics up to 36mm thick (large, uninflated engine power). The engine with a working power of 0,8 KW guarantees reliable operation of the przecinarki.Powiększone engine ribs ensure better heat dissipation. The whole perfectly matched with the guide skid ensures a secure, even and accurate cut.

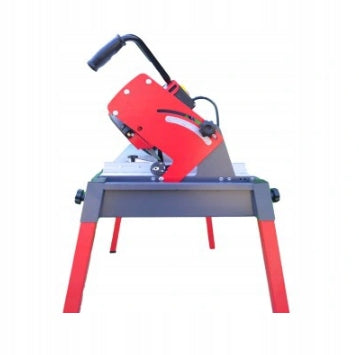

An undoubted advantage of the device is the possibility of wet processing with water. This will avoid harmful pollination to the lungs. It is also worth mentioning the possibility of cutting at an angle of 45 degrees. This increases the functionality of the device.

The Schwarzbau cutter is adapted to make: cross-cuts, longitudinal cuts of strips, beveling of edges, cuts along the diagonal.

.

Schwarzbau has launched an improved version, which has an engine mounted with bearings that can be adjusted on the eccentric. Thanks to this solution, you can easily adjust and correct the position of the engine and its fitting without the need for professional knowledge. The whole is made of the highest quality materials, which significantly extends the life of the entire device.

_____________________________________________________

It also has a contactor switch with the anti-restart system, which prevents accidental switching on of the motor when the power supply is re-delivered after a previous power outage in the installation.

• Operating motor power: 0,8 kw
• Power consumption: 1200 watt
• table length: 117 cm
• cutting thickness: 36 mm
• engine speed: 2950 r/min
• diameter of the disc 230mm
• Disc hole diameter: 25,4 mm
• Disc type: diamond with continuous embankment
• cutting length: 92 cm
• angle setting: 90-45 degrees
• weight approx: 40 kg
• automatic irrigation pump
• high engine power
• inductive-brushless engine
• contactor switch

4 BEARING SKID with the possibility of setting the angle of the disc! Bearings are mounted on eccentric rollers. By manipulating their setting, you can change their spacing and thus set the desired angle of the trolley-cutting line.

Specifications
