Stalinės pjovimo staklės DEDRA, 2000 W, 254 mm diskas

Trumpai apie prekę

Prekė: Stalinės pjovimo staklės DEDRA, 2000 W, 254 mm diskas. Kategorija: Staliniai pjūklai.

• Gamintojas: Dedra
• Modelis: DED7754
• Įtampa: 230 V

DED7754 + cutting disc 254x30mm

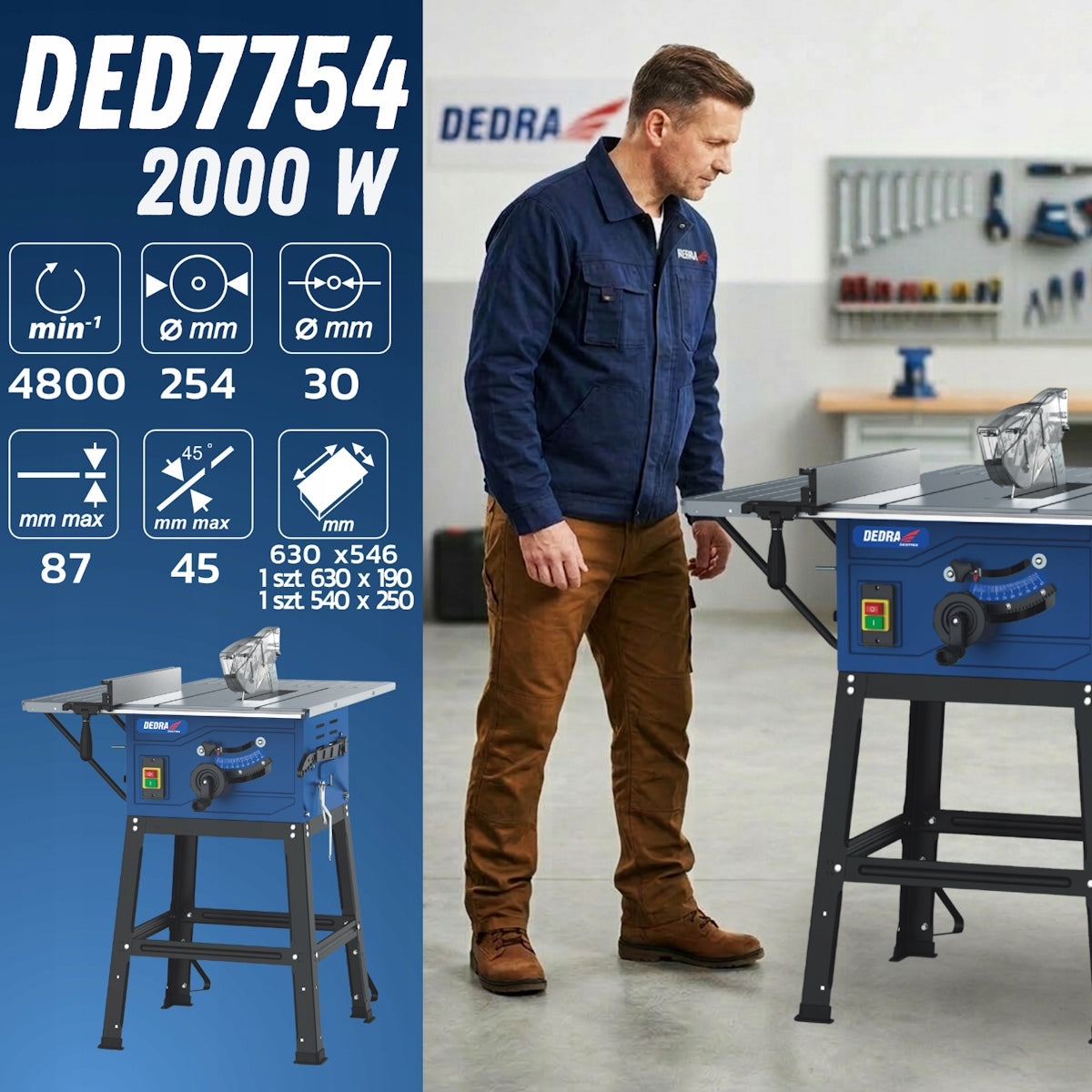

🔷 Features of wood table saw

• Engine power: 2000 W
• motor winding: copper
• supply voltage: 230-240V AC, 50 Hz
• Disc diameter: 254 mm
• Disc hole diameter: 30 mm
• Rotation speed: 4800 rpm
• maximum cutting height at an angle: 90°: 87 mm
• maximum cutting height at an angle: 45°: 45 mm
• cutting height adjustment: 0-87 mm
• disc tilt range: 0-45°
• easy installation
• all structure made of steel
• possibility of connecting chip extraction
• Weight: approx. 24 kg
• Table top made of aluminium
• height of the saw from the ground to the tabletop: 88 cm
• package dimensions: 68,5x37x46,5 cm

🔷 Worktable dimensions:

• basic: 630 x 546 mm
• Side: 630 x 190 mm
• Rear: 540 x 250 mm

🔷 The set includes:

• circular table saw with stable frame
• 1 cutting disc 254x30mm: 24T
• cutting disc cover
• table extension to length (1 pc)
• extension of the table to width (1 pc)

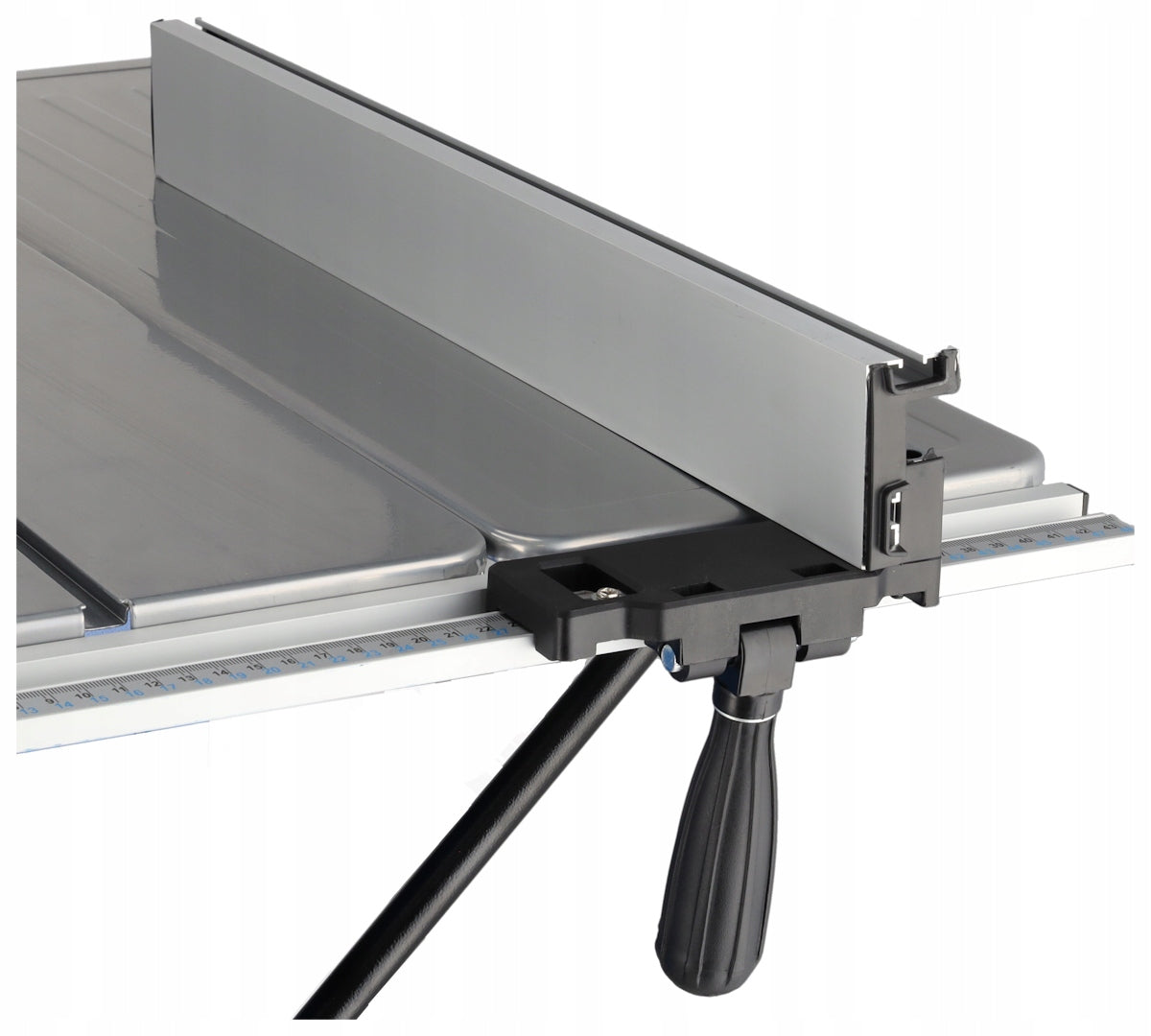

• Parallel stop (1 pc)
• cross stop (1 pc)
• Dust extraction adapter (1 pc)
• warranty card - 2 years of service protection "door to door"
• instruction manual in several languages i.e. language Polish, English

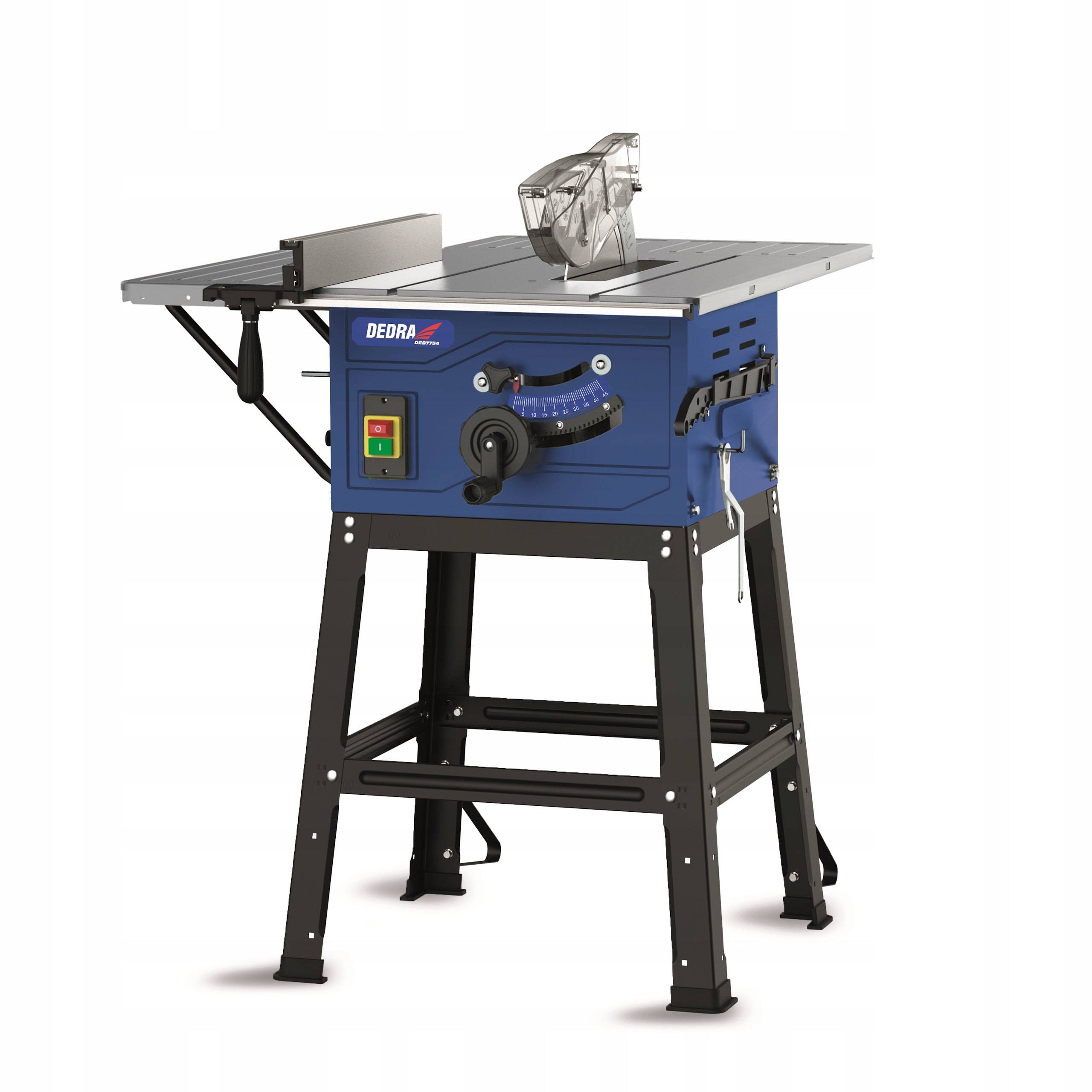

🔷 Circular table saw DEDRA DED7754

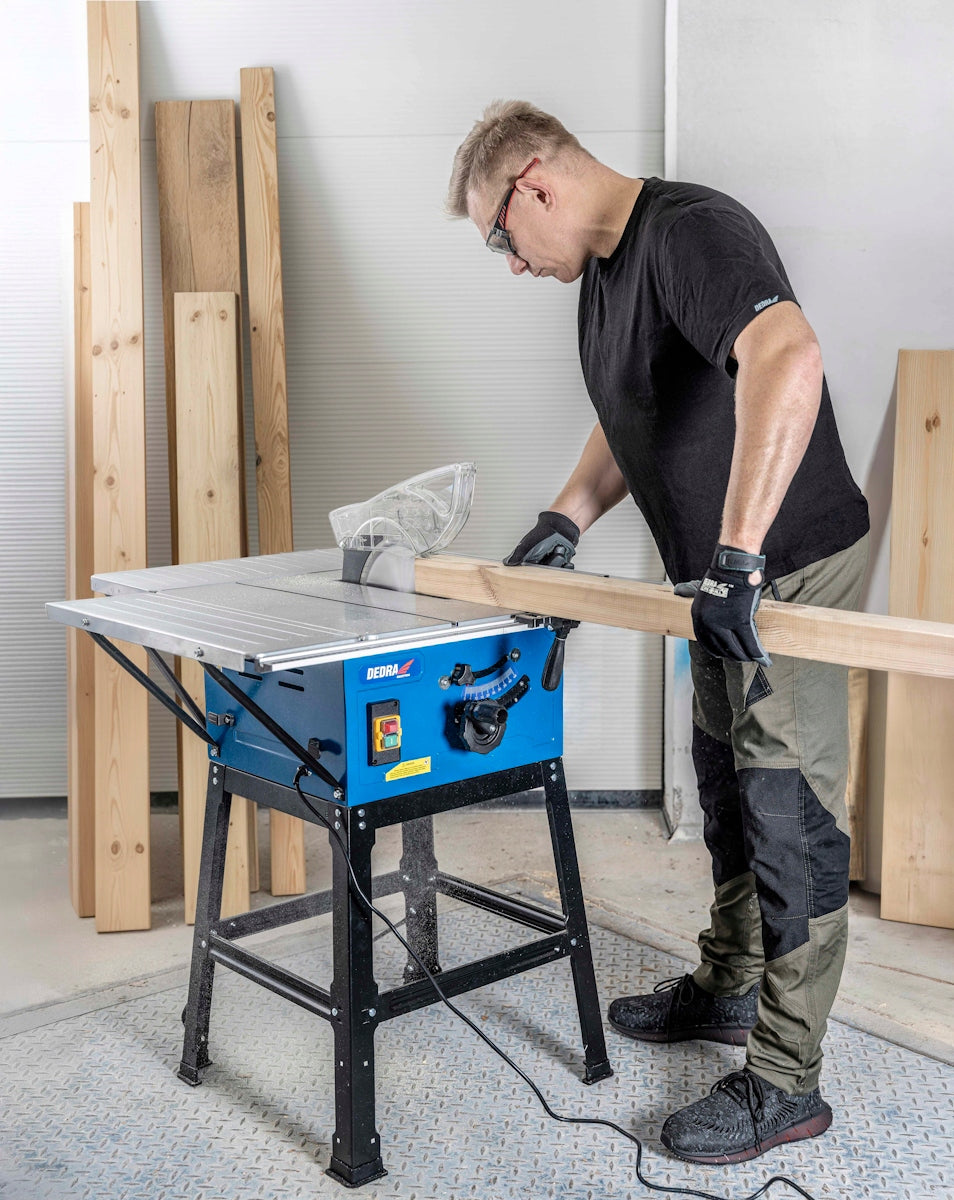

Table saw DEDRA DED7754 is designed for cutting hardwood and softwood, wood-based materials (plywood, chipboard, furniture boards) and plastics.

The device will work well in workshops, during renovations and construction, enabling basic cutting operations.

✔ Longitudinal cutting - ideal for cutting boards and boards into smaller pieces, quickly and evenly.

✔ Transverse cutting - precise trimming of the material to the appropriate length.

✔ Slant cutting - the ability to make angular cuts, necessary for finishing and construction works.

🔷 Selection of circular saw

The cutter is equipped with a 254 mm disc / 30 mm / 40 teeth hole. 60- and 80-tooth discs can also be used for more precise cutting. It works well when cutting wood, chipboard, laminates, as well as plastic and plexiglass.

Suitable for DEDRA H25040, H25060, H25080 discs, shields from other manufacturers are also possible (body thickness approx. 2,1 mm, tooth width approx. 2,8 mm).

Number of teeth and material:

• 10 to 24 – fast cutting of thick wood
• 18 to 40 – wood and chipboard
• 30 to 80 – precise cutting of boards, laminates and plastic
• 80 to 120 – Hard wood and plastics

💡 More teeth = smoother cutting edge.

🔷 High power – comfortable and precise work

The DED7754 table saw is made of durable materials and proven solutions that make woodworking easy and enjoyable.

The 2000 W motor drives the disc up to 4800 rpm, and the 40-tooth blade provided in the set allows you to cut wood, chipboard and plywood quickly, precisely and evenly, without excessive effort.

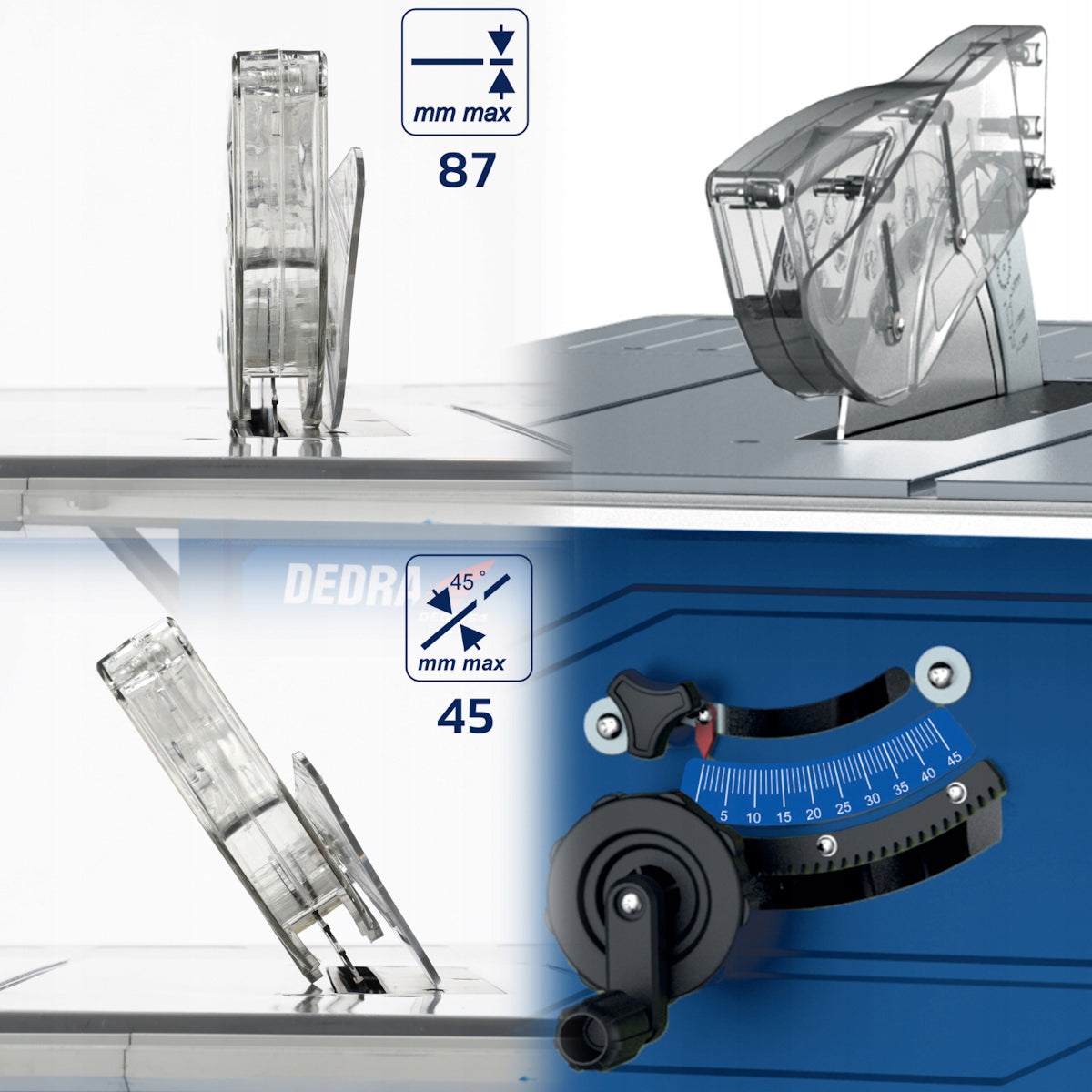

🔷 Height adjustable table saw

The DED7754 saw allows for precise cutting at an angle of 90° and adjustment of the cutting angle up to 45°, as well as changing the height of the disc, which allows it to adapt to different materials.

• maximum cutting height at an angle of 90°- 87mm
• maximum cutting height at an angle of 45°- 45mm

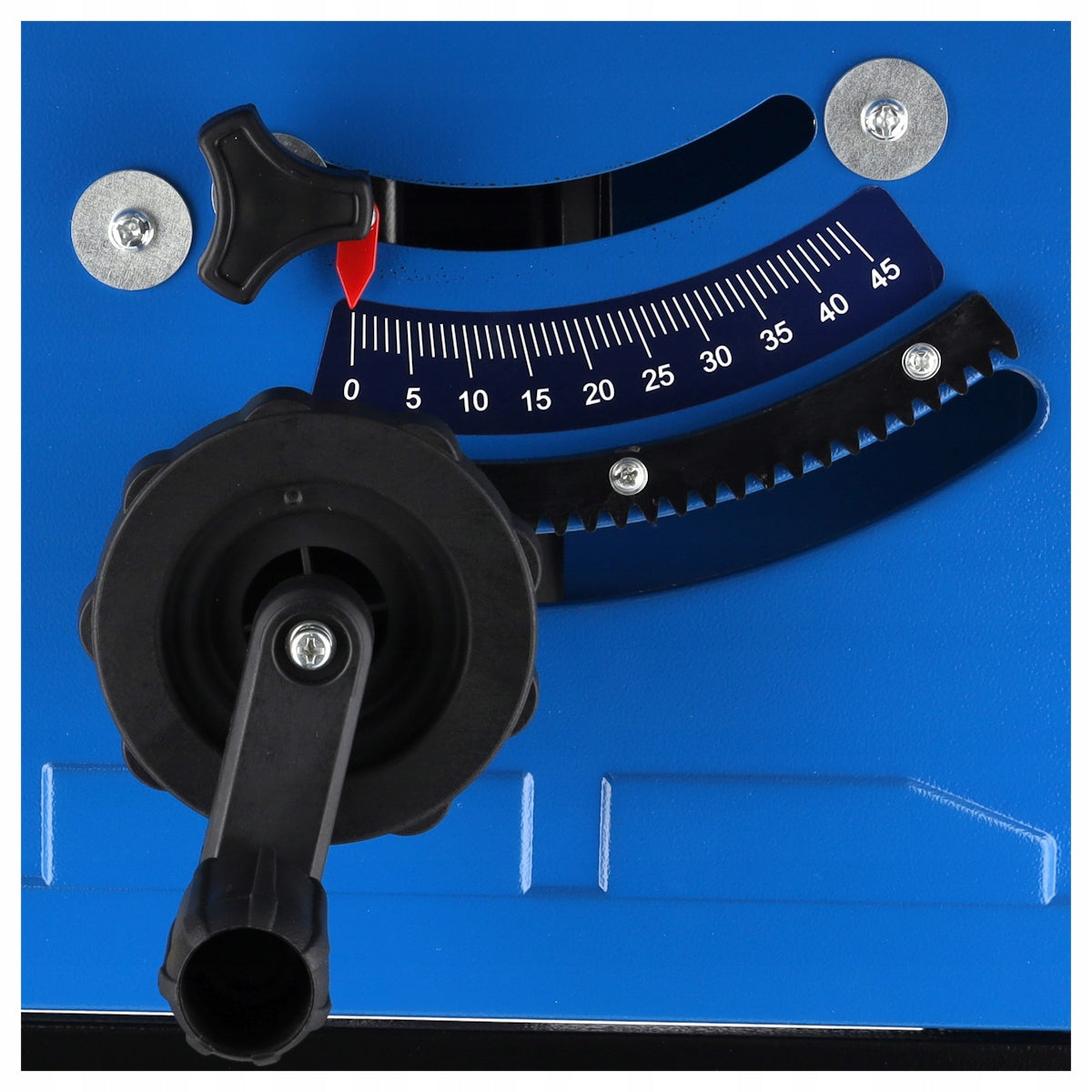

• adjustment of the tilt angle of the disc in the range of 0 to 45°

🔷 Extensive work table

The saw table can be expanded from two sides thanks to stable additional tables, which increases the working surface and facilitates the processing of larger materials.

• Dimensions of the main table: 630 × 546 mm
• Additional side table: 630 × 190 mm
• Additional rear table: 540 × 250 mm

🔷 Safety and comfort of work

The DEDRA DED7754 table saw can be connected to a sawdust extraction system, making it easier to keep your workplace tidy.

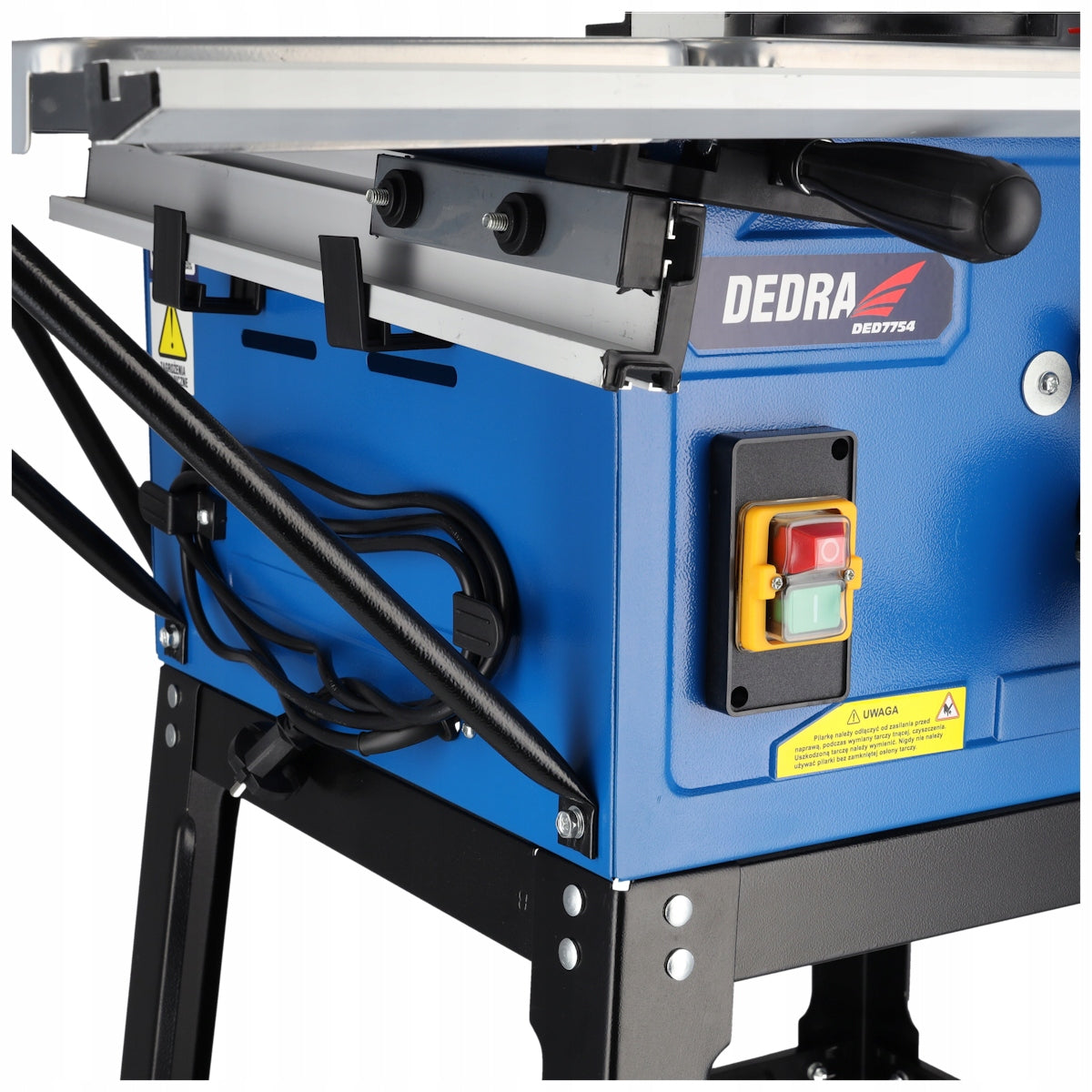

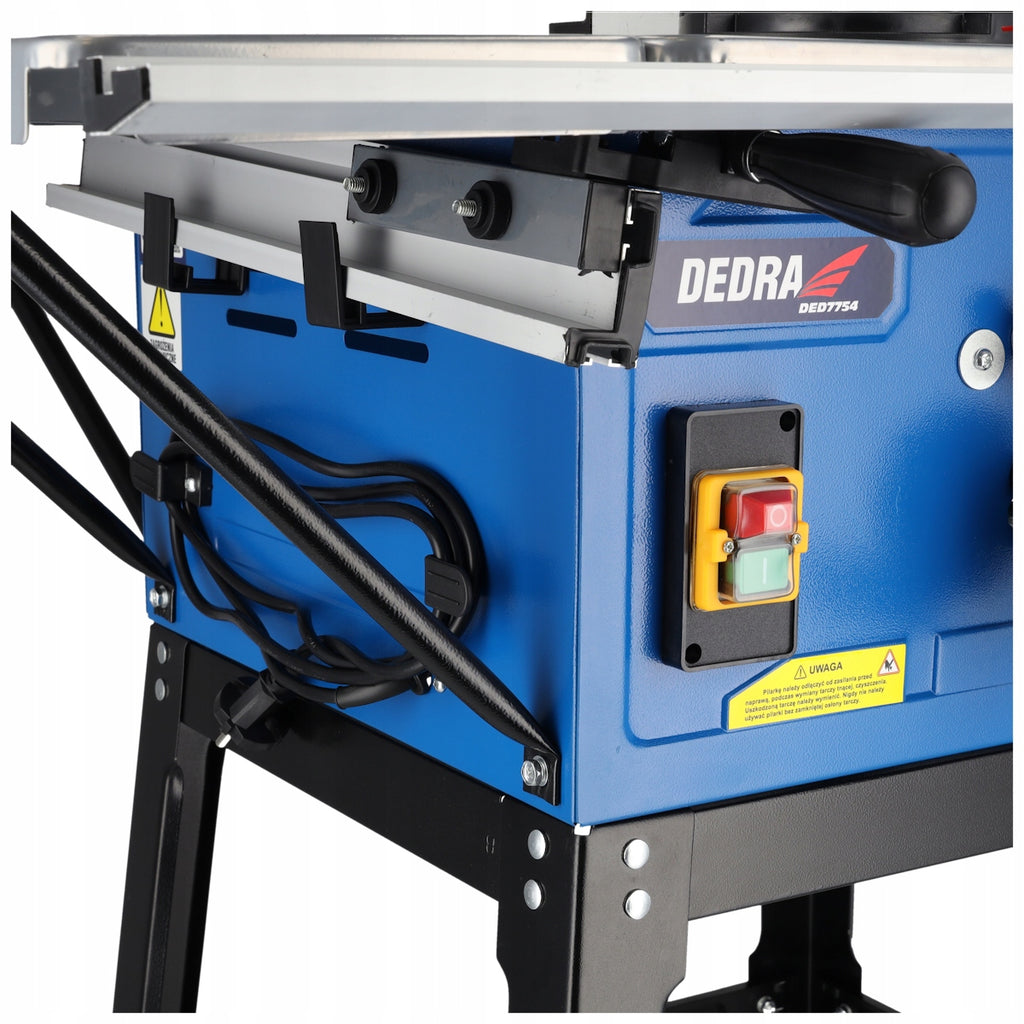

It is equipped with a cutting disc cover and a pusher for small objects, which significantly increases the safety of the operator. The on and off button is placed in an easily accessible location, providing convenience and quick access while working.

🔷 Stable construction

The design of the DEDRA DED7754 saw has a solid base with additional reinforcements. Table extension brackets, side and horizontal leg brackets, stabilizers and rubber leg pads ensure stability and precision of cutting.

⭐ Purchase directly from the manufacturer DEDRA - quality and support guarantee⭐

DEDRA is a Polish company with many years of experience (since 1991), specializing in the production and sale of tools and equipment for professionals and DIYers. The brand is known for its high-quality, reliable products available in Poland and many European countries.
