Stabilizatorius FPV CADDXFPV GM1 (1 ašies)

Trumpai apie prekę

Prekė: Stabilizatorius FPV CADDXFPV GM1 (1 ašies). Kategorija: Dronai ir multikopteriai.

• Gamintojas: CADDXFPV
• Modelis: C0CA-GM100

⬇ See more ⬇

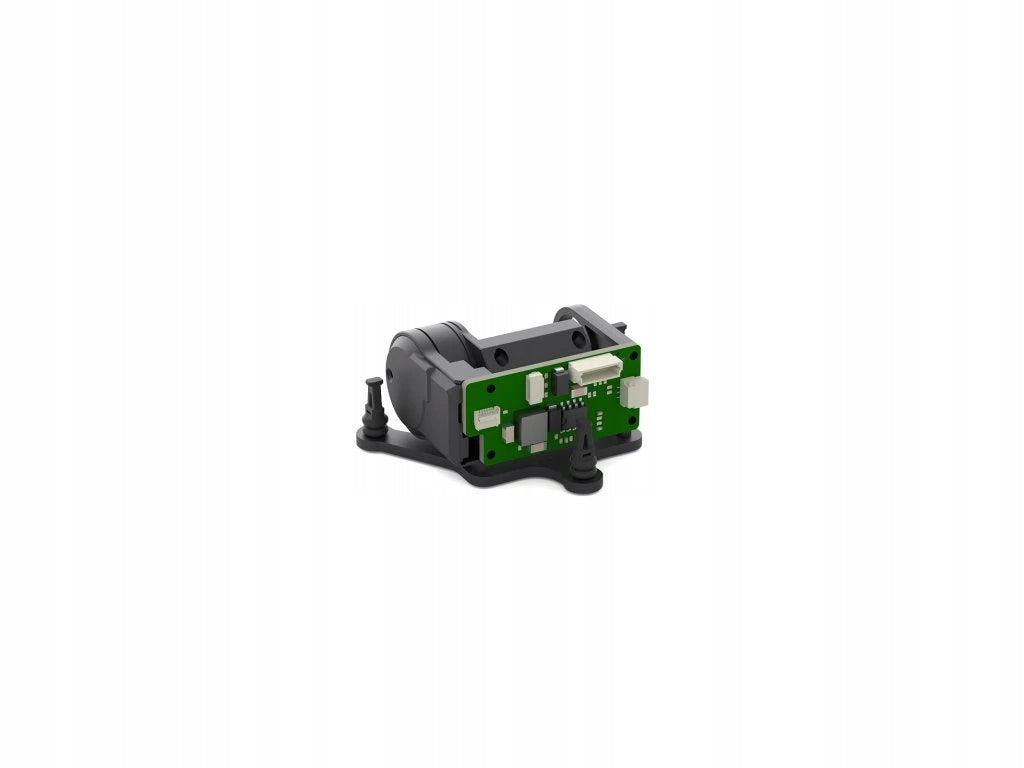

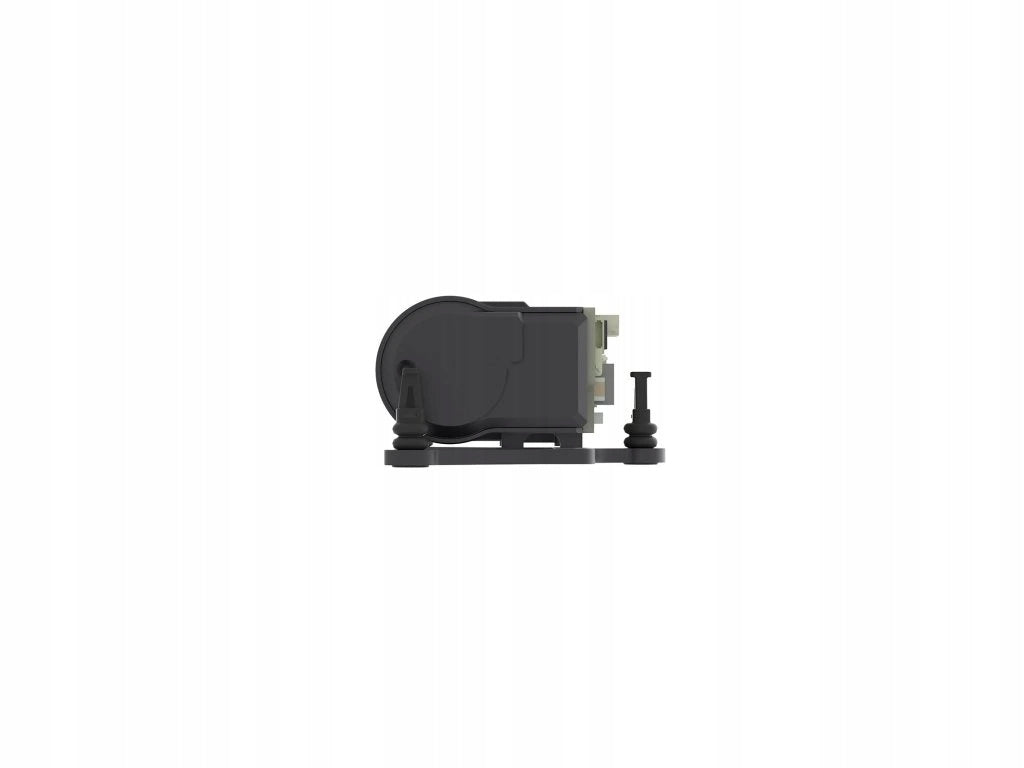

Gimbal FPV CaddxFPV GM1 (1-axis)

The CaddxFPV GM1 is an ultra-light, 1-axis stabilizing gimbal designed specifically for FPV enthusiasts. The device allows you to mount standard FPV cameras with a width of 19 mm (Micro size). Thanks to the automatic vertical axis tilt compensation (Pitch), the gimbal drastically improves the quality of the preview in the goggles, eliminating bothersome vibrations and rapid changes in perspective when accelerating or braking the drone. It is a perfect tool for smooth aerial filming and increasing the realism of flight.

The most important advantages

• Head Tracking Support: Gimbal can work with head motion sensors built into FPV goggles. This makes the camera rotate exactly where the remote is looking, which guarantees incredible, full immersion (sitting sensation in the cockpit of the machine).
• Surgical precision and speed: The advanced control algorithm ensures stabilization accuracy of ±0.005° and a gigantic response speed of up to ±1500°/s. This means no delays even with extremely dynamic stunts.
• Wide range of motion (Pitch): The up/down rotation axis operates in the range of up to ±120°, which allows the pilot to freely look straight down (during landing or hovering) or high into the sky.
• Feather weight (16 g): The compact design has been slimmed down to a minimum, so that the gimbal does not adversely affect the balance of the drone, flight time or its overall dynamics.
• Flexible communication: The device supports two popular control standards: traditional PWM signals (directly from the receiver) and digital UART protocol (via flight controller and Betaflight/INAV software).

Application

The GM1 gimbal is ideal for long-range drones (Long Range), recreational models and FPV aircraft and wings (especially in combination with Walksnail Avatar, DJI or analogue digital systems). The wide operating voltage range (7 to 26 V) allows for safe power supply directly from 2S to 6S LiPo packages.

Technical specification

• Manufacturer: CaddxFPV
• Model: GM1
• Type: 1-axis gimbal ( Pitch axis)
• Camera Compatibility: 19mm wide FPV cameras (Micro size)
• Stability accuracy: ±0.005°
• Maximum angular speed: ±1500°/s
• Pitch axis rotation range: ±120°
• Control Modes: UART/PWM
• Head Tracking Support: Yes
• Supply Voltage: 7 – 26 V (support 2S - 6S packets)
• Power consumption at rest: 1.0 W
• Dimensions: 32.2 × 38.1 × 20.5 mm
• Weight: 16 g

Composition of the set

• Gimbal FPV CaddxFPV GM1 × 1 pc.
• Power and signal cable × 1 pc.
