Trumpai apie prekę

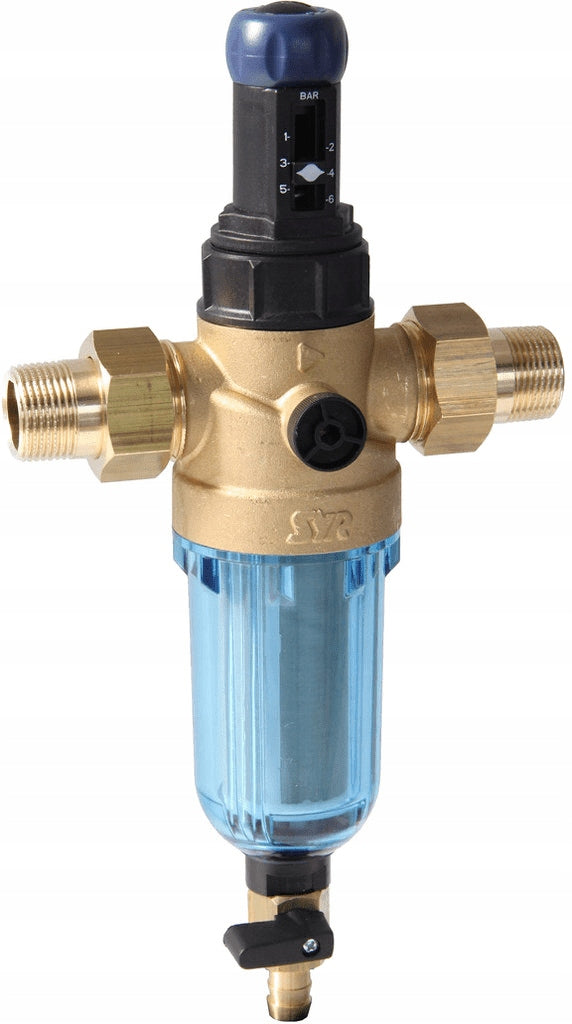

Prekė: Slėgio reduktorius su filtru SYR RATIO Start DFR DN25 1. Kategorija: Vandens filtrai ir minkštikliai.
- Gamintojas: SYR
- Modelis: RATIO Start DFR DN25
- Talpa: 0 l
Filter with water reducer RATIO Start DFR DN25,
5315.25.100
FRATIO Start DFR DN25, filters are used as fittings in drinking water installations. This is a special combination of fittings that together form a complete water connection to the house. RATIO Start DFR is a filter with manual backwash and pressure reducer.
Installation in the installation with 3/4" or 1" screws, which are equipped with the device.
Due to the compact design and small dimensions, RATIO Start filters are used especially in installations with a small amount of space for mounting the device, e.g. in a water meter cabinet. Installation for installation is carried out by means of screws that are equipped with the device.
The pressure reducer is equipped with a pressure setting indicator.
Application:The Ratio Start DFR filter in accordance with PN EN 13443, with a built-in pressure reducer in accordance with PN EN 1567, is used as fittings in drinking water installations. This is a special combination of fittings that together form a complete water connection to the house. Due to the compact design and small dimensions, Ratio filters are used especially in installations with a small amount of space for mounting the device, e.g. in water supply cabinets. Ratio filters are equipped with nozzles for mounting the pressure gauge.
Execution:Ratio DFR - filter with manual backwash, with pressure reducer - setting range from 1,5 to 6 bar (factory setting 4 bar), pressure gauge connection (indicated when changing the factory setting). Stainless mesh filter cartridge with a capacity of 90 μm / 125 μm. The filter housing is made of glass fiber reinforced plastic, filter shade made of high quality transparent plastic. Internal parts made of mechanically resistant thermoplastic. Seals made of age-resistant elastomer. Other parts of CuZn39Pb3/CW614N or stainless steel 1.4305. Screw seals are asbestos-free. All materials used are approved for contact with drinking water.
Connection size: DN25
Operating pressure: min. 2 bar, max. 16 bar
Operating temperature: max. 30°C
Working position: main filter axis vertically
Medium: Drinking water
PZH Certificate: yes
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | SYR |
| Parametry | Kind | filter |
| Parametry | Capacity | 0 l |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Manufacturer code | 5315.25.100 |
| Parametry | EAN (GTIN) | 4017905212281 |
| Parametry | Model | RATIO Start DFR DN25 |
