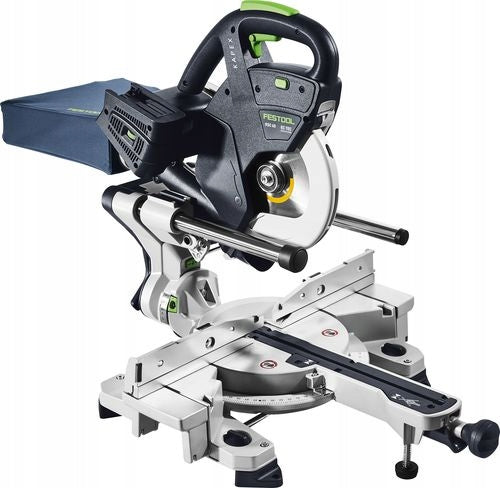

Slankioji pjovimo staklės FESTOOL KAPEX KSC 60 EB-Basic 577775

Trumpai apie prekę

Prekė: Slankioji pjovimo staklės FESTOOL KAPEX KSC 60 EB-Basic 577775. Kategorija: Kampiniai pjūklai.

• Gamintojas: Festool
• Modelis: 577775

Scope of delivery:

✅ Cordless sliding slash KSC 60 EB-Basic KAPEX

✅ Sawing disc HW 216x2,3x30 W36

✅ carpentry compression FSZ 120

✅ LED light

✅ Adjustable angle SM-KS

✅ Elevating feet A-SYS-KS 60

✅ Dust container SB-KSC

✅ Allen key SW 6

Technical data:

• Battery voltage: 18/36 V
• Idle speed: 1300 - 1800/3500 min⁻¹
• Diameter of saw blade: 216,00 mm
• Cutting depth 90°/90°: 305 x 60 mm
• Depth of cut at 45°/90°: 215 x 60 mm
• Depth. cut 45°/45° (left): 215 x 40 mm
• Depth. cut 45°/45° (right): 215 x 20 mm
• Angle of inclination: 47/46 °
• Bevel angle: 60/60 °
• Depth. cut 60°/90°: 150 x 60 mm
• Dimensions (Width x D. x H ): 639 x 459 x 442 mm
• Dust extraction connection Ø: 27/36 mm
• Type of drive: Battery
• Product weight: 18,00 kg

The KAPEX KSC 60 is a sliding slash that combines mobility with maximum cutting precision. Thanks to the double positioning and brushless EC-TEC motor, each cut is perfectly smooth and stable – even with long work.

Key features:

✅ Unlimited freedom – cable-free operation, full mobility thanks to battery power supply.

✅ Maximum precision – smooth and stable handling of the saw blade without vibrations.

✅ Excellent performance – dual batteries provide all-day power.

Mobility without borders

✅ With ergonomically placed handles and practical transport protection. In addition, extremely compact design, evenly finished guides and light weight.

Highest precision

✅ Thanks to the double positioning, the two-column guide ensures safe and smooth handling of the saw blade and maximum precision – without wobbling or tugging.

Maximum power, almost infinite endurance

✅ No noticeable difference – the combination of a brushless EC-TEC motor and a dual battery (2 x 18 V) makes the new KSC 60 impress with the power of a mains-powered machine, while offering full mobility.

Maximum scope of work

✅ Double-sided bevel angle up to 60 degrees. The angle is set with a lever on the table. Quick selection allows the most popular angles selected by default. All other angles can be freely selected and set.

Also for machining long components

✅ Freely extendable table expansion element enables safe and precise placement and processing of long elements.

Extremely versatile

✅ Double-sided angle of inclination 47 or 46 degrees. The angle of inclination is set with an easily accessible and easy-to-use clamp and a high-precision angle scale.

Optimal view of scratches

✅ The LED casts the shadow of the saw blade on the material, precisely indicating the cutting line.

Even more versatile, thanks to the slot cutting function

✅ Thanks to the depth limiter, it is also possible to quickly and precisely cut the outlets.

.

Saves time. Reduces errors

✅ Thanks to the SM-KS adjustable angle, the measurement and transfer of internal and external angles are simple, fast and error-free.

Healthier working environment

✅ In order to ensure operation in conditions of less dust, also without a mobile vacuum cleaner, dust is collected into the container directly from the place where it is formed.

Key applications of the KSC 60:

✅ Ideal for assembly work in various locations

✅ Cutting boards and panels up to 305 x 60 mm in length

✅ Trimming of slats, profiles and wooden edges up to 60 mm thick

✅ Accurate fitting of plinth and ceiling slats without calculations - in combination with an adjustable angle
