Skrydžio valdiklis F405 V3 ICM42688 su ESC 60A BLS, Pilotix

Trumpai apie prekę

Prekė: Skrydžio valdiklis F405 V3 ICM42688 su ESC 60A BLS, Pilotix. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: F405 V3 ICM42688 BLS 60A

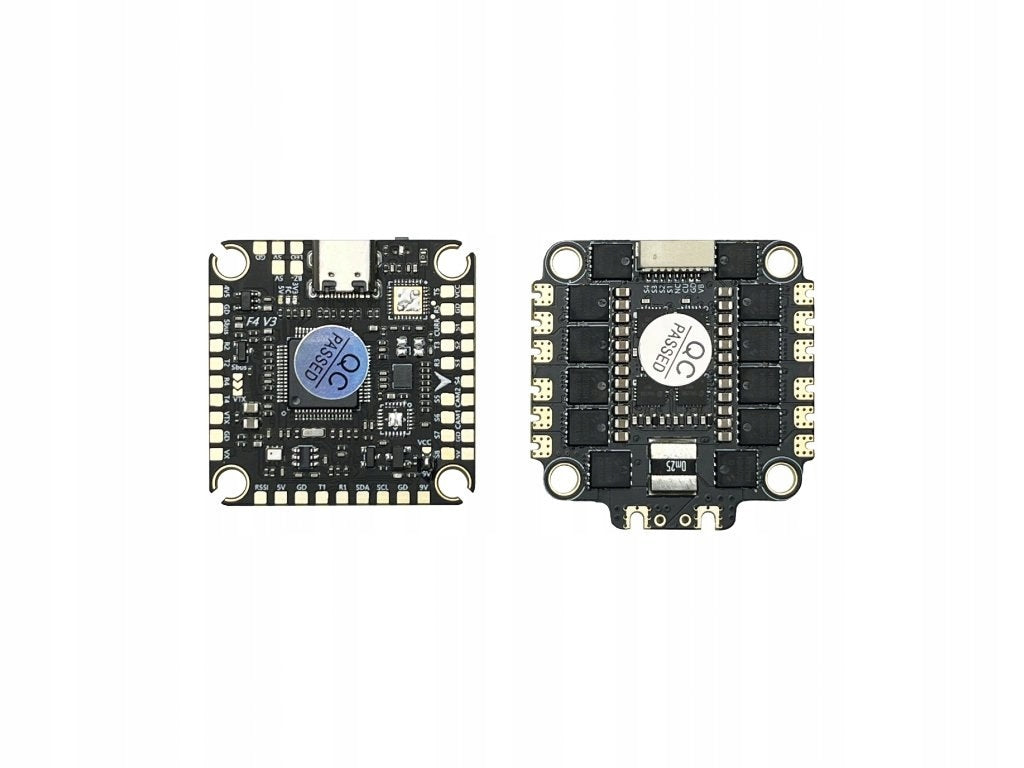

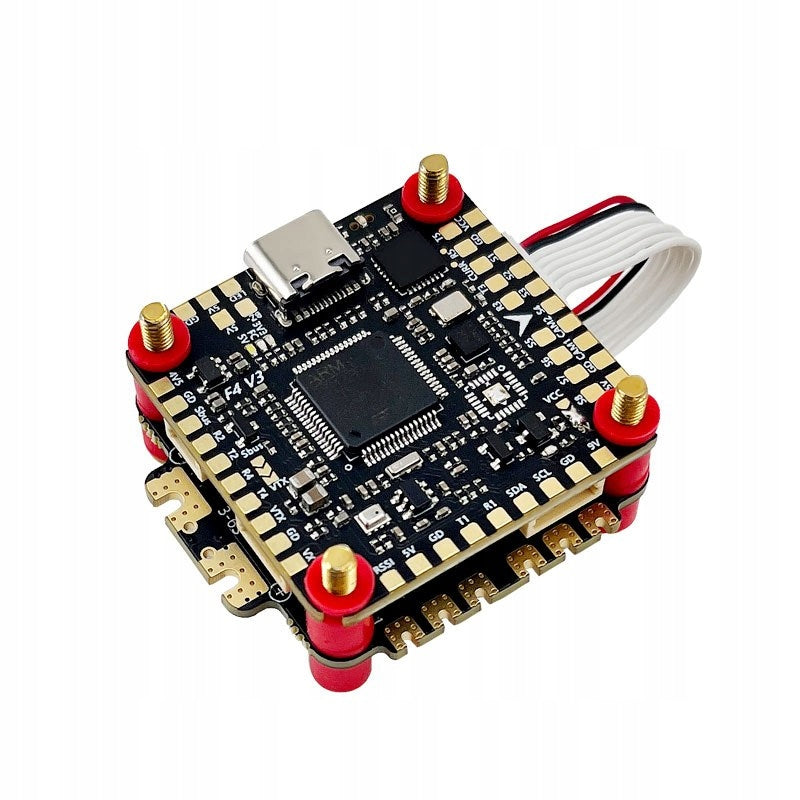

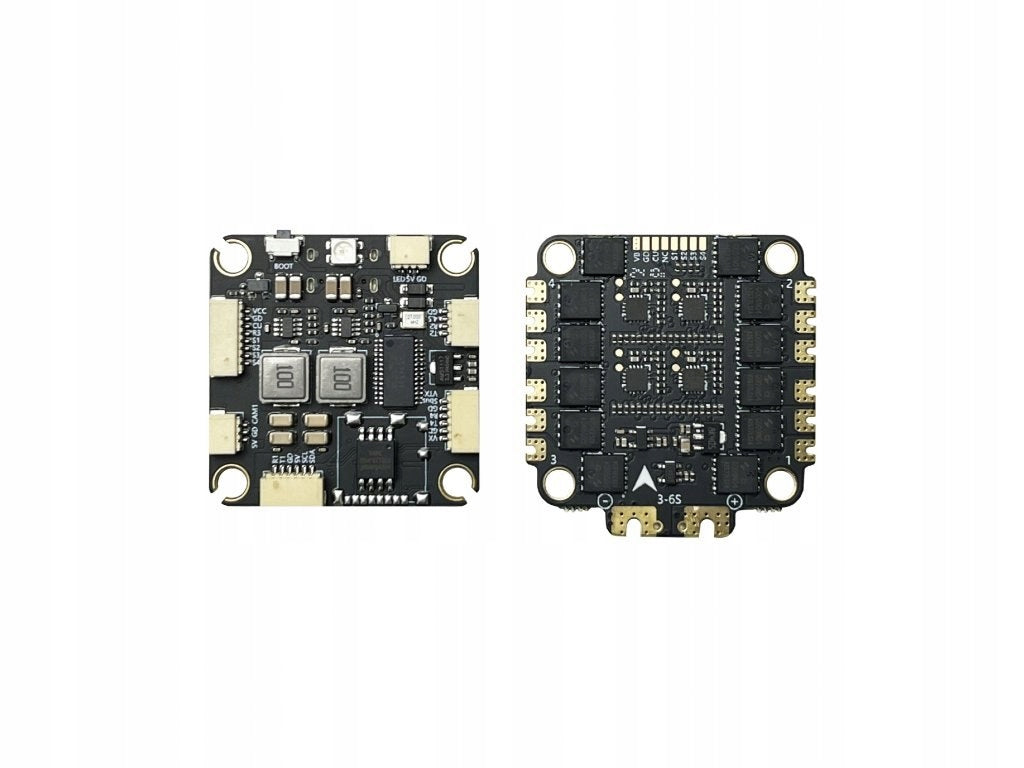

Pilotix F405 V3 ICM42688 BLS 60A Stack - Advanced Flight Controller and ESC for FPV Drones

4300

Introduction

The Pilotix F405 V3 ICM42688 BLS 60A Stack is a highly integrated module that combines an advanced flight controller (FC) with a powerful electronic speed controller (ESC). Designed for demanding FPV and UAV drone applications, it offers unparalleled performance, stability and responsiveness. This stack is the heart of any professional or amateur racing or freestyle drone, providing smooth and precise control in all conditions.

Key advantages

• Powerful STM32F405RGT6 processor for lightning-fast flight data processing.
• Precise gyroscope ICM42688 for flight stability and precise maneuvers.
• Integrated ESC 60A BLS (Continuous) with the ability to operate in burst mode up to 70A, supporting 3-6S Lipo power supply.
• Extensive support for receiver protocols including ELRS, CRSF, SBUS, DSMX and TBS Crossfire.
• Built-in OSD, BlackBox (16MB) and support for LED and buzzer for full functionality.
• Possibility to connect DJI/Vista digital FPV systems and switch jumpers for VTX and camera.
• Compact dimensions (36x36 mm) and lightweight design (9.6g FC, 10.4g ESC) ideal for building light and agile drones.
• Bluetooth support for easy setup and remote control.

Technical specifications

• FC - Flight Controller
• Processor: STM32F405RGT6
• Gyroscope: ICM42688
• Barometer: BMP280
• OSD: Support
• BlackBox: 16MB
• Engine output: 8-way optional
• LED light bar: Support
• Buzzer: Support
• Receiver protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
• Universal serial port: 5-way optional
• Output power supply: 5V/2.5A, 9V/2A
• USB connector: Type-C
• DJI/Vista Digital Sky End: Support
• Camera switching: Support
• Switching Sbus and VTX jumpers: Support
• Switching 9V and VCC jumpers: Support
• Bluetooth: Support
• Weight: 9.6g
• Mounting hole: 30.5x30.5 mm, M3
• Size: 36x36 mm
• FC firmware: Pilotix
• ESC - Electronic Speed Controller
• Continuous current: 60A x4
• Breakthrough current: 70A x4
• Power Supply: 3-6S Lipo
• Default protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry: Brak output
• Power sensor: Support
• ESC firmware: Bluejay H-H50
• Weight: 10.4g
• Size: 40x40.7mm
• Mounting hole: M3 30.5x30.5mm

Applications

The Pilotix F405 V3 ICM42688 BLS 60A Stack is the ideal choice for building high-performance FPV drones. It is perfect for racing drones, freestyle drones, as well as professional filming and inspection machines, where precision control, power and reliability count. Support for digital FPV systems makes it a versatile solution.

Compatibility

Stack is compatible with a wide range of receiver protocols including ELRS, CRSF, SBUS, DSMX and TBS Crossfire. It also supports DJI/Vista digital FPV systems. It is powered by 3-6S LiPo batteries. The standard mounting hole spacing of 30.5x30.5 mm M3 ensures easy integration into most drone frames.

FAQ

What is the best flight controller with ESC for building a FPV drone?

The Pilotix F405 V3 ICM42688 BLS 60A Stack is an excellent choice for advanced FPV drone builders. It features a powerful processor, a precise gyroscope, and a powerful ESC 60A for unparalleled flight control and stability.

What receiver protocols does Pilotix F405 V3 stack support?

This advanced FPV stack supports a wide range of protocols including ELRS, CRSF, S.BUS, Frsky, Futaba, flysky, TBS Crossfire and DSMX. Thanks to this, you have a lot of flexibility in choosing the control equipment.

Is the Pilotix F405 V3 ICM42688 BLS 60A Stack compatible with DJI FPV systems?

Yes, the Pilotix F405 V3 stack has support for DJI/Vista digital FPV systems, making it an ideal solution for drone builders with this popular vision system.

What is the purpose of the Pilotix F405 V3 ICM42688 BLS 60A Stack flight controller?

This stack is mainly designed for the construction of high-performance FPV drones, such as racing drones, freestyle drones, as well as for professional applications requiring precision and power. Its versatility allows it to be tailored to suit different needs.

Where to buy Pilotix F405 V3 ICM42688 BLS 60A Stack with fast delivery?

The best price and fast delivery for Pilotix F405 V3 ICM42688 BLS 60A Stack can be found in the HTDRONE in Poland. We offer efficient shipping throughout the country and to other countries in Europe and the world.

• Power supply voltage: 3-6S
• Application: FPV
• Compatibility: TBS Crossfire
