Skaitmeninis rotacinis lazeris NIVEL SYSTEM NL300R su RD300R imtuvu

Trumpai apie prekę

Prekė: Skaitmeninis rotacinis lazeris NIVEL SYSTEM NL300R su RD300R imtuvu. Kategorija: Optiniai nivelyrai.

• Gamintojas: Nivel System
• Modelis: NL300R

NL300R DIGITAL fast and easy to use, turn on and work

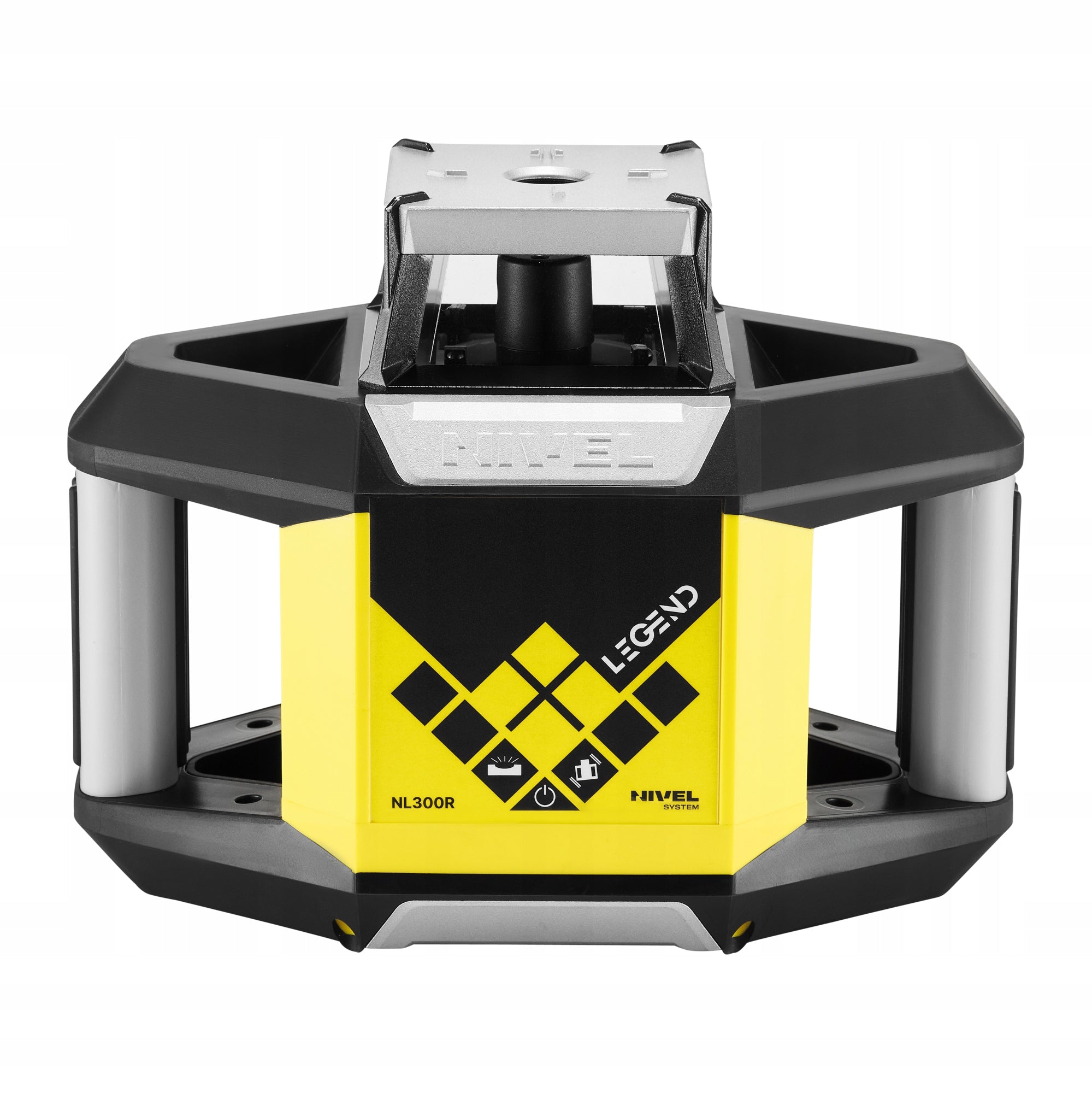

The Nivel System NL300R rotary laser leveler (with red beam) is a quick and easy to use measuring tool for horizontal work – indoors (with visible laser beam) as well as in open spaces (using a sensor). It has an intuitive user panel – “turn on and work! “Elimination has never been so easy. With the NL300R, anyone can take accurate measurements. The horizontal laser plane generated by the leveler is a reference for leveling. The equipment perfectly replaces the optical leveler, the measurement is single-person, and the elevation reading on the patch is made with the highest millimeter accuracy. Its strength is durability and resistance to weather conditions and efficient lithium-ion batteries, providing several dozen hours of continuous operation in the field.

• everything can be seen with the naked eye – the red color of the laser is so intense that inside the building the beam dropped on the object is clearly visible even at a distance of several dozen meters from the station
• even greater operating range – working in the open space at a distance of 500 m (diameter) enables a laser sensor that improves leveling and increases its accuracy
• efficient leveling – digital laser sensor with numerical determination of the height difference (laser sensor, digital) significantly improves leveling and increases its accuracy (no need to read the value from the patch, this value is presented on the sensor display)
• fast self-leveling – the compensator quickly and accurately levels the instrument, and the leveler “movement” alarm eliminates making incorrect measurements when the instrument has been inadvertently hit and leveled
• one-person operation – only one person is needed to operate the leveler and determine the height difference
• everything in the package – the leveler is supplied as standard with a group of practical accessories supporting the work (laser sensor, laser patch holder, batteries, charger, transport trunk)
• work in all conditions – solid protection of the rotary head protects this most important element of the leveler from mechanical damage, and the sealed housing meets the IP54 standard, allowing you to work in rain and dust

EASY AND QUICK MEASUREMENTS

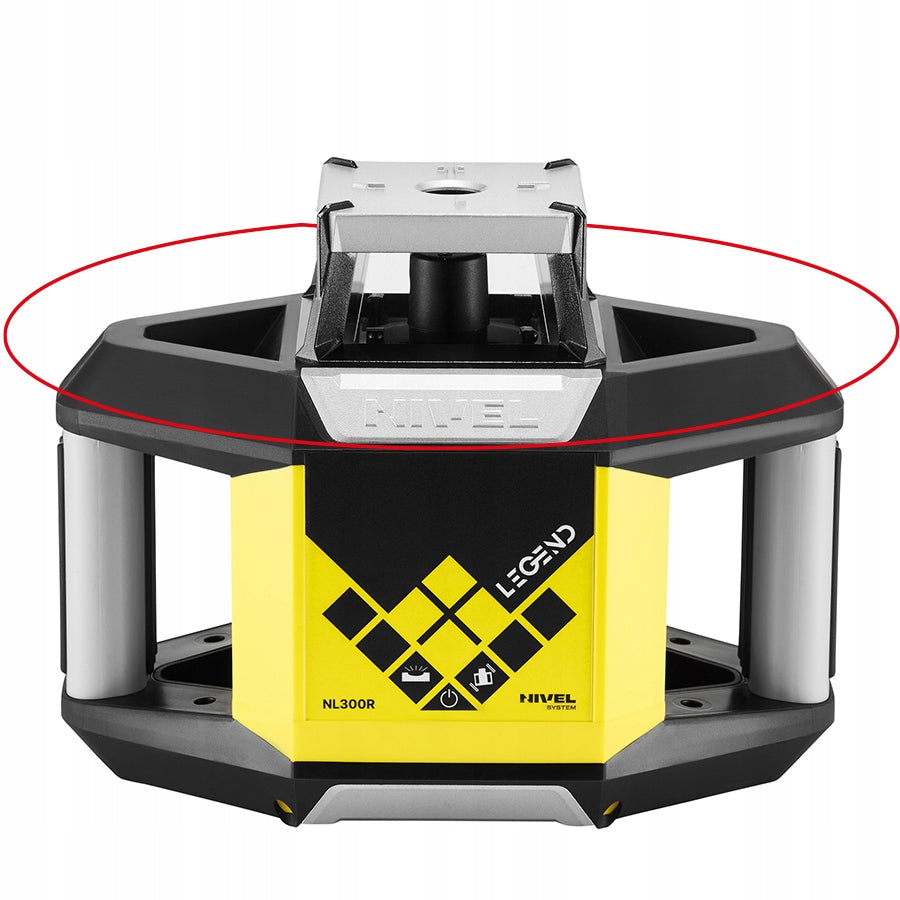

The NL300R leveler has an auto-leveling function, when turned on, the equipment will level itself and is immediately ready for operation. The generated red laser beam is very clearly visible, displayed on the wall creates a reference line for horizontal work. When working with the sensor and laser patch, we obtain an accurate leveling set, measurements are made one-person.

UNIVERSAL APPLICATION

The equipment allows you to work both indoors and outdoors. The equipment can be used for such works as pouring floors, leveling and preparing the surface for paving stones, pitch or road, as well as for any finishing works (suspended ceilings, buildings, walls). In the case of outdoor work and at longer ranges, a laser sensor is used to ensure the possibility of receiving the signal in the range of 500 m (working diameter).

ACCURATE AND RELIABLE EQUIPMENT

The leveler is built on the basis of an electronic compensator, eliminating vibrations and ensuring precise leveling of the laser plane. The electronic compensator, compared to the magnetic one, is much more accurate especially in the case of construction measurements, where the terrain can vibrate due to the work of heavy equipment. Therefore, NL300R provides reliable and accurate measurements. The equipment is resistant to dust and water, confirmed by IP54 class. In addition, the rotary head is covered with a glass body, and the laser housing has rubber covers to protect against damage from impact.

EASY, CONVENIENT OPERATION

The NL300R has an intuitive control panel. The whole operation is limited to two functions: turn on and work – turn off (finished work). The laser is powered by high-performance lithium-ion batteries with a capacity of 8000 mAh, which allow for approx. 50 hours of operation and are devoid of memory effect (they do not damage themselves as a result of excessive reloading). The equipment can also be powered directly from the grid. The whole is complemented by a compact housing, thanks to which the laser is handy, easy to install on the construction site and during transport.

Applications:

• terrain equation – leveling
• masonry works – internal and external (foundations, walls, stairs, screeds, formwork)
• paver works – making parking lots, driveways, terraces
• assembly and finishing works – installation of wooden and aluminum structures, suspended ceilings, glazing
• installation works – determination of wire lines, transfer of points
• carpentry works – furniture, buildings
• horticulture and agriculture

Technical data:

• Light source: red laser (635 nm), class 2
• Accuracy: ± 1,0 mm/10 m
• Working range: 500 m (with laser sensor)
• Self-leveling range: ± 5°
• Head spin speed: 600 rpm. /min
• Generated planes: 1 x horizontally (360°)
• Power Supply: 3,7V (Li-ion, 8000 mAh)
• Resistance class: IP54
• Working temperature range: -20°C to +50°C
• Dimensions: 206 x 206 x 211 mm
• Weight: 3,0 kg

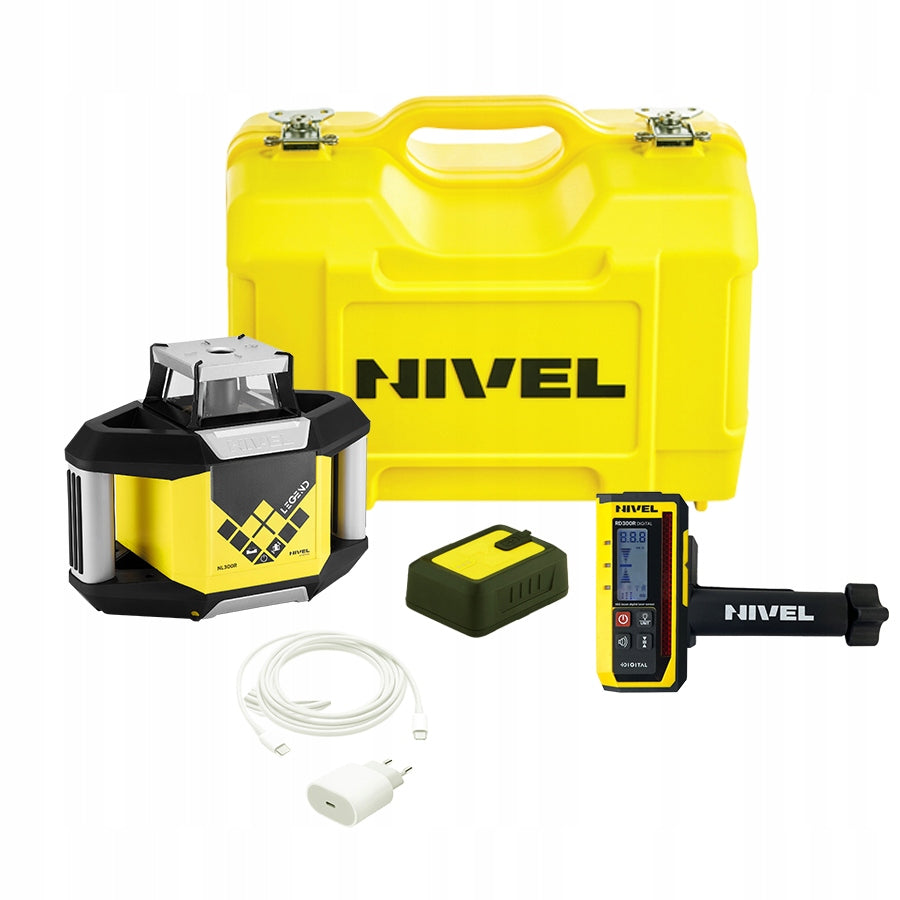

Subject of the auction:

• NL300R – laser leveler – 1 pc.
• RD300R – laser sensor 1 pc.
• NL-BR 300 – sensor holder – 1 pc.
• AKU CL 8000 – battery – 1 unit
• CH-CL USB C – charger with cable – 1 set
• Transport case – 1 pc.
