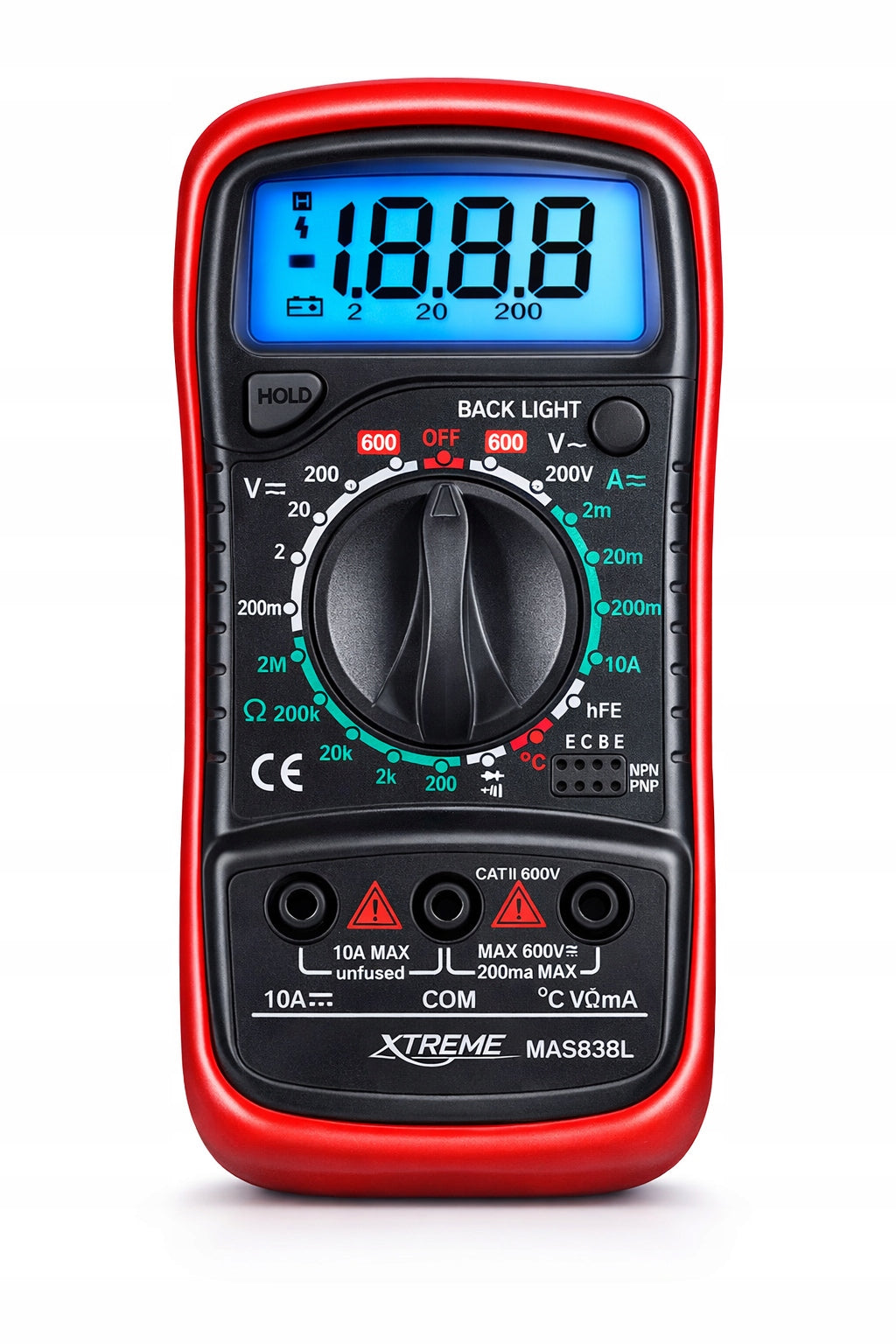

Skaitmeninis rankinis multimetras su LCD, įtampos ir srovės matuoklis

Trumpai apie prekę

Prekė: Skaitmeninis rankinis multimetras su LCD, įtampos ir srovės matuoklis. Kategorija: Multimetrai.

• Gamintojas: Xtreme
• Modelis: 50-006#

Multifunctional meter XTREME designed not only for professionals, but thanks to its simple operation also novice DIYers. Small dimensions will allow you to have the product almost always with you, which will allow you to check the parameters in various situations.

⚡BASIC FEATURES OF THE DEVICE⚡

• LCD display 3 ½ digits
• Rotary switch for selecting a specific function of the device, desired measuring ranges and switching on and off the meter
• Powered by 9V DC battery
• Battery discharge signal
• Universal tool for workshops, schools as well as home and hobby applications

⚡What measurements can you make with a meter? ⚡

• DC voltage measurement
• Measurement of alternating voltage
• Measurement of DC current
• Resistance measurement
• Circuit continuity test
• Diode test
• Temperature measurement
• Transistor test

⚡Additional Features:⚡

• HOLD – stop the result on the screen
• BACK LIGHT – display backlight
• Battery indicator on the screen

⚡Convenient use⚡

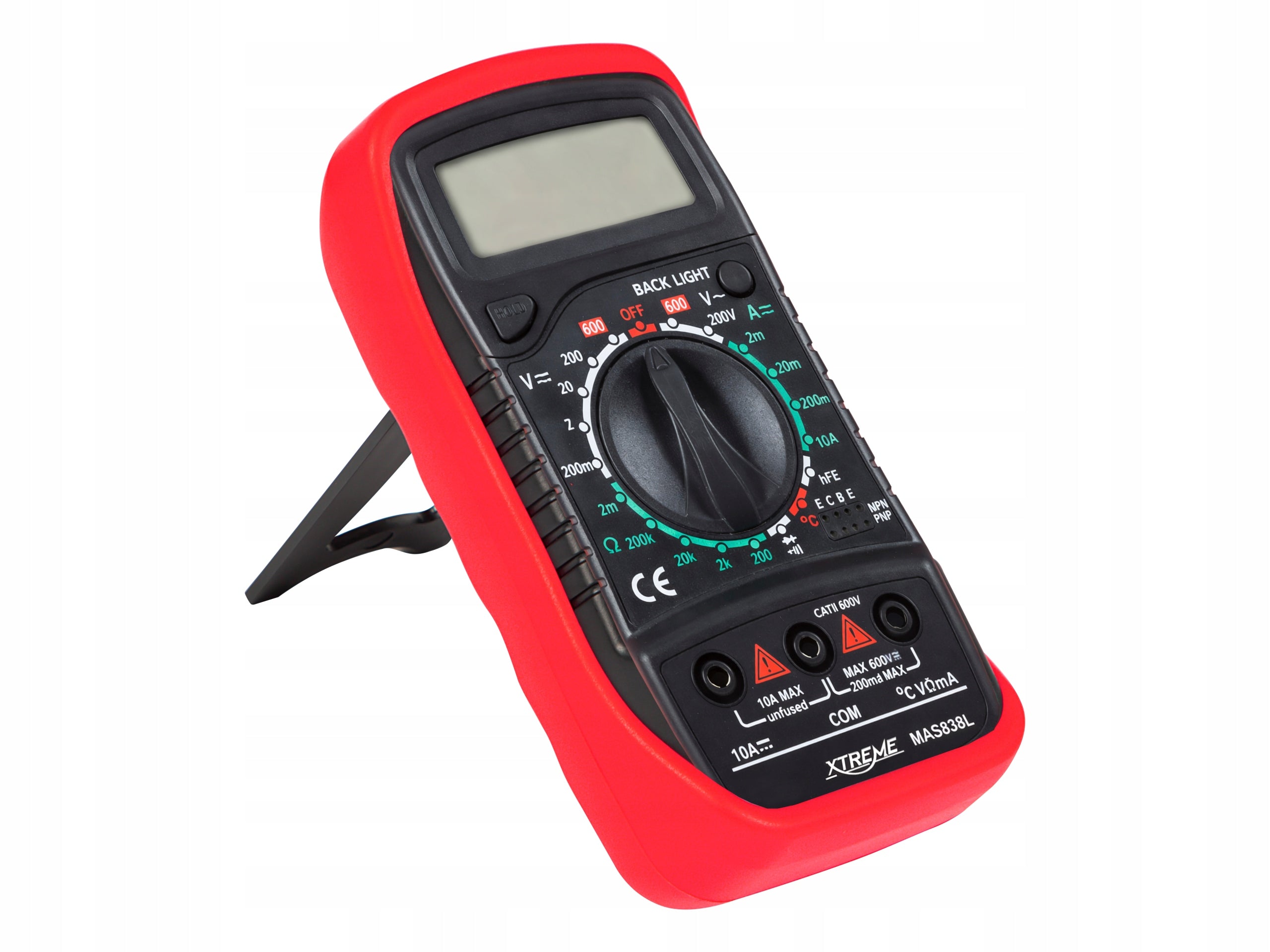

The plastic kickstand built into the case allows you to position the device in a convenient way for the user, without having to constantly hold the meter in your hand - this will definitely facilitate various types of manual work, and reading the measurement results will provide an extremely clear and expressive LCD screen that sits on the BACK LIGHT backlight. In addition, the set includes a rubber case that protects the device from mechanical damage and improves grip.

⚡DIRECT CURRENT VOLTAGE (DC)⚡

RANGE | RESOLUTION | ACCURACY

• 200mV | 100uV | +/- (0,5%+3D)
• 2000mV | 1mV | +/- (0,8%+5D)
• 20V | 10mV | +/- (0,8%+5D)
• 200V | 100mV | +/- (0,8%+5D)
• 600V | 1V | +/- (1,0%+5D)

OVERLOAD PROTECTION: 200V rms AC for 200mV and 600V DC range or 600V rms for all ranges.

⚡DIRECT CURRENT (DC)⚡

RANGE | RESOLUTION | ACCURACY

• 200uA | 100nA | +/- (1,8%+2D)
• 2mA | 1uA | +/- (1,8%+2D)
• 20mA | 10uA | +/- (1,8%+2D)
• 200mA | 100uA | +/- (2,0%+2D)
• 10A | 10mA | +/- (2,0%+10D)

OVERLOAD PROTECTION: Fuse 200mA/250V (range 10A without protection).

VOLTAGE DROP MEASUREMENT: 200mV

⚡ALTERNATING CURRENT (AC)⚡

RANGE | RESOLUTION | ACCURACY

• 200V | 100mV | +/- (2,0%+10D)
• 600V | 1V | +/- (2,0%+10D)

FREQUENCY RANGE: 45Hz ~ 450Hz

OVERLOAD PROTECTION: 600V DC or 600V rms for all ranges.

⚡RESISTANCE⚡

RANGE | RESOLUTION | ACCURACY

• 200Ω | 0,1Ω | +/- (1,0%+10D)
• 2000Ω | 1Ω | +/- (1,0%+4D)
• 20KΩ | 10Ω | +/- (1,0%+4D)
• 200KΩ | 100Ω | +/- (1,0%+4D)
• 2000KΩ | 1KΩ | +/- (1,0%+4D)

⚡TEMPERATURE⚡

RANGE | RESOLUTION | ACCURACY

-40°C ~ 1000°C | 1°C | +/- (1,0%+4)

150°C ~ 1370°C | 1°C | +/- (1,5%+15)

⚡LED AND BUZZER⚡ TEST

When testing the diode, the meter shows an approximate drop in diode conduction voltage.

The buzzer makes a sound if the resistance is less than 30 Ω (+/- 20 Ω).

⚡ACOUSTIC CONTINUITY TESTER⚡

⚡SPECIFICATION⚡

• Power Supply: 9V battery
• Screen: LCD, range up to 1999
• Sampling rate: 2 times per second
• Measurement method: double integral A/D converter
• Indication of exceeding the range: on the screen only the number "1"
• Polarity signaling: for negative displayed "-"
• Operating temperature: 0°C ~ 40°C
• Storage temperature: -10°C ~ 50°C
• Indication of a discharged battery: on the screen battery icon
• Dimensions: 135x67x33 mm
• Weight with battery: 145g
• Dedicated connections: CAT II 600 V
• DC voltage measurement: 200mV-600V
• AC voltage measurement: 200-600V
• DC measurement: 2mA-10A
• Resistance Measurement: 200-2M Ohm
• Measurement of hFE transit: diode testing: YES
• Temperature measurement: YES
• Acoustic Continuity Tester: YES

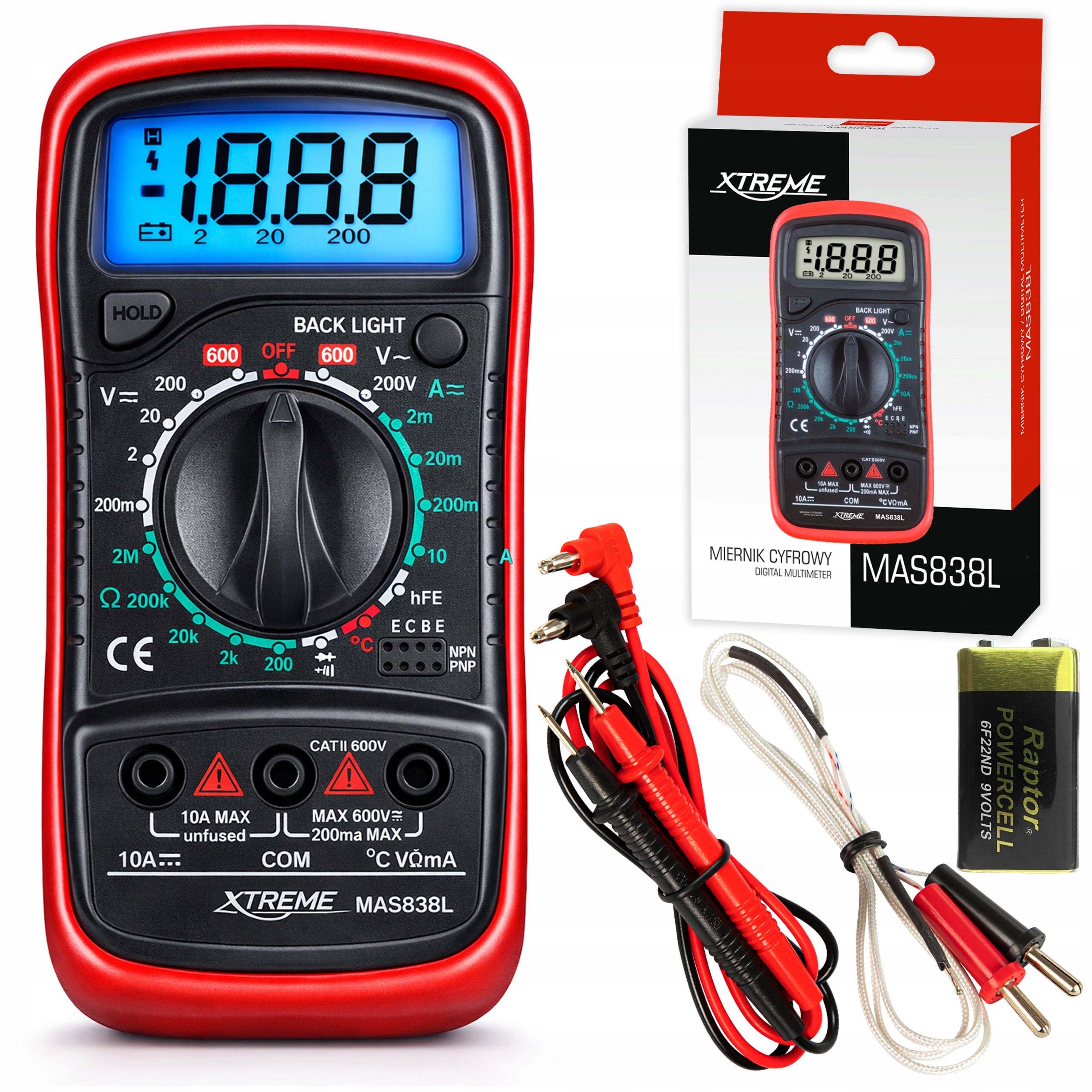

The set includes:

⚡Digital meter XTREME MAS838L + rubber case

⚡ 9V battery

⚡ Measuring cables

⚡ Instruction manual in Polish
