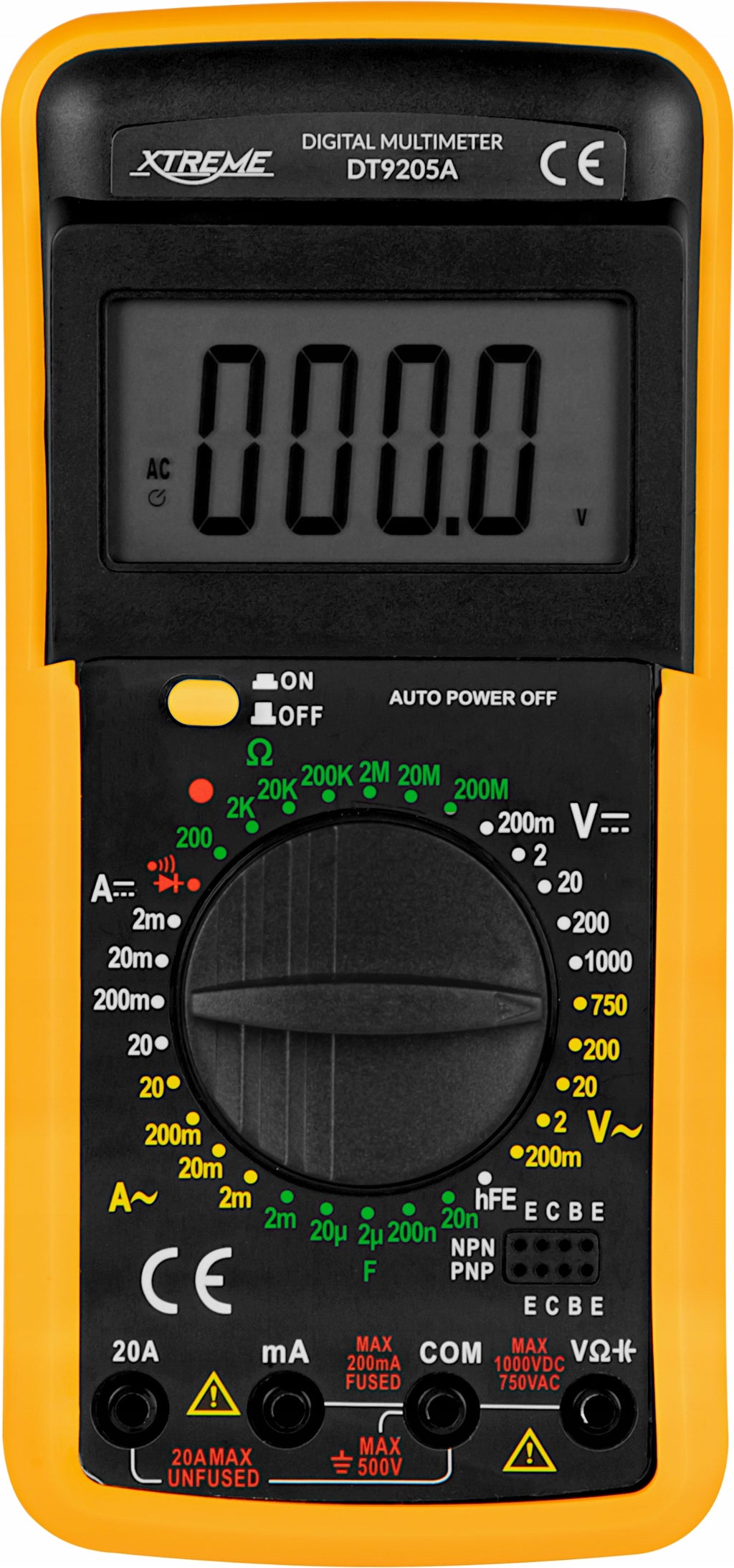

Skaitmeninis multimetras su LCD ekranu, įtampai ir srovei matuoti

Trumpai apie prekę

Prekė: Skaitmeninis multimetras su LCD ekranu, įtampai ir srovei matuoti. Kategorija: Multimetrai.

• Gamintojas: Xtreme
• Modelis: DT9205A

Multifunctional XTREME meter designed not only for professionals, but thanks to its simple operation also novice DIYers. Small dimensions will allow you to have the product almost always with you, which will allow you to check the parameters in various situations.

The XTREME meter is a versatile tool designed for workshops or schools, but it is also perfect for home and professional tasks. It features a highly readable LCD display, and a protective and removable rubber cover, and a kickstand is built into the back to make it easy to read the results during measurements. The necessary wires are also included in the kit.

⚡What Measurements Can You Take with This Multimeter?

• DC Voltage
• AC Voltage
• DC Current
• AC Current
• Resistance
• Capacitance
• Transistor hFe
• Diode Test
• Audible Continuity Tester

⚡Key Features:

• LCD Display
• Rotary switch for selecting functions, ranges, and turning the multimeter on/off
• Test leads included
• Powered by 2x AAA 1.5V batteries
• Low battery indicator
• Overload indicator

The plastic kickstand built into the case allows you to position the device in a convenient way for the user, without having to constantly hold the meter in your hand - this will definitely facilitate various types of manual work, and reading the measurement results will provide an extremely clear and expressive LCD screen.

DC VOLTAGE (DC):

• Scope: 200mV resolution: 0,1mV accuracy: +/-(0,5%+3D)
• Scope: 2V resolution: 1mV accuracy: +/-(0,8%+5D)
• Scope: 20V resolution: 10mV accuracy: +/-(0,8%+5D)
• Scope: 200V resolution: 100mV accuracy: +/-(0,8%+5D)
• Scope: 1000V resolution: 1V accuracy: +/-(1,0%+5D)

DC CURRENT (DC):

• Scope: 20uA resolution: 10nA accuracy: +/-(1,8%+2D)
• Scope: 200uA resolution: 100nA accuracy: +/-(1,8%+2D)
• Scope: 2000uA resolution: 1uA accuracy: +/-(1,8%+2D)
• Scope: 20mA resolution: 10uA accuracy: +/-(1,8%+10D)
• Scope: 200mA resolution: 100uA accuracy: +/-(2,0%+2D)
• Scope: 2A resolution: 1mA accuracy: +/-(2,0%+10D)
• Scope: 20A resolution: 10mA accuracy: +/-(2,0%+10D)

AC VOLTAGE (AC):

• Scope: 200mV resolution: 0,1mV accuracy: +/-(1,2%+5D)
• Scope: 2V resolution: 1mV accuracy: +/-(1,0%+5D)
• Scope: 20V resolution: 10mV accuracy: +/-(1,0%+5D)
• Scope: 200V resolution: 100mV accuracy: +/-(1,0%+5D)
• Scope: 750V resolution: 1V accuracy: +/-(1,2%+5D)

AC CURRENT (AC):

• Scope: 20uA resolution: 10nA accuracy: +/-(2,0%+5D)
• Scope: 200uA resolution: 100A accuracy: +/-(2,0%+3D)
• Scope: 2mA resolution: 1uA accuracy: +/-(2,0%+3D)
• Scope: 20mA resolution: 10uA accuracy: +/-(2,0%+3D)
• Scope: 200mA resolution: 100uA accuracy: +/-(2,0%+5D)
• Scope: 2A resolution: 1mA accuracy: +/-(2,5%+10D)
• Scope: 20A resolution: 10mA accuracy: +/-(2,5%+10D)

IMPEDANCE:

• Scope: 200Ω resolution: 0,1Ω accuracy: +/-(1,0%+10D)
• Scope: 2KΩ resolution: 1Ω accuracy: +/-(1,0%+4D)
• Scope: 20KΩ resolution: 10Ω accuracy: +/-(1,0%+4D)
• Scope: 200KΩ resolution: 100Ω accuracy: +/-(1,0%+4D)
• Scope: 2MΩ resolution: 1KΩ accuracy: +/-(1,0%+4D)
• Scope: 20MΩ resolution: 10KΩ accuracy: +/-(1,0%+10D)
• Scope: 200MΩ resolution: 100KΩ accuracy: +/-(5,0%+10D)

TRANSISTOR hFE Test

• Scope: PNP & NPN hFE: 0~1000 Current test: Ib = 10uA Test V: Vce=2,8V

CAPACITY:

• Scope: 2nF resolution: 1pF accuracy: +/-(4,0%+5D)
• Scope: 20nF resolution: 10pF accuracy: +/-(4,0%+5D)
• Scope: 200nF resolution: 100pF accuracy: +/-(4,0%+5D)
• Scope: 2uF resolution: 1nF accuracy: +/-(4,0%+5D)
• Scope: 20uF resolution: 10nF accuracy: +/-(4,0%+5D)
• Scope: 200uF resolution: 100nF accuracy: +/-(4,0%+5D)

• Power supply: 2xAAA 1,5V batteries
• Screen: LCD, 67x42mm
• Sampling frequency: 2 times per second
• Measurement method: double integral A/D converter
• Indication of exceeding the range: on the screen only the number "1"
• Working temperature: 0 degrees C ~ 40 degrees C
• Storage temperature: -10 degrees C ~ 50 degrees C
• Indication of discharged battery: on the screen battery icon
• Dimensions: 188x86x35mm
• Weight with battery: 150g with battery
• Direct voltage measurement: 0V – 1000V in 5 ranges
• Alternating voltage measurement: 0V – 1000V in 4 ranges
• Direct current measurement: 2mA – 20A in 4 ranges
• Alternating current measurement: 2mA – 20A in 4 ranges
• Resistance measurement: 200Ω – 200MΩ in 7 ranges
• Capacity measurement: YES
• Frequency measurement: NO
• Temperature measurement: NO
• Measurement of hFE transit. +LED testing: YES
• Acoustic continuity tester: YES

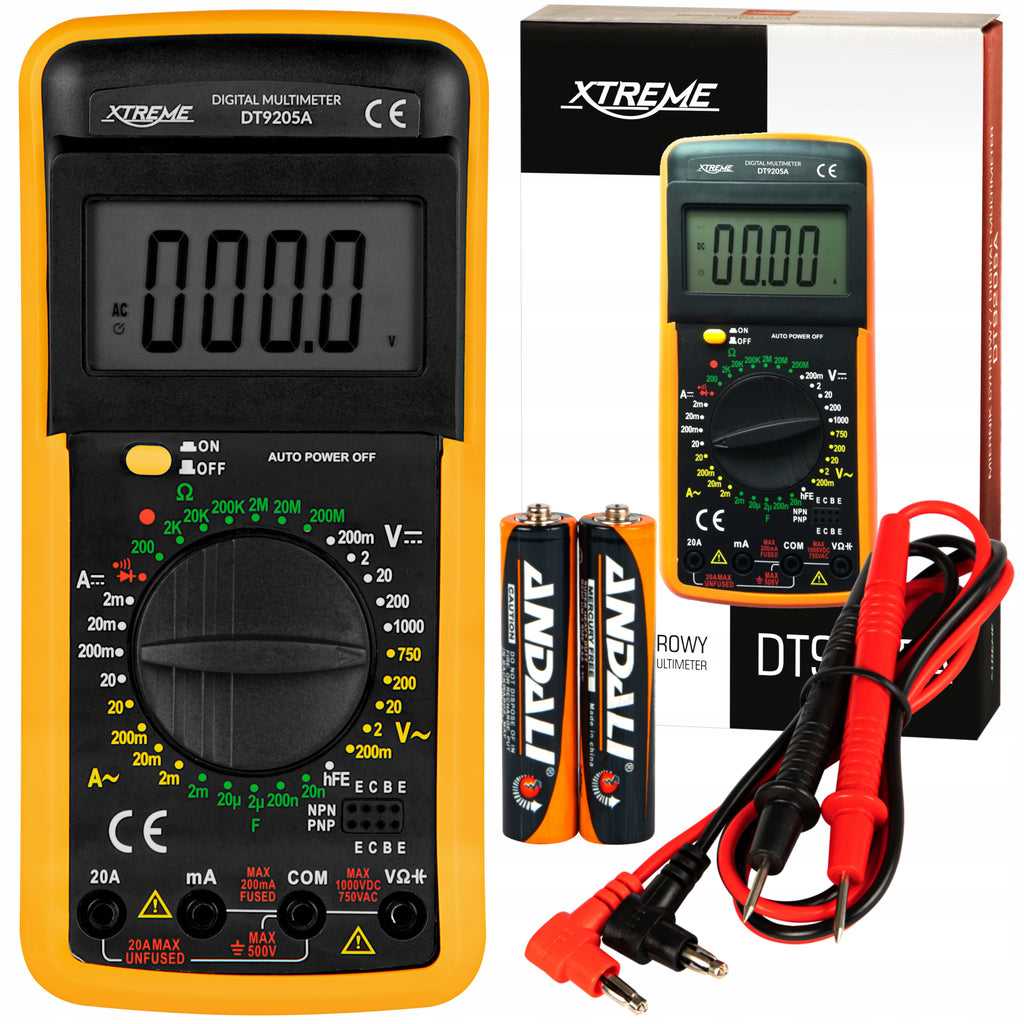

The set includes:

⚡Digital meter XTREME DT9205A

⚡ 2xAAA 1,5V batteries

⚡ Measuring cables

⚡ Instruction manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Xtreme
Parametry	Product weight with unit packaging	0.27 kg
Parametry	EAN (GTIN)	5900804118060
Parametry	Manufacturer code	DT9205A
Parametry	Customs tariff code	90303100
Parametry	Batteries included	yes
