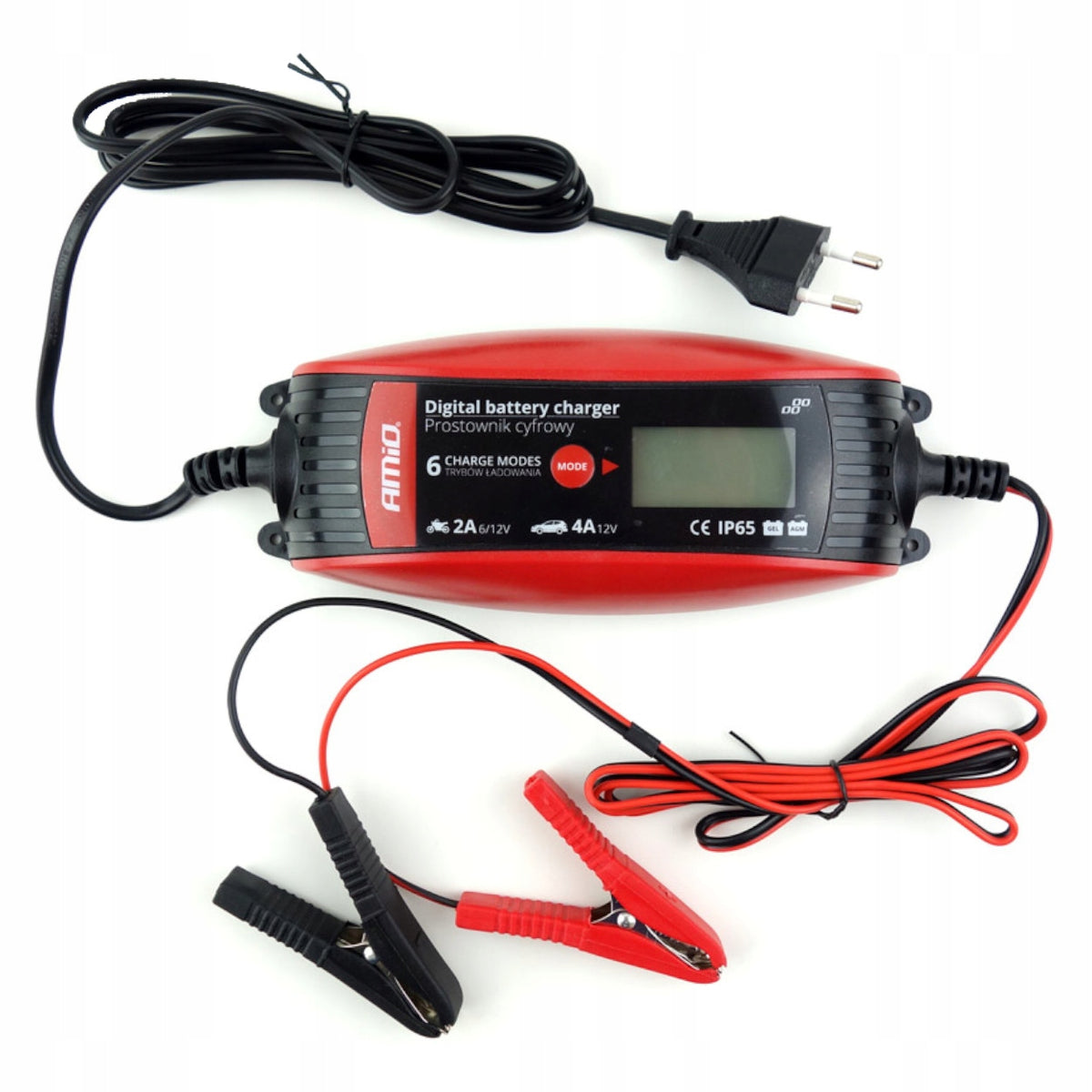

Skaitmeninis lygintuvas 6V/12V, 2A/4A, DVL DBC-4A

Trumpai apie prekę

Prekė: Skaitmeninis lygintuvas 6V/12V, 2A/4A, DVL DBC-4A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Amio
• Modelis: 61644

Manufacturer code: 02088

The DBC-4A rectifier can charge batteries:

• lead-acid (regular and MF)
• Ca/Ca
• AGM
• gel

It is a microprocessor rectifier, made in accordance with the IP65 standard, which means resistance to dust and splashes and low pressure water jet dousing.

Has protection against:

• short circuit
• reverse battery connection (reverse polarity)
• open circuit
• protection against sparks
• battery overcharging
• rectifier overload
• overheating of the rectifier

Technical data:

• Power supply: 230V 50 Hz
• Output voltage: 6 / 12V
• Power consumption: about 60W (1W standby)
• Maximum charging voltage:

7.4V (6V batteries)

14.7V (12V batteries)

• Maximum charging current:

motorcycle mode: 2A +/- 10%,

car mode: 4A +/- 10%

• Supported battery capacities:

6V - 1,2Ah to 14Ah

12V - 1,2Ah to 14Ah and 14Ah to 120Ah

• Protection rating: IP65
• 6 charging programs switchable by "WORKING MODE" button
• Display backlight: Yes

NOTE: Gel batteries with a capacity of up to 14Ah used in motorcycles and scooters should be charged by selecting a program with the motorcycle icon on the display - charging with more current can damage the battery.

6 charging modes:

• 6V to 14Ah batteries

1) 7.2V to 2A

2) 7.4V to 2A (low temperature charging)

• 12V to 14Ah batteries and deeply discharged

3) 14.3V to 2A

4) 14.7V to 2A (low temperature charging)

• 12V batteries over 14Ah

5) 14.3V to 4A

6) 14.7V to 4A (low temperature charging)

The rectifier shows the battery voltage and charge level on an ongoing basis and adjusts the charging current according to its needs.

After charging, the FULL message is displayed, and the rectifier maintains the voltage on the battery.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	61644
Parametry	Brand	Amio
Parametry	Maximum amperage	4 A
Parametry	EAN (GTIN)	5902913261644
Parametry	Packaging status	original
