Skaitmeninis kampų matuoklis su lazeriu ir magnetiniu pagrindu

Trumpai apie prekę

Prekė: Skaitmeninis kampų matuoklis su lazeriu ir magnetiniu pagrindu. Kategorija: Kampmačiai.

• Gamintojas: RTOOLS

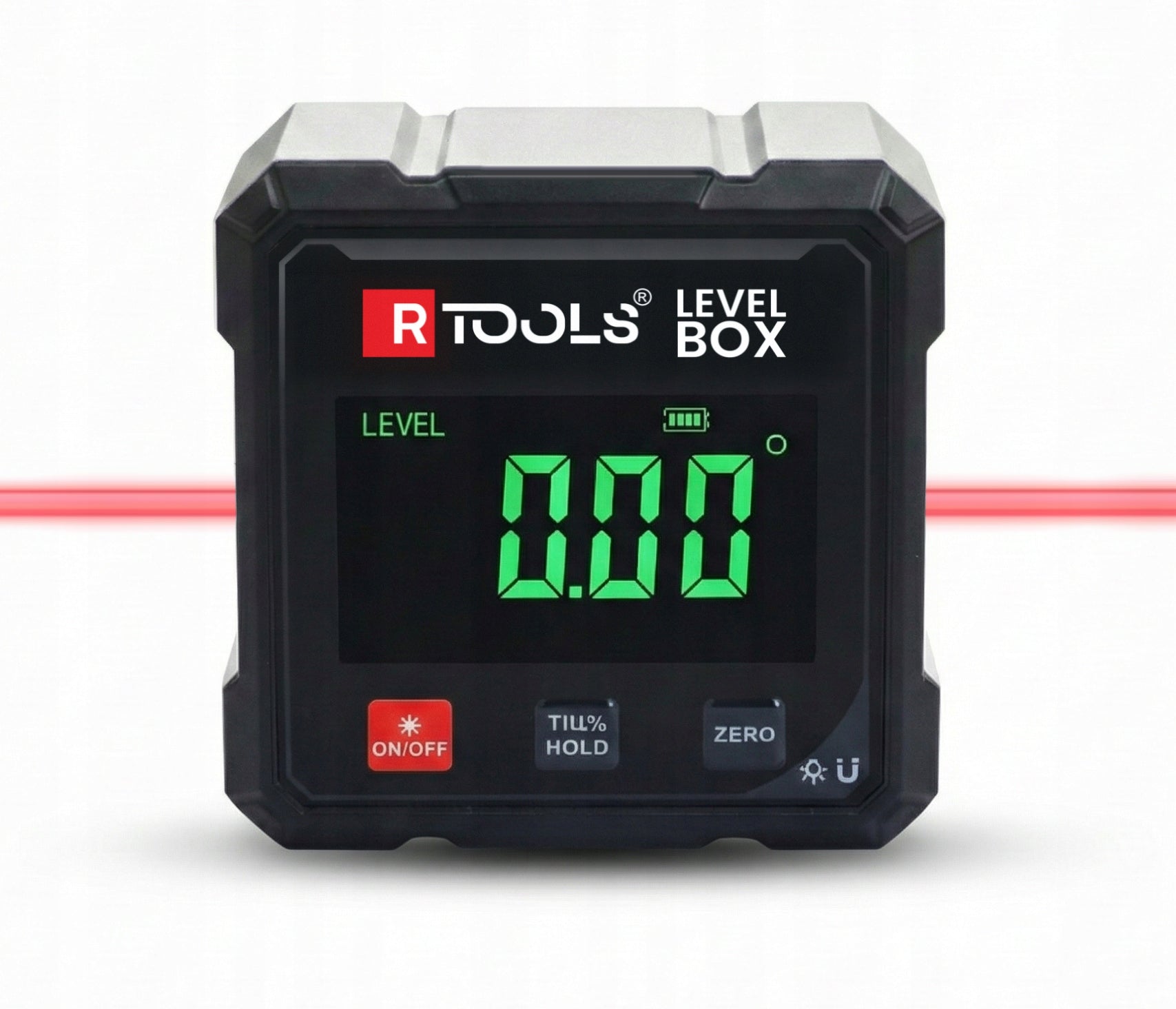

• Modelis: P-02

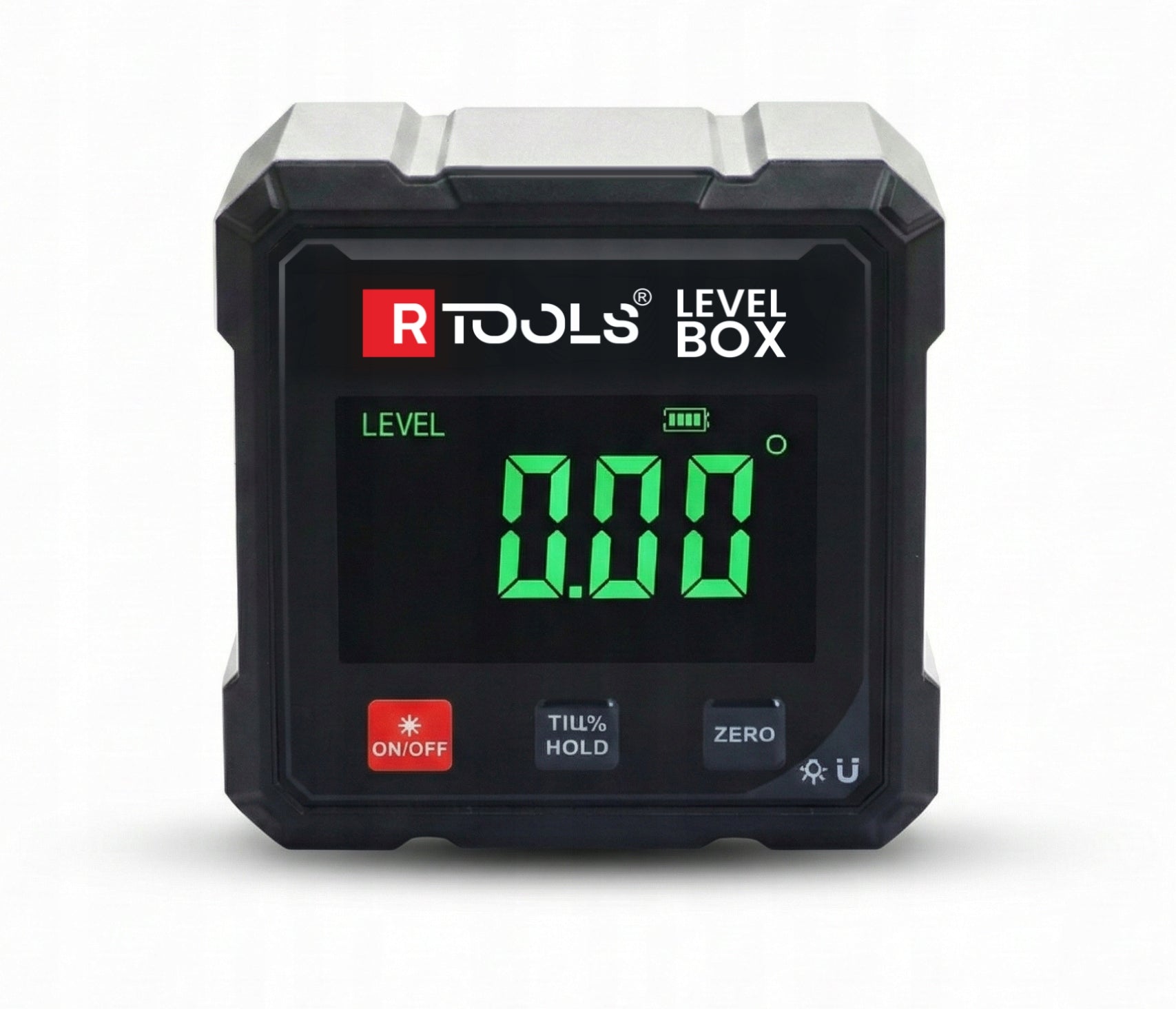

• Plotis: 55 mm
• Medžiaga: aluminum

WITH BACKLIT SCREEN, MAGNETIC HOUSING, DOUBLE-SIDED LASER LINES

⭐⭐⭐⭐⭐

A precise digital protractor is a device that will work both in professional workshops and during home renovation works. Thanks to high precision measurement and magnetic base, it is irreplaceable in situations requiring accuracy and repeatability, it combines three devices: precision protractor, electronic level and two-line cross laser.

Why choose this model?

✅ Precision: The device measures angles with an accuracy of 0,2° and presents the results in real time on a clear digital display.

✅ Double laser line: The unique function of displaying laser lines on the sides of the device allows for instant transfer of angles and determination of horizontal and vertical lines on walls or processed materials.

✅ Four-sided magnet: Very strong magnets on each edge allow you to attach the meter to any metal surface (profiles, pipes, saw blades).

✅ LCD display with auto-rotation: The clear, backlit screen automatically rotates the numbers when you turn the device.

✅ Power Supply: The device has a built-in battery charged by the popular USB-C port.

⭐⭐⭐⭐⭐

• Measurement with accuracy up to 0.2° – ideal for technical applications.
• Easy-to-read LCD display with green backlight – visibility in all conditions.
• HOLD function – remembering the measurement on the screen.
• 2 measuring units – °, % (slope in degrees and percentages).
• REF (zeroing) function – quick setting of the reference point.
• Automatic shutdown – energy saving.

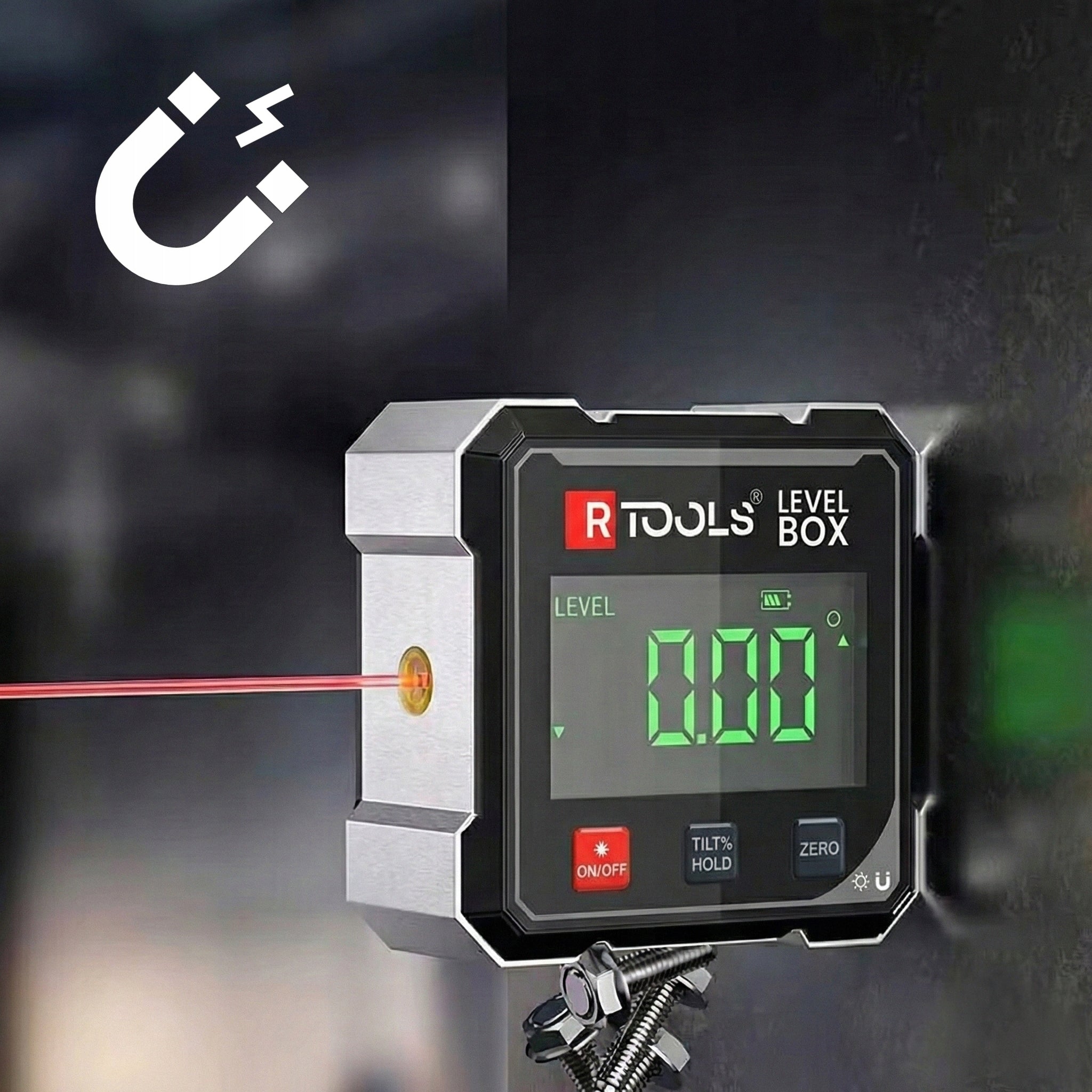

• Magnetic housing – convenient mounting on metal surfaces, the device has built-in magnets on four sides of the housing.
• Possibility of quick calibration – precise adjustment to the conditions.
• Compact size and lightweight design – easy storage and transport.

⭐⭐⭐⭐⭐

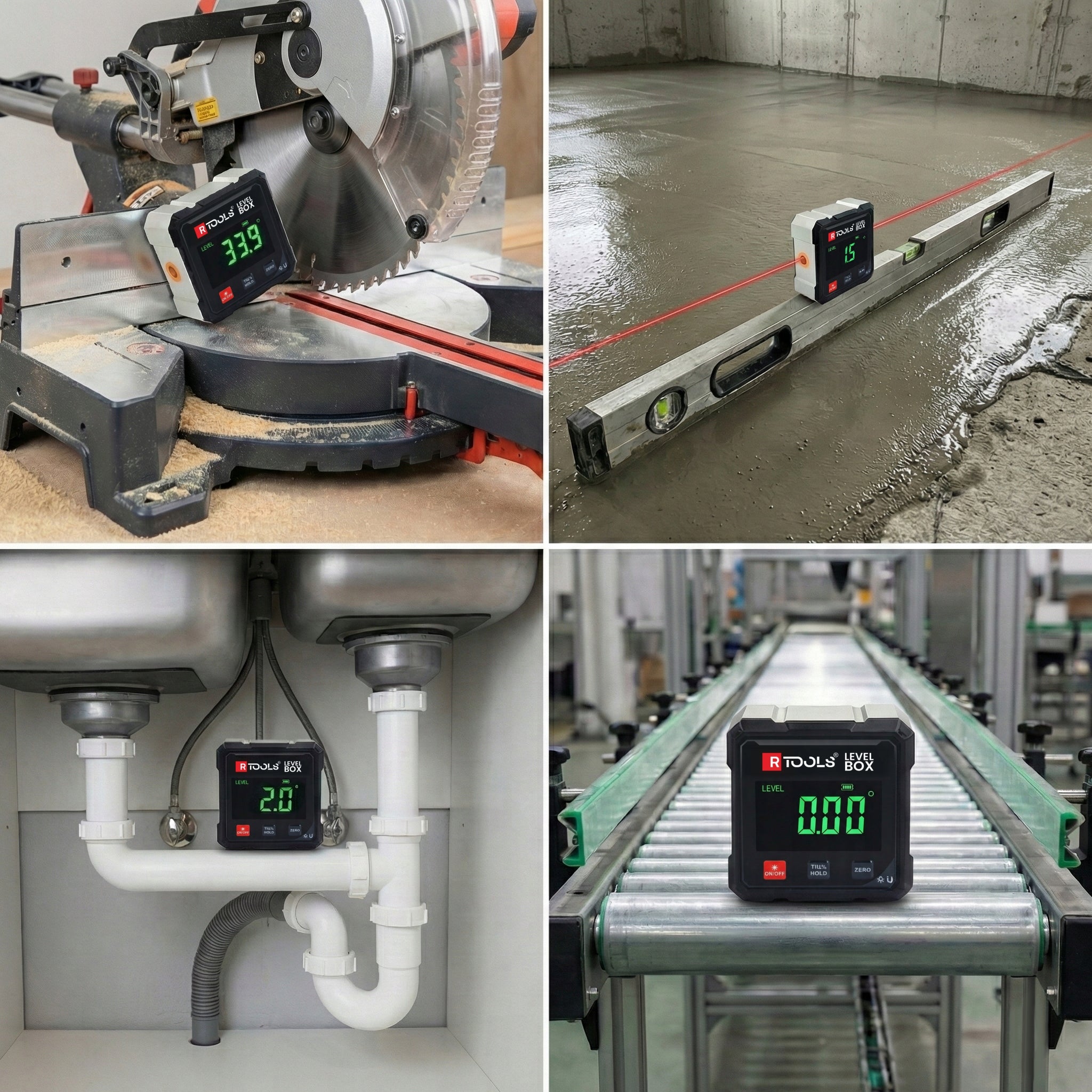

• Stolarstwo: Precise setting of blade angle in table saws and slashes.
• Construction: Installation of structures made of G-K boards, checking verticals and levels when installing windows and doors.
• Installations: Determination of appropriate drops in drainage and sewer pipes.
• Industry: Calibration of CNC machines and setting of robot arms.

And many other applications - this tool was created for both amateurs and professionals.

⭐⭐⭐⭐⭐

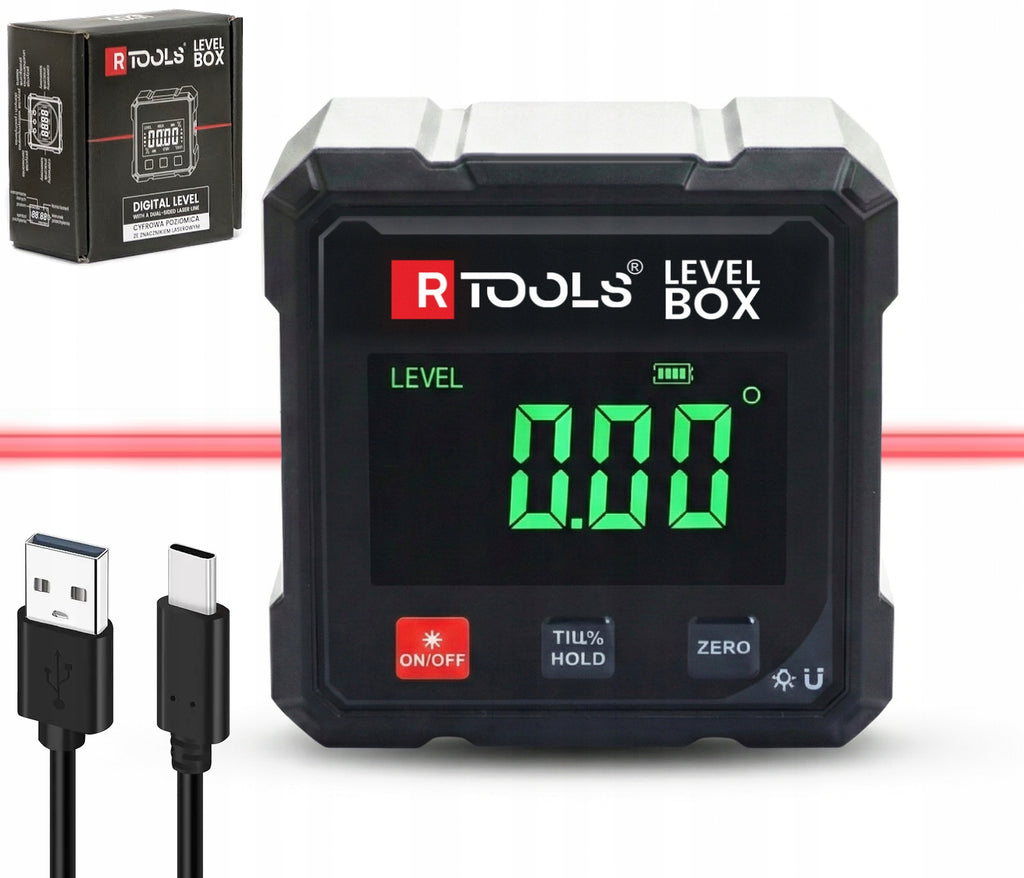

1. Digital Laser Inclinometer in black and red.
2. USB-C cable for fast charging.
3. Original packaging.
4. User manual in Polish and English!

⭐⭐⭐⭐⭐

• Measuring range: 4*90°
• Resolution: 0,05°
• Accuracy: ±0,2°
• Repeatability: 0,1°
• Power supply: 3.7V lithium battery (charged with USB-C cable)
• Working temperature: from -10 to 50℃
• Magnetic walls make a variety of measurements that require attachment of the device simple and accurate.
• Measurement of absolute zero based on the level plane.

1. Stolarstwo: Precise cutting angles

In carpentry, the device is used to reset and set the angle of the cutting disc relative to the working table. The magnetic housing allows you to “stick” the inclinometer directly to the saw blade.

• Application: Setting the dial exactly at an angle of 45° or 90°.
• Advantage: Eliminates errors resulting from inaccurate analog graduations on machines.

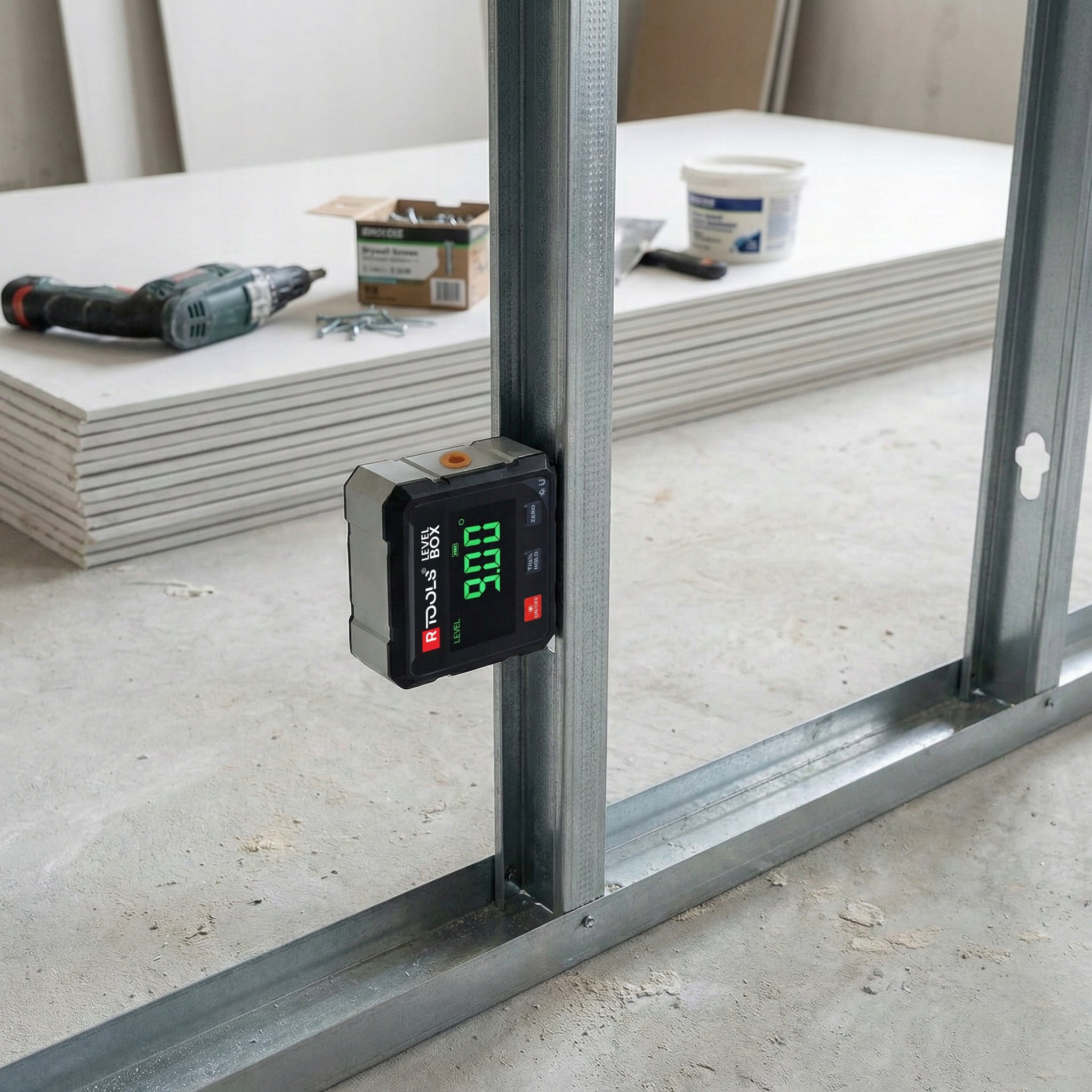

2. Construction: Installation of structures and joinery

When installing G-K panels or window frames, the laser emitted by the device allows you to transfer levels to adjacent walls, and the display allows you to perfectly verticalize profiles.

• Application: Installation of aluminium profiles for suspended ceilings and checking the vertical of door frames.
• Advantage: The laser function allows you to determine the reference line over a large area.

3. Installations: Pipe Drop Control

In sanitary and sewage installations, it is crucial to maintain an appropriate drop (usually 1,5% – 3%) to ensure the gravitational outflow of water.

• Application: Laying the inclinometer on the PVC pipe and reading the value as a percentage (TILT function%).
• Advantage: Certainty that the installation will not be blocked by too little drop.

4. Industry: Machine calibration and robotics

In advanced industry, the device helps in leveling the bed of CNC machines and synchronizing the arms of industrial robots.

• Application: Verification of coaxiality of machine elements and setting of resting angles of robotic arms.
• Advantage: High repeatability of measurement necessary in automated processes.

What else is worth knowing about this model?

• Magnets: They allow you to work "hands-free" on steel structures.
• ZERO: Allows you to measure the relative angle (e.g. between two elements, neither of which is at the perfect level).
• Backlit screen: Key in dark corners of construction or inside machine bodies.

Specifications
