Skaitmeninis diferencialinis vakuumo slėgio matuoklis 0–0,350 BAR

Trumpai apie prekę

Prekė: Skaitmeninis diferencialinis vakuumo slėgio matuoklis 0–0,350 BAR. Kategorija: Slėgio jutikliai.

• Gamintojas: Habotest
• Modelis: HT636

⭐⭐⭐⭐⭐

Digital differential pressure gauge - pressure and vacuum meter.

Has the ability to show results in as many as 11 units!

Selectable: bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O.

This device is characterized by functions such as, automatic shutdown function (which increases battery life), HOLD function (pause the current reading of data), zero value function, display function of maximum, minimum and average readings and screen backlight.

The measuring range in bars is 0 - 0.350 - detailed specification below.

⭐⭐⭐⭐⭐

Widely used in fan pressure measurement, air pressure, oven pressure, filter pressure difference and air gas content monitoring in combustion process.

⭐⭐⭐⭐⭐

A: High resolution backlight display

B: High quality rubber buttons ensure comfortable use, the print is hard to wipe off.

C: High quality injection molded ABS engineering plastic housing, wear and drop resistant.

D: Optimized design, convenient to carry and easy to operate.

E: Non-slip design with concaves and protrusions on the sides of the case, provides a comfortable grip to prevent accidental dropping.

F: Powered by 3 AAA 1.5V batteries (included).

⭐⭐⭐⭐⭐

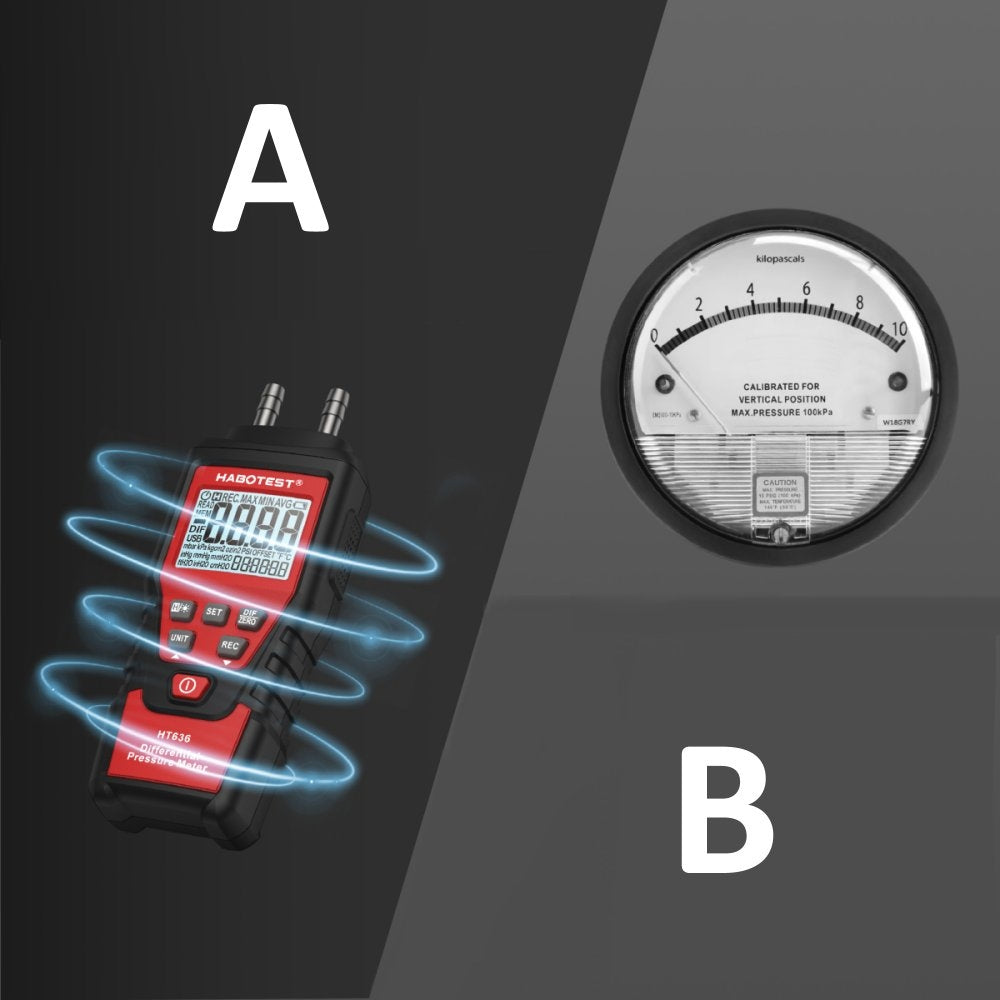

A: Can capture even smaller pressure differences. The reading is intuitive and accurate, avoiding inaccuracies caused by parallax and human reading errors in indicator type differential manometers.

B: Indicator type differential pressure gauge, characterized by poor vibration resistance, unstable continuous measurement and large fluctuations as opposed to digital manometers.

C: A multitude of pressure units to easily meet your measurement needs.

D: Pagoda shaped connector, silicone tube - easy and quick installation, excellent tightness and high adaptability

⭐⭐⭐⭐⭐

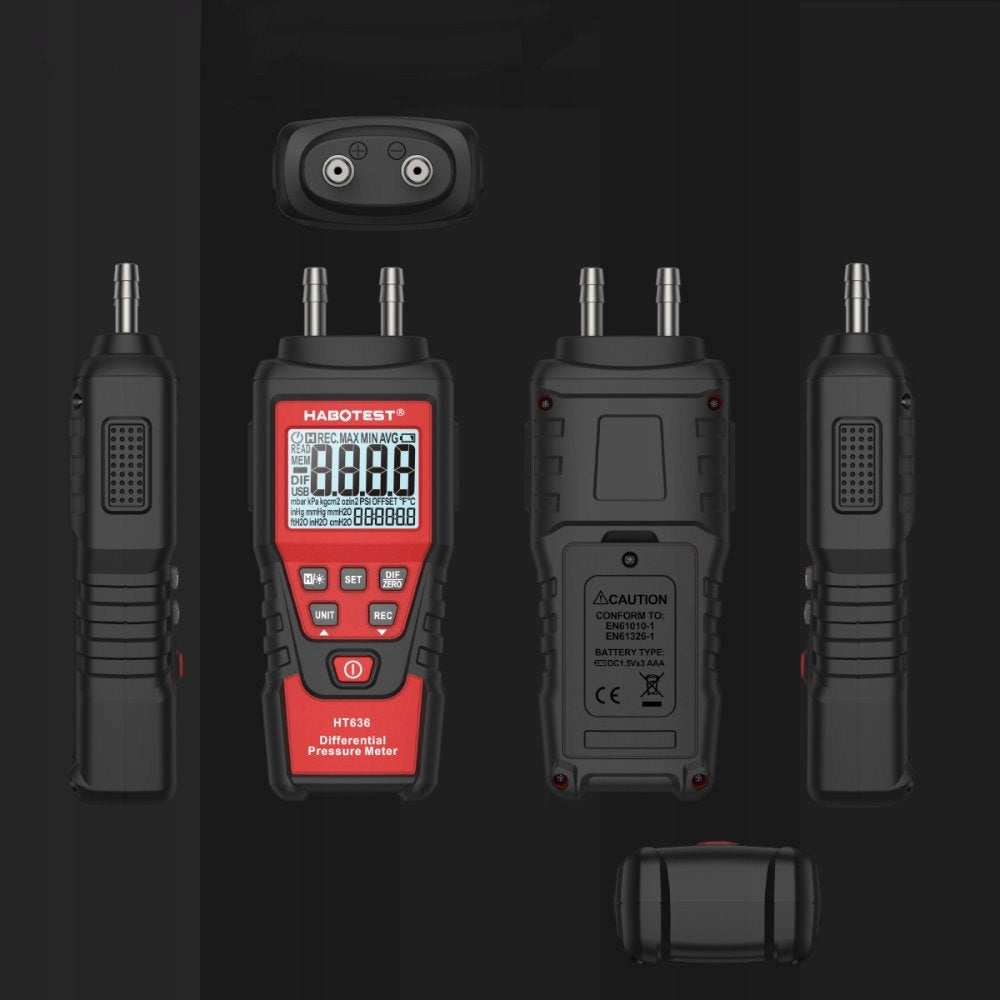

1. Differential pressure sensor connected to negative port.
2. Differential pressure sensor connected to the positive port.
3. LCD display screen.
4. Automatic shutdown/clock time setting button.
5. Data retention/highlighting button.
6. Difference/reset measurement button (to zero).
7. Switching button for pressure units.
8. Mode selection button: maximum/minimum/medium.
9. Power on/off button

⭐⭐⭐⭐⭐

• Accuracy: ±0.3% FSO (25℃ )
• Repeatability: ±0.2% (Maksimum＋/－0.5%FSO)
• Linearity/hysteresis: ±0.29%FSO
• Maximum pressure: 10PSI
• Response time: Usually 0.5 s
• Low Battery Indicator: Yes
• Temp. Usage: 0~50℃
• Temp. Storage: -10~60℃
• Power supply: 3 x 1.5 AAA battery,

Scope/resolution:

• 0,350/0.001 (bar),
• 350/0.1 (mbar),
• 35.0 /0.01 (kPa),
• 0.350 /0.001 (kgf/cm²),
• 258.5/0.1 (mmHg),
• 351.5/0.1 (cmH2O),
• 80.00 /0.01 (Ozf/in²),
• 5.000/0.001 (psi)
• 10.18/0.01 (inHg)
• 138.4/0.1 (inH2O),
• 11.53/0.01 (ftH2O),

⭐⭐⭐⭐⭐

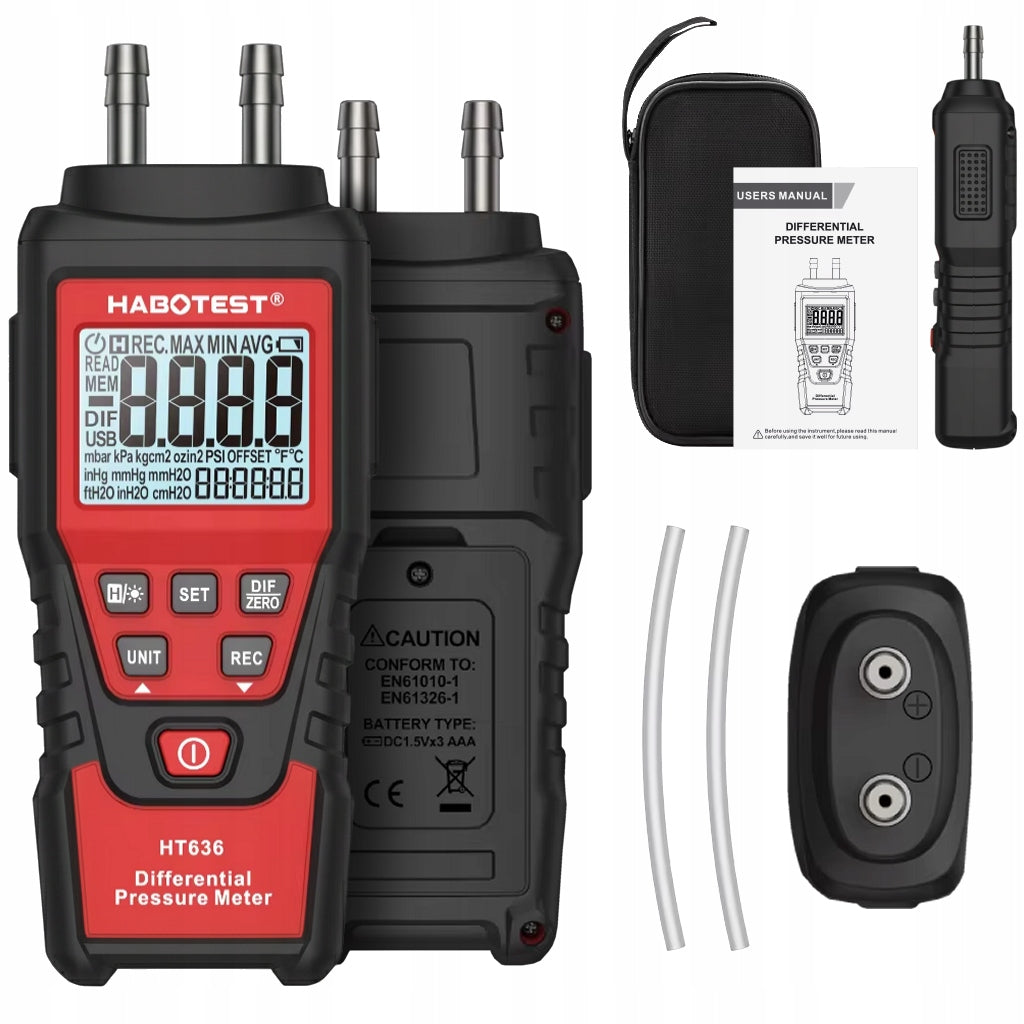

• 1 x Habotest HT636 Pressure Gauge
• 2 x Silicone Tube
• 1 x Original manufacturer packaging
• 1 x User manual in Polish and English!
• 3 x 1.5V AAA battery
• 1 x Material case for storage and transport

Directive EMC 2014/30/EU and RoHS 2011/65/EU

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request we send this document.

A Declaration of Conformity (CE) is a free, optional document and therefore is not sold in this offer.

Specifications
