Skaitmeninis diferencialinio slėgio matuoklis, vakuumo testeris 100 kPa

Trumpai apie prekę

Prekė: Skaitmeninis diferencialinio slėgio matuoklis, vakuumo testeris 100 kPa. Kategorija: Slėgio jutikliai.

• Gamintojas: Benetech
• Modelis: GM509-100Kpa

⭐⭐⭐⭐⭐

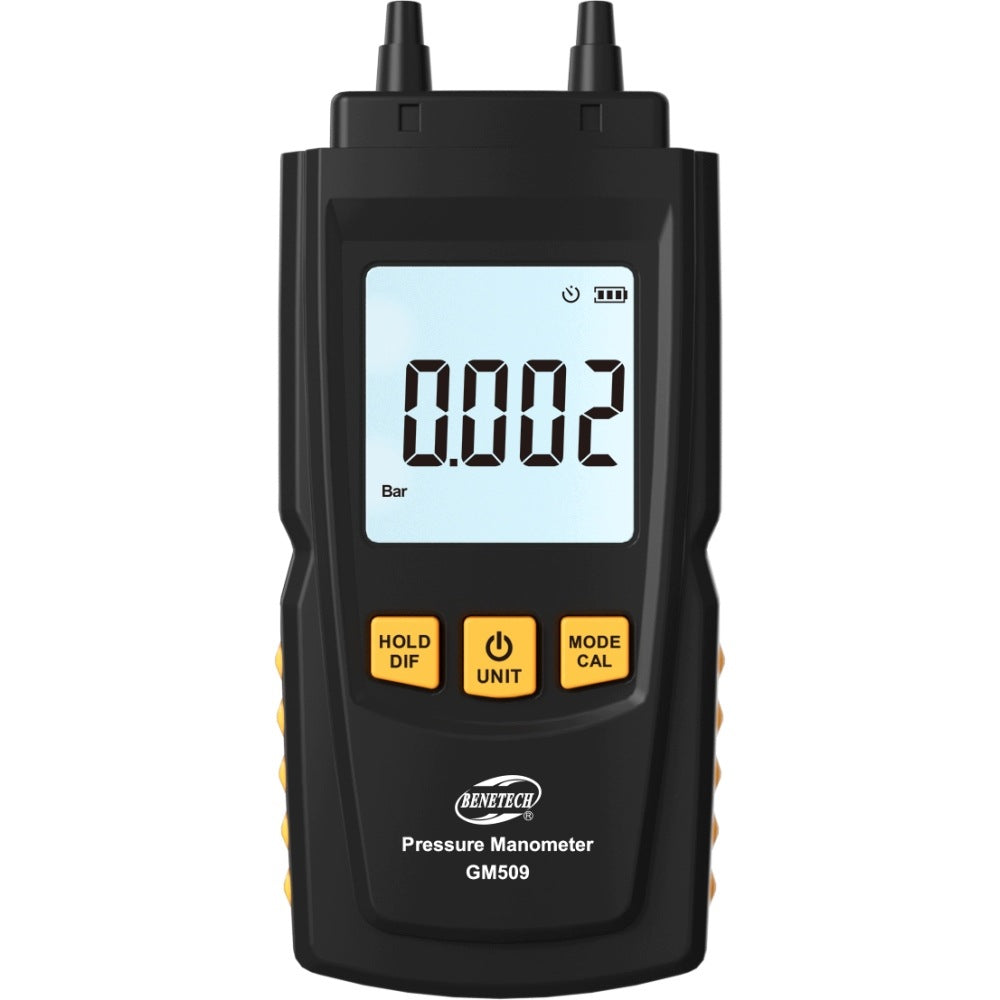

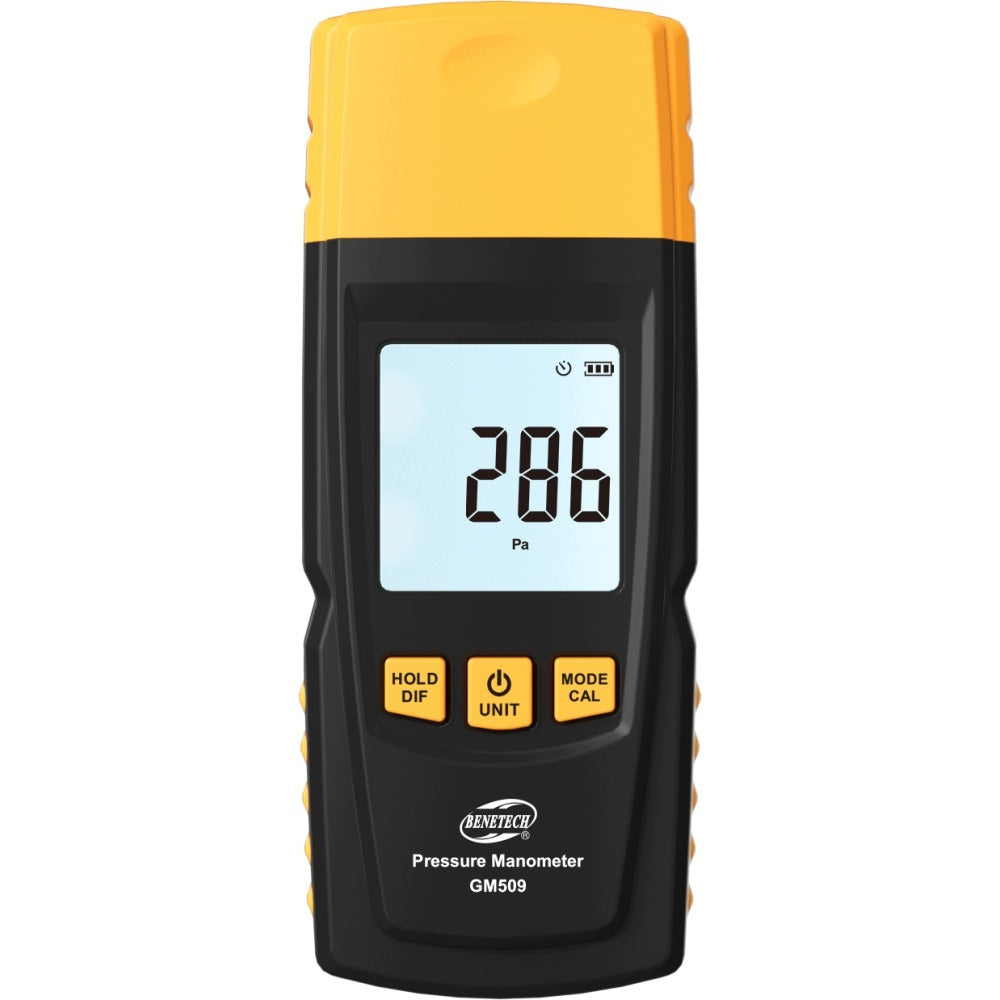

The Benetech GM509-100kPa digital pressure gauge is an advanced measuring device designed to precisely measure the differential pressure, vacuum and relative pressure of clean and non-corrosive gases. It is used in m.in.:

• HVAC and ventilation systems: controlling thrust, pressure in ventilation ducts, checking filters.
• Services of gas boilers and installations: measurement of wind micropressure, regulation of gas burners and valves.
• Cleanrooms: controlling vacuum in dust-free workshops and operating rooms.
• Laboratories and medicine: breath pressure tests, leak tests of medical devices.

Widely used in fan pressure measurement, blower, air pressure, oven pressure, filter pressure difference and air gas content monitoring in combustion process.

⭐⭐⭐⭐⭐

The device offers versatility of measurements and no need to manually convert units. With the touch of a button [UNIT], you can conveniently switch the reading between 10 popular pressure units:

1. Bar
2. mBar
3. kPa
4. hPa
5. Pa
6. psi
7. mmHg
8. cmH₂O
9. inHg
10. inH₂O

⭐⭐⭐⭐⭐

The pressure gauge is equipped with two double inlet nozzles, which allows for convenient differential measurements. Activation of the DIF mode allows you to freeze the current pressure value as a reference (reference) point. Further readings directly show the difference from the set value (displayed value = current pressure – reference pressure). Ideal for pressure drop or filter performance tests.

⭐⭐⭐⭐⭐

The device guarantees the highest measurement precision thanks to the ability to easily reset the sensor before starting work. Just make sure that no tubes are connected to the inlets, then hold down the MODE/CAL button. A CAL0 message will appear on the screen, and the meter will automatically calibrate the zero point.

⭐⭐⭐⭐⭐

Advanced measurement modes make it easy to analyze changing conditions in the installation without having to constantly observe the screen. With the MODE/CAL button, you can quickly switch between:

• MAX: memorize and display the highest recorded pressure value.
• MIN: recording the lowest value during the measurement.
• AVG: automatic calculation of the average pressure value.
• Real-time measurement: return to continuous reading.

⭐⭐⭐⭐⭐

The HOLD/DIF button allows you to temporarily block the current result on the screen (the HOLD icon appears on the display). This feature is extremely useful in hard-to-reach places where it is difficult to immediately read the results from the screen.

⭐⭐⭐⭐⭐

The pressure gauge has a clear LCD display that clearly presents the current result, the selected unit, battery status and active operating modes. The screen backlight turns on automatically when you press any button for about 10 seconds, which allows you to work comfortably in underexposed places (e.g. boiler rooms, ventilation chessboards).

⭐⭐⭐⭐⭐

For energy savings, the device has been equipped with an automatic shutdown function after approx. 10 minutes of inactivity. If you need to conduct long-term continuous measurements, this function can be easily deactivated when turning on the meter (the E2.0 symbol will appear on the screen).

⭐⭐⭐⭐⭐

The device is characterized by handy dimensions and low weight (only ~105 g). The set also includes a padded zippered case.

⭐⭐⭐⭐⭐

• Brand: Benetech
• Model: GM509-100kPa
• Measuring range: ±100 kPa
• Accuracy: ±1% F.S. (full scale)
• Resolution: 100 Pa
• Maximum overload pressure: 2x F.S. (full scale)
• Emergency pressure: 3x F.S.
• Temperature compensation: -5°C ~ 50°C (23°F ~ 122°F)
• Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
• Power Supply: 2 x 1,5V AAA battery (included)
• Working current: 30 mA (with backlight)
• Battery life: approx. 5 hours of continuous operation
• Device dimensions: 135.7 x 55.7 x 29.9 mm
• Weight: 105.2 g

⭐⭐⭐⭐⭐

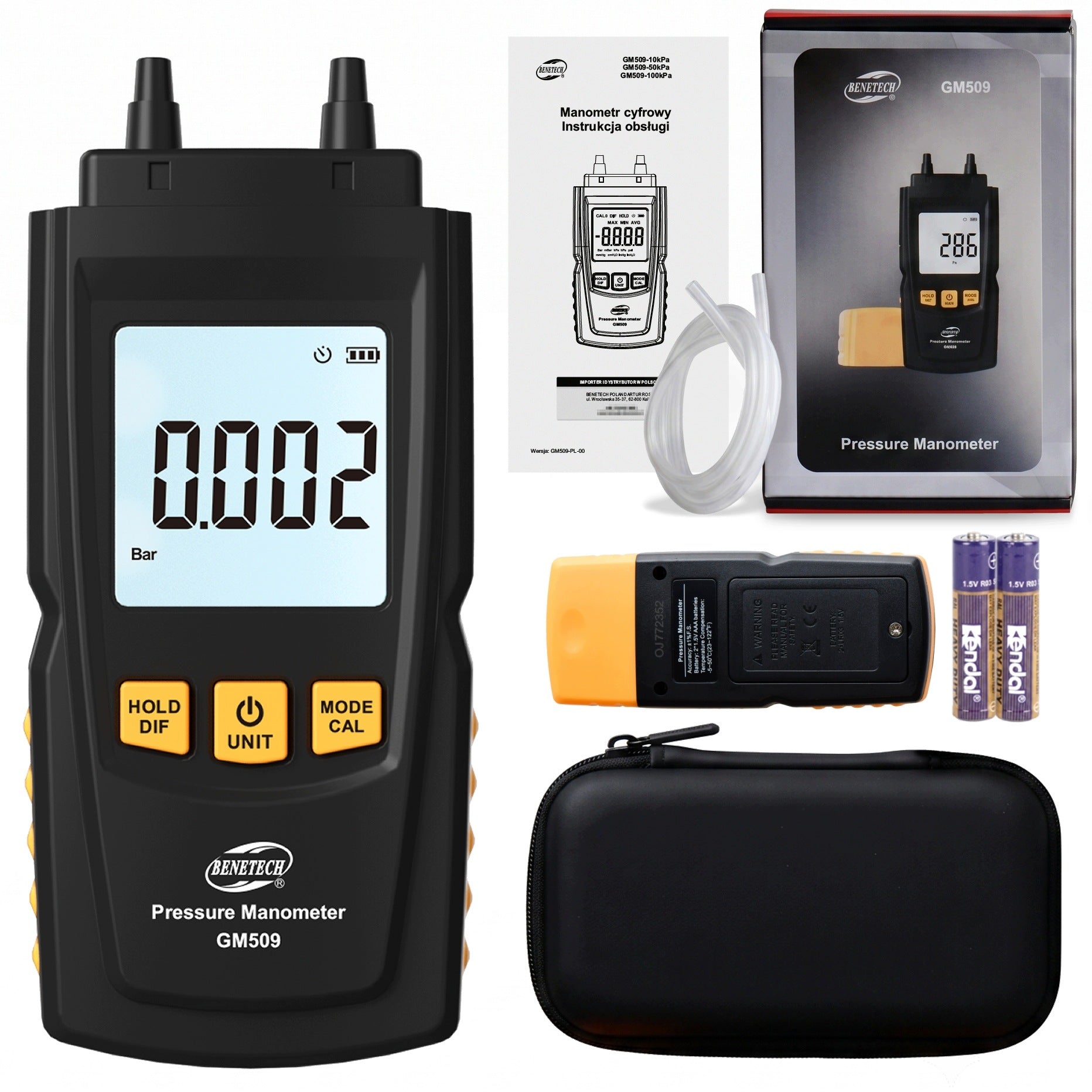

• 1 x Benetech GM509-100kPa Pressure Gauge
• 1 x Protective Case
• 2 x Silicone Tubes
• 2 x 1.5V AAA battery
• 1 x User manual in Polish and English!
• 1 x Original manufacturer packaging

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.
