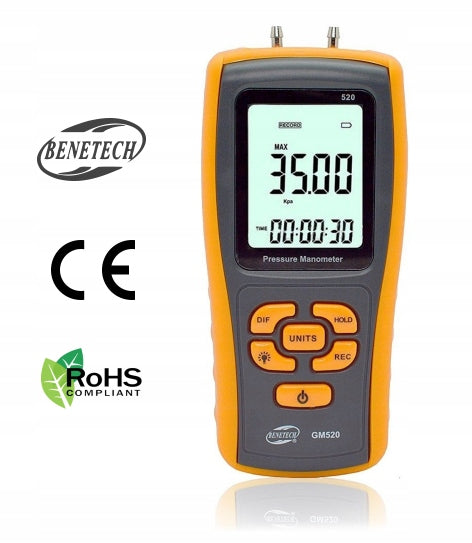

Skaitmeninis diferencialinio slėgio matuoklis, vakuuminis, USB, LCD

Trumpai apie prekę

Prekė: Skaitmeninis diferencialinio slėgio matuoklis, vakuuminis, USB, LCD. Kategorija: Slėgio jutikliai.

• Gamintojas: Benetech
• Modelis: GM520

Digital differential pressure gauge - pressure and vacuum meter.

Widely used in fan pressure measurement, air pressure, oven pressure, filter pressure difference and air gas content monitoring in combustion process.

Has the ability to show results in as many as 11 units!

Selectable: bar, mbar, kPa, kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O.

This device features such as the ability to save data, calibration, automatic shutdown function (which increases battery life), and the ability to connect to a computer via USB to read and export data.

The measuring range in bars is 0 - 0.350 - detailed specification below.

Save data and store it on your computer with dedicated software to support your device on Windows computers.

⭐⭐⭐⭐⭐

The dedicated Manometer application allows you to read data from the device directly in the program. After connecting the device to a computer via USB cable, data is recorded directly in the program.

⭐⭐⭐⭐⭐

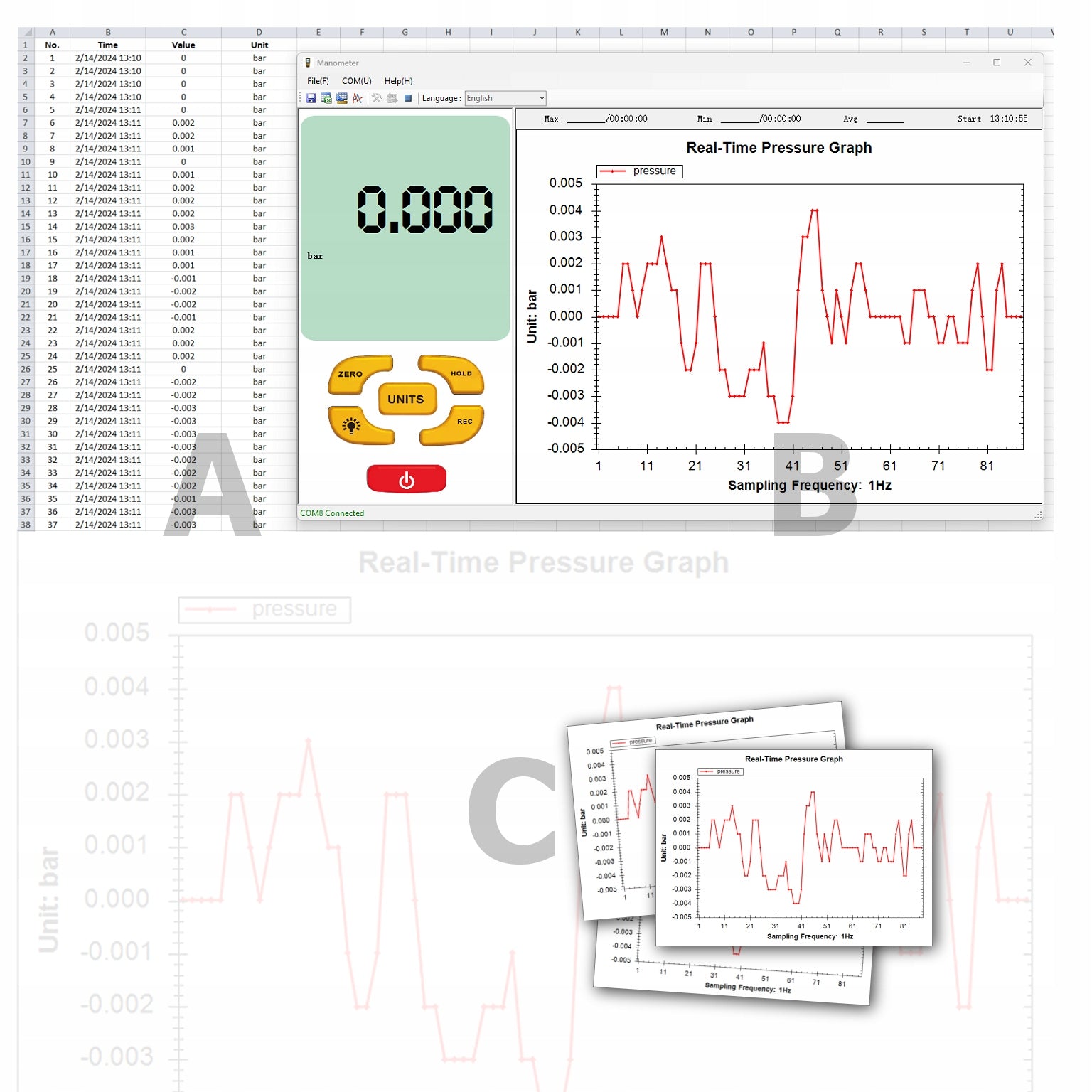

Benetech manometer program allows m.in :

• A: Export data to a spreadsheet: create data sets in an Excel spreadsheet, save files in xls format. This allows you to easily analyze data, create data charts, and read the entire data history.
• B: Reading data in the program in real time.
• C: Creating graphic files containing data graphs. A readable graphic file in PNG format will facilitate the creation of technical documentation.

• Accuracy: ±0.3% FSO (25℃ )
• Repeatability: ±0.2% (Maksimum＋/－0.5%FSO)
• Linearity/hysteresis: ±0.29%FSO
• Response time: Usually 0.5 s
• Low Battery Indicator: Yes
• Upper Overload: Err1
• Lower overload: Err2
• Temp. Usage: 0~50℃
• Temp. Storage: -10~60℃
• Power supply: 4 x 1.5 AAA battery,

Diameter of silicone tubes included:

• external: 5mm
• internal: 3mm

Scope/resolution:

• 0,35/0.001 (bar),
• 350/0.1 (mbar),
• 35.0 /0.01 (kPa),
• 0.356 /0.001 (kgf/cm²),
• 262.5/0.1 (mmHg),
• 356.6/0.1 (cmH2O),
• 81.20 /0.01 (Ozf/in²)
• 5.076/0.001 (psi)
• 10.33/0.01 (inHg)
• 140.3/0.1 (inH2O),
• 11.69/0.01 (ftH2O),

DESCRIPTION OF DISPLAY ELEMENTS

1. The function of withholding the result
2. Data recording mode
3. USB connection
4. Low battery indicator
5. Difference mode (DIF)
6. Maximum/minimum/average
7. Measurement value
8. Pressure unit
9. Duration of data recording

DESCRIPTION OF HOUSING COMPONENTS

1. Pressure inputs.
2. LCD display.
3. The difference button.
4. Unit change button
5. Backlight button.
6. HOLD function button.
7. Data save button.
8. Power button.

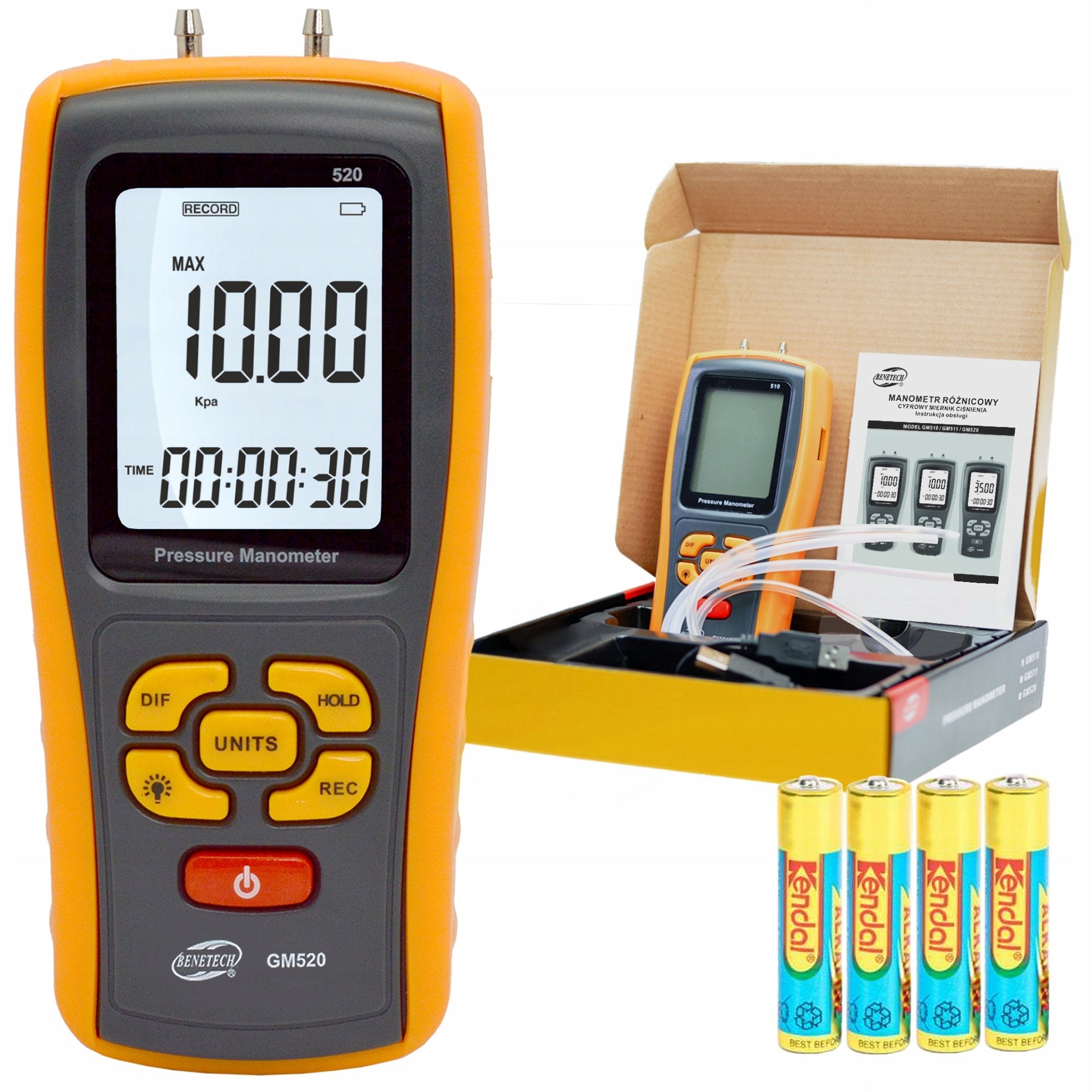

PHOTOS AND CONTENTS OF THE SET

• 1 x Pressure Gauge
• 4 x 1.5V AAA battery
• 1 x User Manual (in Polish)
• 1 x USB Cable
• 2 x Milky Silicone Tube
• 2 x Transparent PVC Tube

Downloadable software in electronic version.

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.

Specifications
