Siuvinėjimo mašina Brother V3 LE, 1 adata, namų naudojimui

Trumpai apie prekę

Prekė: Siuvinėjimo mašina Brother V3 LE, 1 adata, namų naudojimui. Kategorija: Siuvimo mašinos.

• Gamintojas: Brother
• Modelis: V3 LE

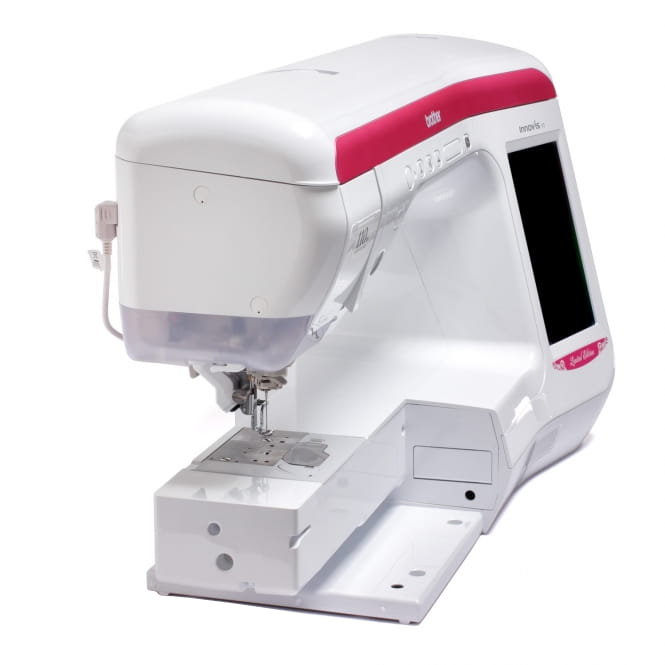

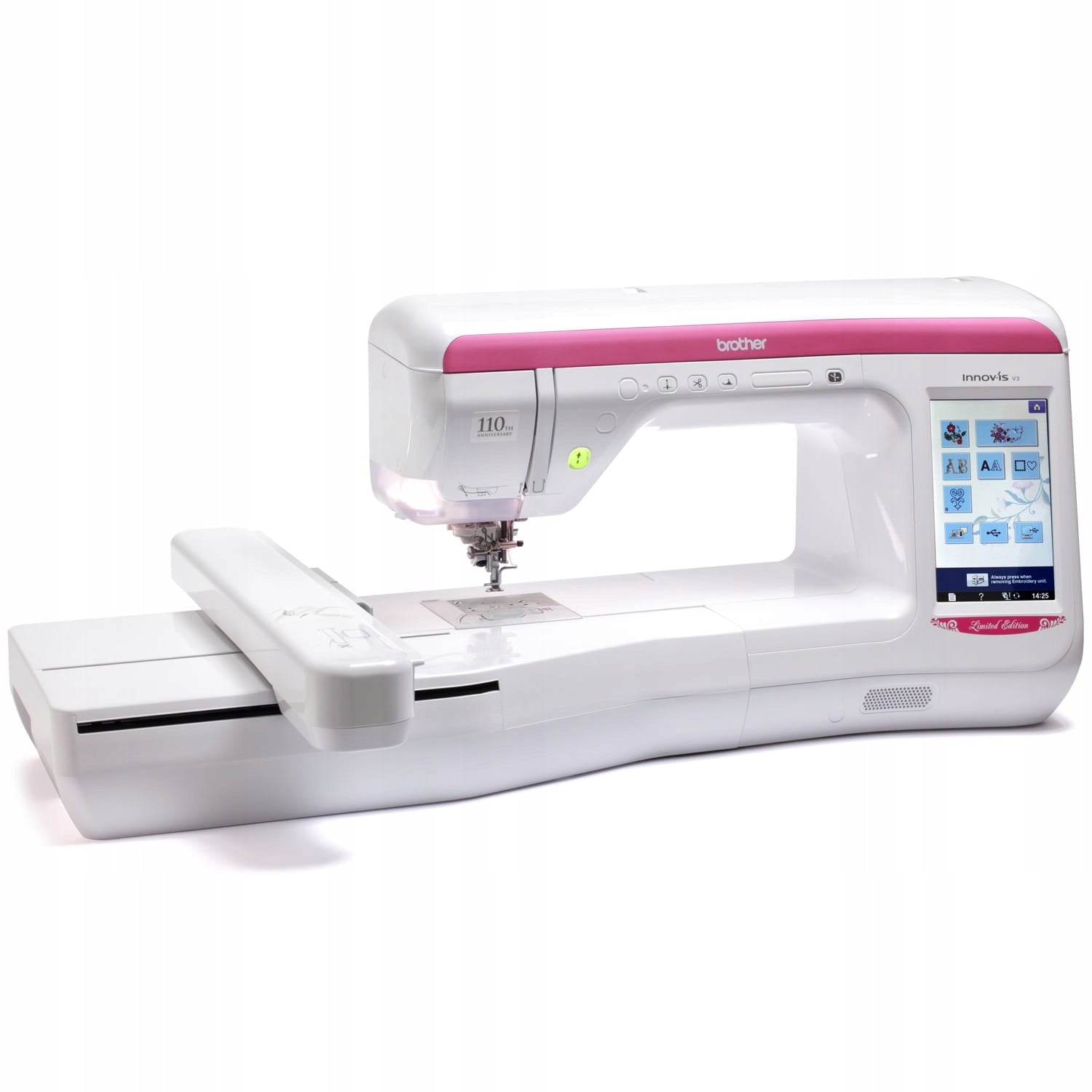

Brother Innov-is V3 LE embroidery machine

Innovative embroidery machine Brother V3 Limited Edition

On the occasion of the company’s 110th anniversary, Brother introduces a jubilee model – a new V3LE embroidery machine that will replace the previously available V3 model.

The machine belongs to large format embroidery machines with laser sight and exceptional embroidery quality. With a wealth of features, embroidery is now easier than ever.

The main differences compared to the previous V3:

• larger embroidery area 30 x 20 cm
• The set includes a foot with a FLED1 laser sight
• has been improved stitch plate - eliminates thread entanglement
• UGKV1 add-on is installed
• The set includes two large tambourines: 30x20 cm and 20x20 cm
• The differences are also in the colors

Innov-is V3 LE is a high-end embroidery machine with a very large embroidery field of 300 x 200 mm. A very large 7 inch touch screen allows you to conveniently control the machine and precisely use the built-in program for editing embroidery patterns (rotations, mirror reflections, magnifications, arranging subtitles in many ways and much more). The maximum embroidery speed is 1050 stitches per minute (this is a typical speed of industrial embroidery machines), which is why the efficiency of this machine is extremely high.

It was equipped with 224 embroidery patterns and 17 fonts. New patterns can be uploaded via 2 USB ports. The machine is equipped very abundantly with various functions, e.g. in automatic threader, in thread cutting function, thread breaking sensor, etc.

The embroidery machine is equipped with two tamborki:

• tamborek 300 x 200 mm
• tamborek 200 x 200 mm

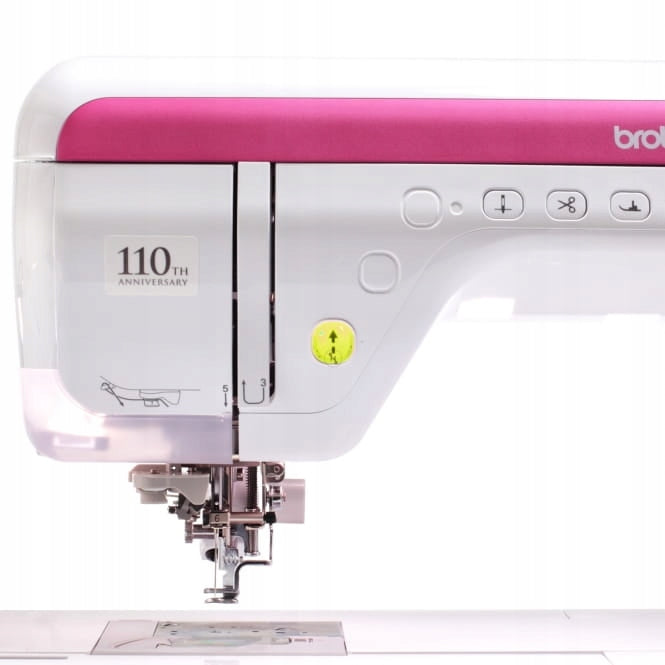

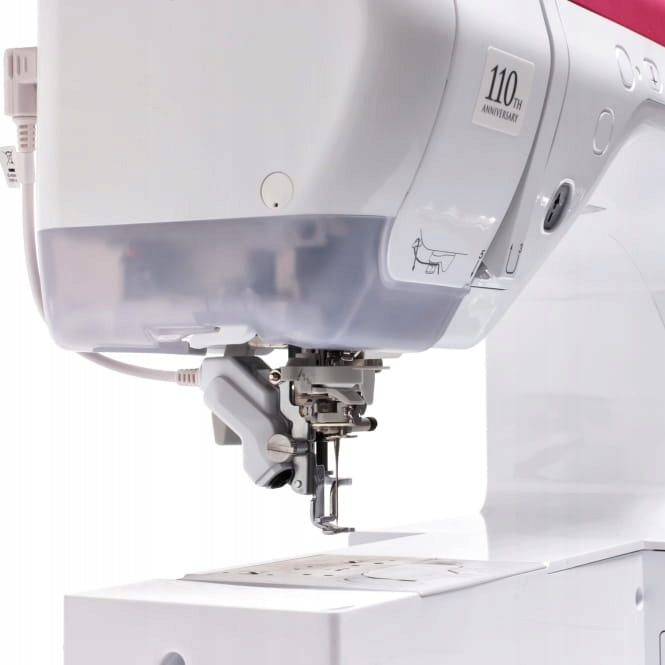

Embroidery foot with laser sight

It allows very precise arrangement of embroidery. The red laser pointer accurately shows where the needle will be inserted, allowing you to combine multiple patterns or embroidery even on a tablecloth.

Automatic thread cutting

Thanks to the automatic cutting function of the lower and upper threads, both machine performance and embroidery quality are increased.

Convenient installation of the bottom bobbin

The rotary gripper ensures quiet operation of the machine, and the special system of quick attachment of the bobbin in the drum makes it much easier to replace bobbins.

17 embroidery fonts and 224 embroidery patterns

The machine is equipped with 17 ready-made embroidery fonts with full editing of any character. You can design any Polish character. There are also 224 patterns to choose from that can be edited.

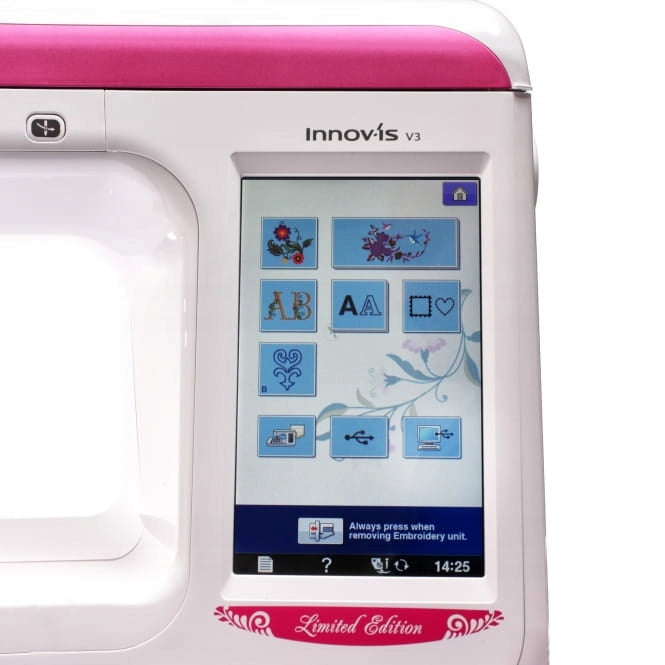

Large touch color LCD screen

With a 7 inch color touch screen with pioneering features, you can edit patterns, create subtitles, and simply turn your ideas into reality. Thanks to the quick preview of the pattern, the detail of the embroidery is visible, and adding more elements such as a signature or monogram is easier.

Energy saving

The machine is environmentally friendly. It is equipped with a special ECO-MODE mode, which causes the machine to go into sleep mode.

Large embroidery field 300 x 200 mm

Thanks to this, larger and more complicated embroidery can be made.

USB port x2

The machine has two USB connectors, thanks to which we can quickly transfer patterns to the embroidery machine.

Editing patterns and letters

Brother Innov-is V3 enables quick text design: monograms, dedications, all kinds of subtitles. There are 17 fonts to choose from that can be freely edited: rotate, zoom, zoom, stretch, combine, etc.

Automatic thread cutting in jump

The function allows you to cut a thread between letters - a very useful tool for frequent embroidery of inscriptions.

Embroidery Machine Features:

• embroidery field 300 x 200 mm
• Laser sight for pattern positioning
• Operating speed up to 1050 pcs/min
• cooperation with ScanNCut CM900 plotter (and older model CM840)
• 7" color touch screen
• editing of colors, shapes
• editing text (also creating text in the next line)
• function of combining patterns
• 17 embroidery fonts
• 224 ready-made patterns for embroidery
• Workspace 285 mm x 127 mm
• electronic needle threader (without touching the thread)
• USB port for transferring patterns via pendrive
• port for connecting a computer
• Audio-visual communications
• LED lighting
• Eco mode
• rotary gripper
• automatic thread cutting between letters
• additional 4 external blades
• automatic thread picker (wiper)
• electronic thread tensioner
• pattern size sensor and tamborka

Accessories included:

• Embroidery foot with laser sight FLED1
• tamborek 300 x 200 mm
• tamborek 200 x 200 mm
• embroidery fabric, 3 sheets (28 cm x 100 cm)
• white drum bottom thread 1000 meters
• set of needles
• bobbins, 10 pieces (one in the machine)
• bobbin clips, 10 pieces
• scissors
• cleaning brush
• screwdriver small and large
• Disk-shaped screwdriver
• bobbin cap small
• bobbin cap medium (additional in the machine)
• bobbin cap large
• bobbin net (x 2 pieces)
• touch pen
• Seam cutter
• additional bobbin pin
• spacer for stitch plate
• insert for a bobbin with a larger diameter
• accessory cover
• embroidery machine cover
• USB cable
• power cable
• Rotation controller (so-called. pedal)
• User manual in Polish (download below)

Specifications
