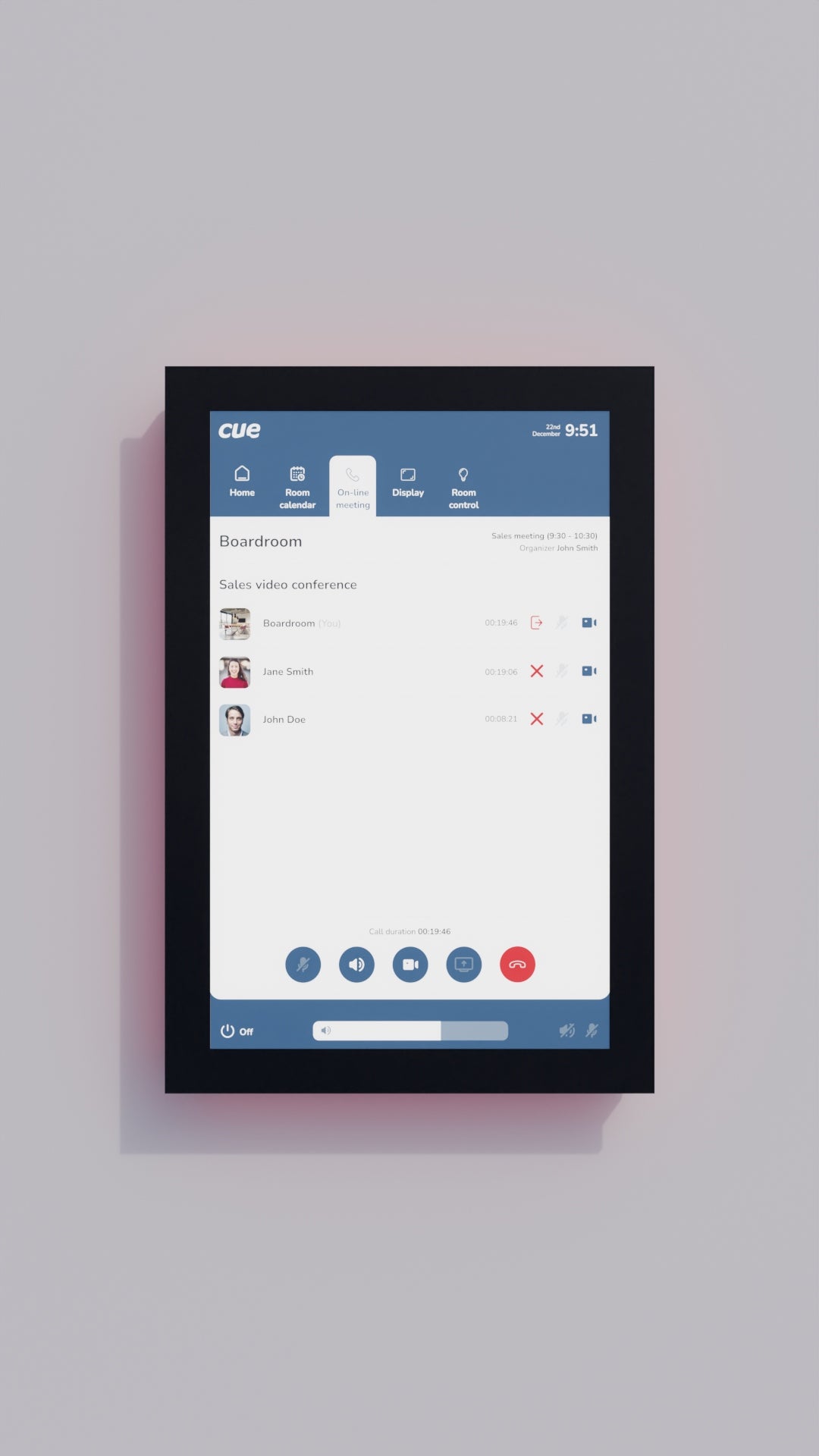

Sieninis rezervacijų valdymo jutiklinis skydelis CUE touchCUE-10-W CS0564

Trumpai apie prekę

Prekė: Sieninis rezervacijų valdymo jutiklinis skydelis CUE touchCUE-10-W CS0564. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0564

Product code: CS0564

• IP control port
• Horizontal or Portrait Mode
• Video preview
• Browsing the Website
• 10,1” TFT LCD color active matrix with LED backlight, 1 280 x 800 pixels resolution
• Expected capacitive touch pad
• RGB LED indicators for indirect light effect
• Single-cable Ethernet and PoE connection
• Microphone and Speakers
• Built-in NFC reader, light and proximity sensors
• Clear and slim design
• Simple installation on dry or glass wall
• Compatible with standard electrical boxes

touchCUE-10-W is a wired wall-mounted touch panel offering a clean, modern design with edge-to-edge windshield. Fully compatible with CUE controllers and interfaces, this touch panel provides the best one-touch solution for conference rooms, conference rooms, conference rooms and high-tech homes.

It can be installed in the horizontal or vertical position and is an ideal front for wall, lectern or furniture applications.

Landscape mode

Portrait mode

Touch screen with an active 10,1-inch matrix offers a resolution of 1 280 x 800 pixels (horizontal mode) or 800 x 1 280 pixels (portrait mode) and generates stunning images in true colors. The touch panel is equipped with a designed capacitive touch overlay.

Native support for standard video formats enables to watch live streaming video from IP cameras and other Ethernet-connected video sources. Video can be freely combined with other graphic objects within the user interface created with Cue Visual Composer.

Using the support of web browsing , it is possible to directly control devices providing a network user interface and connect it to layouts created using Cue Visual Composer. Web browsing control is particularly suitable for devices that have a complex user interface with many functions, usually audio and video players. Browsing the websites may also be used for other Internet services.

The touch panel offers PoE (Power over Ethernet) technology, allowing data and power to be transmitted via an Ethernet network cable. Single-cable Ethernet connection provides easy integration into your network.

The touch panel can be easily mounted on a glass wall or other flat surface, without the need for drilling into a wall or cutting a surface. When mounted, the protrudes only 23 mm from the mounting surface.

Standalone control panel and controller

This configuration allows you to create an economic, distributed control solution, in which the touch panel acts as a controller and a graphical user interface in one device. In Cue Visual Composer, touch panels and controllers are programmed in the same way.

Extension to different types of control ports

In this case, the touch panel acts as a graphical user interface and allows direct control of IP devices. The touch panel is fully compatible with all controllers, allowing

Technical data

Control ports

• IP control port

Touch-screen display

• IPS transmissive color active matrix TFT LCD with LED backlight
• Size 10.1” / 256.5 mm diagonal, widescreen
• Resolution

  Landscape mode 1,280 x 800 pixels

  Portrait mode 800 x 1,280 pixels

• Display colors 32-bit (True Color)
• Transparency 8-bit Alpha blending
• Pixel pitch 0.1695 × 0.1695 mm
• Brightness min. 300 cd/m2
• Response time 15 ms
• Contrast ratio 800 : 1
• Viewing angle 170° horizontal, 170° vertical
• Projected capacitive touch overlay
• Edge-to-edge glass

Indicators

• Programmable RGB LED indicators around the panel's perimeter create an indirect light effect visible from a distance.

Built-in sensors

• NFC reader, frequency 13.56 MHz, ISO14443A compatible
• Light sensor for automatic backlight dimming
• Proximity sensor for automatic backlight switching on

Buttons

• System Default

memories

• 2GB RAM
• 16GB NAND Flash (EMMC)

Software

• XPL2 runtime for the application created in Cue Visual Composer
• Support for web browsing
• Admin Web for setup

video

• Streaming video preview
• Codecs: H.263, H.264, H.265, MJPEG, MPEG-2, VP8, VP9

Audio

• Built-in microphone
• Built-in speakers

Network

• 10/100/1000 BaseT LAN, RJ-45 connector
• 802.1X authentication mechanism supported
• Proxy Server support

Power supply

• Power over Ethernet (PoE), 802.3af / Class 0 compatible

Physical

• Slim body, edge-to-edge front glass
• Multisurface, eg , glass wall installation
• Compatible with European, Swiss and US 2-gang / 3-gang standard electrical wall boxes
• Compatible with VESA standard 75 x 75 mm and 100 x 100 mm
• Protection IP30
• Dimensions 248 x 167 x 21.3 mm / 9.8” x 6.6” x 0.84” when installed
• Weight 0.9 kg / 2.0 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Touch panel touchCUE-10-W
• Mounting adapter
• Accessories for glass wall installation
• Squeegee
• Ethernet cable
• Cleaning tissue
• QuickStart

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	CS0564
Parametry	Manufacturer	no brand
Parametry	EAN (GTIN)	5906379663837
