Sieninis radiatorius Jaga Linea 35x50 T10, 0,4 kW, tinka šilumos siurbliams

Trumpai apie prekę

Prekė: Sieninis radiatorius Jaga Linea 35x50 T10, 0,4 kW, tinka šilumos siurbliams. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Jaga
• Modelis: 3550T10
• Plotis: 500 mm
• Aukštis: 350 mm
• Spalva: white

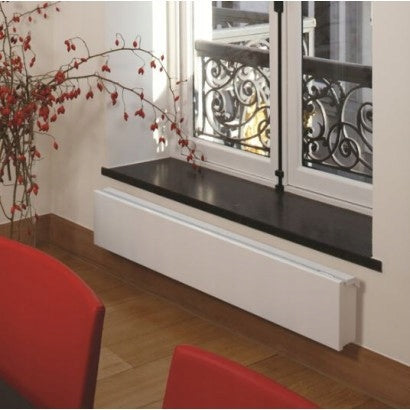

Jaga Linea Plus h35 x L50 - Wall-mounted Convector Heater for Low-Temperature Systems

.                                                     with T10 copper-aluminum heat exchanger, 400W output.

Jaga has been a market leader in heating solutions since 1962, known for innovative products developed by creative designers. Jaga challenges traditional thinking about radiators and their use, setting new standards in heating technology through continuous development. Its gentle shape and smooth front panel make this radiator suitable for almost any interior, even antique styles.

When installing condensing boilers or heat pumps, radiators often need to be larger. However, increasing radiator size can be difficult due to space limitations or aesthetic concerns. The modern Jaga LowH2O system offers an excellent solution. This heater can be wall-mounted or installed on floor stands. Its low water volume and light weight allow it to reach full heating power quickly, ensuring easy control, thermal comfort, and lower heating costs.

Construction: Copper-aluminum

• Low-H2O technology with a highly conductive and ultra-fast heat exchanger ensures low energy consumption and maximum heat output.
• Suitable for heating and cooling.
• Twin heat exchanger for better compensation of cold air downdrafts from glazed facades.
• DBE system for very low water temperatures – from 28 °C.
• Integrated valves and concealed connections.
• Safe surface temperature.
• Tested at 20 bar pressure.
• Coated with a special lacquer that prevents dust accumulation on the heater elements.
• Reaches operating temperature quickly due to very low water volume.
• Impressive heating performance at both standard and extremely low supply temperatures.
• Ideal combination of convection (warm air circulation) and radiation.
• Housing finished with a durable, polyester powder coating with a fine texture.

Includes:

- Low H2O heat exchanger with wall brackets, mounting kit, 1/8" air vent, and 1/2" plug.

- Partially assembled casing with left or right bottom connection.

Type: Wall-mounted

Technical Data:

Height (cm): 30

Width (cm): 50

Depth (cm): 11

Heat Exchanger: (T10)

Output (75°C): 400 W

Output (55°C): 200 W

Working Pressure: 10 bar

.                                                                       Retail Price - 950 PLN

.                                                                 Our Discounted Price - 600 PLN

.                                                      Separate radiator fans available.

We also offer Jaga wall-mounted radiators in other wattages and sizes, as well as floor-standing, trench, and raster grilles for them, made from dozens of types of wood, including exotic.
