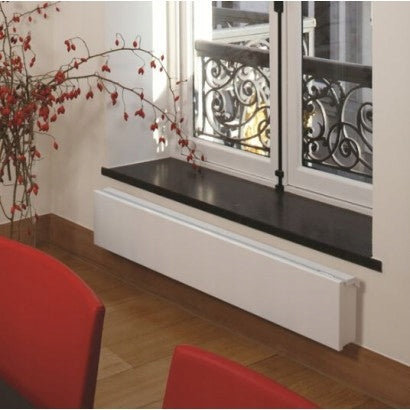

Sieninis radiatorius Jaga Linea 20x200 T20, 3,2 kW, tinkamas šilumos siurbliams

Trumpai apie prekę

Prekė: Sieninis radiatorius Jaga Linea 20x200 T20, 3,2 kW, tinkamas šilumos siurbliams. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Jaga
• Modelis: 545645324
• Plotis: 2000 mm
• Aukštis: 200 mm
• Spalva: white

Jaga Linea Plus h20 x L200 - Wall-Mounted Convector Heater for Low-Temperature Systems

.                                                     with T20 copper-aluminum heat exchanger, 3.2 kW output.

Jaga has been building its market position since 1962. The key to their success in the radiator market has been offering innovative products developed by creative designers. Jaga aims to break traditional thinking about radiators and their use. Through continuous development and offering better products, the company sets new standards in heating devices. Its gentle shape and smooth front panel make this radiator suitable for almost any interior, even antique ones.

When installing a condensing boiler or heat pump, radiators need to be larger. However, increasing their size is not always possible due to limited space or aesthetic concerns. The modern Jaga LowH2O system perfectly solves this problem. It can be mounted on the wall or on floor legs. Its low water volume and light weight mean the radiator quickly reaches full heating power, ensuring easy control, thermal comfort, and lower heating costs.

Construction: Copper-aluminum

• Low-H2O Technology: Features a highly conductive and ultra-fast heat exchanger for low energy consumption and maximum heat output.
• For heating and cooling.
• Twin heat exchanger for better compensation of cold air downdrafts from glazed facades.
• DBE System for very low water temperatures – from 28 °C.
• Integrated valves and hidden connections.
• Safe surface temperature.
• Tested at 20 bar pressure.
• Coated with a special lacquer that prevents dust accumulation on the radiator elements.
• Reaches operating temperature quickly due to very low water volume.
• Impressive heating performance at both standard and extremely low supply temperatures.
• Ideal combination of convection (warm air circulation) and radiation.
• Housing finished with a durable, polyester powder coating with a fine texture.

Includes:

- Low H2O heat exchanger with wall brackets, mounting kit, 1/8" air vent, and 1/2" plug.

- Partially assembled casing with bottom connection on the left or right side.

Type: Wall-mounted

Technical Data:

Height (cm): 20

Width (cm): 200

Depth (cm): 21

Heat Exchanger: (T20)

Output (75°C): 3200W

Working Pressure: 10 bar

.                                                                        Market Price - 3500 PLN

.                                                        Our Discounted Price - 1600 PLN

.Separate radiator fans available.

We also offer Jaga wall-mounted radiators in other wattages and sizes, as well as floor-standing, trench, and raster grilles for them made from dozens of types of wood, including exotic.
