SFP siųstuvas-imtuvas LevelOne, 2.5Gbps, 300 m, 850 nm

Trumpai apie prekę

Prekė: SFP siųstuvas-imtuvas LevelOne, 2.5Gbps, 300 m, 850 nm. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: EC
• Modelis: patrz opis i zdjęcia
• Aukštis: 13 mm

EAN code: 4015867240052

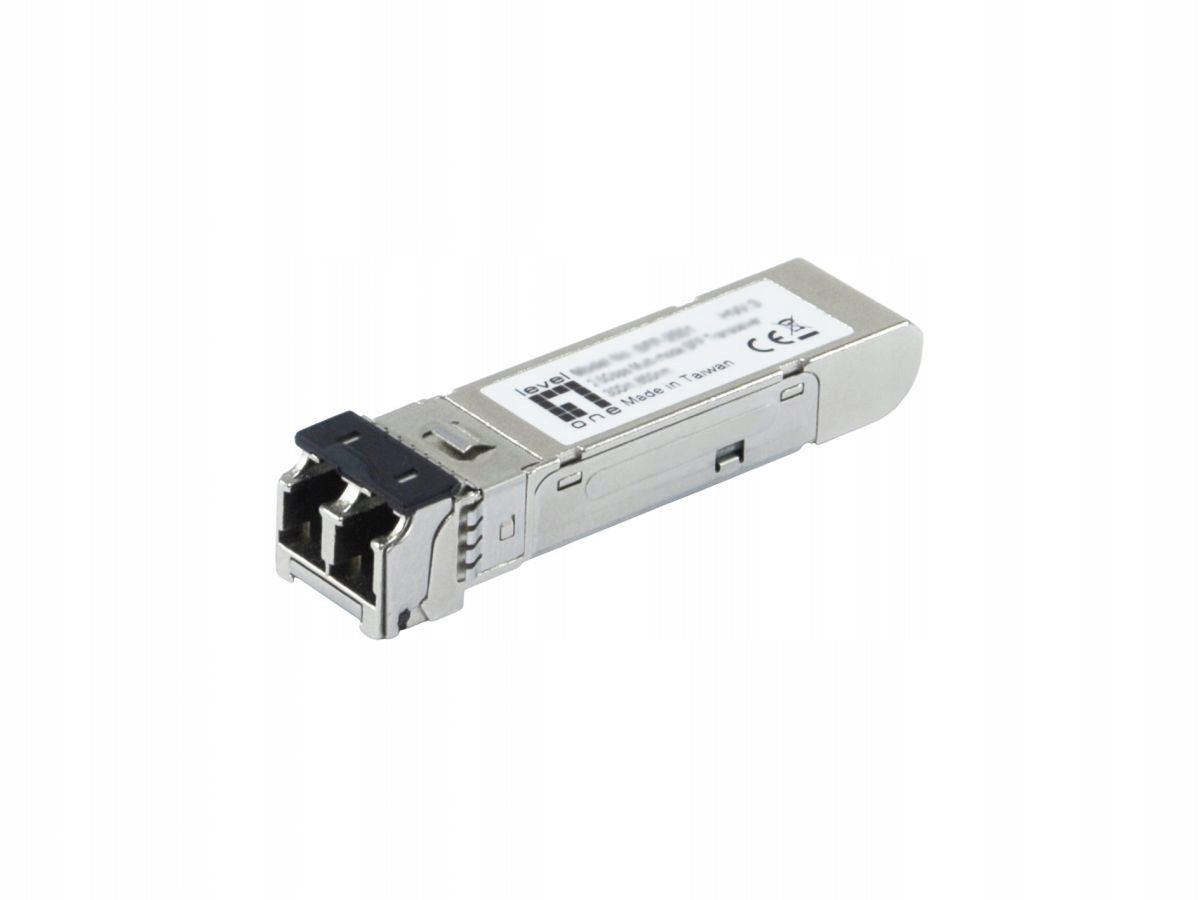

LevelOne 2,5Gbps Multi-mode Industrieller SFP Transceiver is a fiber optic module designed for data transmission at speeds up to 2500 Mbit/s. The device supports multimode fiber with a diameter of 50/125 µm and provides a range of up to 300 meters at a wavelength of 850 nm.

The transceiver is compatible with the SFP interface and features an LC connector. It is designed to operate in a wide temperature range from -40°C to 85°C, making it suitable for use in demanding industrial environments.

The most important advantages

• Transmission speed up to 2,5 Gbps
• Support 50/125 µm multimode fiber
• Transmission range up to 300 meters
• Operating temperature range from -40°C to 85°C
• Compatible with SFP interface and LC connector
• Plug & Play and hot-swap functions
• Digital Diagnostic Monitoring (DDM)

Applications

The LevelOne SFP-2601 transceiver module is used in industrial networks requiring fast and stable data transmission over short and medium distances. It works well in fiber optic installations in environments with variable temperature conditions.

The device is used in routers, switches and other network devices where a reliable fiber optic connection with a speed of 2,5 Gbps with support for the 2.5GBASE standard is needed.

Specifications
