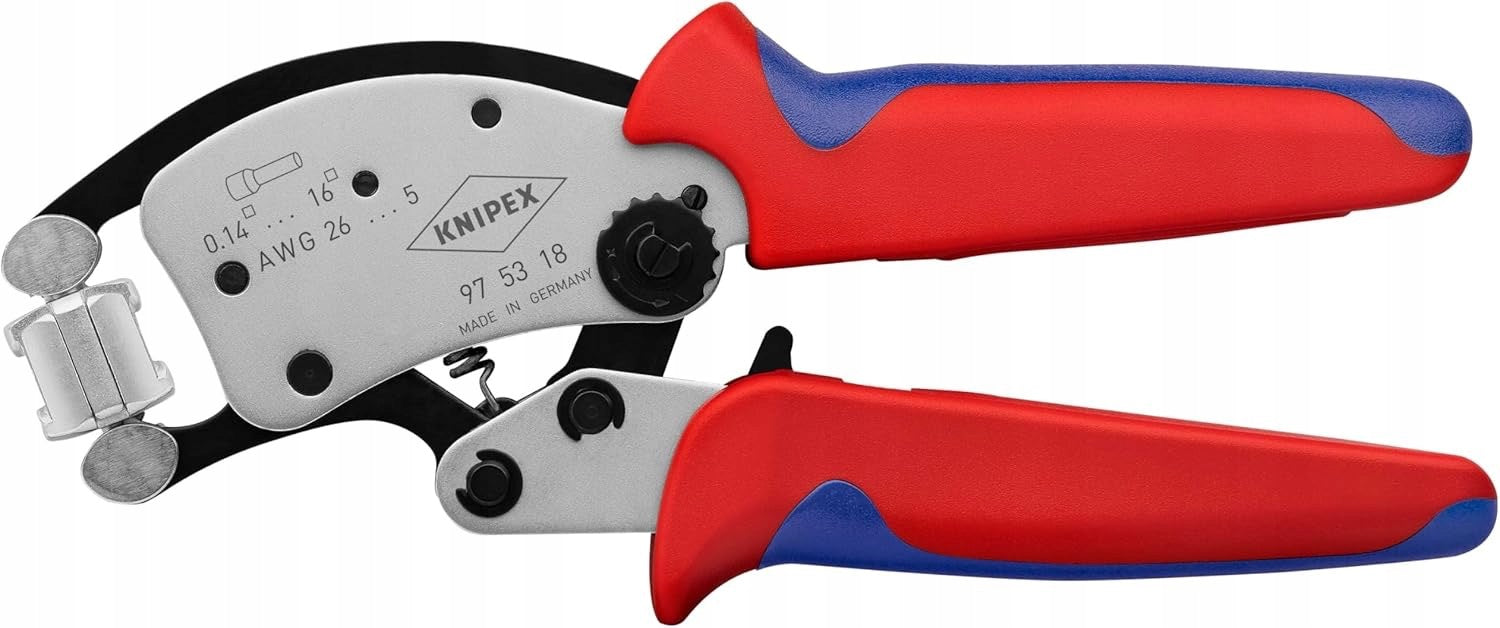

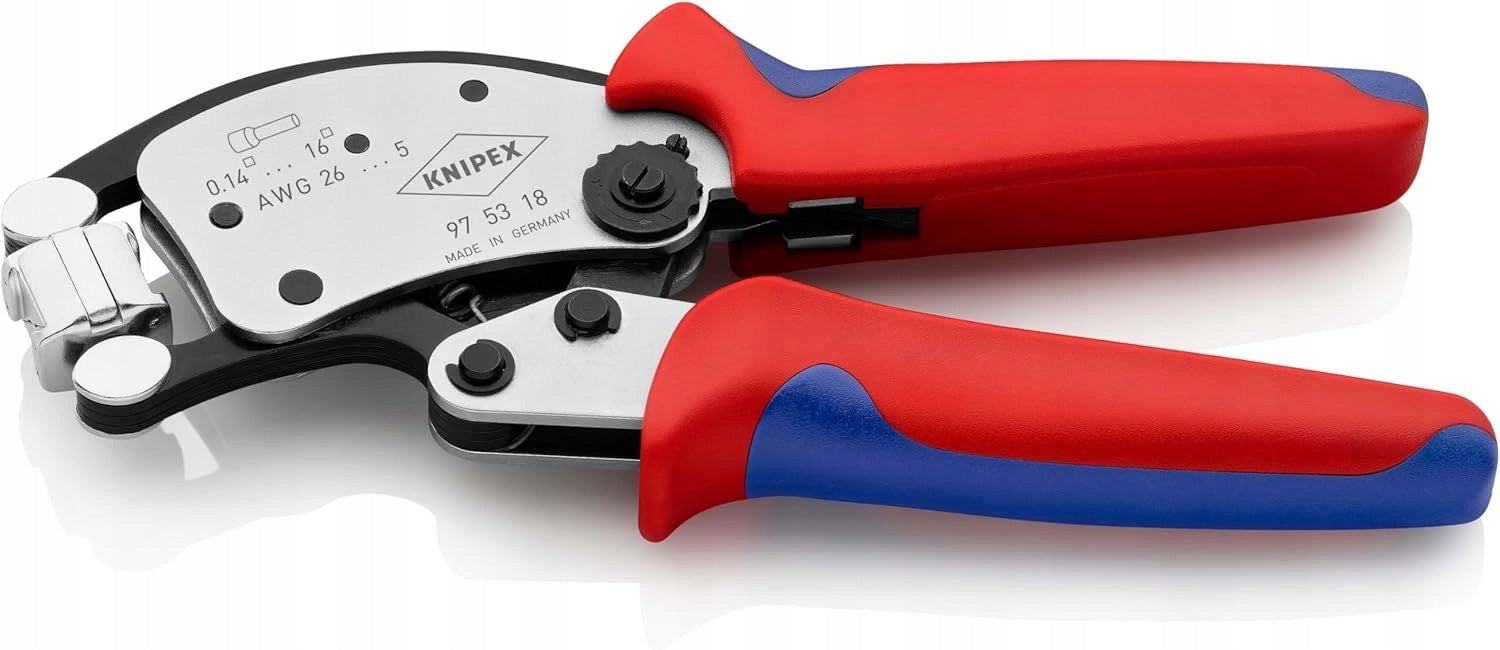

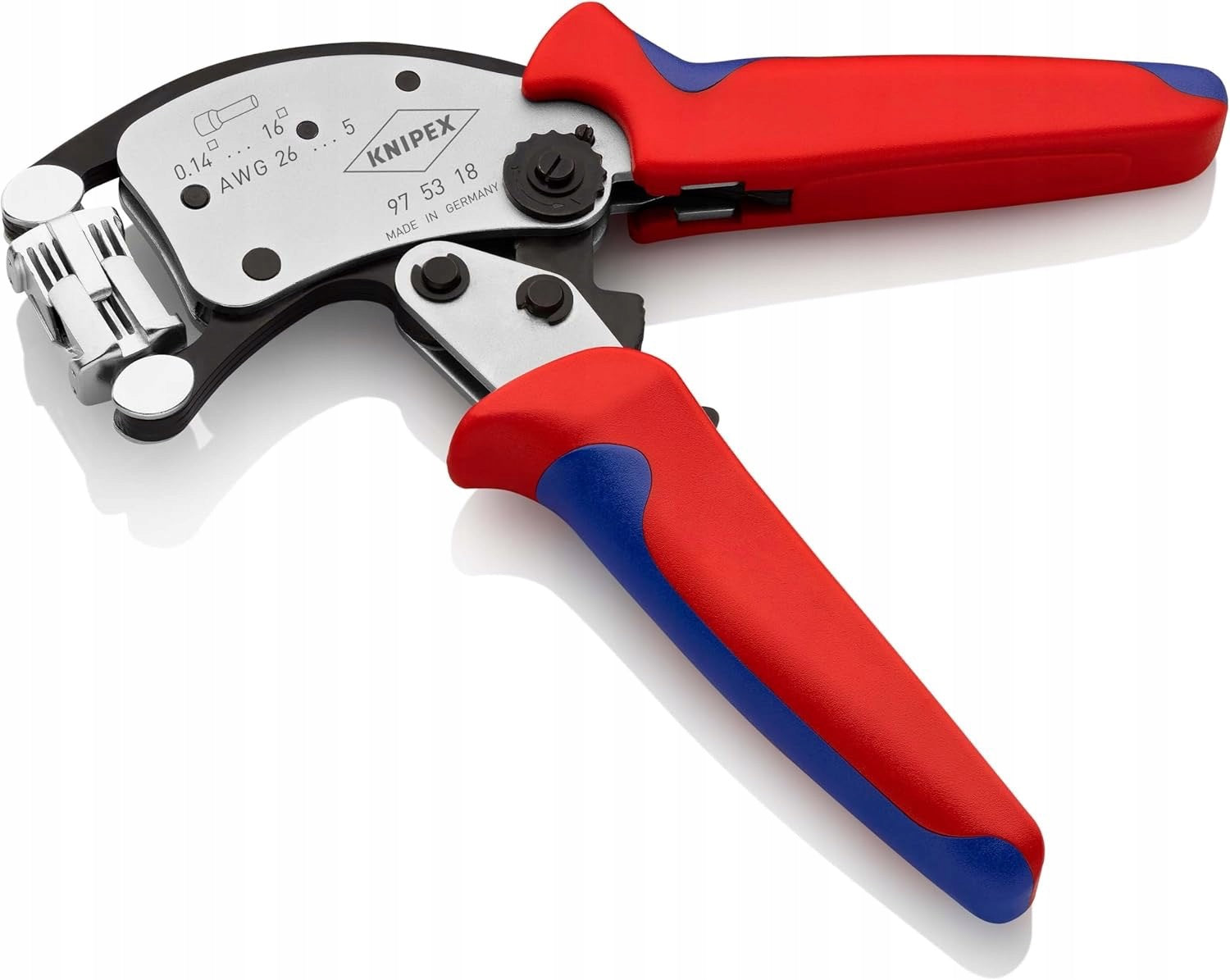

Savarankiškai išsilygiuojančios replės su besisukančia galvute KNIPEX Twistor16 97 53 18

Trumpai apie prekę

Prekė: Savarankiškai išsilygiuojančios replės su besisukančia galvute KNIPEX Twistor16 97 53 18. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 97 53 18
• Ilgis: 200 mm

• Crimping head rotated 360°, lock in 8 positions
• Square crimping profile, large working range from 0,14 to 16 mm2
• Possibility of crimping cable bushings in almost any position
• Pliers adapt automatically to wires of different cross-sections
• Crimping profile available on both sides, possibility of extending long cable sleeves

• For crimping cable bushings according to DIN 46228 part 1 + 4
• Square clamping profile, large capacity range from 0,14 to 16 mm²
• 360° rotating clamping insert; with 8 perceptible latch positions
• Self-adjusting fit to your desired cable sleeve size
• Possible crimping of double bushings up to 2 x 6 mm²
• Slim head for optimal accessibility
• Clamp pressure is factory set (calibrated), adjustable
• High operating comfort thanks to handy design, clever knee lever mechanism and light weight

Self-Adjusting Cable Sleeve Clamp Pliers with Rotating Clamp Head

Kneaded cable bushings from 0,14 to 16 mm² – from every direction!

Is it hard to reach the ends of cables? With Twistor16, it won't be a problem anymore. KNIPEX crimping pliers clamp cable bushings from almost any working position. Secret: Freely rotated 360° and slim clamp head can be used on both sides, which provides great flexibility and even more time saving during electrical installation. Since the square clamping profile automatically adapts to different cross-sections in the capacity range from 0,14 to 16 mm², no manual adjustment is required: simply turn the clamping head into a wire with a bushing if necessary, and then insert, press, ready!

KNIPEX Twistor16: fast use, easy ironing, permanently high crimping precision

Thanks to the self-adjusting adjustment to the size of the cable sleeves, you work faster. Thanks to the ingenious knee lever mechanism (favorable gear ratio), two-component handle sleeves (ergonomy! ) and light weight (only 478 g) you work easier. Thirdly, Twistor16's unlockable forced lock ensures consistently high-quality crimping. Fourthly, thanks to the unique Twistor16 design, extrusion is also carried out in difficult workplaces. One more thing: Crimping pliers made of chrome vanadium steel of special quality and hardened with oil. This means that high durability, long service life!

Literally versatile

The 360 degree rotating terminal head can be used on both sides and therefore there is no depth limit. Therefore, very long cable bushings can be moved and fully clamped with the second handle.

Self-adjusting for all commonly used cable cross-sections

Without looking for a suitable terminal block or terminal block: Twistor16 adapts to all commonly used cable bushings for cables from 0,14 to 16 mm².

Also suitable for many double cable bushings

Is it hard to press two wires? Not with Twistor16: Crimped also double cable bushings for two 6 mm² cables.

Specifications
