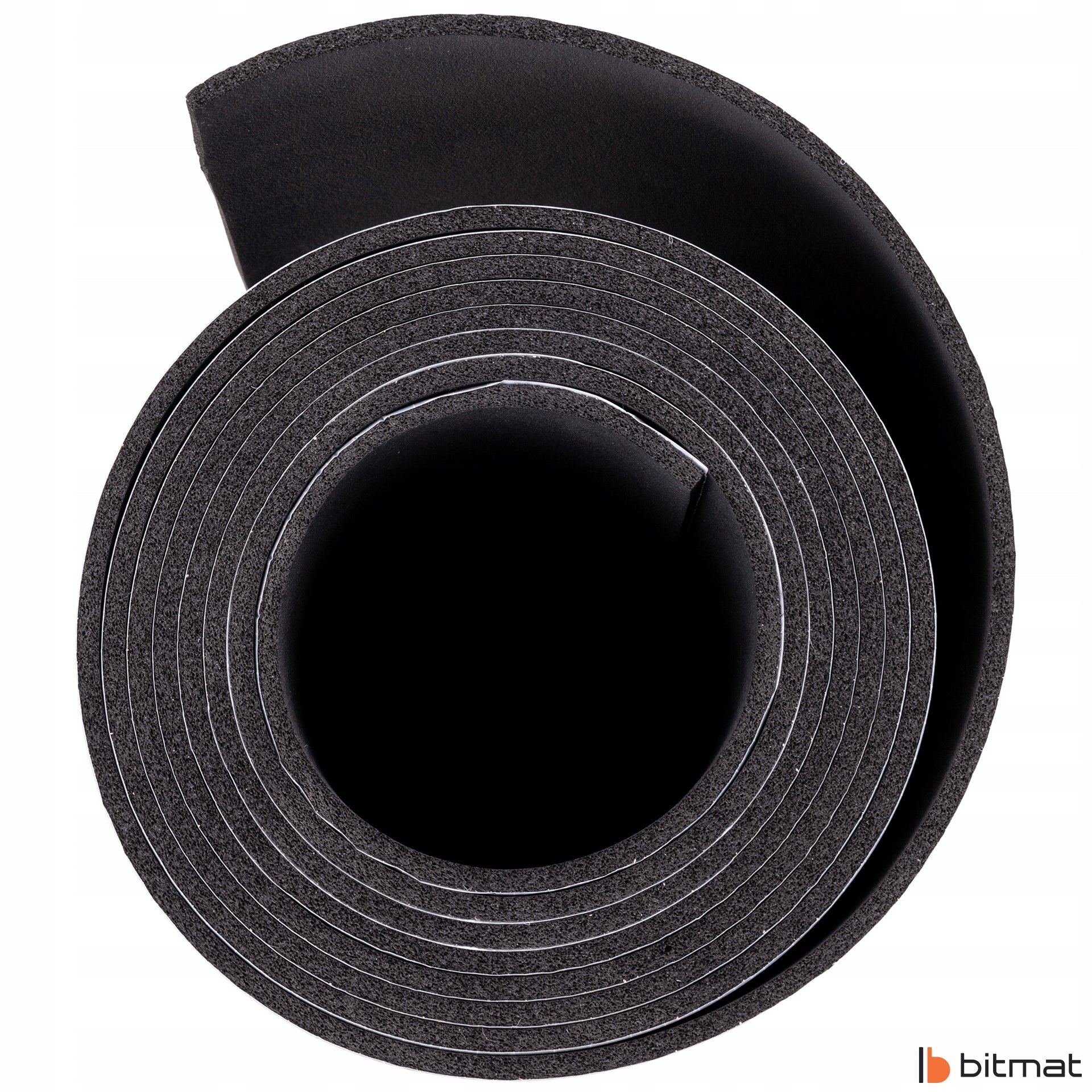

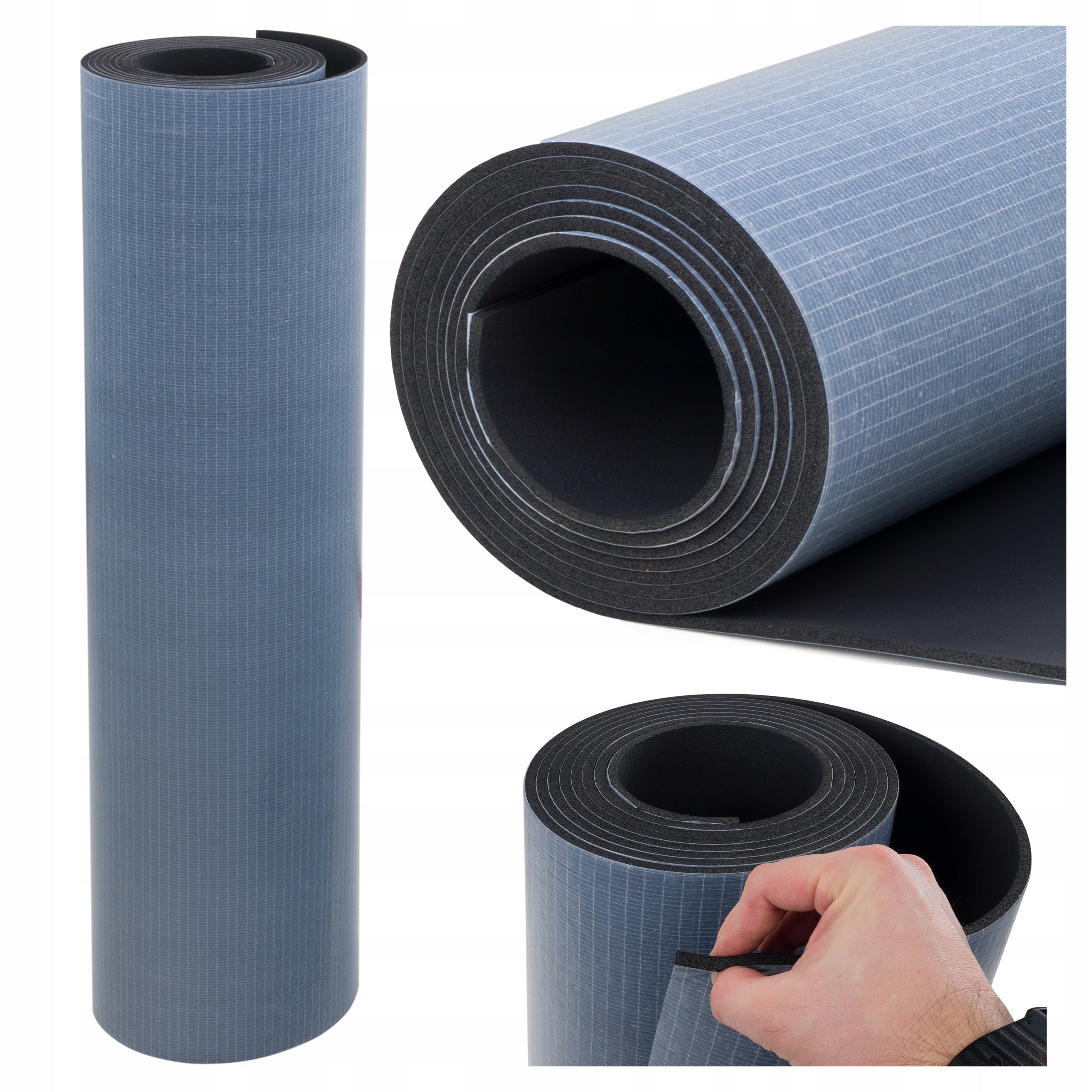

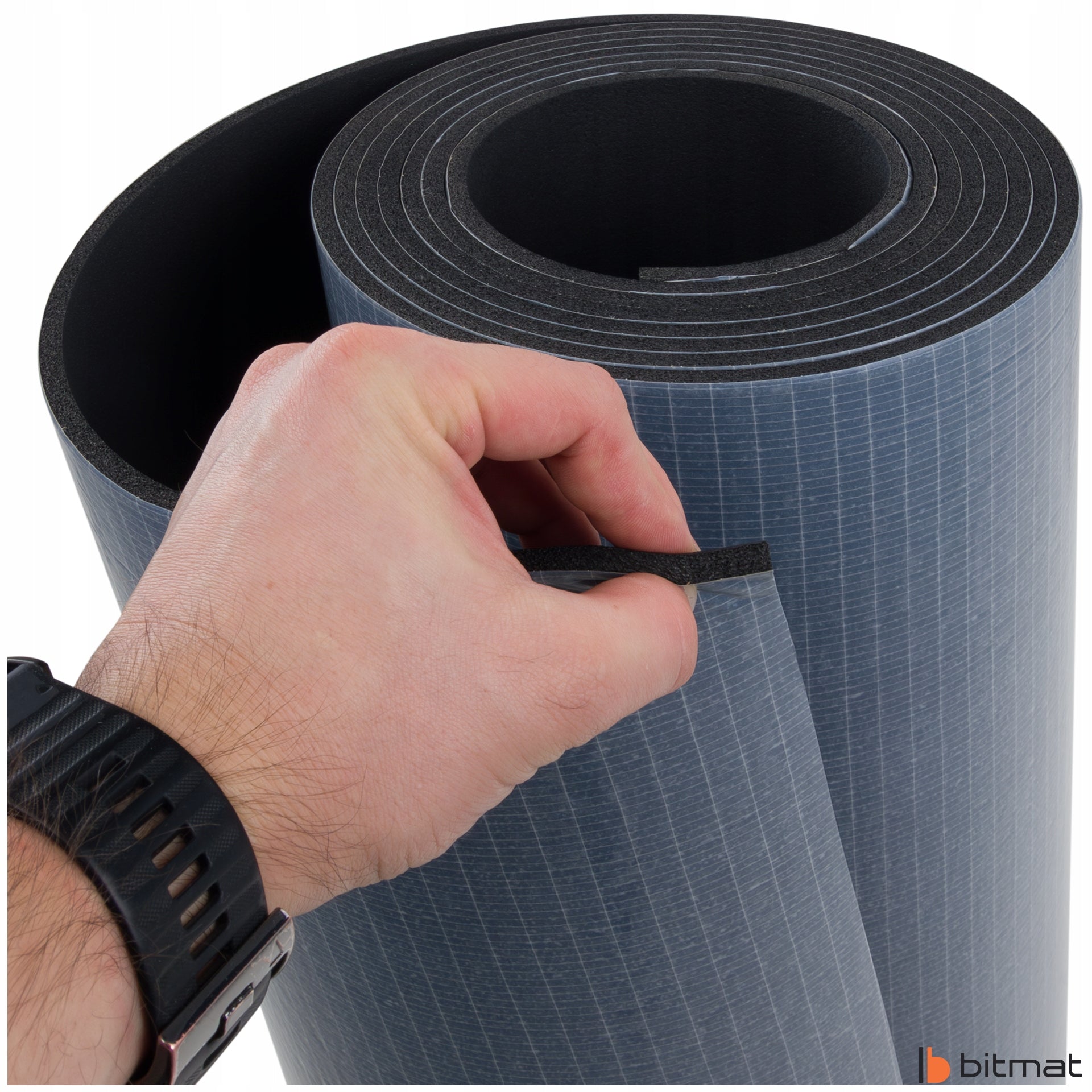

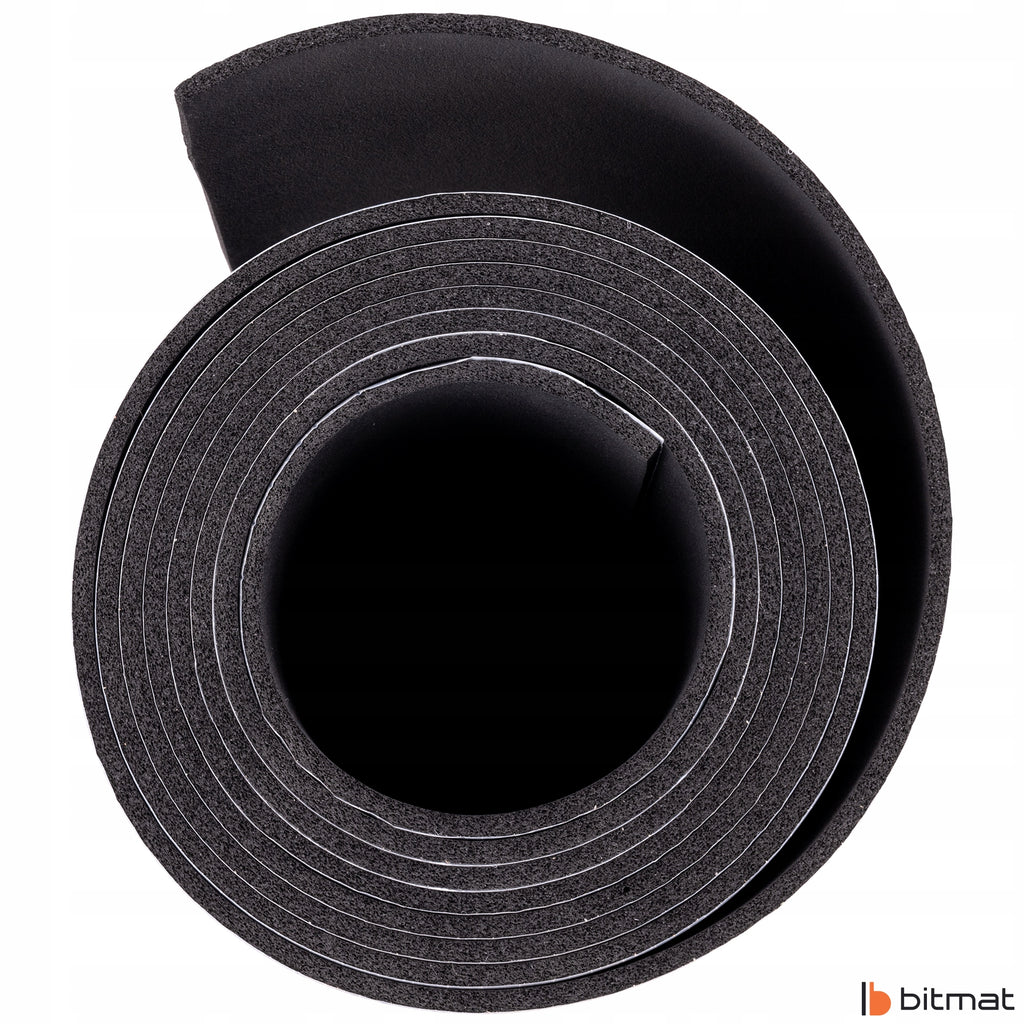

Savaime prilimpanti 6 mm Bitmat garso izoliacinė putų kilimėlis

Trumpai apie prekę

Prekė: Savaime prilimpanti 6 mm Bitmat garso izoliacinė putų kilimėlis. Kategorija: Garso izoliacijos elementai.

• Gamintojas: Bitmat
• Modelis: K6s Pianka tłumiąca 6mm 100x100cm

Thickness: 6 mm

Symbol: K6s 100 × 100 cm

Raw material tested by PIMOT — Automotive Industry Institute

K6s Bitmat soundproofing mat — rubber insulation foam with closed cell structure with a layer of strong adhesive, has high acoustic and insulation properties.

The material does not absorb moisture and is resistant to chemicals, creates an acoustic barrier and perfectly absorbs noise and isolates from temperature (thermal).

1 piece = 100 × 100 cm = 1m2

2 pieces =200 × 100 cm = 2m2

4 pieces = 400 × 100 cm = 4m2

8 pieces = 800 × 100 cm = 8m2

...

10 pieces = 1000 × 100 cm = 10m2

...

15pcs = 1500 × 100 cm = 15 m2

We sell foam from a roll with a width of 100 cm.

What characterizes our marshmallows?

• They have the highest quality strong adhesive on the technical mesh, so that the adhesive does not dry out and lasts longer higher temperatures
• They are manufactured in the EU and have the necessary research and documents m.in. CE.
• The composition of the foam after many years of testing is optimally selected for the most effective silencing.
• Only our foams are signed with the Bitmat brand.
• They were tested in PIMOT for noise isolation.
• They do not emit toxic and unpleasant odors

Properties:

• Does not absorb water and odors
• Resistant to chemistry
• Low weight
• Very strong adhesive
• Flexible for easy installation
• Insulation of medium and high frequency absorption
• Large thermal insulation
• High density provides a wide spectrum of attenuated frequencies
• Does not oxidize, does not emit harmful substances for health
• Self-extinguishing, non-proliferative fire, non-forming burning drops.
• The structure of foamed rubber also provides excellent insulation

Rubber foam mats not only perfectly insulate, but also show high resistance to moisture and chemical substances (m.in. do not absorb odors).

There are also no difficulties caused by the installation of foam, because mats are self-adhesive, and the adhesive used in them holds extremely firmly.

Type K rubber silencing foam by Bitmat with high damping coefficient, designed for use in a wide temperature range -50 to 85°C. It does not shrink or oxidize unlike polyurethane materials.

It has the best insulation properties and loss of acoustic waves.

Adequate density and cell structure provides a wide spectrum of suppressed frequencies, and the material from which it is made retains its damping parameters at both low and high temperatures, which cannot be said about polyurethane or polyethylene materials, etc.

The product has a hygienic certificate and a certificate issued by PIMOT.

Advantages of rubber foams type K from Bitmat:

• High sound insulation
• High thermal insulation
• High resistance to external factors, salts and bases, oils and some acids
• Easy installation, strong adhesive
• High density provides a wide spectrum of attenuated frequencies
• Does not oxidize, does not emit harmful substances for health
• It has additives to reduce flammability

The advantage of this material is also its ease of installation: the mats are self-adhesive, and their structure is composed of the so-called. closed cells, which guarantees a strong hold.

Rubber mats are designed for wide-ranging applications in industry, construction and automotive.

They can also effectively improve noise reduction inside vehicles.

Application:

• Construction: ventilation ducts, insulation of buildings, silencing of walls and ceilings.
• Automotive: car silencing, car audio, thermal insulation, boats, planes.
• Industry: soundproofing of machines, compressors, aggregates.

Thanks to their noise-reducing properties, as well as their dust-free and fibre-free structure, pK-type foams from Bitmat are suitable for use in public, industrial and commercial buildings.

*The pictures show how the mat can be used.

Application of deafening mats:

The best results can be achieved by using butyl mats alubutyl AB-2 (2 mm) or AB-25 (2,5 mm) in combination with rubber foams to create a two-layer acoustic barrier against hum and noise.

First, you should apply butyl mat AB-2 (butyl mat 2 mm) or AB-25 (butyl mat 2,5 mm) mapping the shape of the sheet metal. Butyl mats absorb vibration and create a barrier to noise. The second layer is type K foam from Bitmat — soundproofing rubber rubber with a strong adhesive that insulates and absorbs noise.

This is a more effective option than the manufacturer used – bitumen mats and felt. To properly install rigid bitumen mats, you need to heat them with a heat gun for a long time and form them with a special roller. Felt, on the other hand, must be secured from the top, e.g. foil or rubber foam so that it does not absorb water and odors.

Technical data:

• Thickness: 6 mm
• Weight 1 m2: 0,45 kg
• Density: 50-60 kg/m3
• Water absorption: maximum 0.1 %
• Temperature range: -50 °C to 85 °C
• Flammability Class: UL94 V-0
• Meets ISO3795 standard
• Acoustic insulation: ~ 40 dB
• Closed cell structure
• Color: Black
• pH: Neutral
• Reaction to fire: Self-extinguishing, non-creating burning drops, non-spreading fire
• Corrosion resistance (DIN 1988): Meets the requirements
• Compliant with CE standards
• Resistance to fungi and bacteria (VDI 6022): Meets requirements
• Hygienic Certificate No. 149/322/149/2025
• Health Aspects: Does not contain dust or fibers. Does not contain heavy metals (cadmium and lead)

The price is for 1-piece K6s rubber foam with dimensions:

length 100 cm x width 100 cm, thickness 6 mm
