Rotacinis volas Ortur YRC1.0 su horizontaliu 180° kampu ir Q1

Trumpai apie prekę

Prekė: Rotacinis volas Ortur YRC1.0 su horizontaliu 180° kampu ir Q1. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 1453CBMJ

Function:

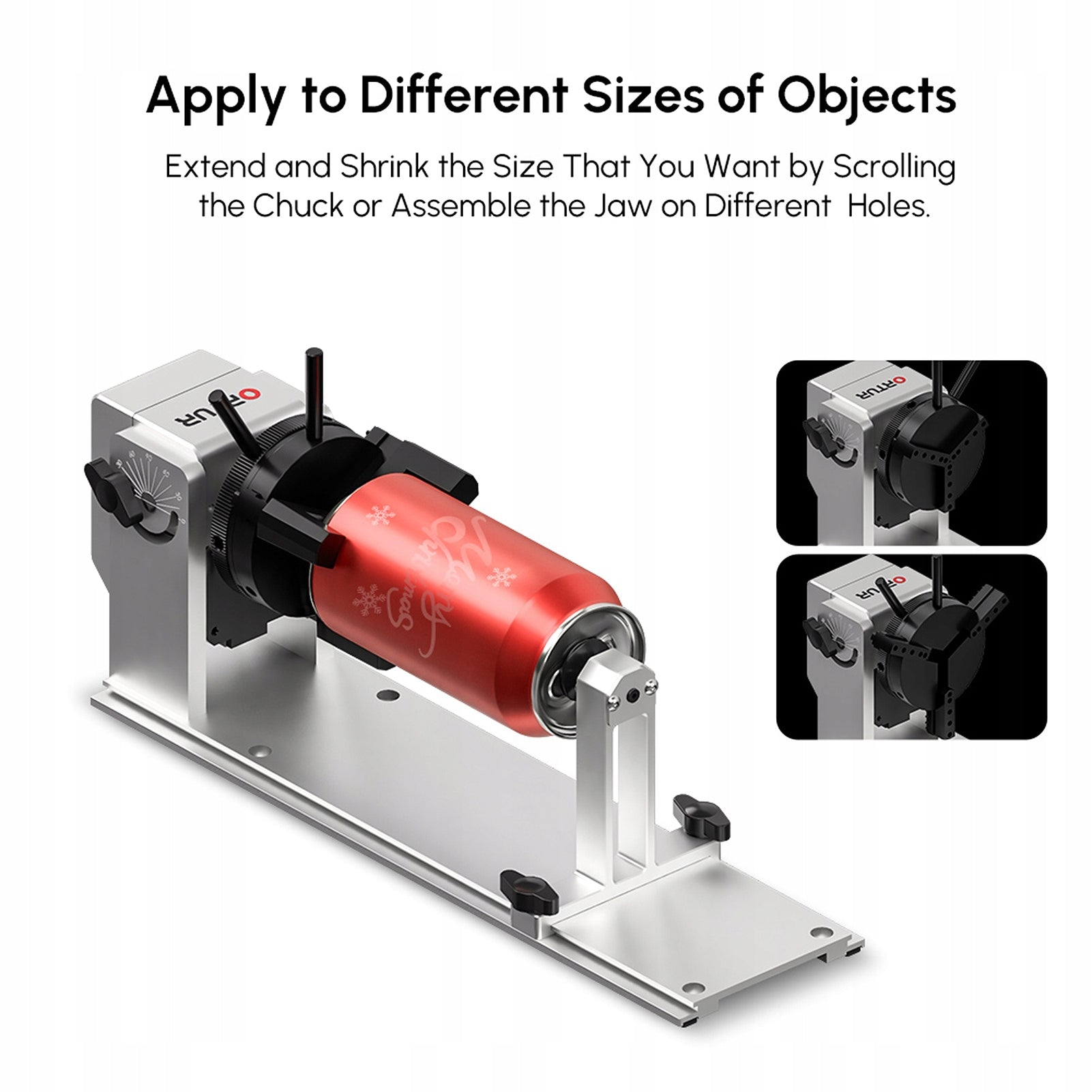

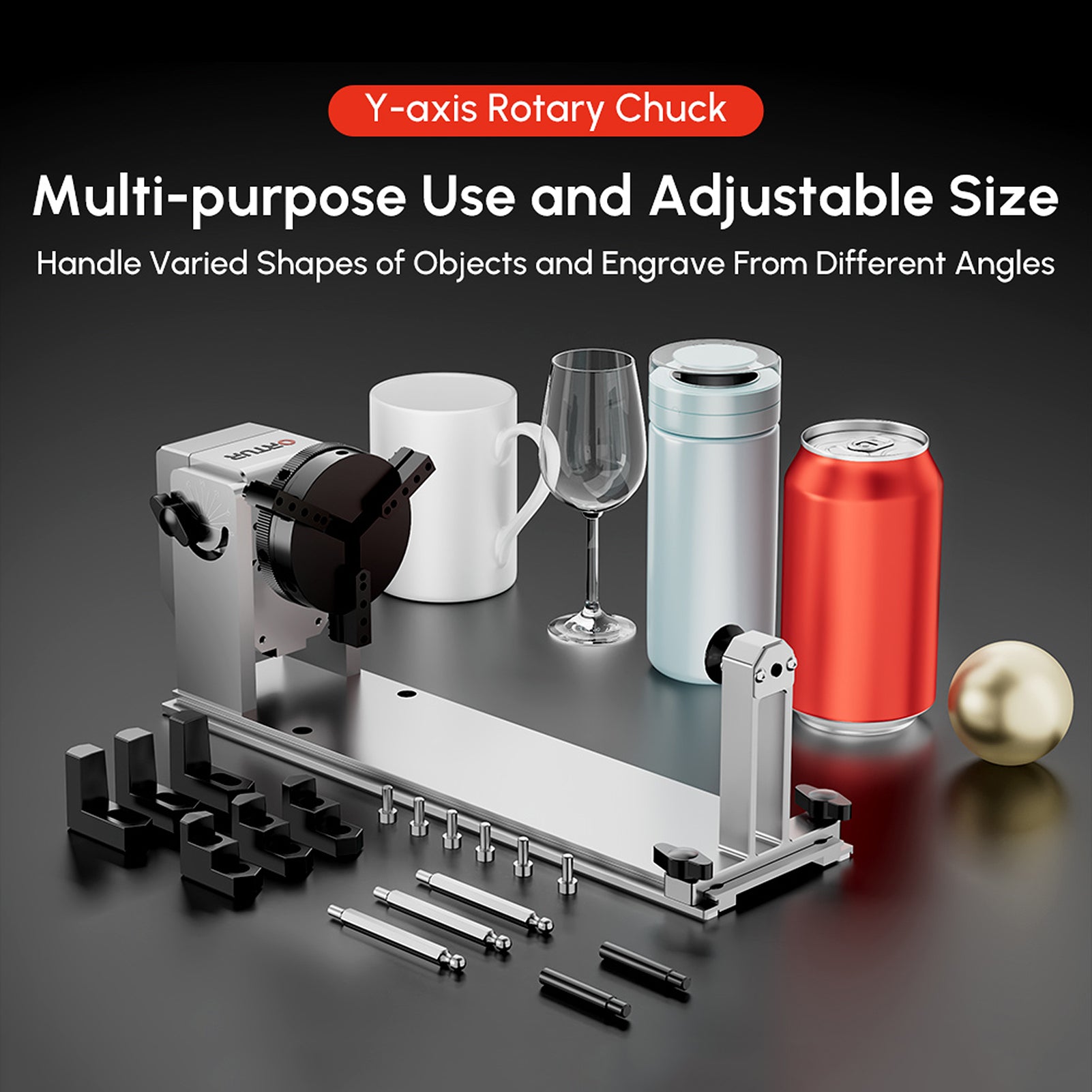

1. Wide application: The rotating Y-axis chuck can be engraved at 360° and you can unleash your creativity by changing the accessories for engraving items (such as wine glasses, snowman cups, baseball bats, rings, balls or cups with handles, etc. )

2. Durable: Made of aluminum alloy, the one-piece structure is more robust and reliable, free from installation, powered and controlled by laser engraving machine.

3. Quick Engraving: The rotating Y-axis Chuck can cover the jaw bayonet with a cushion to firmly fix the object, and the operation is smooth and effective. Engraving speed can reach 360°/s.

4. Easy to install: the rotating Y-axis chuck does not need to be disassembled, and the adjustable height range is 0-180°, which can be used to engrave the rings and inner walls of rings or cups with handles, etc.

5. Chain Compatibility: This Ortur rotary engraving machine and all Atomstack/Xxol/Twotrees/Neje/Sculpfun laser engraving models and compatible with soft laser, incandescent and lasergrbl.

Specification:

• Characteristics:
• Wide Application: The rotating Y axis chuck can be engraved at 360° and you can unleash your creativity by changing the accessories for engraving items (such as wine glasses, snowman cups, baseball bats, rings, balls or cups with handles, etc. )
• Durable: Made of aluminum alloy, the one-piece structure is more robust and reliable, free from installation, powered and controlled by laser engraving machine.
• Fast for Engraving: The rotating Y-axis Chuck can cover the jaw bayonet with a cushion to firmly fix the object, and the operation is smooth and effective. Engraving speed can reach 360°/s.
• Easy to install: the rotating Y-axis chuck does not need to be disassembled, and the adjustable height range is 0-180°, which can be used to engrave the rings and inner walls of rings or cups with handles, etc.
• String Compatibility: This rotary axis supports all Ortur engraving machines and all Atomstack/Xtool/Twotrees/Neje/Sculpfun laser engraving models and is compatible with soft lasers, light bulbs and lasergrbl.
• Specification:
• Model: YRC1.0
• Material: aluminum alloy + stainless steel + ABS plastic
• Color: Black and Silver
• Size: 323x126x156 mm (expanded)
• Weight: 1,5 kg
• Maximum angular speed: 360 °/s
• Support Models: All Ortur laser engraving machines and some other brand engraving machines
• Engraving diameter Range: 1-120 mm; Ball: 25-150 mm; Ring: 11-100 mm
• Package Size: 38,5x17x12cm/15.1x6.6x4.7 inches
• Package Weight: 1677G/3,6 oz

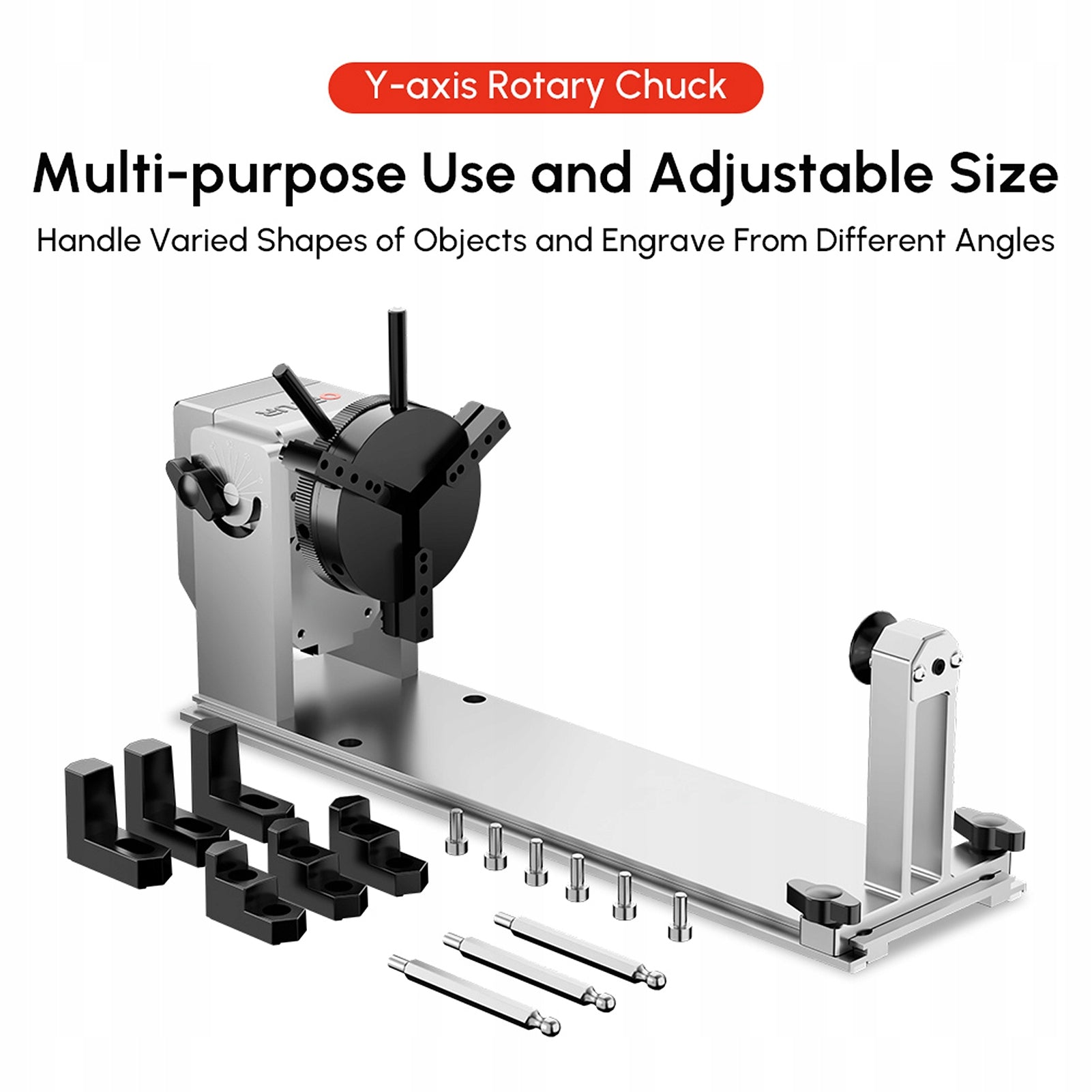

• List of packages:
• 1 x Main Part
• 1 x Ogonstock
• 2 x Rotary Knob
• 6 x m4*10 mm screw
• 3 x Square Jaw
• 3 x Jaw Ladder
• 3 x Stud
• 2 x Key
• 1 x 3 mm Allen key
• 2 x Adapter Cable
• Motor cable 1 x
• 1 tape measure X
• 1 x Mini Level

List of packages:

• 1 x Main Part
• 1 x Ogonstock
• 2 x Rotary Knob
• 6 x m4*10 mm screw
• 3 x Square Jaw
• 3 x Jaw Ladder
• 3 x Stud
• 2 x Key
• 1 x 3 mm Allen key
• 2 x Adapter Cable
• Motor cable 1 x
• 1 tape measure X
• 1 x Mini Level
