Pristatymo terminas kiekvienai prekei nurodomas prie kainos bloko.
Pristatymas visoje Lietuvoje: nemokamas.
Trumpai apie prekę
Prekė: Rotacinis variklis KDE DIRECT KDE5215XF-330. Kategorija: Dronai ir multikopteriai.
- Gamintojas: no brand
- Modelis: KDE5215XF-330

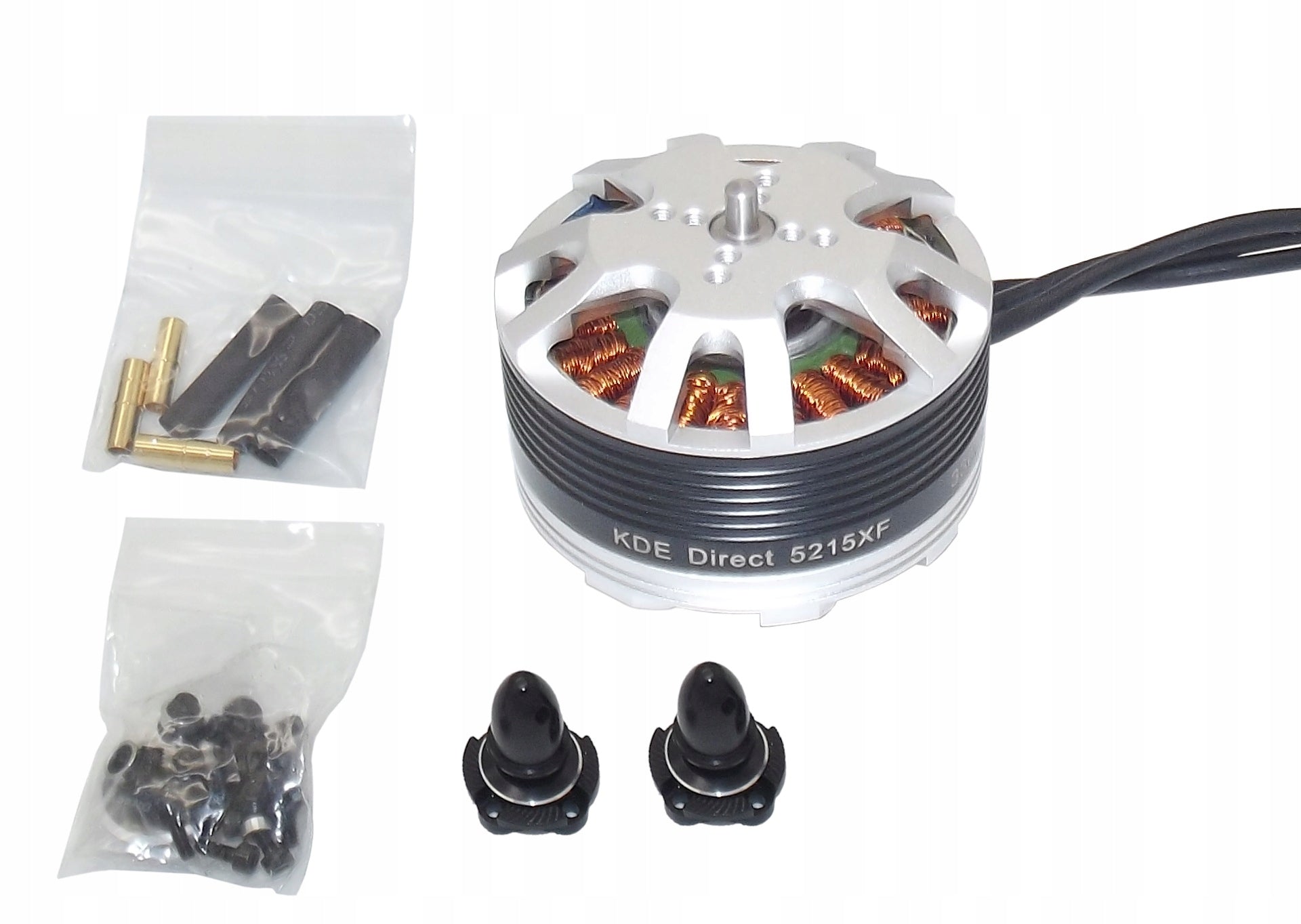

The KDE Direct 5215XF-330 - brushless motor is an extremely efficient and powerful motor for many multi-rotor applications. It guarantees trouble-free flying of the drone for hundreds of hours.
Manufacturer: KDE Direct
Model: KDE5215XF-330
Kv (constant motor speed): 330 rpm /min
Kt (constant engine torque): 0,0289 Nm/A
Km (engine constant): 0,1380 Nm / √ (W)
Max. Continuous current: 62 A (180 s)
DC voltage: 33,6V
Max. continuous power: 1835 W (180 s)
Rm (wind resistance): 0,044 Ω
Stator poles: 24 (24S22P)
Shaft length: 5,5 mm
Engine diameter: 60 mm
Engine length: 41 mm
Engine weight: 305 g (360 g with wires / balls)
Propeller blade size: to 21,5"-TP (18,5" -TP maximum in 8S)
Included:
- KDE engine (1 piece).
stock no.: #DR16 (NM-R5)
Original photos - show the item being sold.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | KDE5215XF-330 |
| Parametry | EAN (GTIN) | 6902857319226 |
| Parametry | Manufacturer code | KDE5215XF-330 |
| Parametry | Batteries included | no |
