Rotacinis lazeris NIVEL SYSTEM NL340R, raudonas spindulys, 500 m, IP54, DIGITAL

Trumpai apie prekę

Prekė: Rotacinis lazeris NIVEL SYSTEM NL340R, raudonas spindulys, 500 m, IP54, DIGITAL. Kategorija: Optiniai nivelyrai.

• Gamintojas: Nivel System
• Modelis: NL340R DIGITAL

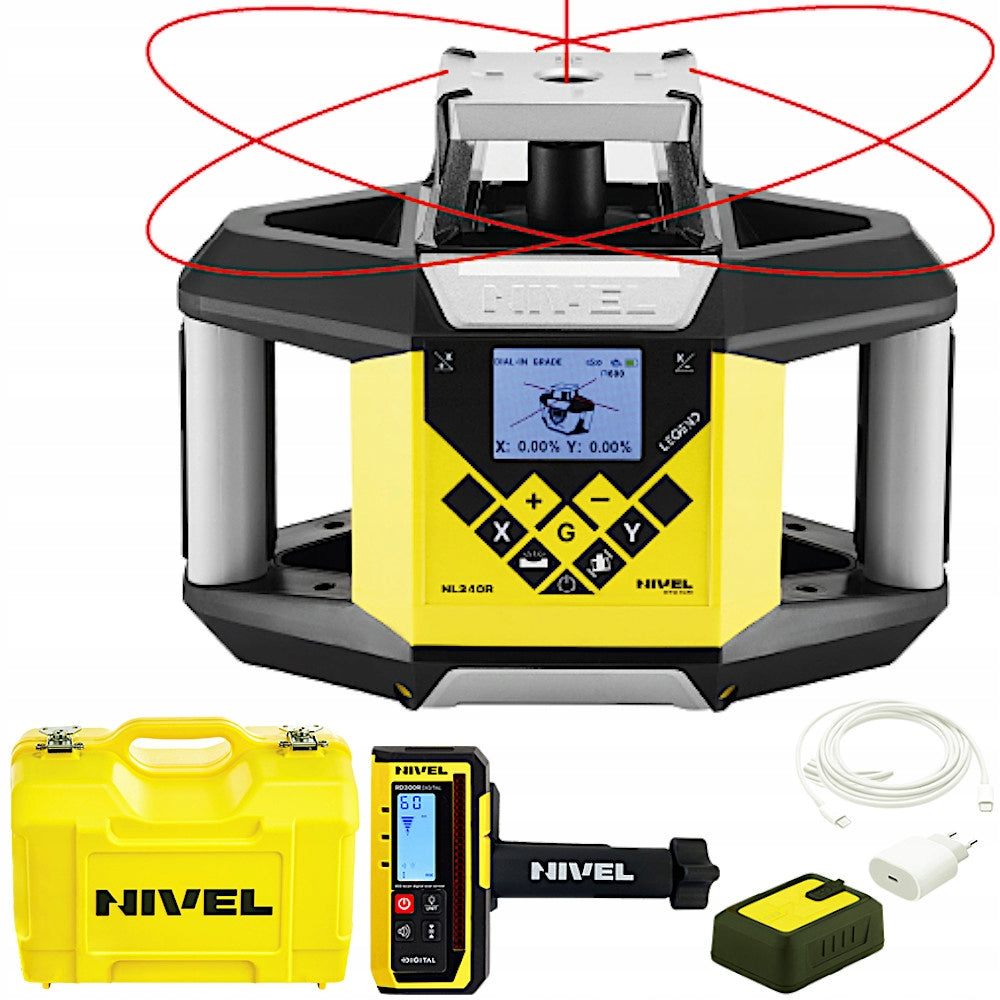

INCLUDED: rotary laser NL340R, laser sensor, sensor holder, battery, charger with cable, transport case

NS-NL340R

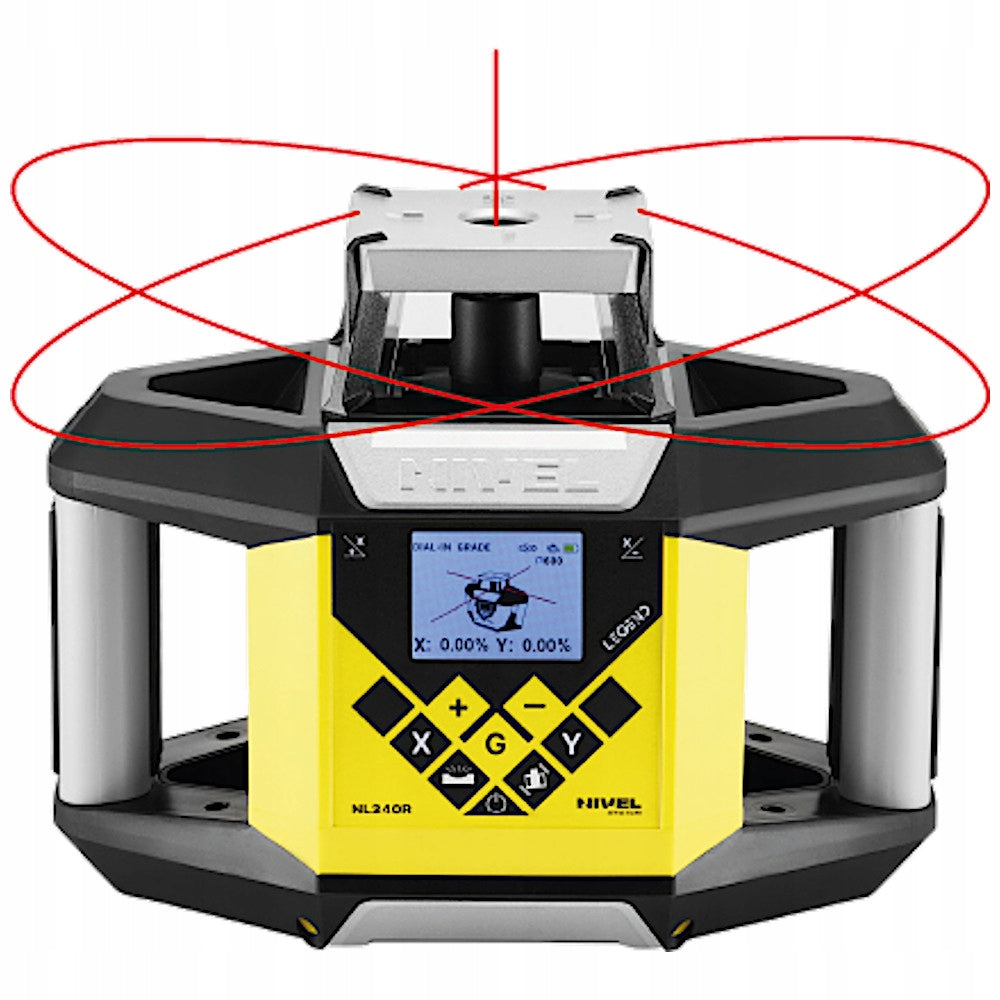

Description of Nivel System NL340R DIGITAL rotary laser

• The Nivel System NL340R DIGITAL rotary laser is a versatile laser leveler ideal for construction work in open spaces and indoors.
• Equipped with a red laser beam, it ensures high precision measurements.
• Nivel System NL340R determines horizontal planes (with digital tilt in two axes), and the laser riser allows you to determine verticals and right angles.
• The range of 500 m and vibration resistance ensure reliability even on rough terrain.
• The NL340R DIGITAL is offered with a digital sensor and an intuitive LCD interface.
• Construction laser NL340R is precision and convenience in every job.

The most important features

• Versatility and modernity – working with a horizontal plane.
• Leveling process automation – digital leveling with RD300 Digital sensor.
• High precision measurements of 1,0mm/10m.
• Excellent price-quality ratio, red laser beam.
• Safe use for years, reliable, proven design (IP54).

Additional information

• Long range – the ability to work in the open space at a distance of 500 m (diameter of laser operation).
• Efficient leveling – a digital laser sensor with numerical determination of the height difference (laser sensor, digital) significantly improves leveling and increases its accuracy (no need to read the value from the patch, this value is presented on the sensor display).
• Working with an inclined plane – the laser beam can be tilted digitally in one or two directions in the range of ±10%, the determination of drops in the field is performed digitally and without the need to calculate the height of individual positions.
• Laser in each direction – the head emitting the laser plane horizontally additionally determines the linear laser, which makes it easier to define the plane at right angles to the designated line.
• Fast self-leveling – the compensator quickly and precisely levels the instrument, and the leveler “movement” alarm eliminates making incorrect measurements with inadvertent deduction or leveling.
• One-person service – only one person is needed to operate the leveler and determine the height.
• Efficient power supply – Li-ion battery (8000mAh), rechargeable during operation.
• Rich standard package – the leveler is equipped with practical accessories supporting the work (DIGITAL laser sensor, laser patch holder, batteries, charger, transport trunk).
• Working in all conditions – armored, reinforced with a metal body housing, metal laser head cover, rubber corners cushion and protect the laser from damage due to impacts and shocks, dust and water resistant equipment (IP54).

Easy and quick measurements

• The NL340R laser has an auto-leveling function.
• When turned on, the device will automatically level and is ready to go.
• The generated red laser beam creates a reference line on the wall, ideal for horizontal work.
• In work with the sensor and laser patch, measurements can be performed single-person.

Universal application

• The equipment allows you to work with a horizontal beam.
• The plane can be tilted in one or two directions digitally, which makes it ideal for work such as pouring floors, leveling the surface under paving stones, pitches or road.
• Thanks to the laser verticalizer function, it is possible to precisely position the laser for perpendicular work and point transfer.

Accurate and reliable equipment

• The NL340R laser is built on the basis of an electronic compensator that eliminates vibrations, ensuring precise leveling of the plane.
• The electronic compensator is more accurate in difficult construction conditions, where the terrain can vibrate due to the work of heavy equipment.
• The leveler is dust and water resistant, IP54 certified.
• The rotary head is covered with a glass body and the laser housing is protected with rubber covers.

Convenience of operation

• The NL340R laser is easy to use thanks to its intuitive control panel.
• Functions such as declines are done manually.
• The laser is powered by a 8000mAh lithium-ion battery.
• The batteries have no memory effect, which means that they do not damage themselves when overcharging.
• The laser can also be powered directly from the mains, and its compact housing makes it handy and easy to transport.

Laser leveling – work faster, more accurately and without restrictions

• The NL340R is very simple and quick to use.
• Simply place it on a tripod, laser shelf, or other stable base and turn on the power.
• The equipment will automatically level itself.
• The laser head of the leveler, rotating around its axis, creates a perfectly leveled laser plane that is able to cover more than 19 hectares of land with its range.
• Measurements of the height difference are made by one person using a laser sensor with indications visible even in the sun.
• In the case of working inside the building, very often the use of a sensor is not required, because the laser beam is visible.

Land equation, road construction, parking lot, paving works

• The laser plane generated by the laser is the reference base by which the height rows are deposited with high millimetre accuracy.
• The plane can be tilted in one or two directions, and the drops set manually.
• On the laser head there is a sight to fit into the drop axis, which allows precise positioning of the device. The correct laser setting is facilitated by the vertical function, which generates a laser point downwards, ensuring the precise location of the leveler over the required point.
• There is no need to recalculate rows or add, subtract – all you need to do is tilt the planes according to the design.
• The NL340R laser offers an elevation alarm function, which is important for unstable substrate, which can cause ground subsidence and lower reference line.
• Thanks to this, the equipment works even in the most difficult off-road conditions.

We are building a house with laser NL340R

• The NL340R is indispensable at various stages of construction. We use it at the initial stages of building the plot, removing layers of humus and for foundation and masonry work.
• The laser will help determine the ideal level and bevels, e.g. for formwork under the stairs.

Precision

• The NL340R laser provides precise leveling thanks to an electronic compensator that eliminates vibrations.
• Compared to magnetic compensators, the electronic compensator offers much higher accuracy, especially in difficult construction conditions.
• The laser housing is dust and water resistant (IP54 class), and the rotary head is covered with a glass body.
• Rubber covers protect the device from damage due to impacts.

Convenience of operation

• The NL340R is easy to operate thanks to its intuitive control panel.
• The laser is powered by lithium-ion batteries without memory effect.

Equipment

• NL340R – laser leveler
• RD300R – laser sensor
• NL-BR 300 – sensor holder
• Aku CL 8000 – battery
• CH-CL USB C – charger with cable
• transport trunk

Technical data

• Laser beam: red laser (635 nm), class 2
• Accuracy: ± 1,0 mm/10 m
• Space inclination: ± 10% (X-axis, Y-axis), digitally
• Working range: 500 m (with sensor) – diameter
• Self-leveling range: ±5°
• Generated planes: 1 x horizontally (360°)
• Head spin speed: 600 rpm. /min
• Power Supply: 3,7 V (Li-ion, 8000 mAh)
• Resistance class: IP54
• Working temperature range: -20°C to +50°C
• Dimensions: 206 x 206 x 211 mm
• Weight: 3,0 kg

In delivery

• Rotary laser Nivel System NL340R
• Laser sensor RD300R
• Sensor holder NL-BR 300
• Battery Aku CL 8000
• Charger with CH-CL USB C cable
• Transport case
