Rotacinis lazerinis lygis PRO-L1322 TYXER R2

Trumpai apie prekę

Prekė: Rotacinis lazerinis lygis PRO-L1322 TYXER R2. Kategorija: Optiniai nivelyrai.

• Gamintojas: Pro
• Modelis: TYXER-R2

THE SET INCLUDES:

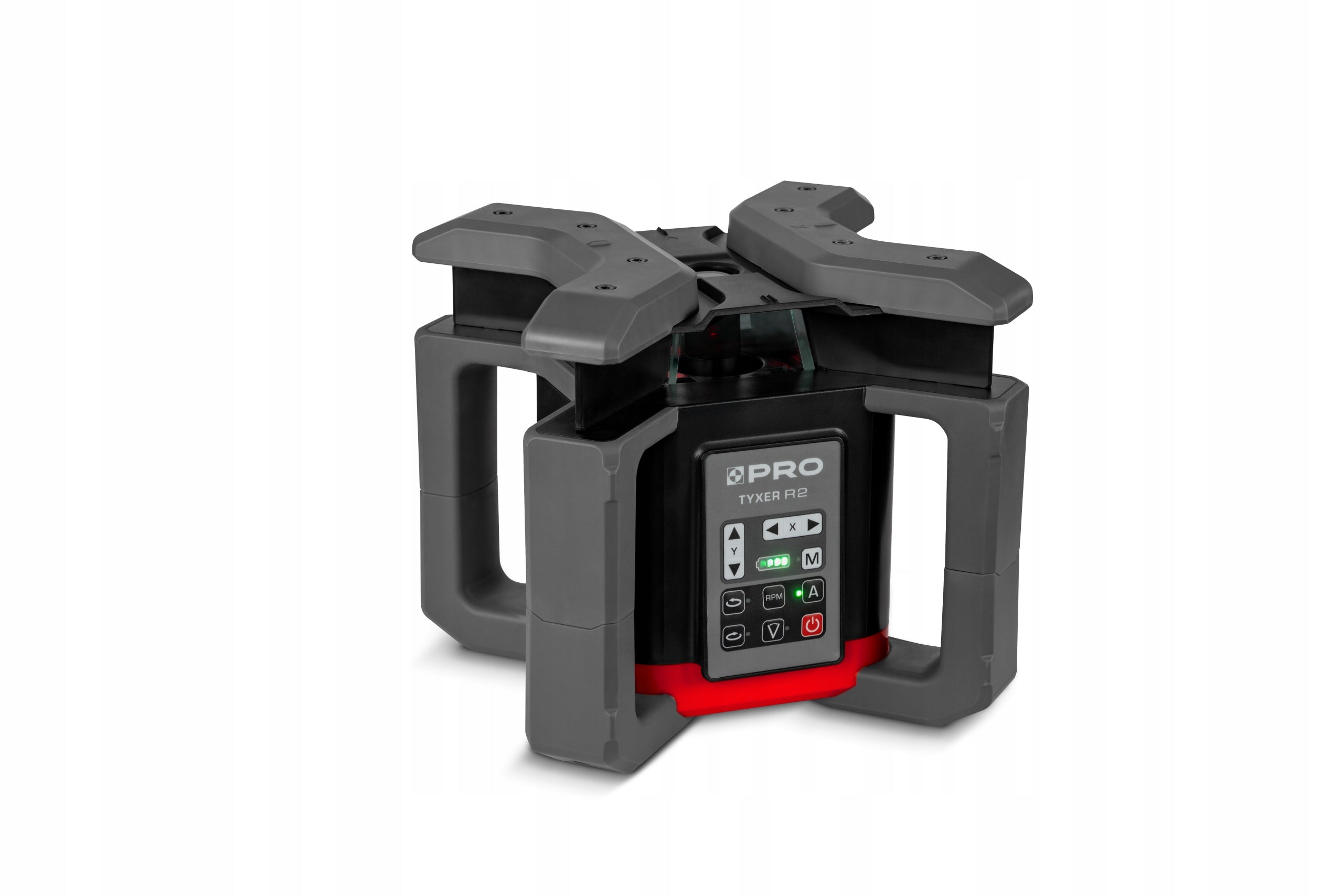

• Laser rotary leveler PRO TYXER R2
• Li-Ion battery 7,4V 4000mAh
• Red laser beam detector with patch holder
• Laser targeting shield
• Laser glasses
• Network charger with USB-C cable
• Remote control
• Transport case
• Operating instructions

Laser detector with two backlit displays, acoustic signal adjustment, accuracy switching (accurate or rough)

Leveler with accessories packed in a sturdy and very durable transport case, which will facilitate its storage and safe transport

FEATURES:

• Rotary laser leveler TYXER R2 with visible red beam
• For outdoor and indoor use.
• Automatic motor control: setting both level and vertical with the possibility of manual tilt setting independently in two X and Y axes
• Protection class IP54
• Tilt alarm function (TILT) resulting from shock or violation of the original position of the instrument, after which the instrument must be restarted manually
• Manual mode for determining a plane with any angle of inclination
• Working range (diameter) 700m
• Class 2 M laser diode, < 1mW 635 nm

TECHNICAL DATA:

• IP protection class: IP54
• Power supply: Li-Ion battery, 7,4V 4000mAh
• Laser beam color: Red
• Accuracy: ± 1,0 mm/10 m (±0,1 mm/1 m); ±20"
• Range (max): 700m
• Working temperature: -20°C ÷ 50°C
• Storage temperature: -15°C ÷ 60°C
• Vertical accuracy: ±1,0 mm/1,5 m
• Horizontal accuracy: ± 1,0 mm/10 m (±0,1 mm/1 m); ±20"
• Laser source: 635 nm solid state diode
• Rotary speed: 0-60-120-300-600 rpm
• Set: Yes
• Scanning angle: 10°/45°/90°/180°
• Self-leveling range: ±5°
• Remote control(range): 30m
• Battery life: approx. 45h
• Angle of leveler: 360°
• Lower point accuracy: Lower point accuracy ±1,0mm/1,5m

Specifications
