Robotinė vejapjovė NAC RLM1000-DY, išmani, su Wi-Fi

Trumpai apie prekę

Prekė: Robotinė vejapjovė NAC RLM1000-DY, išmani, su Wi-Fi. Kategorija: Robotinės vejapjovės.

• Gamintojas: NAC
• Modelis: RLM1000

Robot mowing brand NAC RLM1000-DY, valued on the Polish market. The mower is designed for lawns with an area of up to 1000 m2.

NAC RLM1000-DY + complete installation kit.

The robot has two powerful brushless motors and ultrasonic sensors that detect obstacles.

TECHNICAL DATA OF NAC RLM1000-DY.

ENGINE

• Engine type: electric, induction
• Power supply: 20V
• Battery capacity: 4,0 Ah
• Battery type: Lithium-ion
• Number of batteries: 1

WORK SYSTEM

• Average charging time: 180 min
• Maximum working area: 1000 m2
• Mowing width: 18 cm
• Minimum cutting height: 20 mm
• Maximum cutting height: 60 mm
• Mowing modes: random, spiral
• Type of cutting blade: three separate cutters
• Number of mowing zones: 1
• Maximum slope: 20%

EQUIPMENT

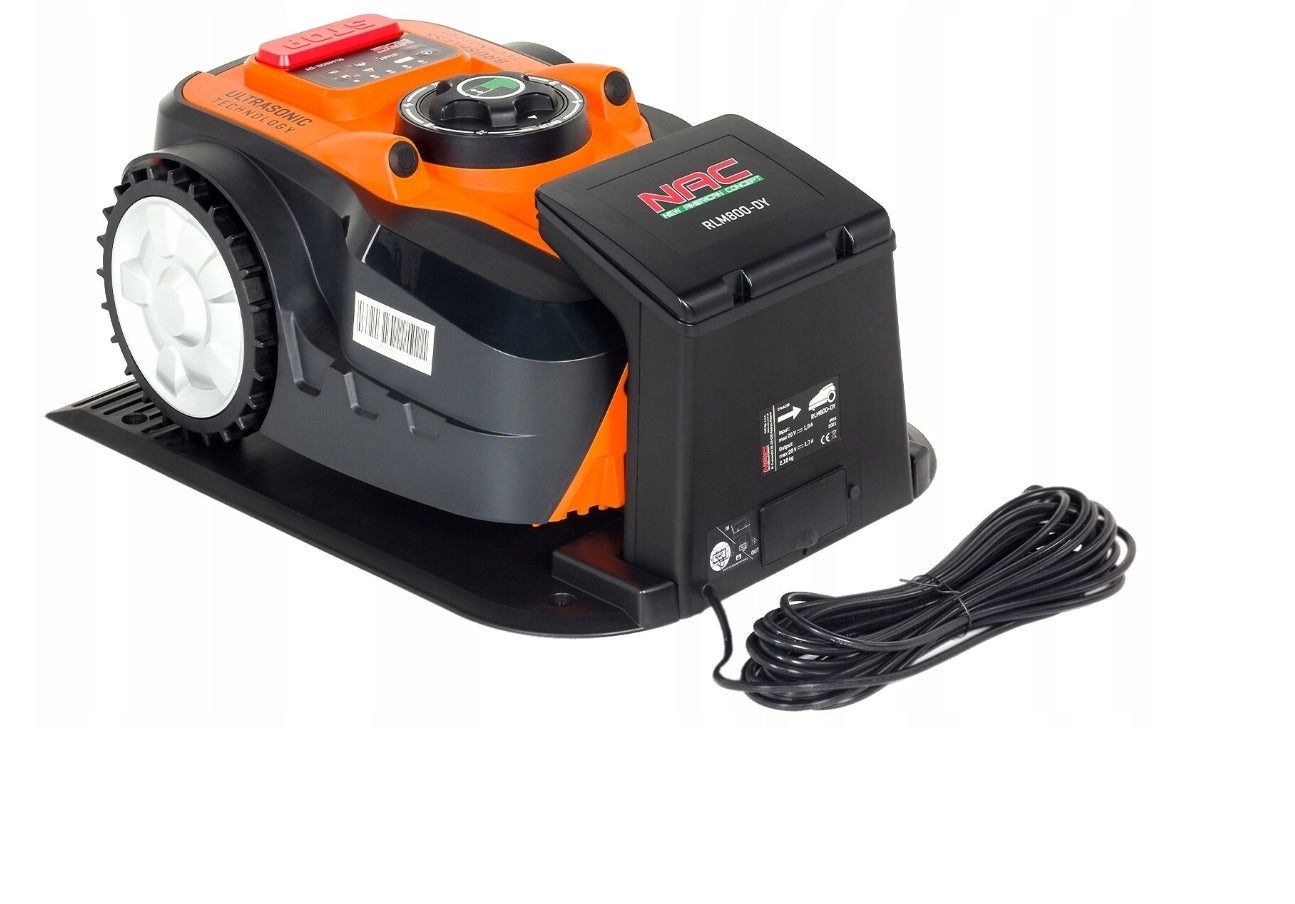

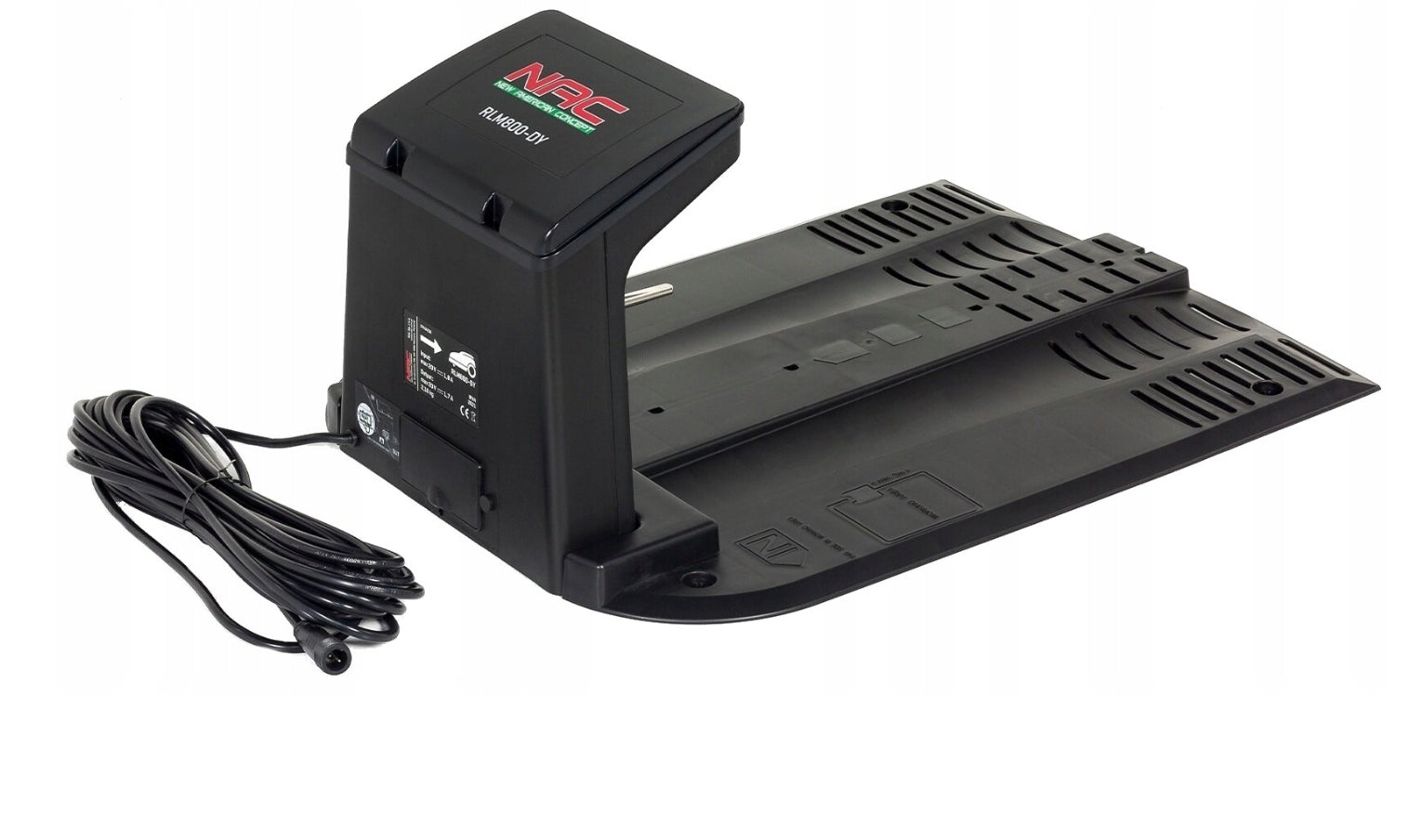

• Docking station included: yes
• Method of returning to the docking station: via cable
• Signal cable included: yes, 180 mb
• Cable fixing pins included: yes, 240 pcs.
• Rain sensor: yes
• Tilt sensor: yes
• Obstacle detection sensor: yes, ultrasonic
• Lifting sensor: yes
• BLUETOOTH module: yes
• WiFi module: yes
• Mobile application: yes
• GSM module: no
• Edge trimming function: no
• PIN code protection: yes
• Safety switch: yes

OVERALL DIMENSIONS

• Weight: 8,43 kg

AUTOMATIC ELECTRIC MOWER - ROBOTIC MOWER NAC RLM1000-DY

The kit includes everything needed to install the mower.

Modern mowing algorithm - grass is always cut from the other side. The result is a very nice lawn.

Easy to use.

After installing the charging station and perimeter cable, simply set the time of one mowing cycle. The robot will automatically select the track.

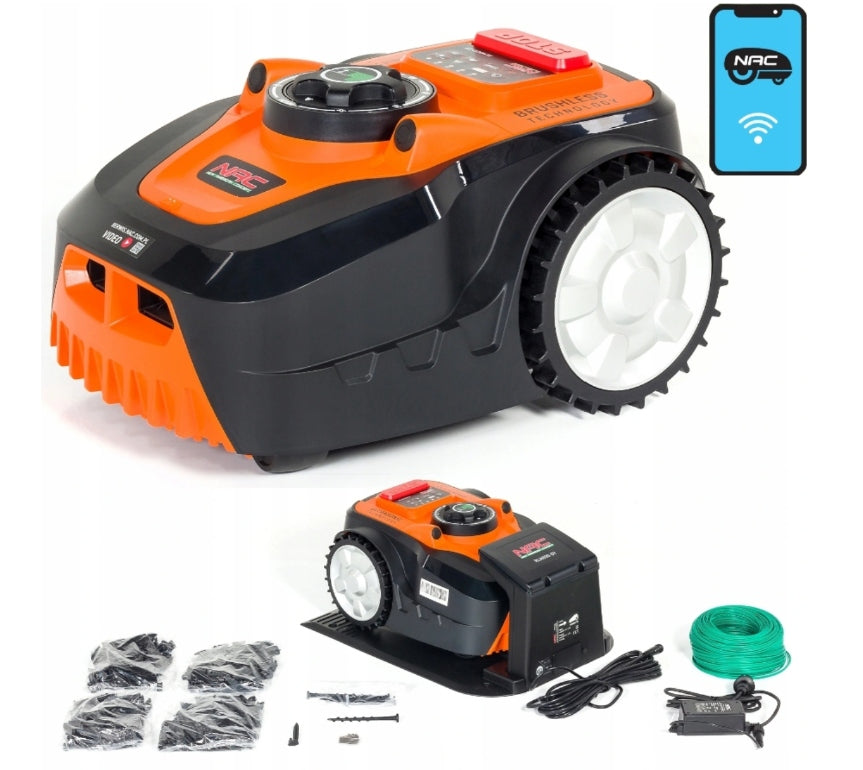

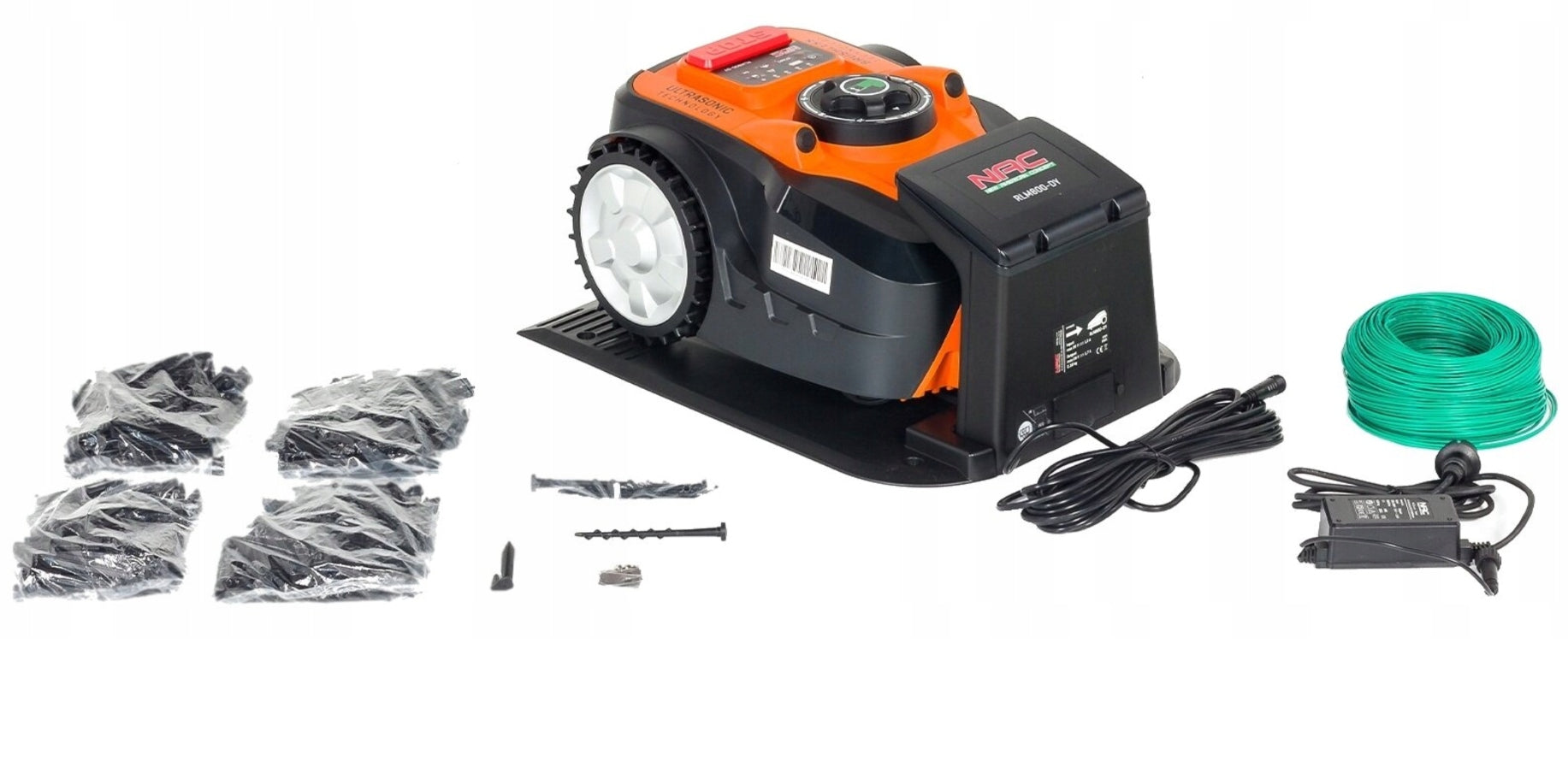

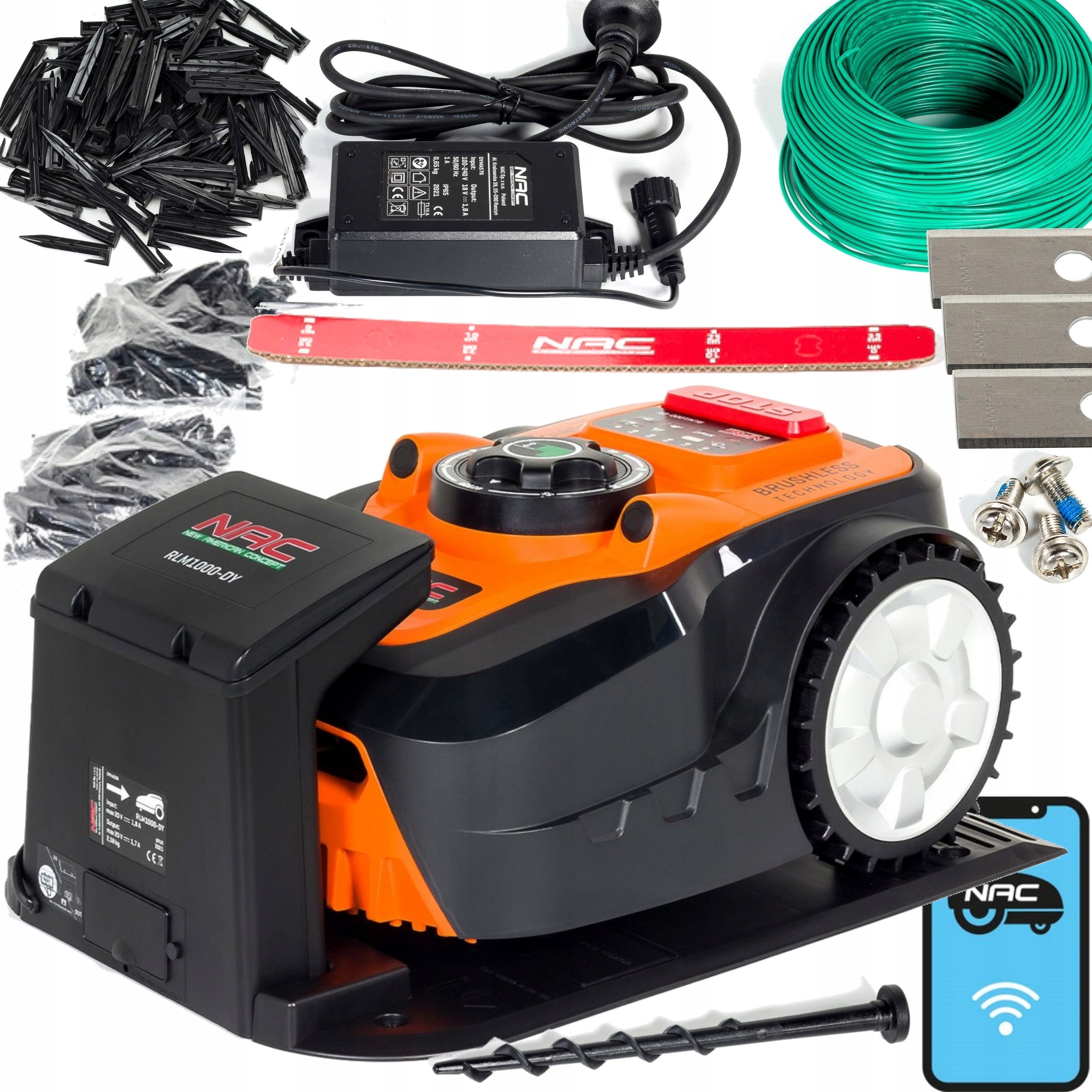

RLM1000-DY mowing robot. is equipped with:

• Corporate carton NAC,
• 2 sets of cutting blades: 1 set mounted in the robot and 1 spare set
• Docking station,
• Battery charger,
• 4 screws for fixing the docking station,
• Strip (ruler) for distance measurement,
• 180 mb of limit cable,
• 240 pins fixing the signal cable in the ground
• Wi-Fi and Bluetooth relay,
• A set of assembly tools.

GUARANTEE OF QUALITY AND ACCESS TO AUTHORIZED MANUFACTURER’S SERVICE

• Warranty card NAC,
• EC declaration of conformity,
• Instruction manual in Polish

Guardian of your perfectly maintained lawn

There is nothing more pleasant than watching the work do itself. Especially when it is done accurately and reliably. Cross lawn mowing off your to-do list. From now on, the robot takes over your duties. Schedule time with your family, go on vacation or do something you just didn’t have time for before. For the most demanding people who value their time and convenience, we present an excellent machine that will introduce the user to a new level of lawn care experience - the robot mowing NAC RLM1000-DY. It is the result of the latest technological solutions, as well as the search for answers to the question of how to make work in large garden spaces not absorb your time, and at the same time bring a brilliant effect, pleasing the eyes every day. The advantages of an autonomous mower, in addition to not having to remember to mow, can also include the lack of composting or transporting the swath. The mowing robot mulches the grass, i.e. cuts off its small fragments, which go back to the turf and create an additional dose of fertilizer. Frequent mowing also affects the fact that weeds do not have time to develop. In addition, the mowing robot is quiet - it will not interfere with rest, neither people staying in the garden nor neighbors. Bet on the right gardener in your garden from NAC.

Set the boundaries of your garden and enjoy a beautifully mowed lawn

The NAC RLM1000-DY is designed for fully maintenance-free mowing of your lawn. The boundary line placed in the grass delineates the mowing area, and also rewards any permanent obstacles located on the lawn. The cable creates a closed circuit – its beginning and end are placed in the charging station, which simultaneously powers the cable with a very low voltage and intensity – completely harmless to humans and animals, but detectable by robot sensors. The unique mowing system will make your lawn more beautiful than ever – mowing can be done both day and night. Random and spiral cutting system for even greater mowing efficiency - robot automatically selects mowing mode depending on grass height and load. The mowed grass is sheared with almost surgical precision and then strongly shredded into small particles that are a natural fertilizer for the lawn. The robot knows when it is falling from strength. At this point, it automatically heads towards the charging station to charge the batteries. It does not require any user intervention, because it moves intuitively, according to the area of work programmed for it.

Random lawn cutting system

Based on its principle of operation “randomly”, the robot automatically mows the entire demarcated area of the lawn. The robot at different angles reaches and bounces off the wire that marks the boundary of the lawn. In this way, after a sufficiently long working time, the entire lawn will be mowed, and you can admire the effects of the work that was done for you.

Spiral Lawn Cutting System

The robot is able to recognize the presence of higher and/or more dense grass in the garden area and run automatically, if it deems it necessary, spiral movement in order to better finish the lawn shearing.

Find out how easy it is

Installing the NAC mowing robot is a very easy process. It is enough to properly place the docking station, then surround the mowed area with a boundary wire, attaching it to the lawn with special pins. The last step is just to set the mowing time and you’re done. All these steps are described in detail in the user manual and below in three easy steps. No special skills are required. If the annual verticulation of the lawn is performed in the garden, the installation can be recessed in the ground up to 5 cm - this protects the installation from accidental damage. Below is a way to install the robot in your garden - see how easy it is.

Installation of the robot in the garden

Before proceeding with laying the perimeter cable, it is necessary to inspect the entire lawn surface. Estimate any changes that need to be made to the grass surface or precautions that need to be taken when laying the circuit cable for better robot functioning:

1. Installation of a circuit cable.

2. Installation of charging station and power supply.

3. Working time setting - choice from 4 to 12 working hours on one cycle. The robot does not require setting a start schedule - it automatically selects the working time itself.

Highest requirements – efficient brushless motors

The presented autonomous mower has been equipped with two modern, induction electric motors - one for each drive wheel. Due to the lack of brushes, these motors are quieter and much less emergency than commutator motors. The use of brushless motors ensures a reduction in the current causing heat generation - the increase in temperature on the housing is reduced even during heavy applications in the garden. In addition, they are practically trouble-free, do not wear out mechanically, have a simpler structure and have high efficiency. Brushless technology minimizes the need to service equipment and significantly extends its service life. In addition, thanks to it, the robot works quieter and its motors use less energy to work.

Powerful Lithium - Ion Battery

The environmentally friendly NAC RLM1000-DY mowing robot is powered by a new generation battery with a capacity of up to 4,0 Ah. The obvious reason why NAC uses lithium-ion batteries is its significantly longer life compared to standard Ni-Cd and Ni-Mh counterparts. The lithium-ion battery is smaller and lighter, and its discharge time is very long. In addition, these batteries are also able to optimally distribute energy towards traction and mowing functions. What’s more, thanks to the use of lithium-ion cells, they are characterized by exceptional service life and do not spontaneously discharge – there is no capacity loss effect. When, after a long effort, your robot finally falls from strength, it will head towards the charging station itself. You don't have to do anything. NAC RLM1000-DY will recharge the batteries and return to the work cycle. The modern technology used ensures the best battery parameters and long-term service life. Bet on a battery powered device and be ECO!

Perfect mowing

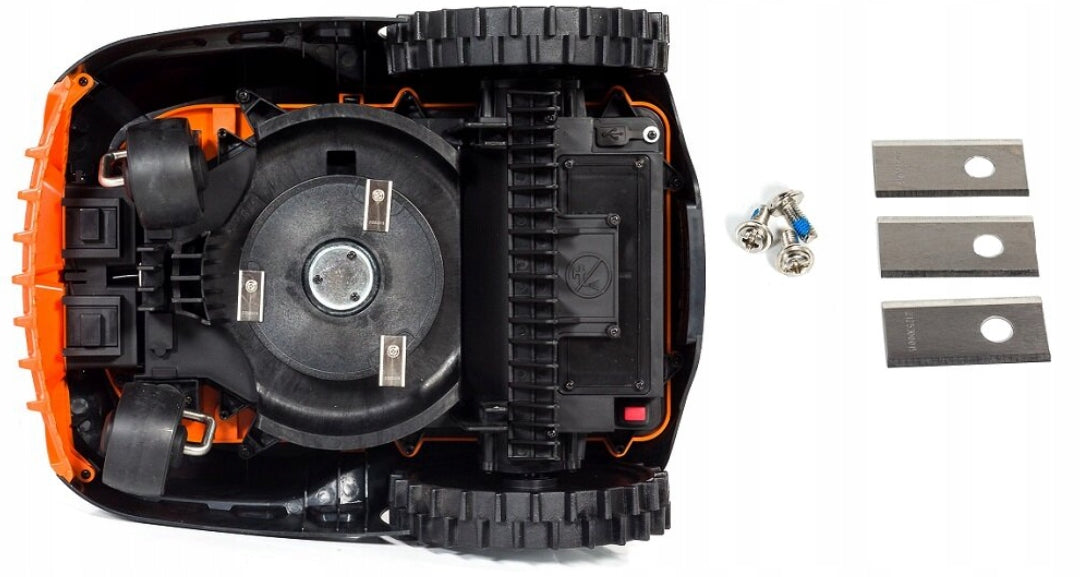

Three separate cutting knives with a total cutting diameter of up to 18 cm are made of high quality stainless steel. They are characterized by excellent durability and extreme cutting precision. Every day they mow a few millimeters of grass height so that it grows evenly and pleases your eyes every day. The presented robot NAC RLM1000-DY, thanks to its efficient motors and intelligent blades, is ideal for working on a lawn with an area of up to 1000 m2.

Mowing with automatic mulching function for ecological lawn care

The question that everyone who hears about the mowing robot for the first time asks is: “What does the robot do with the mowed grass? Is he collecting it somewhere? ”. No, it does not collect, but mulches. The process of mulching grass consists in mowing grass very often so as to cut as short blades of grass as possible, with a length of at most a few millimeters. In addition, the cutting blades themselves are shaped so that the mowed blades are chopped into the smallest fragments. Cuts after mowing, before they decompose, form a very thin layer that limits the evaporation of water from the soil. In addition, mulching contributes to maintaining biological balance and feeds grass with nutrients. With the mowing robot, your lawn will always be fresh and green.

A clever way to manage a robot

Bluetooth (direct connection to the robot) or Wi-Fi (connection via home LAN) communication in combination with the dedicated NAC Robot Mower application allows remote programming of the robot using a smartphone or tablet. Thanks to this function, the user has full control over the device without having to approach the robot. The mowing robot is your helper. Durable, proven and reliable, it will carry out every command and above all... it will be faithful to you. There is no chance of even an innocent jump to the side, because you have the PIN code protecting it and you will not hesitate to use it. The PIN code protects the robot against theft and unauthorized use or changing settings. To start the robot and access the programming options, it is necessary to provide a 4-digit code.

Durable body and perfect stability

The robot has an impact and fade resistant housing that will always look like new, and the solid axle and wide tires guarantee excellent machine stability.

Adjust the appropriate length of the perimeter cable and the number of pins

The length of the perimeter wire provided in the kit and the number of fixing pins may be insufficient for complex lawn shapes. In the selection of the number of pins should be guided by the principle of one pin per one running meter of the cable - in the case of arches, they should be placed more densely. Additional limit cable and pins fixing it to the ground can be found in our offer
