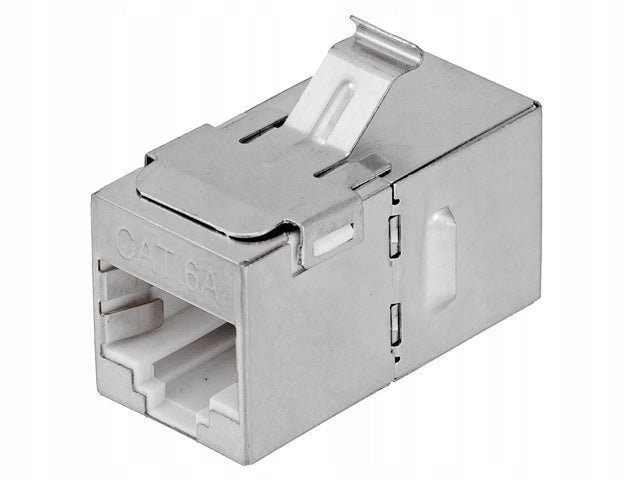

RJ45 Cat.6A STP ekranizuota jungtis Keystone

Kaina:
€25,09
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: RJ45 Cat.6A STP ekranizuota jungtis Keystone. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Stratos
  • Modelis: 42040

Catalog No.: 42040

The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www. stratos . pl/strony/ 42040.htm

The connector is used to connect two STP (shielded) cables equipped with RJ45 plugs with transmission in the cat.6A standard (class EA - 500MHz) at a speed of up to 10Gb / s. The internal connections of the connector are realized 1:1 i.e. In both sockets, pins with the same numbers are connected to each other - thanks to this, it is possible to accurately reproduce the pins of the connected wires. The housing is made of nickel-plated brass sheet, thanks to which the continuity of shielding of the joined wires is maintained.

The connector has hooks of the KEYSTONE standard, thanks to which it is possible to easily (through a latch) attach in KEYSTONE handles. The dimensions of the connector are presented below:

The design with hooks of the KEYSTONE standard gives the possibility of using the connector in ICT equipment with handles of the KEYSTONE system. There is a whole range of cans, frames, adapters and RACK panels with KEYSTONE handles designed to attach elements with KEYSTONE hooks.

Examples of solutions for cans, frames, adapters and panels with KEYSTONE connectors are presented on the following examples:

All connectors, cans, frames, adapters and panels of the KEYSTONE type offered by us can be found on our auctions by entering KEYSTONE in the field 'search in user objects'.

  • Category: 6A, EA class, 500MHz band
  • Material: housing - nickel plated brass sheet, contacts - gilded phosphor bronze
  • Connectors: 2x RJ45/8P8C shielded socket, female
  • Dimensions length/width/height: 30/17/23mm
  • Standard Keystone 19.35mm x 14.8mm
  • Weight: approx. 9g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Stratos
Parametry Product weight with unit packaging 0.01 kg
Parametry Number of ports 2
Parametry EAN (GTIN) 5905247244284
Parametry Manufacturer code 42040
