Replės Seger 7" KD10323 KRAFT&DELE

Trumpai apie prekę

Prekė: Replės Seger 7" KD10323 KRAFT&DELE. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Kraft&Dele
• Modelis: KD10323
• Ilgis: 180 mm

KD10323 is a set of four KRAFT&DELE Seger pliers in size 7 inches, designed for assembly and disassembly of settling rings (protecting). The kit includes all the basic variants – internal and external pliers in straight and bent versions – allowing you to work with rings embedded in different places and orientations.

Model KD10323 Size 7" (inch) Number of pliers included 4 pieces Set weight 0,8 kg

Characteristics of the set

Four variants in one set

The set includes straight inner pliers, bent inner pliers, straight inner pliers and bent inner pliers. Internal pliers are used to handle rings embedded in sockets (e.g. in cylinder holes, bearing housings), external — for rings fitted to shafts and spigots. The curved version allows you to work in places with limited access, where a straight tip does not give sufficient visibility or freedom of movement.

Size 7 inches

The length of 7" (about 178 mm) is a size suitable for use with Seger rings used in typical mechanical components – gearboxes, transmissions, suspensions, electric motors. Longer arms provide better access to deeper-seated rings than smaller 5-inch sets.

Tool design

Pliers are made of materials resistant to mechanical deformations arising during compression and stretching of elastic settlement rings. Ergonomic handles allow you to maintain a secure grip even when working in more difficult workshop conditions.

Scope of application

The completeness of the set makes the tool suitable both for service work in a car or mechanical workshop, as well as for occasional home or hobby repairs, where it is necessary to disassemble or install settlement rings without the need to purchase several separate tools.

Seger Rings - Basic Information

Seger rings (settling, securing) are elastic elements mounted in grooves on shafts or in holes, used for axial positioning and securing bearings, gears and other components. Dedicated pliers are required for their assembly and disassembly – using the wrong tool threatens to deform the ring or damage the socket. Before buying, you should check whether you need pliers for inner rings (for holes) or outer rings (for shafts), as well as whether a straight or bent tip is required.

Technical specification

Model KD10323 Brand KRAFT&DELE Size 7" (inch) Number of pliers included 4 pieces Types of pliers Internal straight, internal bent, external straight, external bent Purpose Assembly and disassembly of settlement rings (Seger) Weight set 0,8 kg

Typical applications

• Disassembly and installation of settlement rings in gearboxes and transmissions
• Suspension service — ring support on the rings and shafts
• Repair of electric motors and alternators
• Work on hydraulic and pneumatic pumps
• Operation of bearings in industrial and workshop machinery
• Repair of household appliances and electrical tools
• Hobby and modelling works requiring disassembly of small components

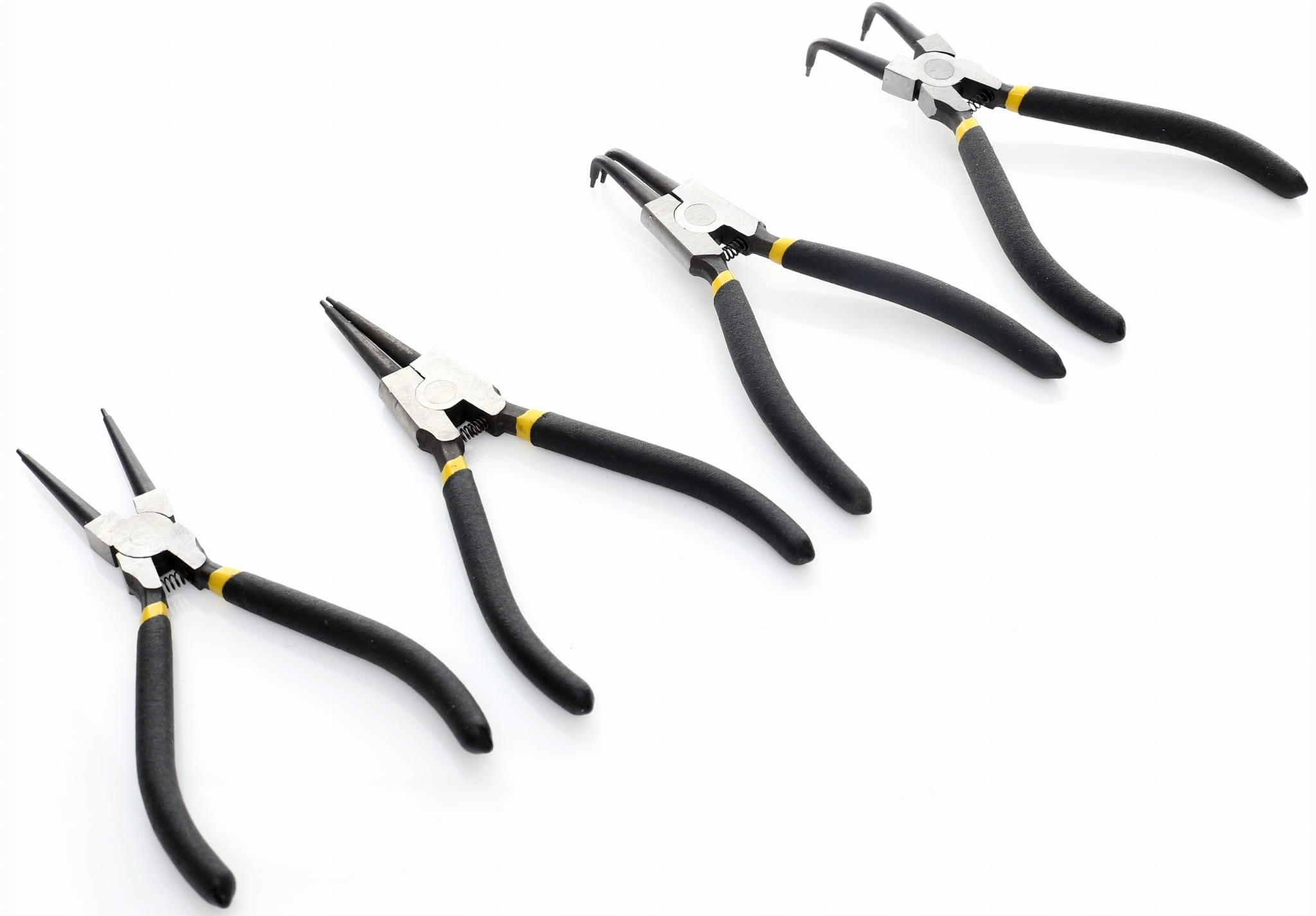

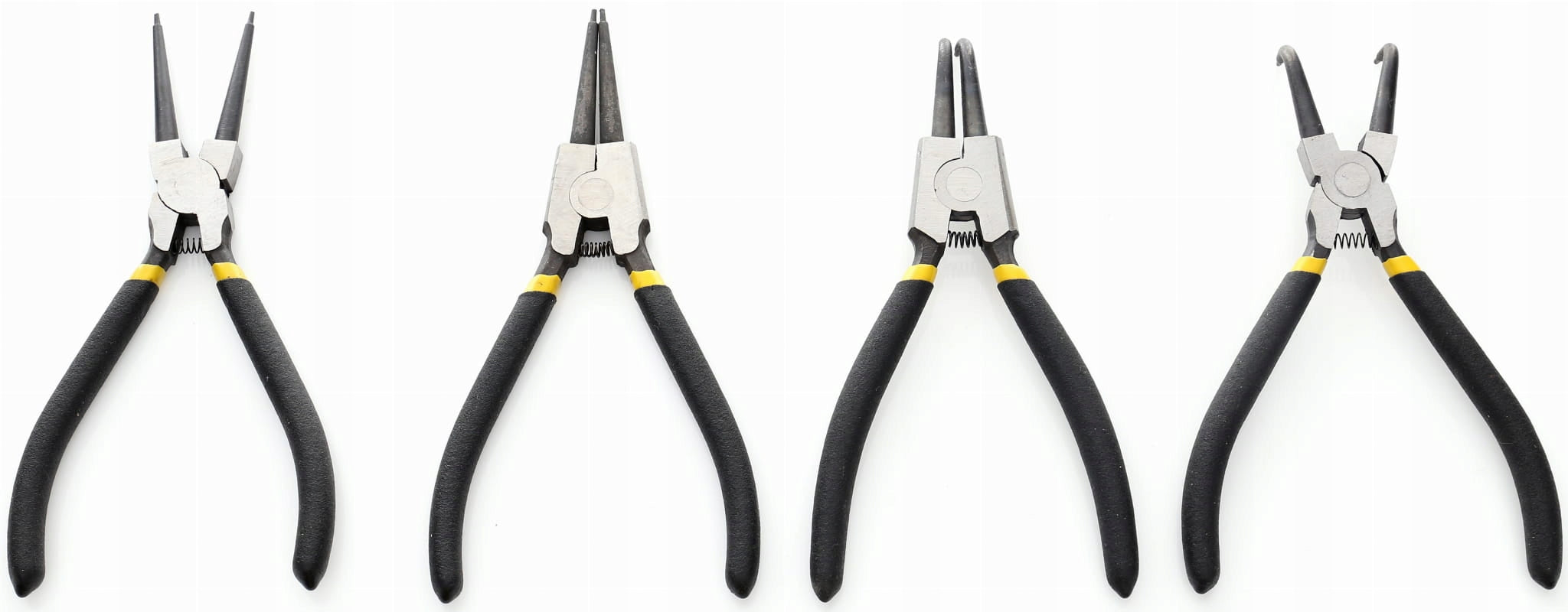

Composition of the set

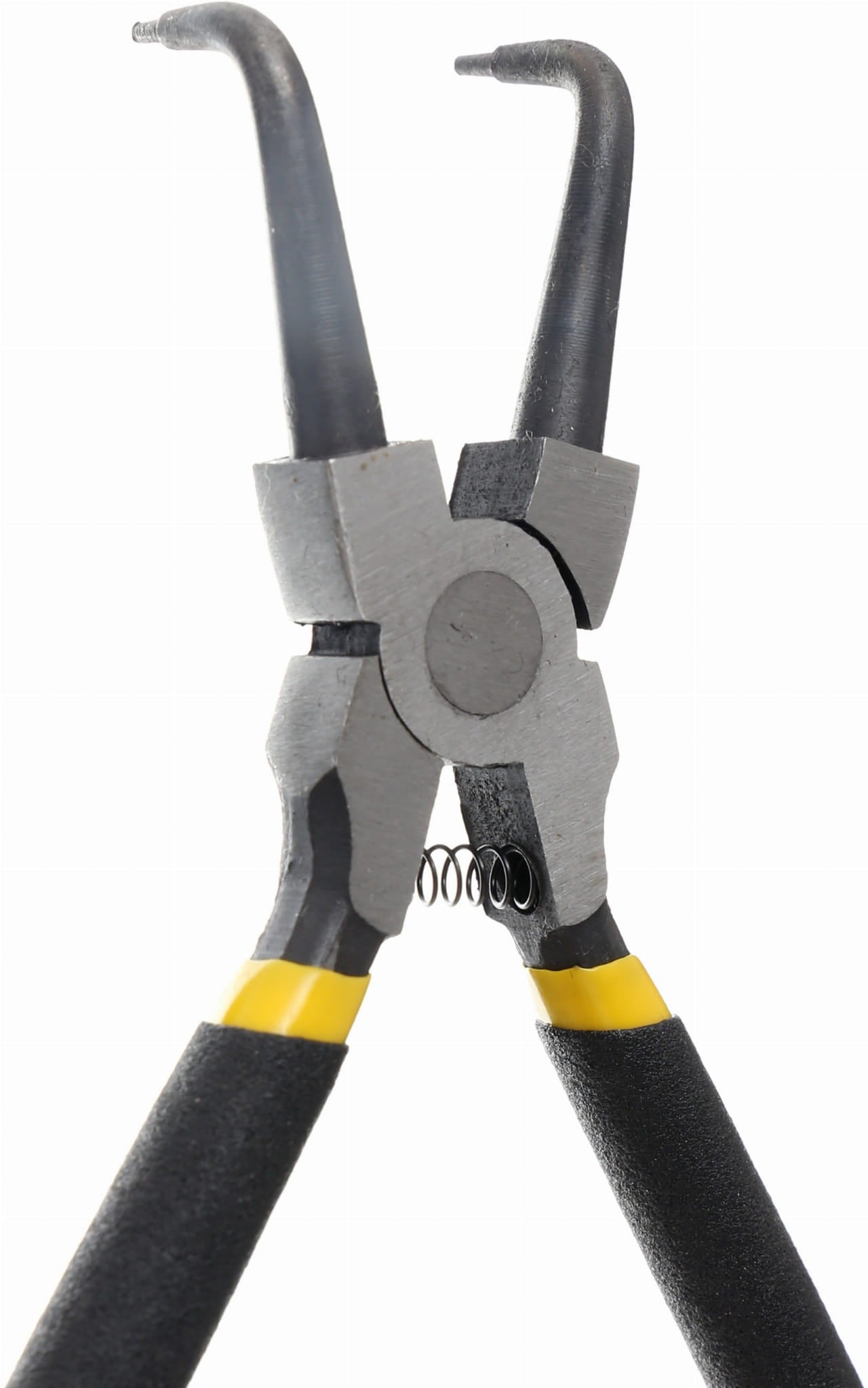

Straight inner pliers For rings embedded in holes, with free access Bent inner pliers For rings in holes with limited visibility or access Straight outer pliers For rings placed on shafts and spigots, with free access Bent outer pliers For rings on shafts in hard-to-reach places

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kraft&Dele
Parametry	Length	180 mm
Parametry	Product weight with unit packaging	0.7 kg
Parametry	Manufacturer code	KD10323
Parametry	EAN (GTIN)	5901638119971
Parametry	Kind	pliers,ring pincers
