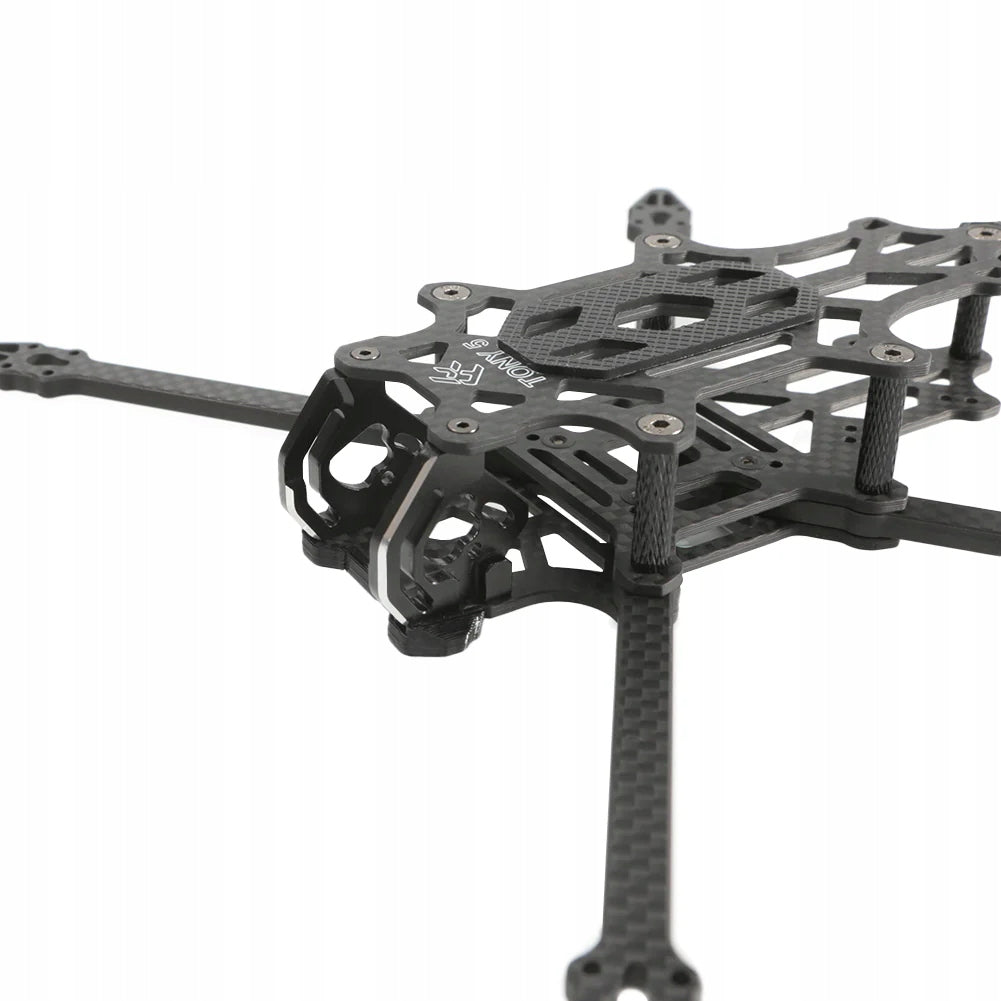

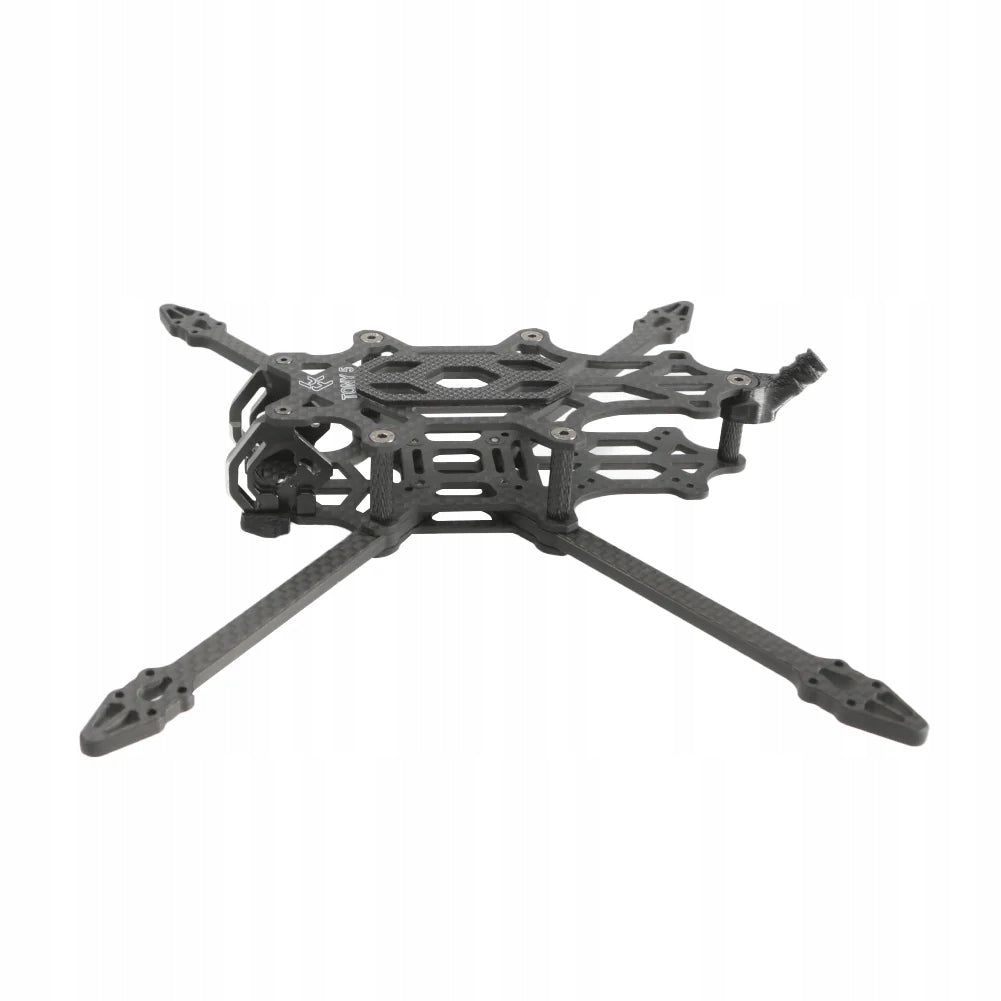

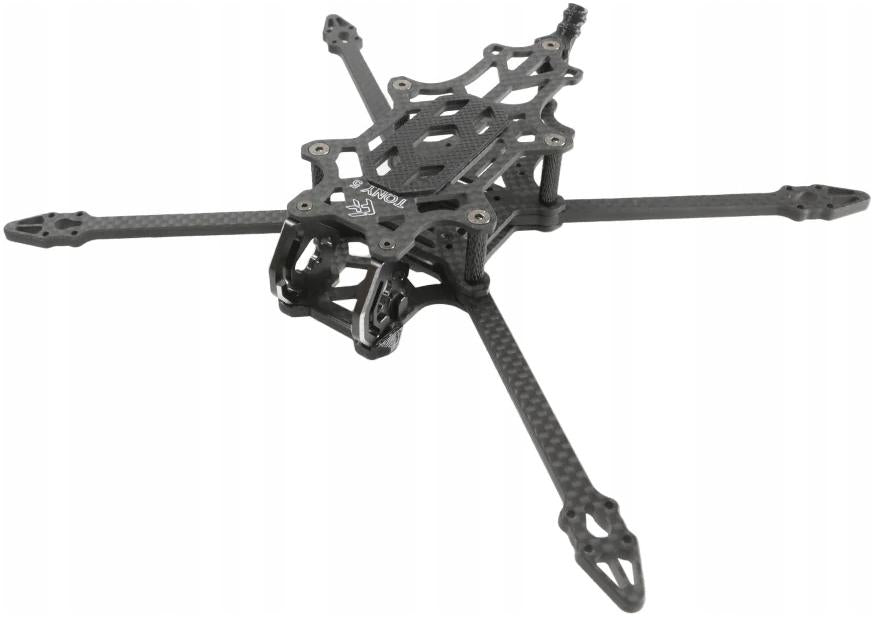

Rėmas Tony 5 Sub250 FPV Freestyle

Trumpai apie prekę

Prekė: Rėmas Tony 5 Sub250 FPV Freestyle. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: Tony 5 Sub250 FPV Freestyle

⬇ See more ⬇

FlyFishRC Tony 5 Sub250 FPV Freestyle is an ultra-light 5" frame designed to build an efficient freestyle drone with a weight as close as possible to the limit of 250 g. It combines low weight, high rigidity and compact design, making it perfect for modern FPV builds.

The most important advantages of the model:

• Frame weight only 57 g (with TPU)
• designed for sub-250 g builds
• True-X geometry for predictable volatile properties
• durable carbon fibre T700
• Aluminum CNC Plates to Protect Camera
• silicone shock absorbers limiting the jello effect
• Compatibility with 19 mm / 20 mm cameras
• Support for analog and HD configurations

The frame is fully compatible with DJI O3, and also supports HDZero, Walksnail HD and classic analog configurations. The design makes it easy to install and allows you to use AIO controllers or a 20x20 mini stack, giving you plenty of freedom when assembling your own FPV drone.

Technical specification:

• Model: Tony 5
• Geometry: True-X
• wheelbase: 215 mm
• Propeller Size: 5 inches
• arm thickness: 4 mm
• thickness of upper / middle / lower plate: 2 mm
• CNC plate thickness: 4 mm
• FPV camera spacing: 19 mm / 20 mm
• Engine mounting holes: 12 x 12 mm (M2)
• Stack mounting holes: 20 x 20 mm / 25.5 x 25.5 mm (M3)
• VTX mounting holes: 20 x 20 mm / 25.5 x 25.5 mm (M2)
• dimensions: 133.7 x 168 x 29 mm
• Weight: 57 g (with TPU)

This is a proposal for people who are looking for a lightweight, maneuverable and refined 5-inch frame for freestyle. FlyFishRC Tony offers a very good compromise between low weight and durability, making it suitable for both daily flights and more ambitious FPV projects.

Composition of the set:

• 1x FlyFishRC Tony 5 Frame Kit
