Rėmas Pilotix Edition PT13

Trumpai apie prekę

Prekė: Rėmas Pilotix Edition PT13. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: PT13

Frame Partizan Edition PT13

Partizan

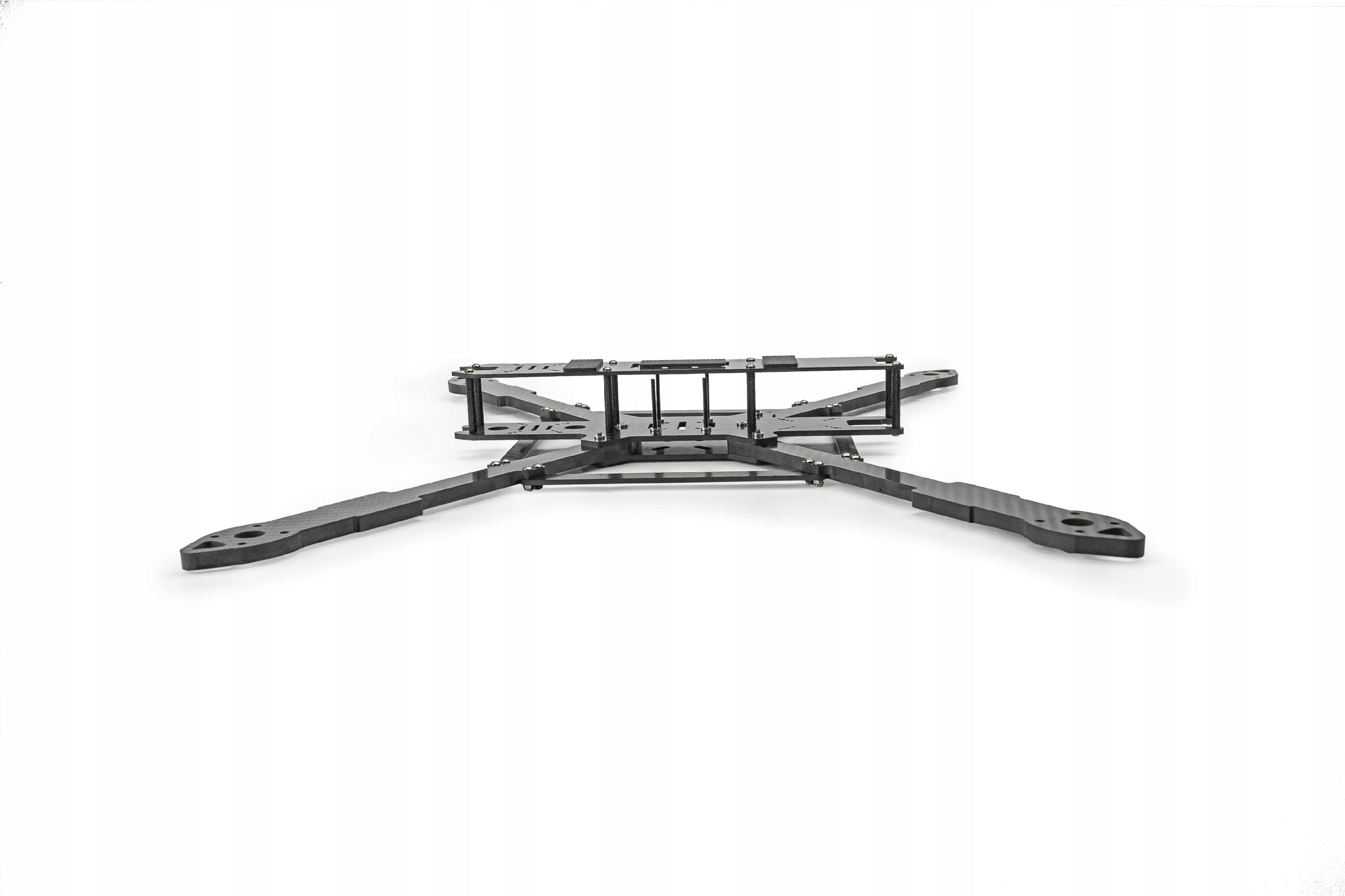

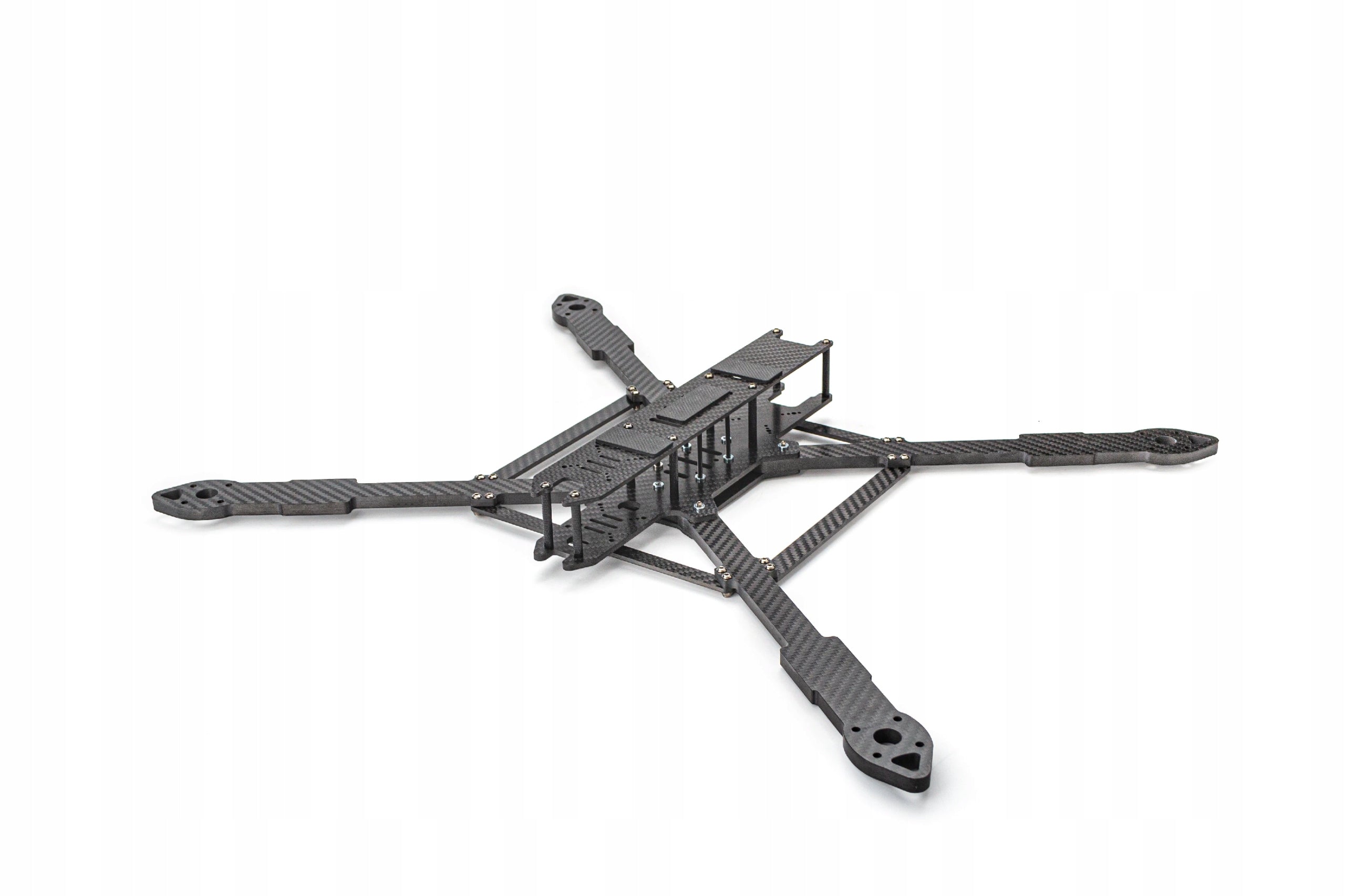

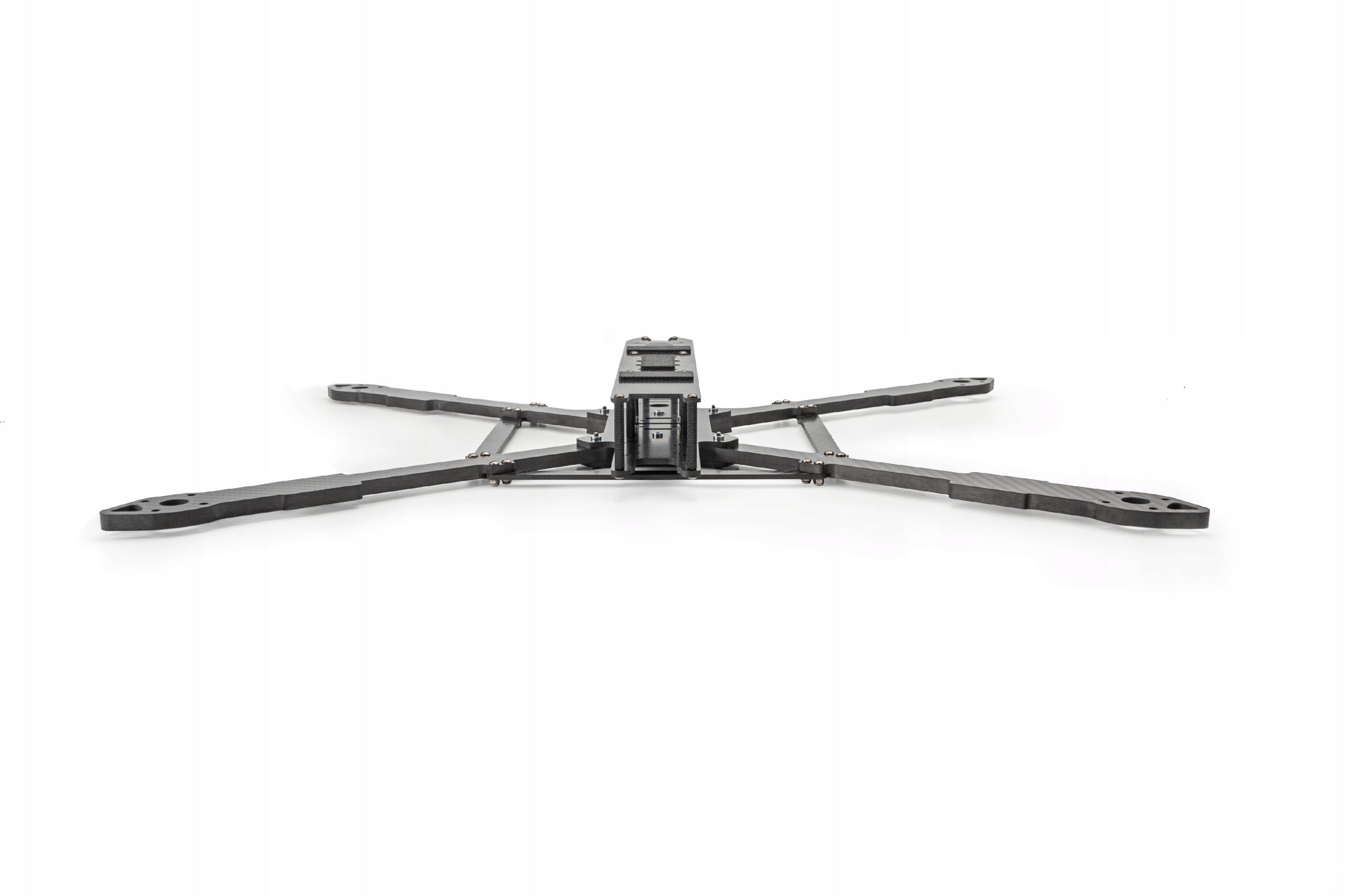

Frame Partizan Edition PT-13

The PT-13 Partizan Edition Frame is a highly reliable frame kit for heavy-load missions. Its high-strength fuselage structure effectively reduces unnecessary shaking and resonance during flight.

Specifications:

Model: PT-13 Partizan Edition

Wheelbase: 575mm

Arm thickness: 8mm

Top plate width: 46mm

Top plate length: 269mm

Top plate thickness: 2.5mm

Bottom plate width: 93mm

Bottom plate length: 270mm

Bottom plate thickness: 3.5mm

Dimensions: 507x403x52mm

FC mounting holes: 30.5mm

Camera mounting: 19mm

Weight: 0.6kg

Recommend Parts:

Flight Control: F405 V4 ICM42688P / F722

ESC: AM32 80A 4in1 ESC

Motor: 4214-660KV

Camera: Ratel2 Night Version/ Ratel Pro

VTX: 4.9-6.2Ghz 3W

Receiver: ELRS 915Mhz Diversity

Antenna: RHCP SMA 160mm

Propeller: 1309-3 blades

Battery: 6S 30000mah Semi Solid Battery

Download documentation

Package Includes:

1x Frame Partizan Edition PT-13

1x Aluminum column kit

1x Screws kit

1x Nuts kit

1x Prints kit

1x PT Battery pad

2x Battery strap

• Material: Carbon fiber
• Camera Mounting: Micro (19mm)
• Size: 13 inch
• Motor Size: 4214
• Drone Type: Long Range

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	PT13
Parametry	EAN (GTIN)	5061099735797
Parametry	Manufacturer code	5944
Parametry	Product weight	600 g
Parametry	Batteries included	no
